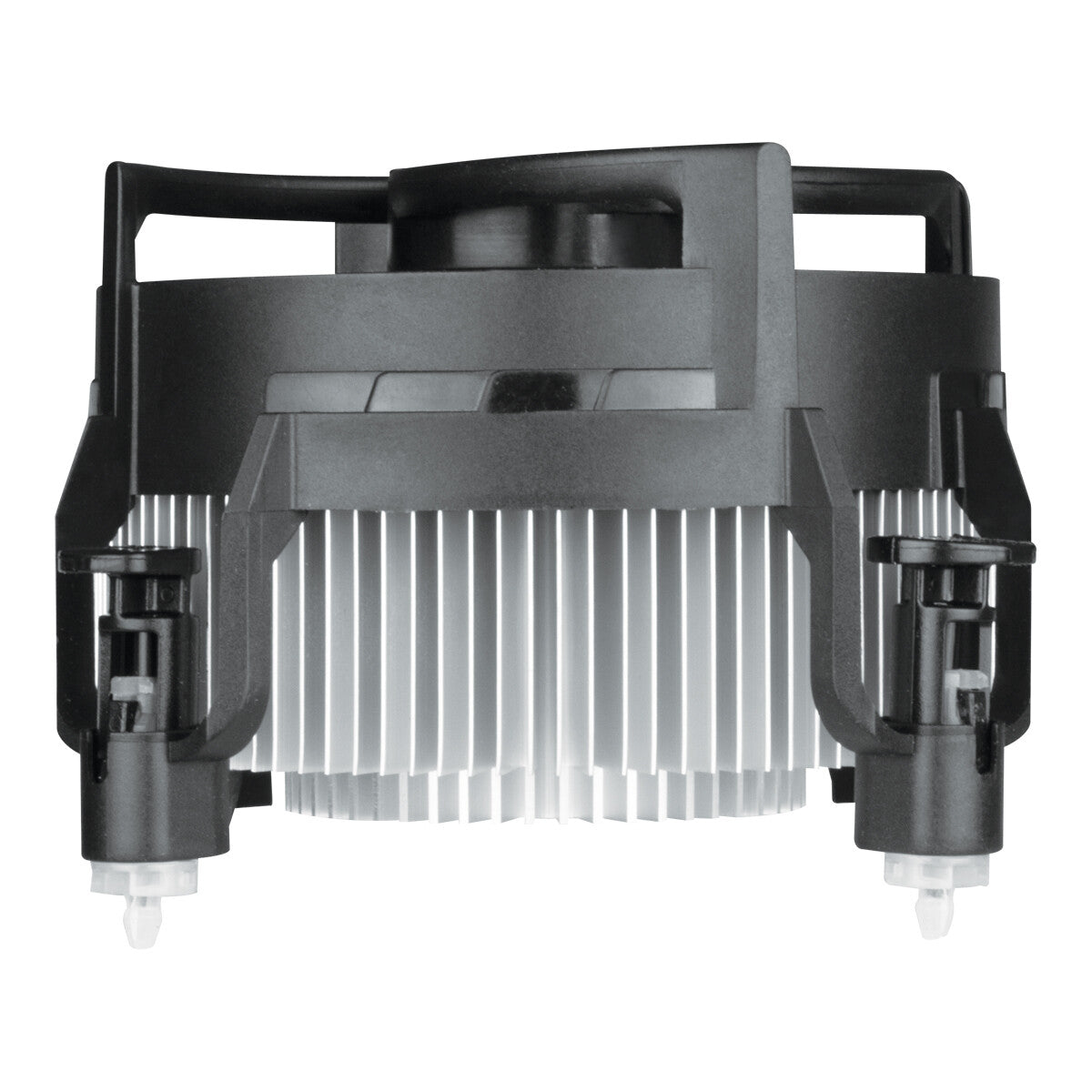

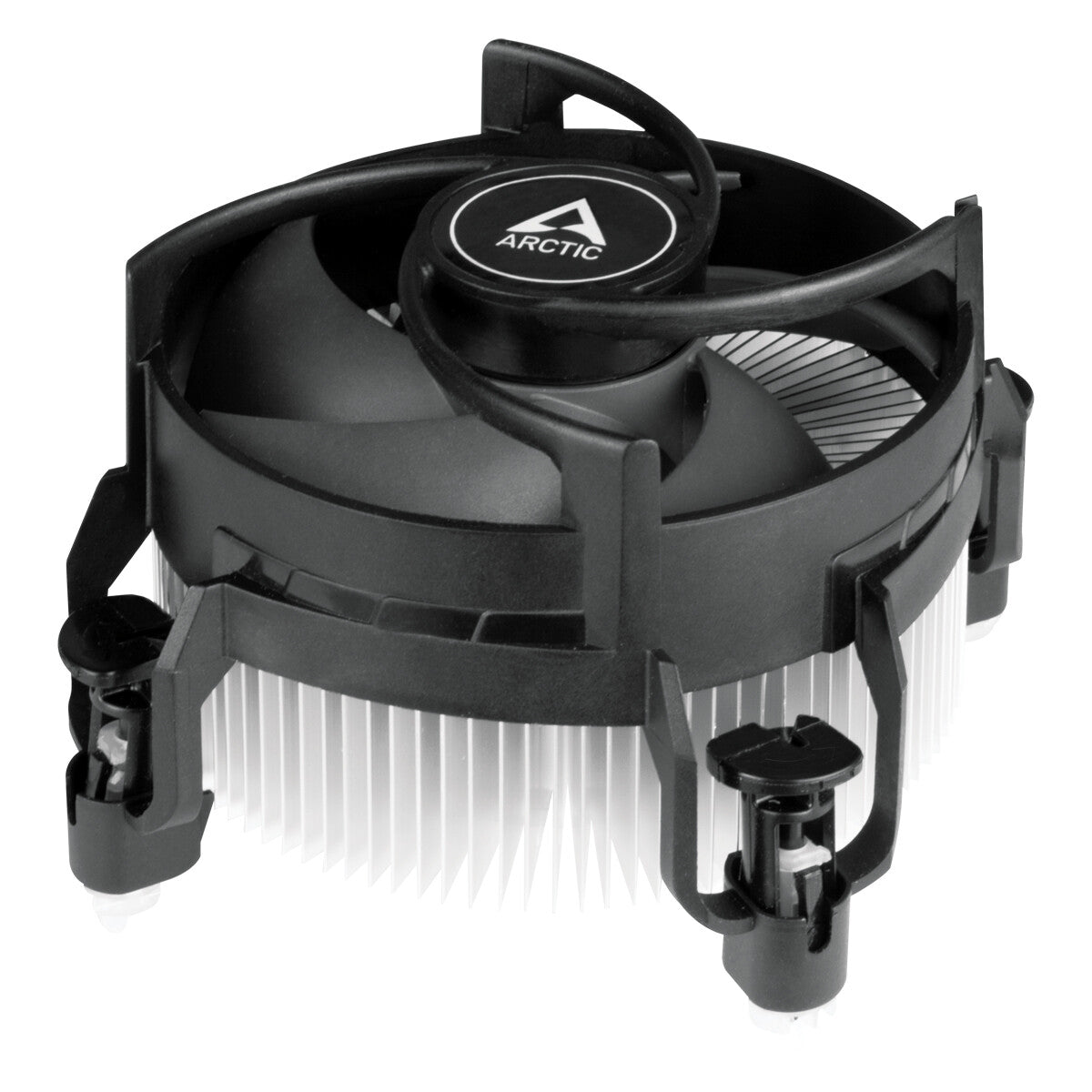

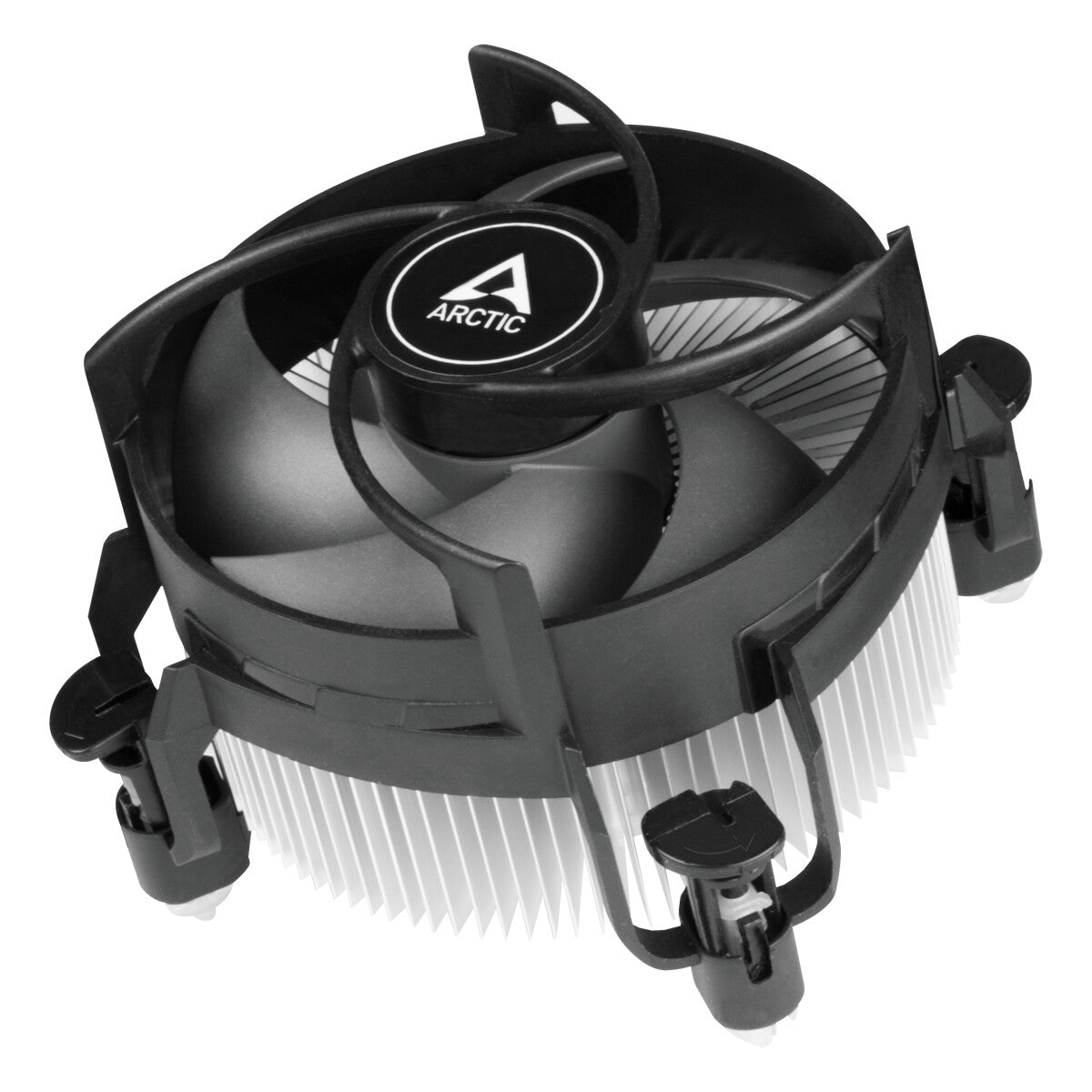

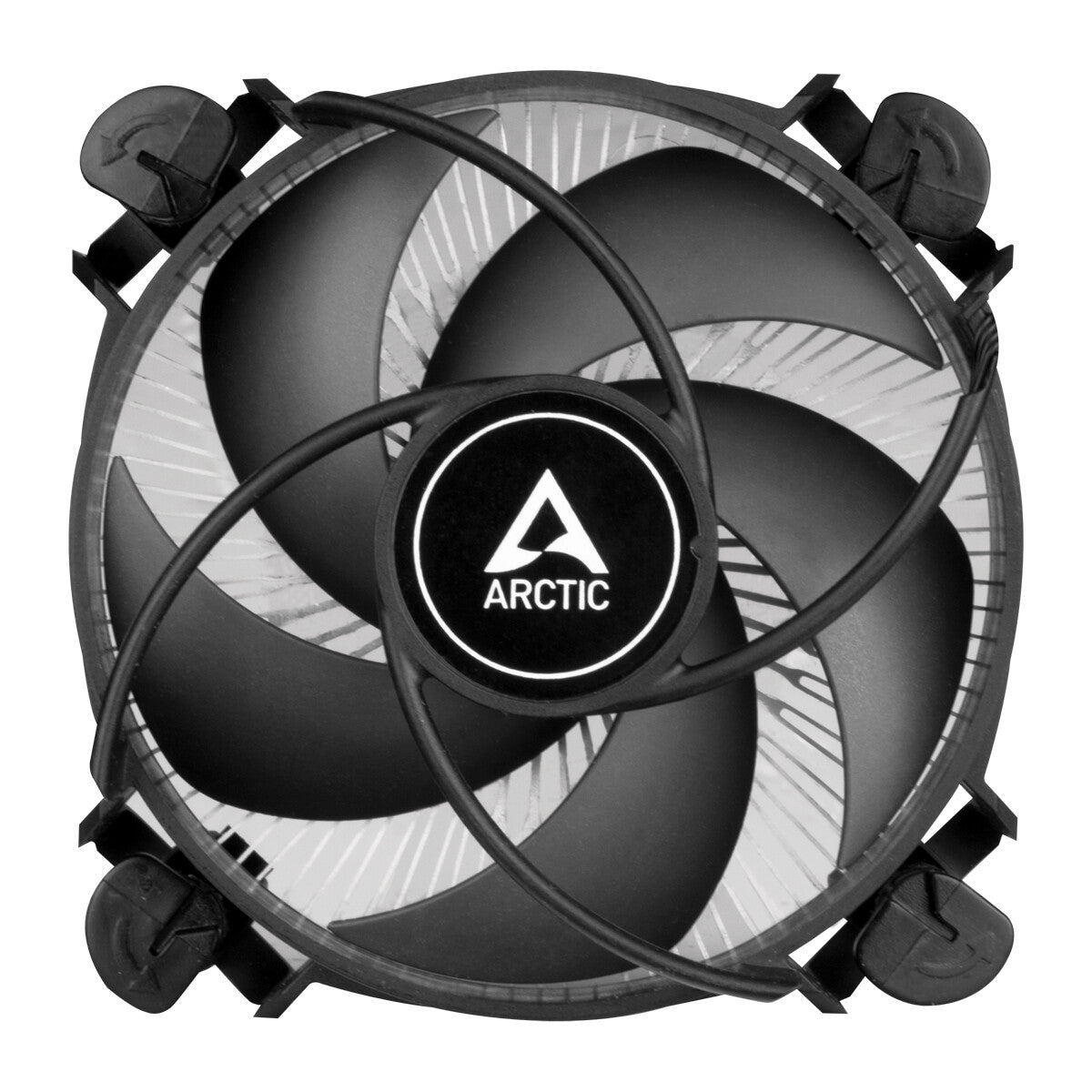

CPU Air Cooler
ARCTIC has CPU coolers for all areas of application. Whether for high-end gaming or silent PCs, our large range includes everything from high-performance tower coolers to compact and inexpensive alternatives; to boxed coolers to completely silent passive radiators. Broad compatibility and innovative features are part of our standard repertoire.
Designed for Intel Alder Lake
The Alpine 17 is exclusively compatible with Socket LGA1700 and Intel's latest Alder Lake CPUs.
Designed for Continous Operation
The premium quality of the two ball bearings allows 24/7 continuous operation without compromising performance. Contamination and high temperatures affect this bearing much less than ordinary plain or magnetic bearings. Therefore, the double ball bearing is the perfect choice in working environments where you want to ensure continuous operation with a low failure rate.
Easy and Tool-free Installation
With the MX-4 already pre-applied, the Alpine 17 can be mounted directly. Thanks to the push pins, installation is a breeze. Additional tools are not needed to mount the cooler.
Full Control with Wide RPM Range
The Alpine 17 features a very wide PWM-controlled speed range. This reduces noise to the minimum while also guaranteeing the highest cooling performance.

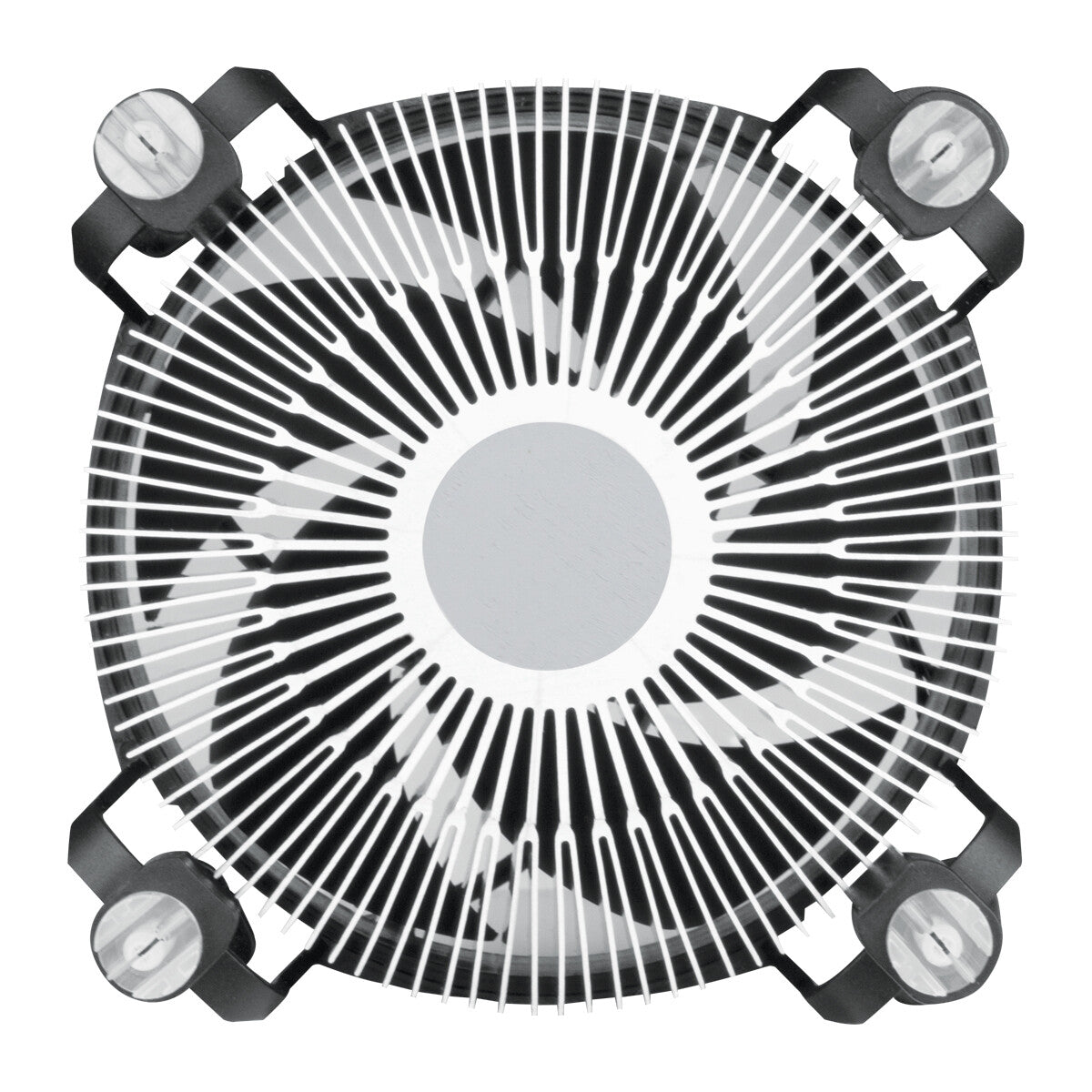

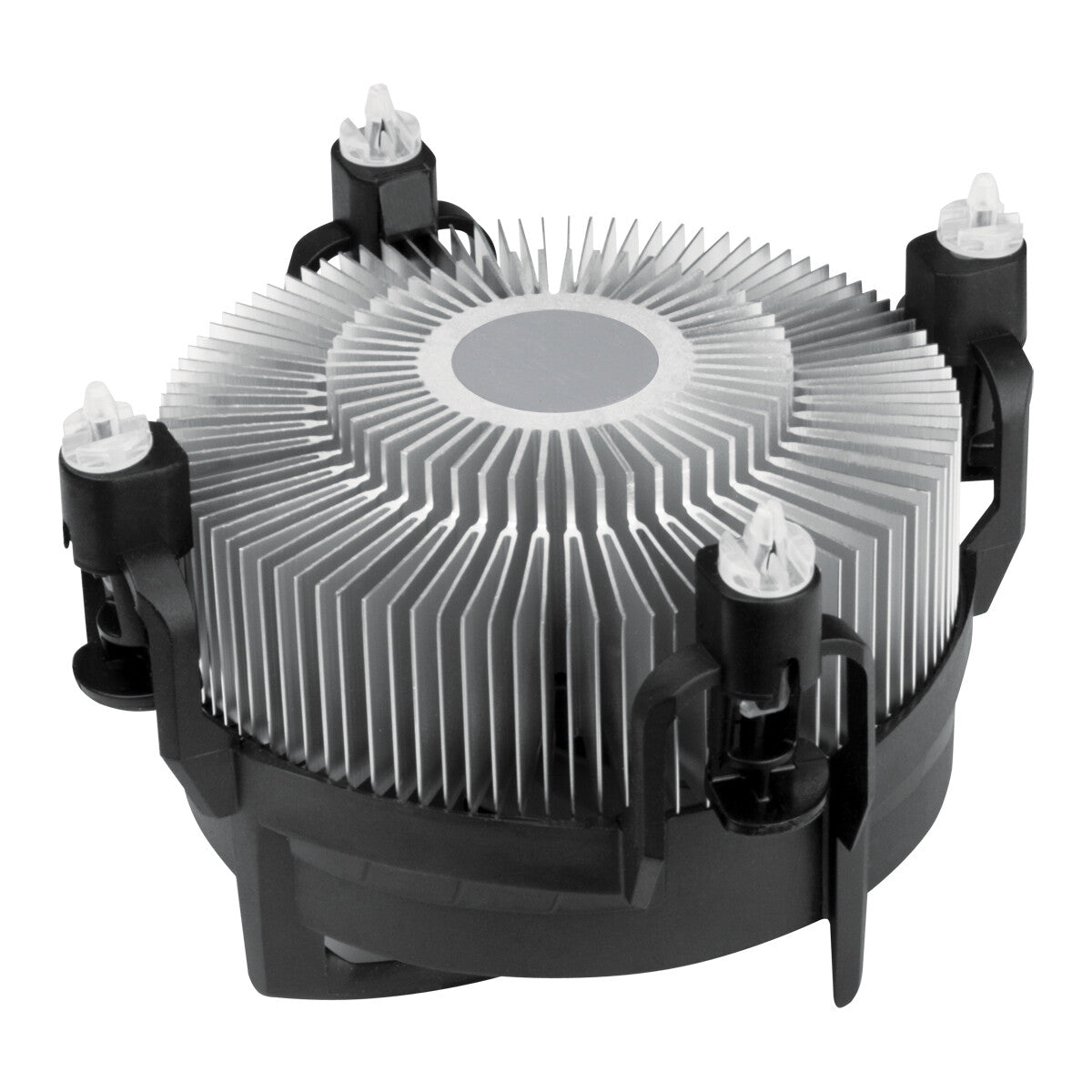

Improved Cooling Performance Through Innovative Heat Sink Design
The extra fine cooling fins of the new Alpine are fanned out in a Y-shape. The high thermal conductivity of the aluminum is fully retained in the type of extrusion used. This novel production process makes it possible to produce a high-performance yet very compact radial heat sink. This results in an increase in the surface area of the heat sink, optimization of the airflow and thus an increase in cooling performance.
Performance | |
---|---|
Quantity per pack | 1 pc(s) |
Fan bearing technology | Fluid Dynamic Bearing (FDB) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Noise level | 0.3 sone |
Rotational speed (max) | 2700 RPM |
Rotational speed (min) | 250 RPM |
Supported processor sockets | LGA 1700 |
Fan diameter | 9.2 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Number of fans | 1 fan(s) |
Radiator material | Aluminum |
Material | Aluminium |
Product colour | Black, Silver |
Power | |
---|---|
Rated current | 0.09 A |
Voltage | 12 V |
Power supply | 0.72 W |
Weight & dimensions | |
---|---|
Package weight | 319 g |
Package height | 82 mm |
Package depth | 99 mm |
Package width | 99 mm |
Cable length | 0.2 m |
Weight | 288 g |
Height | 77 mm |
Depth | 95 mm |
Radiator height | 3.27 cm |
Width | 95 mm |
Packaging content | |
---|---|
Package type | Box |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733080 |
