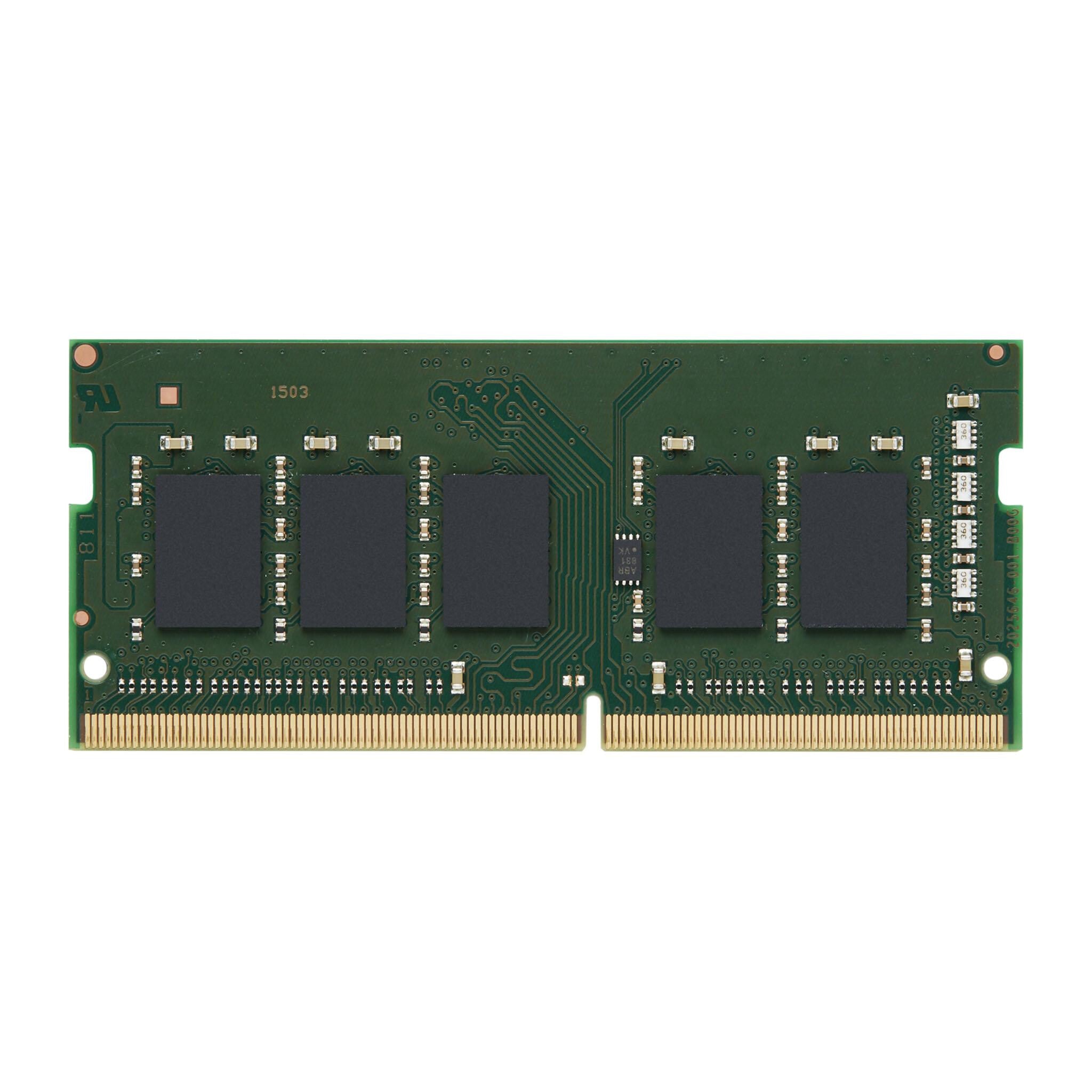

Kingston's KSM26SES8/16HC is a 2G x 72-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM) w/ parity, 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 260-pin SODIMM uses gold contact fingers.
Features | |
---|---|
JEDEC standard | Yes |
Backlight | No |
Programming power voltage (VPP) | 2.5 V |
SPD profile | Yes |
Row active time | 32 ns |
Refresh row cycle time | 350 ns |
Row cycle time | 45.75 ns |
Memory voltage | 1.2 V |
Memory ranking | 1 |
CAS latency | 19 |
On-Die ECC | Yes |
ECC | Yes |
Memory form factor | 260-pin SO-DIMM |
Memory clock speed | 2666 MHz |
Internal memory type | DDR4 |
Internal memory | 16 GB |
Buffered memory type | Unregistered (unbuffered) |
Technical details | |
---|---|
Compliance certificates | RoHS |
Sustainability | |
---|---|
Sustainability certificates | RoHS |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Other features | |
---|---|
Supported data transfer rates | PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 |
