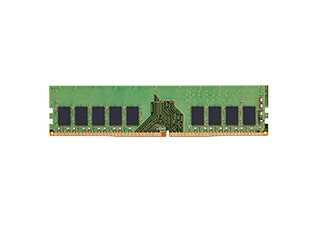

Kingston's KSM32ES8/16MF is a 2G x 72-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
Features | |
---|---|
JEDEC standard | Yes |
Lead plating | Gold |
Programming power voltage (VPP) | 2.5 V |
SPD profile | Yes |
Row active time | 32 ns |
Refresh row cycle time | 350 ns |
Row cycle time | 45.75 ns |
Module configuration | 2048M x 72 |
Memory voltage | 1.2 V |
Memory ranking | 1 |
CAS latency | 22 |
ECC | Yes |
Memory form factor | 288-pin DIMM |
Component for | PC/Server |
Memory clock speed | 3200 MHz |
Internal memory type | DDR4 |
Memory layout (modules x size) | 1 x 16 GB |
Internal memory | 16 GB |
Buffered memory type | Unregistered (unbuffered) |
Operational conditions | |
---|---|
Storage temperature (T-T) | -55 - 100 °C |
Operating temperature (T-T) | 0 - 85 °C |
Sustainability | |
---|---|
Doesn't contain | Halogen |
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Height | 31.2 mm |
Width | 133.3 mm |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
