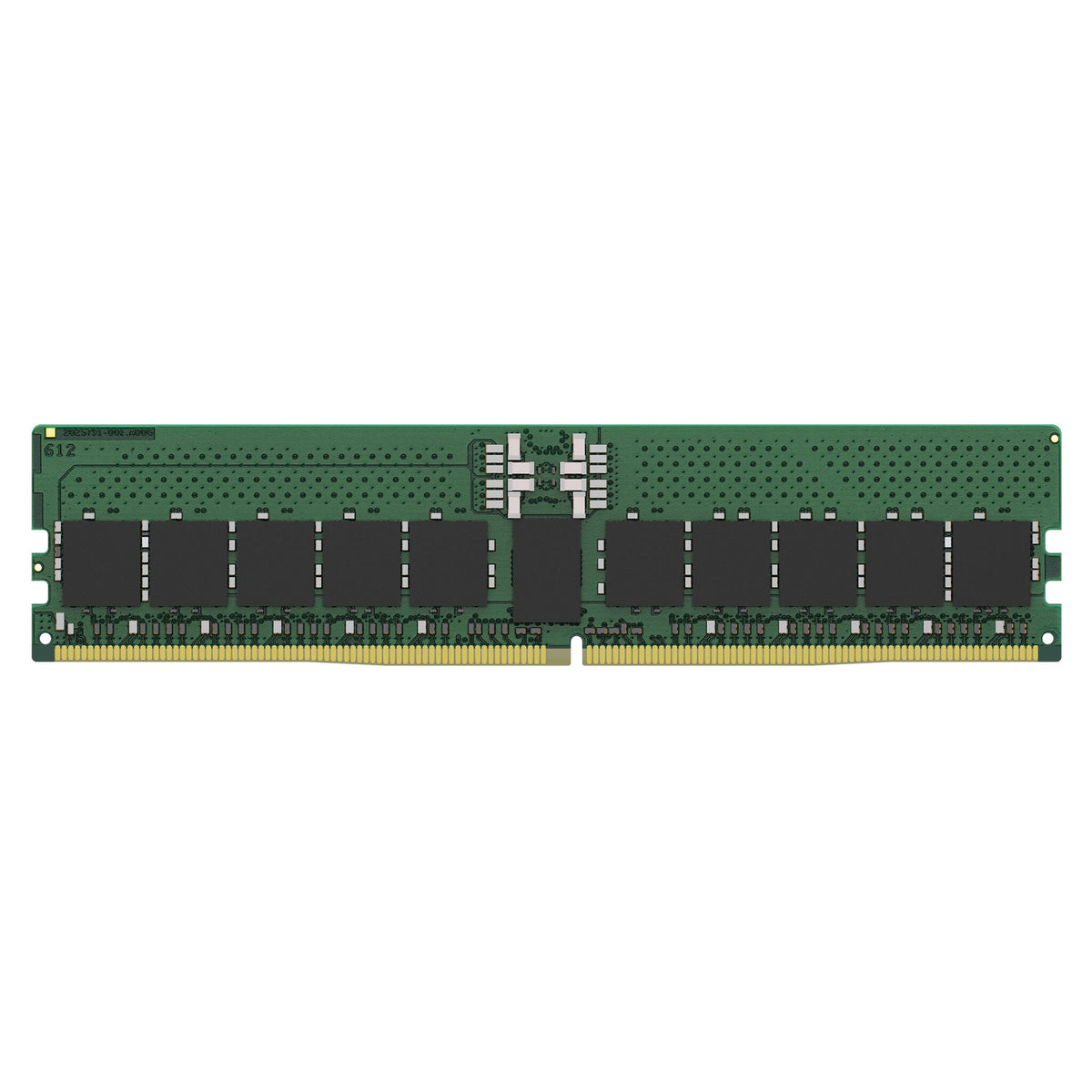

Kingston's KSM48R40BD8KMM-32HMR is a 4G x 80-bit (32GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 2Rx8, ECC, memory module, based on twenty 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
|---|---|
| Lead plating | Gold |
| SPD profile | Yes |
| Module configuration | 4096M x 80 |
| Memory voltage | 1.1 V |
| Memory ranking | 2 |
| CAS latency | 40 |
| On-Die ECC | Yes |
| ECC | Yes |
| Memory form factor | 288-pin DIMM |
| Component for | PC/Server |
| Memory clock speed | 4800 MHz |
| Internal memory type | DDR5 |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory | 32 GB |
| Buffered memory type | Registered (buffered) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -55 - 100 °C |
| Operating temperature (T-T) | 0 - 95 °C |
| Sustainability | |
|---|---|
| Doesn't contain | Halogen |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Height | 31.2 mm |
| Width | 133.3 mm |
