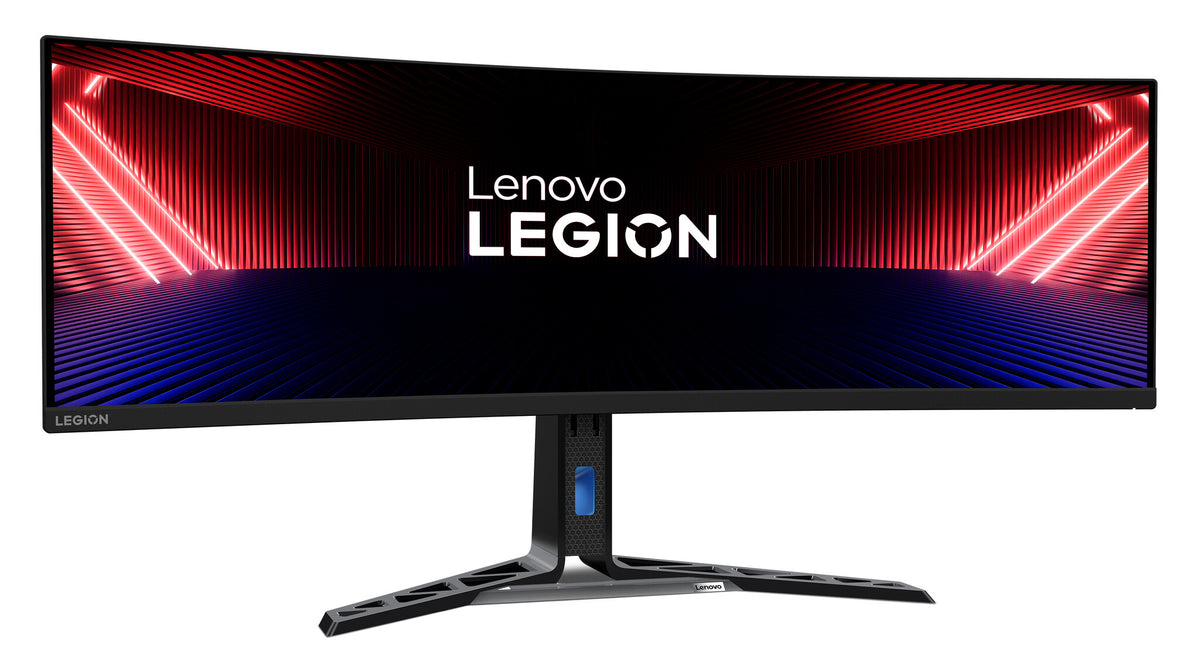

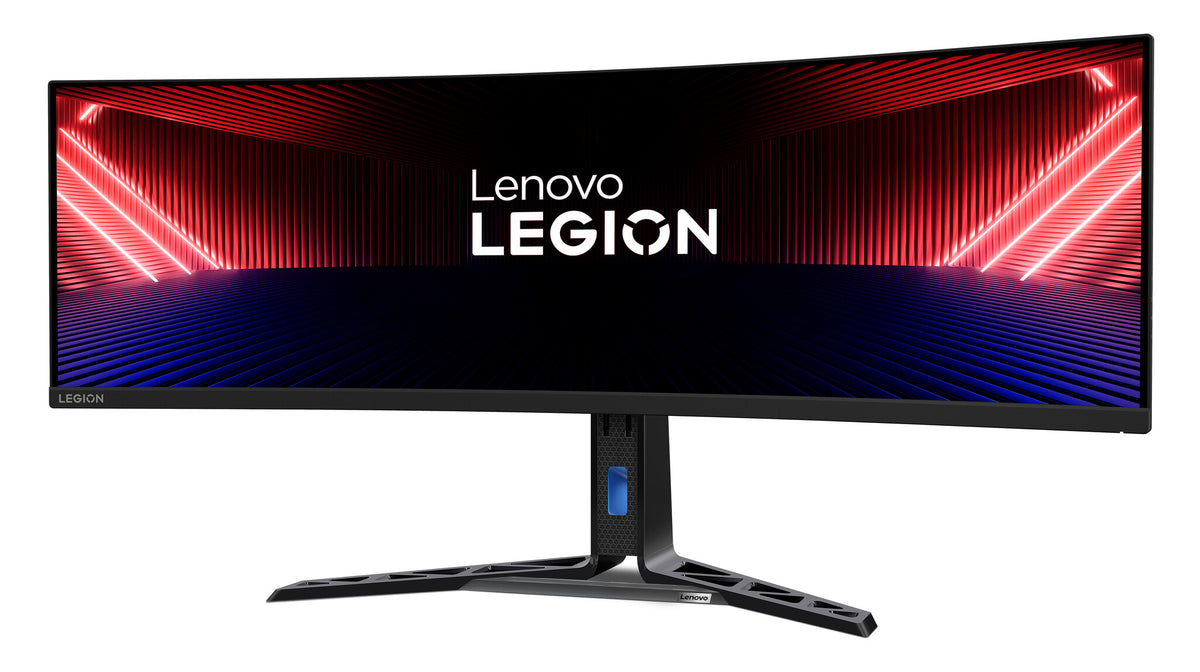

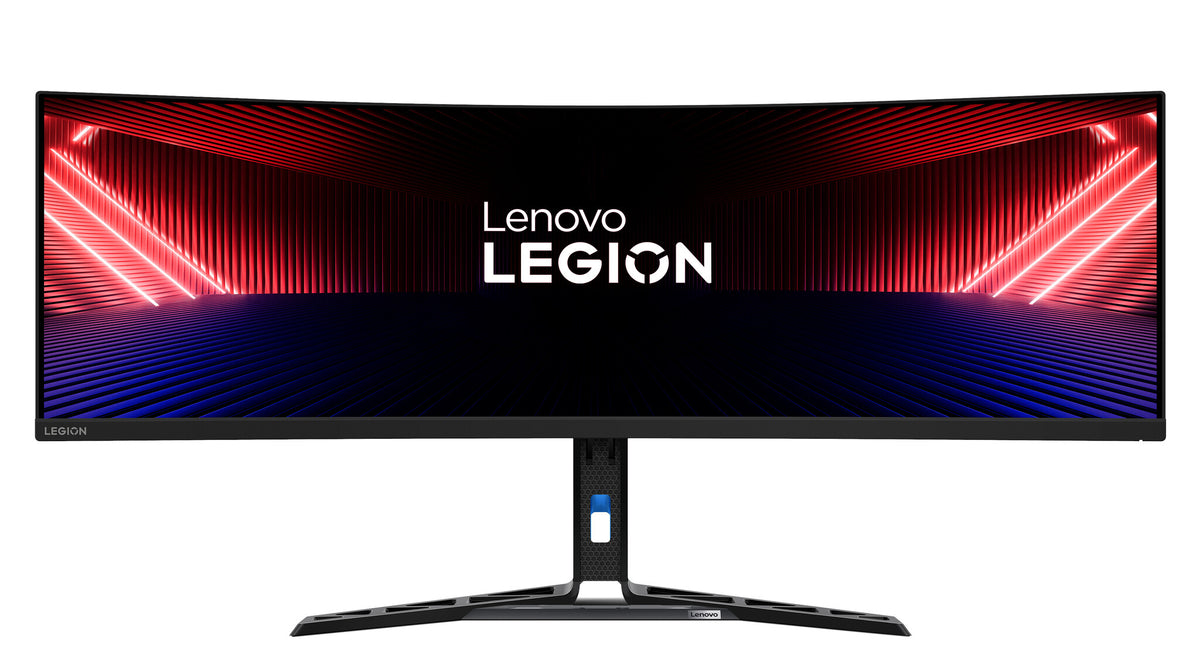

The Legion R45w-30 monitor offers an immersive gaming experience with its ultra-wide, curved display.
The 32:9 aspect ratio and large 44,5-inch size provide an impressive view of the action, while the DQHD resolution of 5120 x 1440 ensures sharp visuals. The monitor’s HDR technology with VESA-certified DisplayHDR™ 400 enhances light and shade display, allowing you to spot reflections and shadows easily.
With a 170Hz refresh rate and 1ms MPRT response time, gamers can enjoy smooth gameplay and gain a competitive advantage. The monitor also features AMD FreeSync™ Premium Pro and Adaptive Sync to prevent tearing and stuttering. Multiple connectivity options, including USB-C, HDMI, DP, and USB hub, make it easy to connect various devices. Additional features like smart network optimization, True Split, and gaming tools enhance productivity and gameplay. The monitor also incorporates Natural Low Blue Light technology for healthier extended gaming sessions.
Display | |
---|---|
Colour gamut standard | DCI-P3 |
sRGB coverage (typical) | 99% |
Colour gamut | 90% |
Colour depth | 8 bit |
High Dynamic Range (HDR) technology | DisplayHDR 400 |
High Dynamic Range (HDR) supported | Yes |
Viewable size, vertical | 30.6 cm |
Viewable size, horizontal | 108.8 cm |
Pixel density | 119.5 ppi |
Pixel pitch | 0.212 x 0.212 mm |
Response time (fast) | 1 ms |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 170 Hz |
Contrast ratio (dynamic) | 3000000:1 |
Contrast ratio (typical) | 3000:1 |
Screen curvature rating | 1500R |
Screen shape | Curved |
Anti-glare screen | Yes |
Display brightness (typical) | 450 cd/m² |
Display brightness (peak) | 500 cd/m² |
Backlight type | W-LED |
Panel type | VA |
HD type | DQHD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 32:9 |
Display resolution | 5120 x 1440 pixels |
Display diagonal | 113 cm (44.5") |
Performance | |
---|---|
Compatible operating systems | Windows 10, Windows 11 |
Low Blue Light technology | Yes |
VESA Adaptive Sync support | Yes |
AMD FreeSync type | FreeSync Premium Pro |
AMD FreeSync | Yes |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in microphone | No |
RMS rated power | 6 W |
Number of speakers | 2 |
Built-in camera | No |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | RoHS, EU Energy Efficiency Level (Level-F)Eyesafe Display 2.0, TÜV Low Blue Light (Hardware solution), TÜV Rheinland Eye Comfort |
Feet colour | Black |
Colour name | Black C |
Product colour | Black |
Market positioning | Gaming |

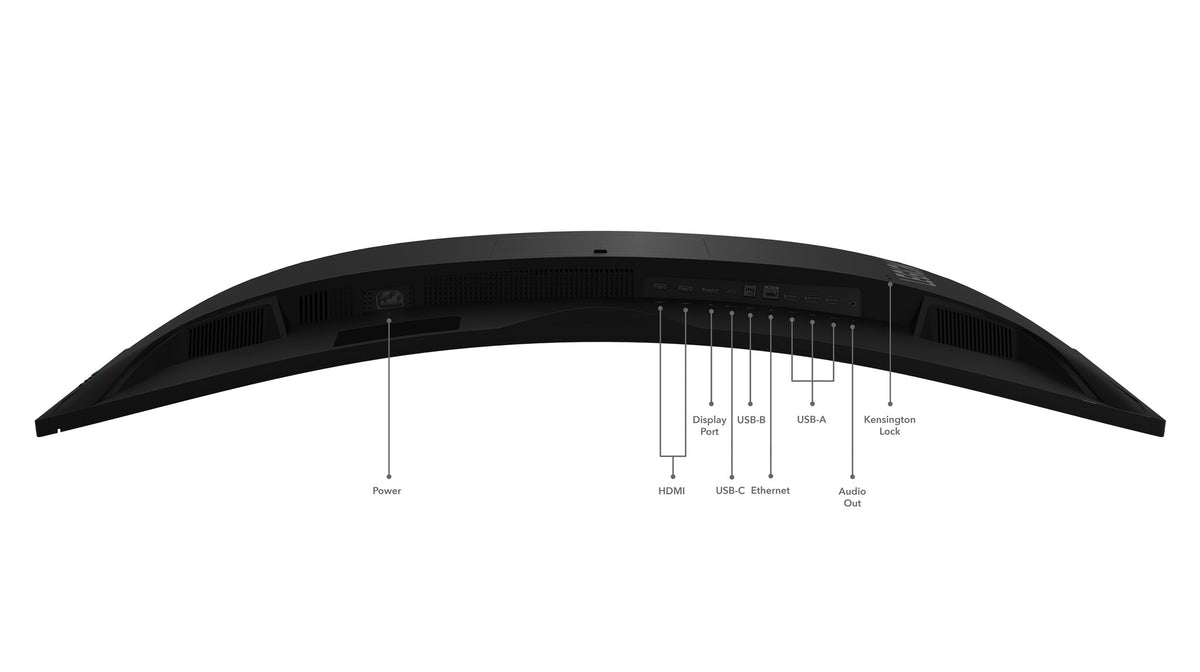

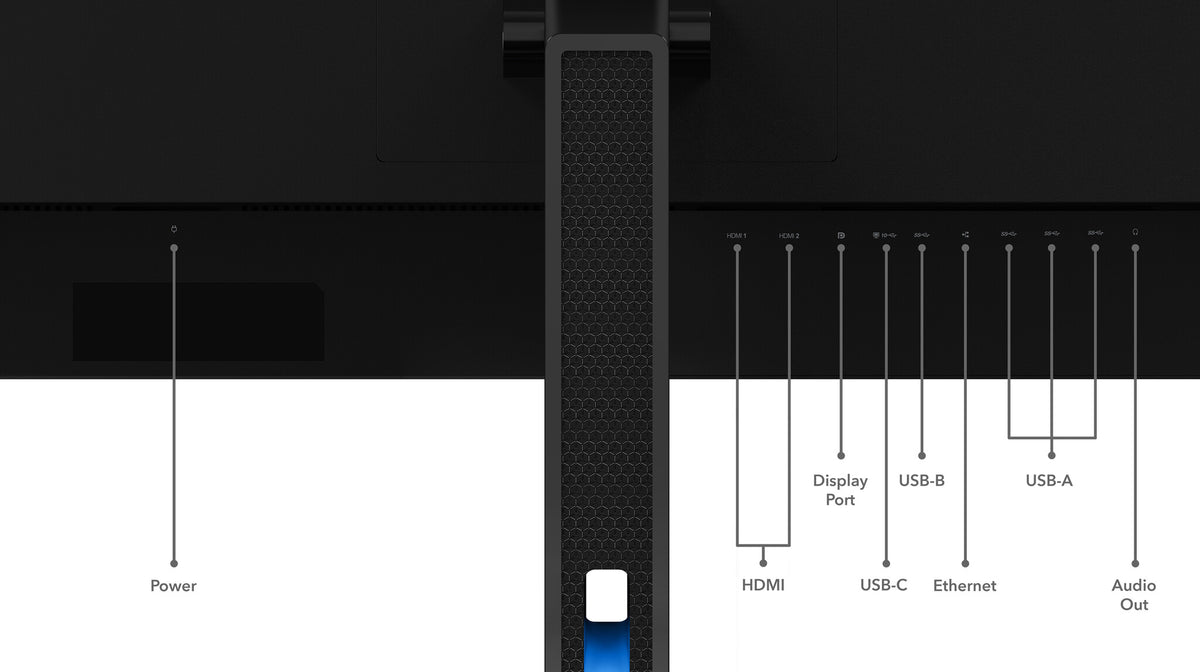

Ports & interfaces | |
---|---|
Audio output | Yes |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 2 |
HDMI | Yes |
USB Type-A downstream ports quantity | 3 |
Number of USB Type-C upstream ports quantity | 1 |
Number of USB Type-B upstream ports quantity | 1 |
USB upstream port type | USB Type-B, USB Type-C |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Network | |
---|---|
Ethernet LAN | Yes |

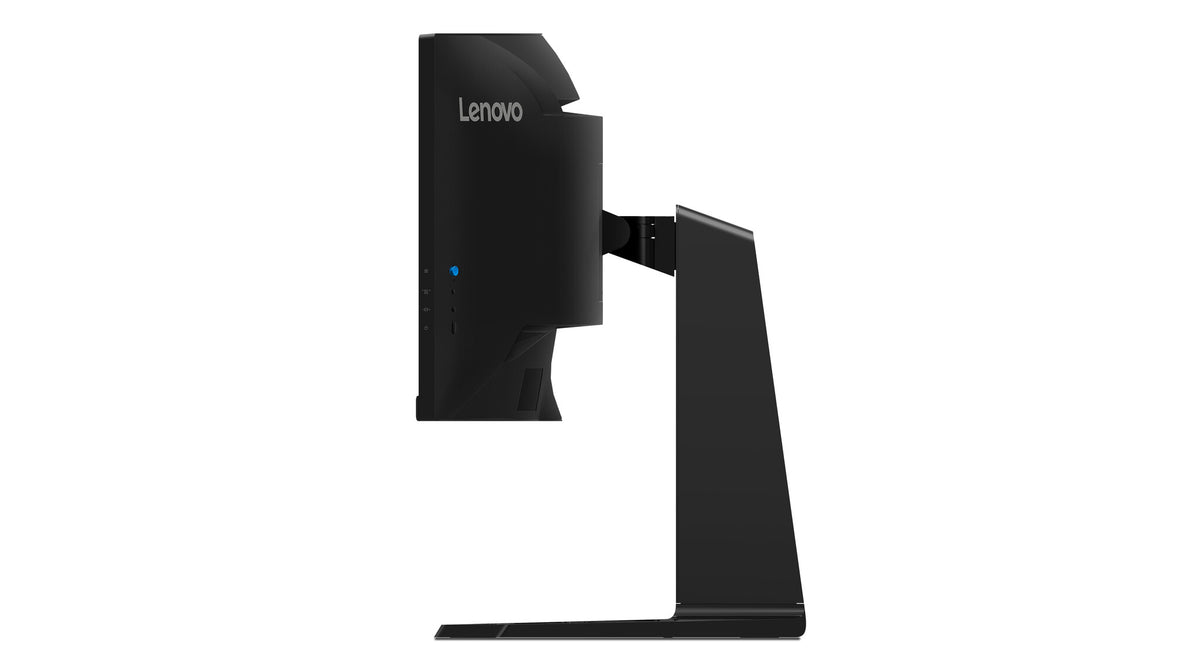

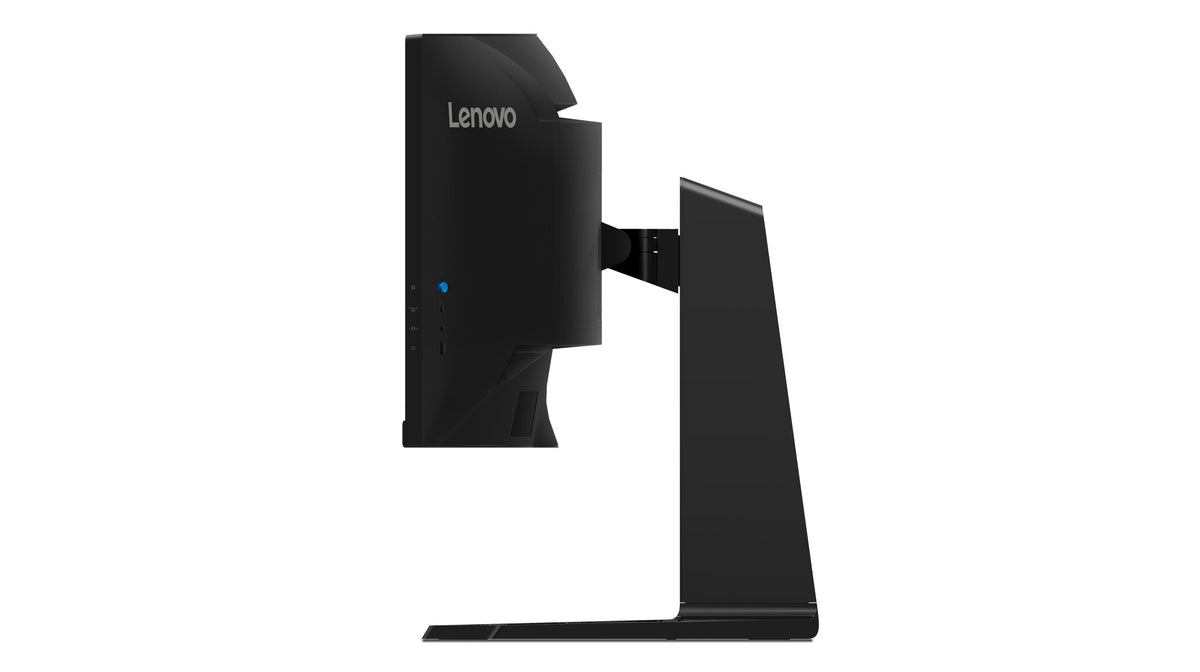

Ergonomics | |
---|---|
Tilt adjustment | Yes |
Tilt angle range | -5 - 22° |
Swivel angle range | -30 - 30° |
Swivelling | Yes |
Height adjustment | 13.5 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100,200 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Power supply type | Internal |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.5 W |
Power consumption (max) | 165 W |
Power consumption (standby) | 0.3 W |
Power consumption (typical) | 34 W |
Packaging content | |
---|---|
Cables included | DisplayPort, USB Type-A to USB Type-B |
Weight & dimensions | |
---|---|
Bezel width (bottom) | 2.24 cm |
Bezel width (top) | 2.5 mm |
Bezel width (side) | 2.5 mm |
Weight (without stand) | 8.3 kg |
Height (without stand) | 339.1 mm |
Depth (without stand) | 163.6 mm |
Width (without stand) | 1089.9 mm |
Weight (with stand) | 12.1 kg |
Height (with stand) | 528.4 mm |
Depth (with stand) | 341.1 mm |
Width (with stand) | 1089.9 mm |
Packaging data | |
---|---|
Package weight | 20.2 kg |
Package height | 480 mm |
Package depth | 345 mm |
Package width | 1230 mm |
General | |
---|---|
Product Family | Legion |
Technical details | |
---|---|
Warranty period | 3 year(s) |
