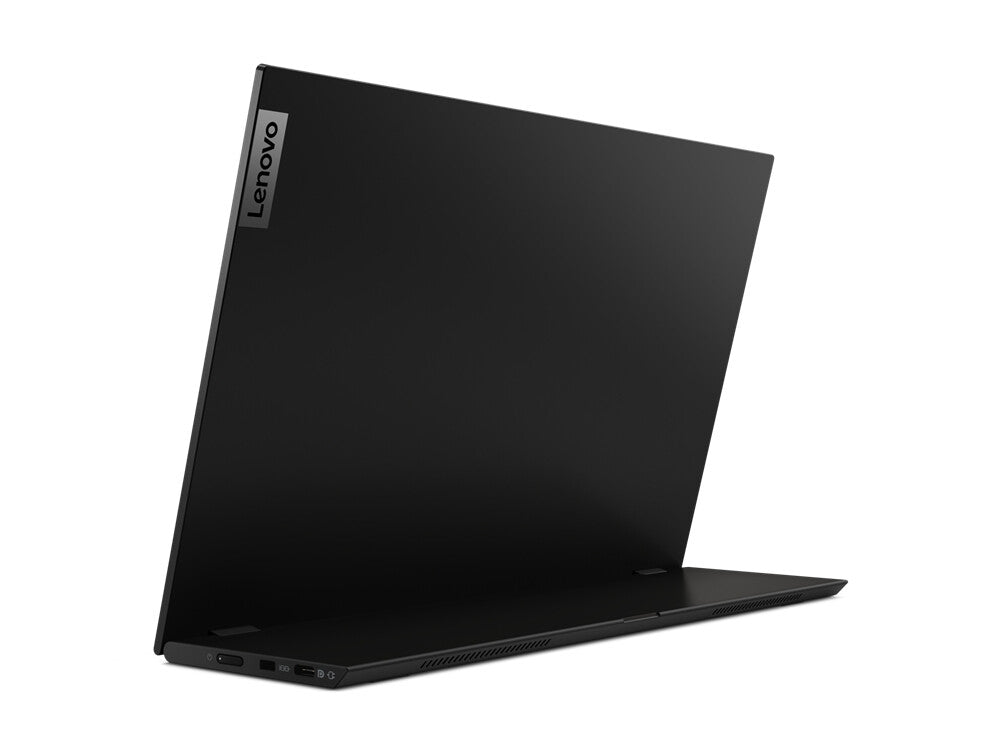

Scale new heights of productivity, flexibility, and style with a touch-enabled mobile monitor. The slim and light ThinkVision M14t is a 14-inch Full-HD display that provides you with an extra screen whenever you need it. With 10-point touch functionality, enjoy the freedom to design, animate, present, and annotate on an intuitive monitor interface. More than just a display, the M14t comes with a pressure-sensitive active pen for precise sketching and easy navigation, as well as a customised sleeve for protection and an L-shaped dongle for vertical deployment and better cable management. This compact USB-C Hub monitor with two USB-C ports works seamlessly with not only the Lenovo Think family laptops but also with your other compatible USB-C devices, like your smartphone. The monitor offers ease of use, especially while working on the go. Connect, present, pitch, and create with conviction on the M14t—at the office or on the go.
SEE MORE EVERYWHERE YOU GO

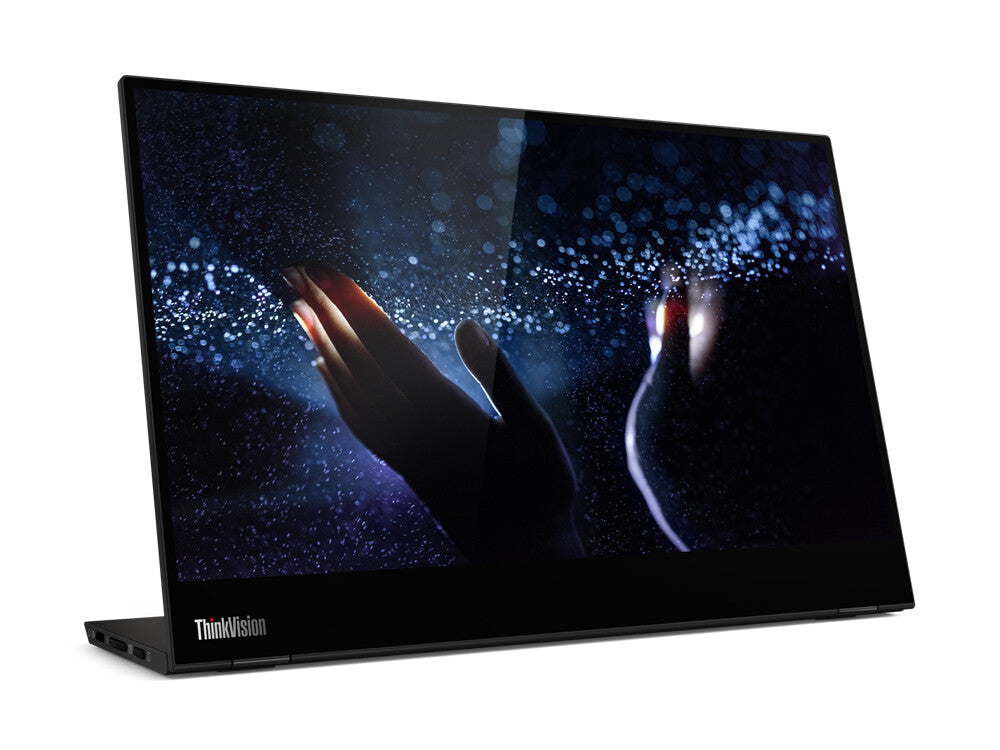

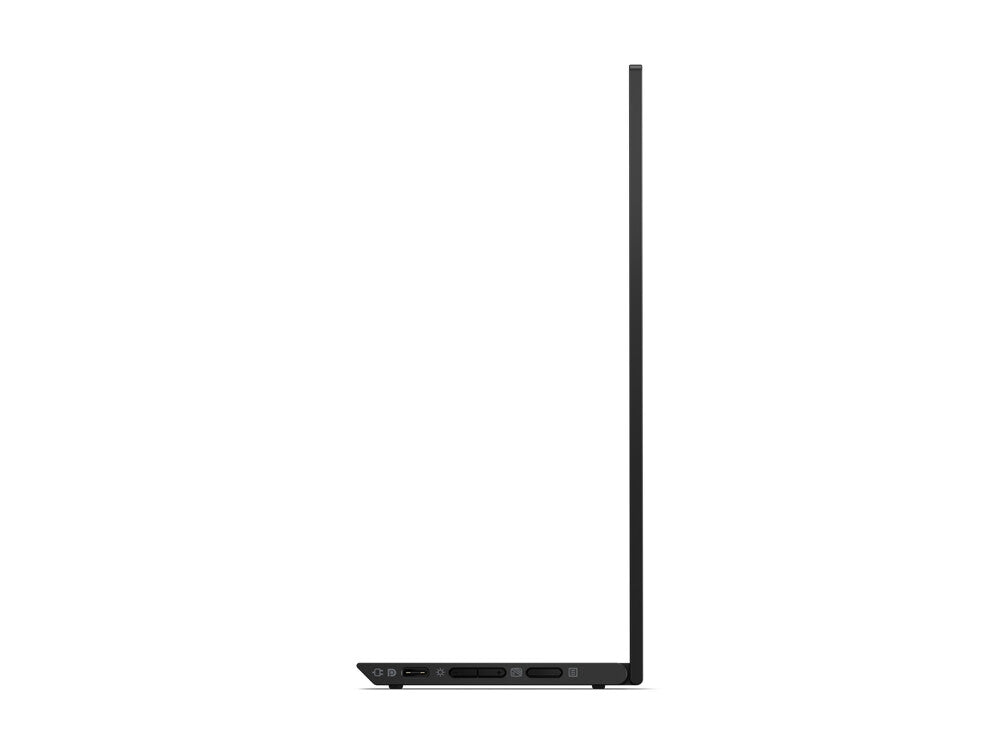

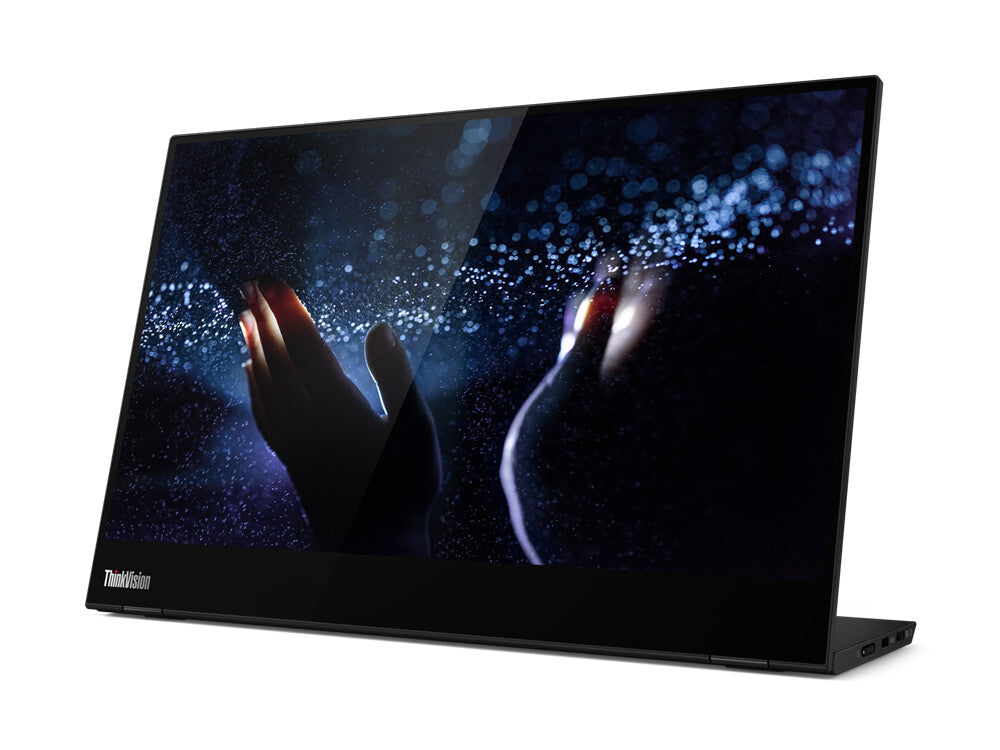

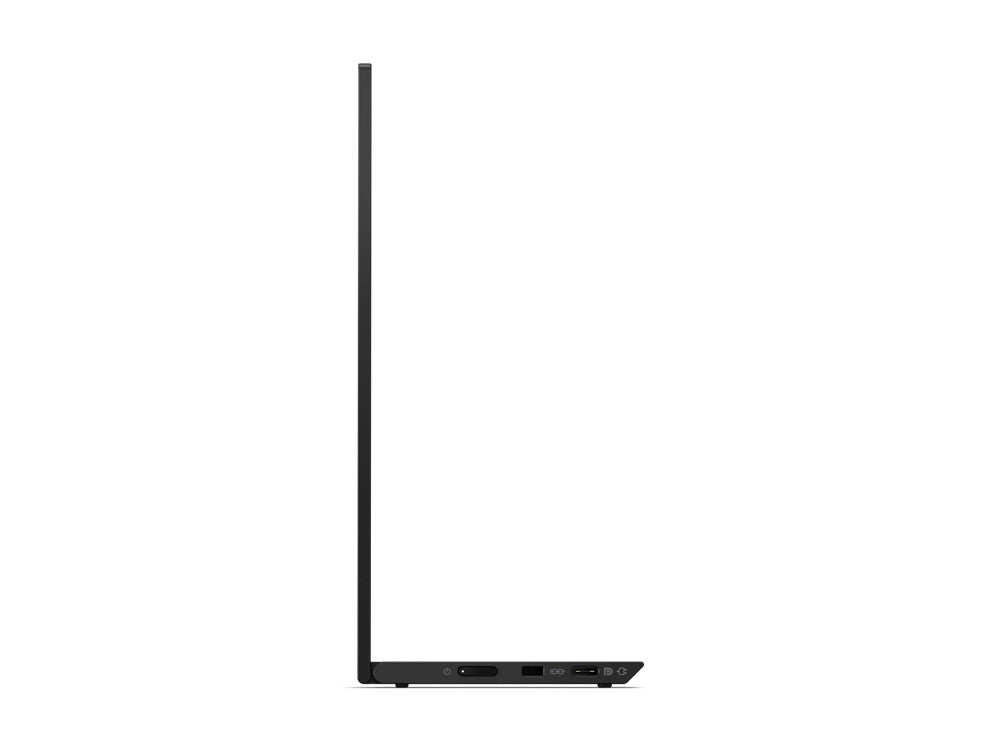

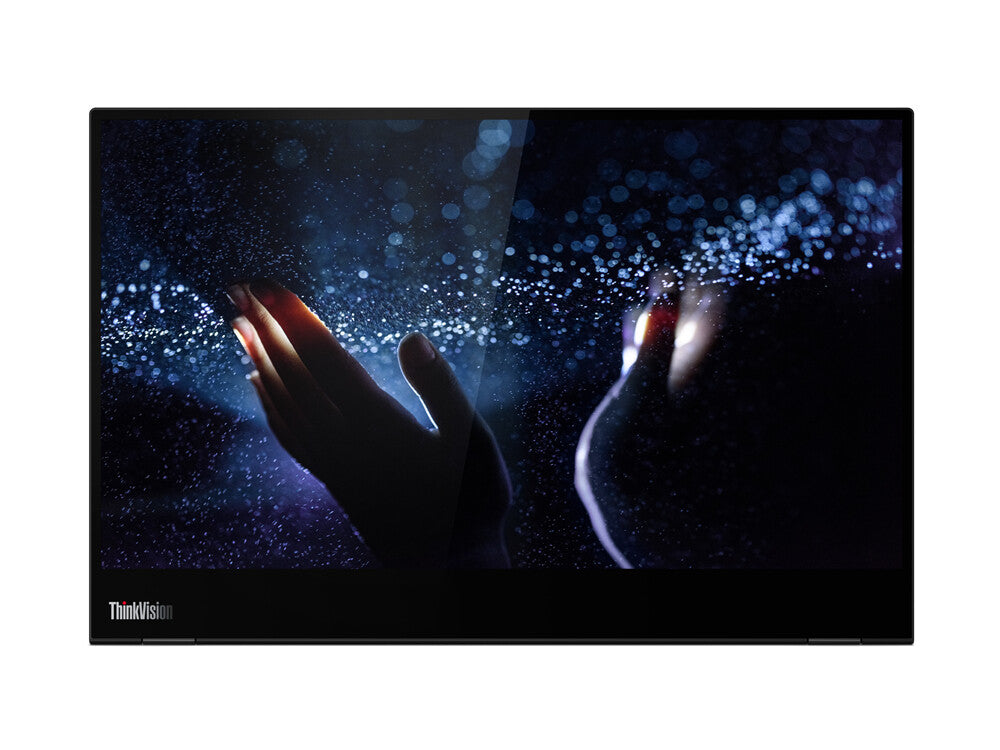

Built for mobile professionals, the M14t’s 14" Full-HD IPS panel display with super-narrow bezels ensures crisp and accurate visuals with impressive viewing angles, making it ideal for presentations. This sleek ultra-portable monitor with tilt function (-5° / 90°) and a height-adjustable stand (up to 11 mm) allows users to work in a flexible and comfortable viewing position in any work environment. Get a clear view of the display, whether you are outdoors or in an office, with 300 nits brightness capability. Moreover, the TÜV Rheinland Low Blue Light technology lets you work with minimal eyestrain.
DELIVER AS ONLY YOU CAN

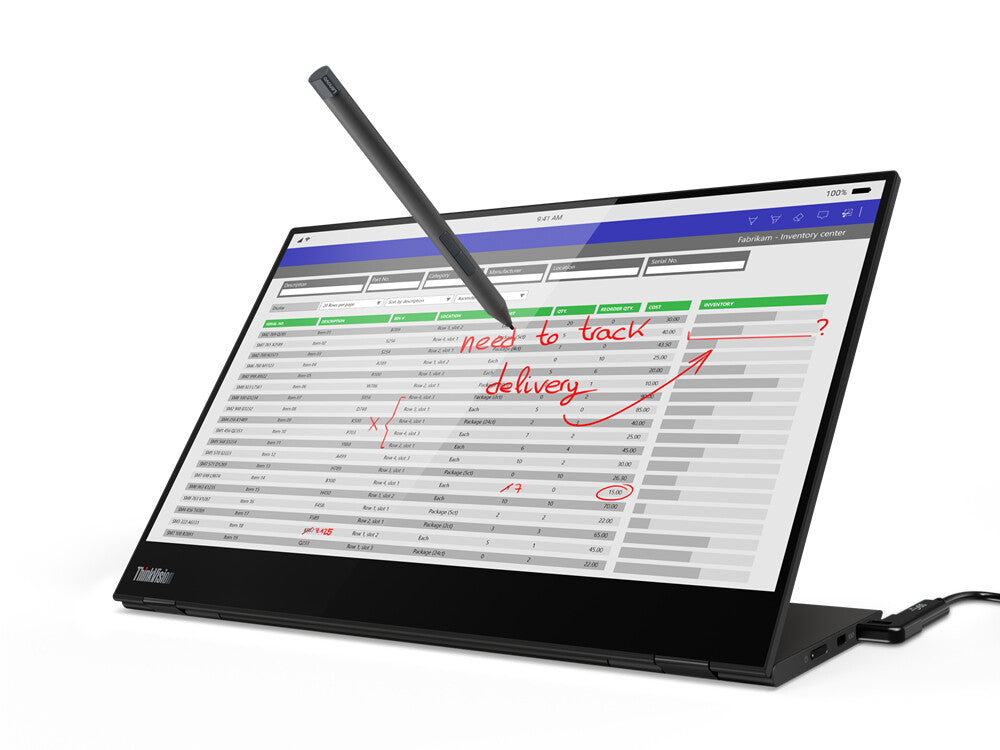

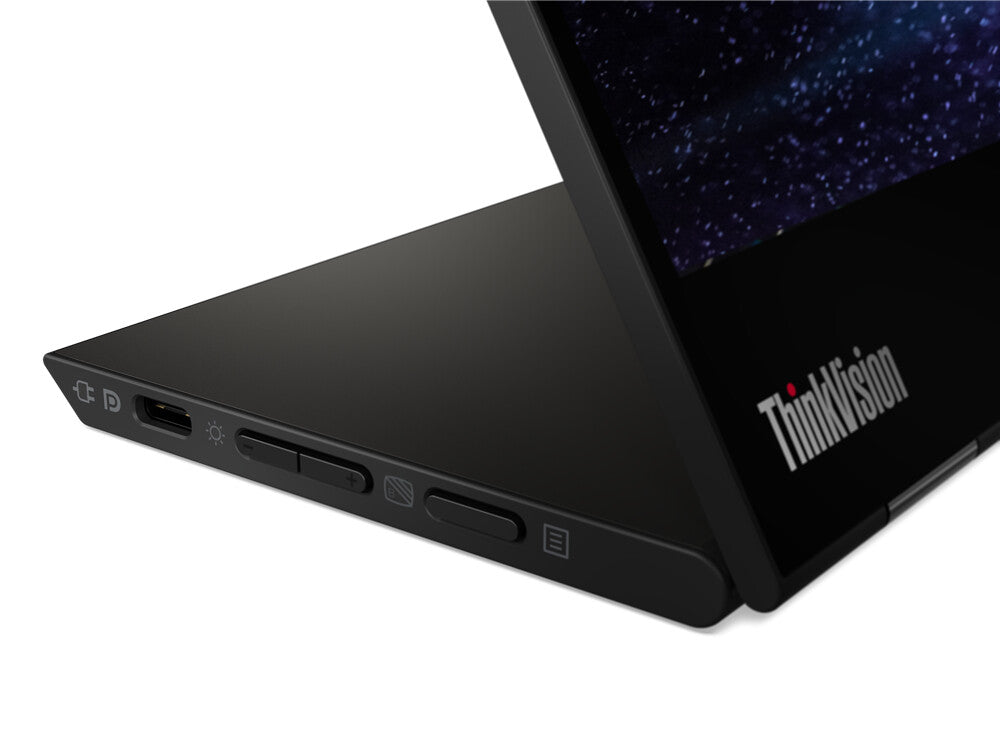

Drag, draw, annotate, and collaborate, no matter where you are. The ThinkVision M14t is 10-point touch-enabled for an intuitive interactive experience even on the go, allowing you to create with a personal touch. It comes along with an active digital pen that supports 4096 levels of pressure, so you can draw and sketch with unmatched precision. Switch your view in no time with auto-rotation sensors that don’t require software or driver installation. Additionally, an intuitive on-screen-display (OSD) menu enables easy access to brightness, contrast, and rotation settings.
CONNECT BETTER, WORK EASIER

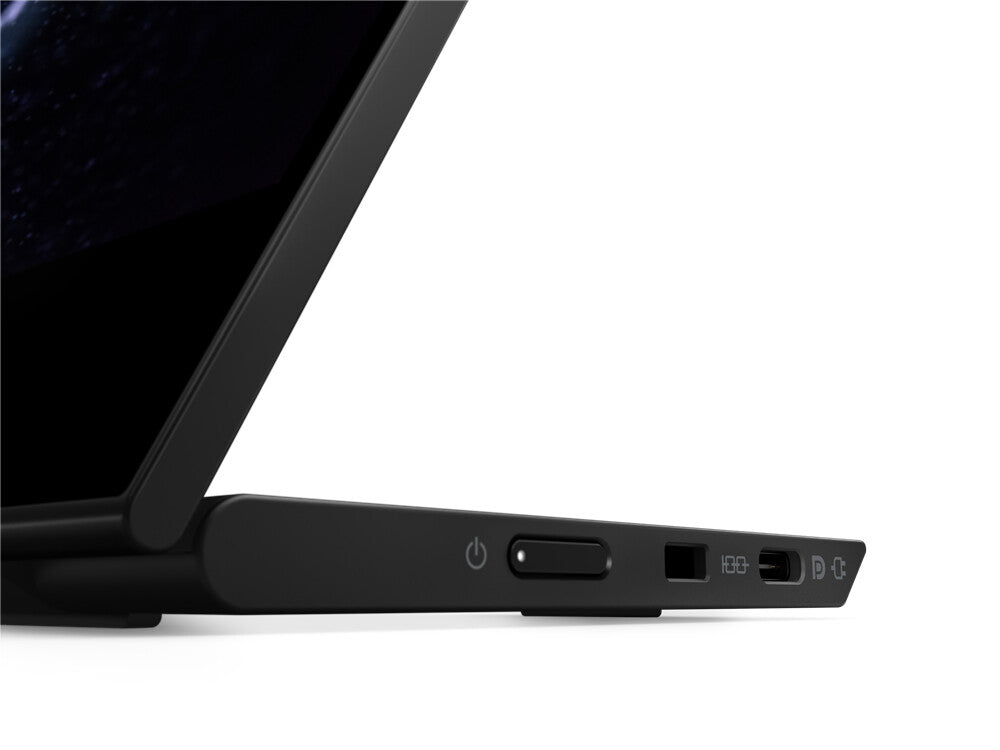

Built with an innovative dual USB-C design, the M14t can duplicate or extend your screen—be it your smartphone or laptop—so you’re always productive. With data, power, and media capabilities of USB-C, you can create a presentation, transfer data to a hard drive, and enjoy the unique power pass-through function. With dual USB-C port, the power pass-through function supplies power to the M14t and the compatible USB-C device connected to the monitor simultaneously via one AC/DC adapter. Enjoy the option of a vertical display setup and better cable management for a clean, easy desktop setup with the L-shaped dongle.
Display | |
---|---|
NTSC coverage (typical) | 72% |
RGB colour space | NTSC |
Colour depth | 8 bit |
Digital vertical frequency | 50 - 75 Hz |
Digital horizontal frequency | 30 - 90 kHz |
Viewable size, vertical | 17.3 cm |
Viewable size, horizontal | 30.9 cm |
Pixel density | 157 ppi |
Pixel pitch | 0.1611 x 0.1611 mm |
Response time (fast) | 6 ms |
Display number of colours | 16.78 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (dynamic) | 3000000:1 |
Contrast ratio (typical) | 700:1 |
Supported graphics resolutions | 1920 x 1080 (HD 1080) |
Screen shape | Flat |
Response time | 8 ms |
Display brightness (typical) | 300 cd/m² |
Backlight type | W-LED |
Panel type | IPS |
HD type | Full HD |
Touchscreen | Yes |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 35.6 cm (14") |
Performance | |
---|---|
Low Blue Light technology | Yes |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Multimedia | |
---|---|
Built-in camera | No |
Built-in speaker(s) | No |
Design | |
---|---|
Certification | TÜV Rheinland Low Blue Light, , CCC, Tier 2 |
Front bezel colour | Black |
Colour name | Raven Black |
Product colour | Black |
Ports & interfaces | |
---|---|
Audio input | No |
HDMI | No |
DVI port | No |
USB Power Delivery up to | 65 W |
USB Type-C DisplayPort Alternate Mode | Yes |
Number of USB Type-C upstream ports quantity | 2 |
Number of upstream ports | 2 |
USB upstream port type | USB Type-C |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Number of OSD languages | 8 |
On Screen Display (OSD) | Yes |
Tilt angle range | -5 - 90° |
Pivot angle | -90 - 90° |
Pivot | Yes |
Height adjustment | 1.1 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Energy efficiency scale | A to G |
Power consumption (off) | 0.3 W |
Power consumption (max) | 9.5 W |
Power consumption (typical) | 8 W |
Energy consumption (SDR) per 1000 hours | 7 kWh |
Energy efficiency class (SDR) | C |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 10 - 80% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Quick start guide | Yes |
Cables included | USB Type-C to USB Type-C |
Weight & dimensions | |
---|---|
Bezel width (bottom) | 3.04 cm |
Bezel width (top) | 5.42 mm |
Bezel width (side) | 5.43 mm |
Weight (with stand) | 698 g |
Height (with stand) | 226.5 mm |
Depth (with stand) | 14 mm |
Width (with stand) | 323.4 mm |
Packaging data | |
---|---|
Package weight | 1.87 kg |
Package height | 68 mm |
Package depth | 377 mm |
Package width | 267 mm |
Sustainability | |
---|---|
Sustainability certificates | RoHS, EPEAT Silver, ENERGY STAR |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |
Other features | |
---|---|
Multi-touch | Yes |
