Unparalleled collaboration. Quick installation.

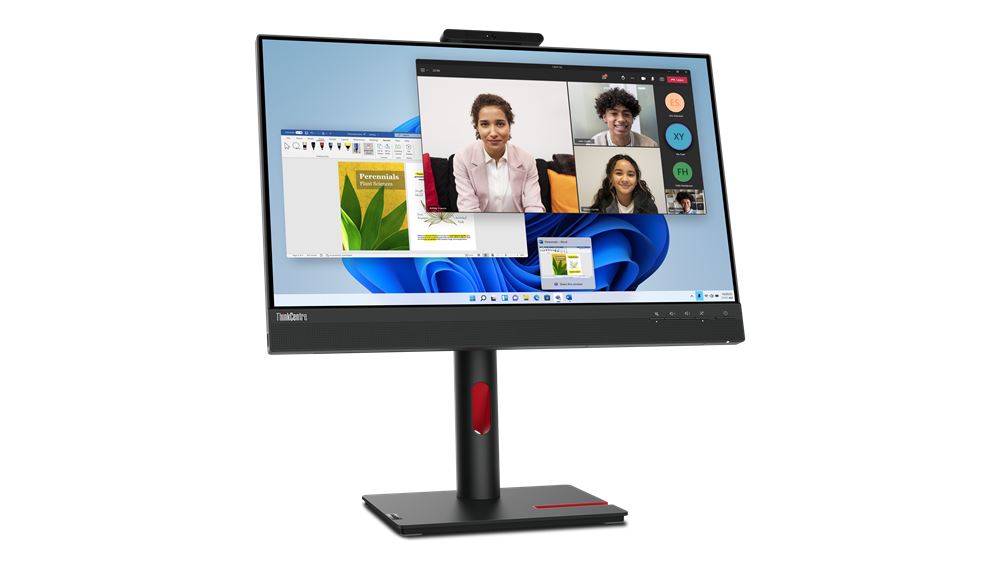

The ThinkCentre Tiny-In-One (TIO) 24 Gen 5 displays visuals and video content with great clarity on the 23.8-inch borderless In-Plane Switching FHD panel with 99% sRGB color support. It provides a complete working experience when paired with its VoIP features, a modular design which allows it to be attached with Lenovo’s range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th Gen. These can be effortlessly installed and housed in the dedicated slot at the back of the monitor, giving you a cable-free desk. Enjoy a consistent experience while using the classic installation mechanism to quickly and easily mount Tiny PCs to the monitor. Designed for efficient remote collaboration, it has a 1080p RGB webcam with a noise-cancellation microphone for i crystal-clear audio and video. Besides that, the Smart Traffic Light indicator indicates the status of an ongoing interaction or meeting, helping you avoid unforeseen distractions. Two integrated 3W user-facing speakers play the audio with amazing fidelity, making attending meetings a much more pleasant experience. Dedicated VoIP buttons allow you to easily mute or change the volume, making your remote meeting experience much more convenient. User-centric features like ThinkShutter allow you to cover your webcam lens for enhanced privacy and security. Recyclable packaging and optional CO2 offset service for minimal carbon emission footprint make this monitor environment-friendly. In addition to the Tiny PCs, you can also connect other laptops or towers using the HDMI and DP ports, and peripherals using the USB ports. The monitor’s Natural Low Blue Light technology works to reduce the harmful blue light without any color distortion during long working hours. Customize your workstation and easily adjust its various settings using the ThinkColour Software1. In a nutshell, the TIO 24 Gen 5 helps you get a clean, clutter-free desk, collaborate seamlessly and multitask efficiently to maximize productivity.
Display | |
---|---|
sRGB coverage (typical) | 99% |
Colour gamut | 99% |
RGB colour space | sRGB |
Colour depth | 8 bit |
Viewable size, vertical | 29.6 cm |
Viewable size, horizontal | 52.7 cm |
Pixel density | 93 ppi |
Pixel pitch | 0.275 x 0.275 mm |
Response time (fast) | 4 ms |
Display number of colours | 16.7 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (dynamic) | 3000000:1 |
Contrast ratio (typical) | 1000:1 |
Screen shape | Flat |
Anti-glare screen | Yes |
Response time | 6 ms |
Display brightness (typical) | 250 cd/m² |
Backlight type | W-LED |
Panel type | IPS |
HD type | Full HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 1920 x 1080 pixels |
Display diagonal | 60.5 cm (23.8") |
Performance | |
---|---|
Compatible operating systems | Windows 10Windows 11 |
Low Blue Light technology | Yes |
Multimedia | |
---|---|
Built-in microphone | Yes |
RMS rated power | 6 W |
Number of speakers | 2 |
Built-in camera | Yes |
Built-in speaker(s) | Yes |
Design | |
---|---|
Certification | EPEAT Gold Registered EU Energy Label (D-class) ENERGY STAR Certified TCO Certified 9.0 TCO edge 2.0 Volatile Organic Compound Certification RoHS compliant Eyesafe Certified 2.0 TÜV Rheinland Eye Comfort Certification TÜV Rheinland Low Blue Light (Hardware Solution) |
Feet colour | Black/Red |
Detachable stand | Yes |
Colour name | Raven Black |
Product colour | Black |
Ports & interfaces | |
---|---|
Built-in KVM switch | Yes |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
HDMI version | 1.4 |
HDMI ports quantity | 1 |
HDMI | Yes |
USB Type-A downstream ports quantity | 1 |
Number of upstream ports | 1 |
USB upstream port type | USB Type-B |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
On Screen Display (OSD) | Yes |
Tilt angle range | -5 - 23.5° |
Swivel angle range | -45 - 45° |
Swivelling | Yes |
Pivot angle | -5 - 90° |
Pivot | Yes |
Height adjustment | 15.5 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Cable management | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Power supply type | External |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.5 W |
Power consumption (max) | 34 W |
Power consumption (standby) | 0.5 W |
Power consumption (typical) | 14 W |
Packaging content | |
---|---|
Power cable length | 1 m |
Quick start guide | Yes |
Power adapter included | Yes |
Cables included | AC |
Stand included | Yes |
Weight & dimensions | |
---|---|
Bezel width (bottom) | 4.6 cm |
Bezel width (top) | 2 mm |
Bezel width (side) | 2 mm |
Weight (without stand) | 3.7 kg |
Height (without stand) | 367.6 mm |
Depth (without stand) | 72.8 mm |
Width (without stand) | 539.8 mm |
Weight (with stand) | 6 kg |
Height (with stand) | 539.6 mm |
Depth (with stand) | 207.6 mm |
Width (with stand) | 539.8 mm |
Packaging data | |
---|---|
Package weight | 9.5 kg |
Package height | 420 mm |
Package depth | 187 mm |
Package width | 620 mm |
