Harness Maximum Productivity & Performance

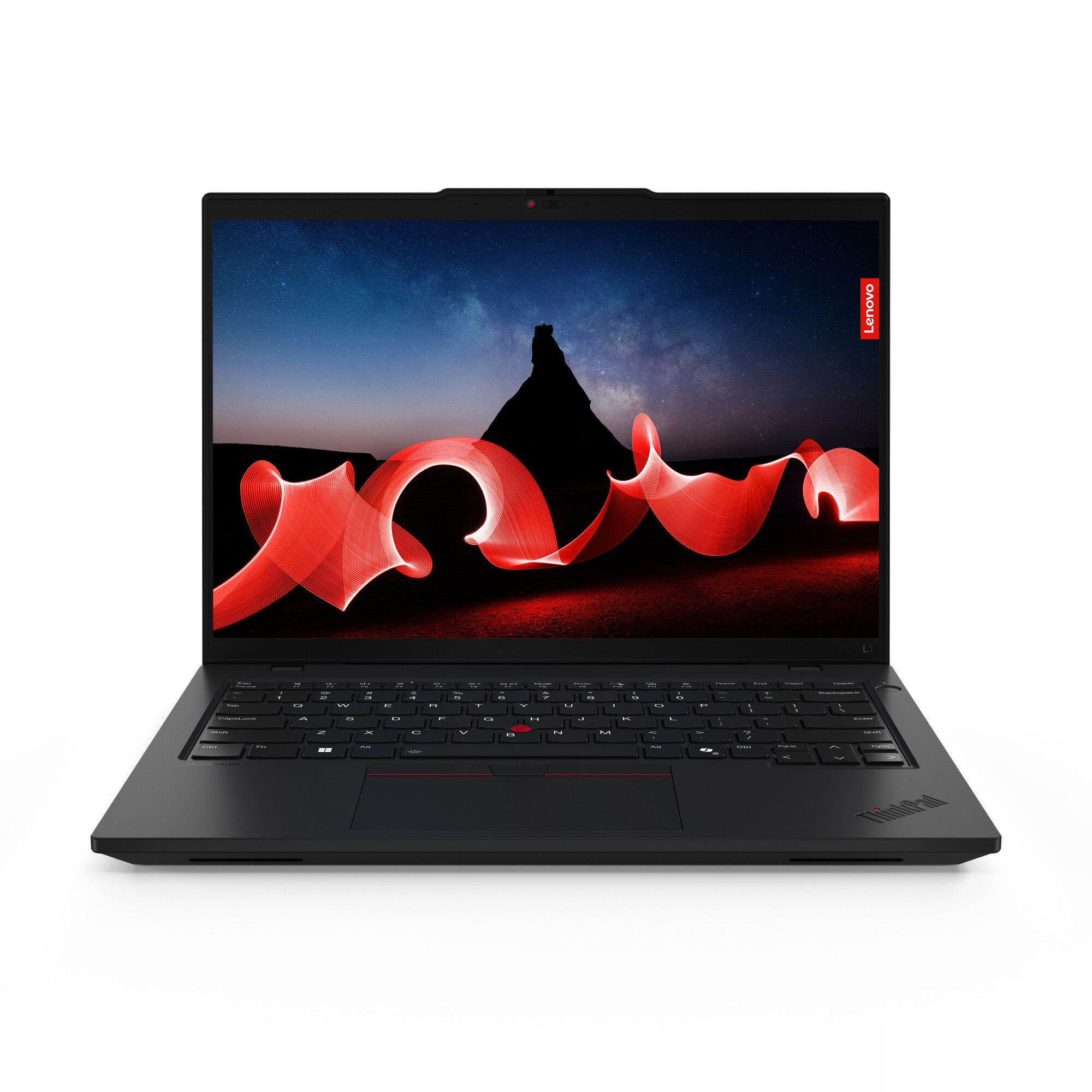

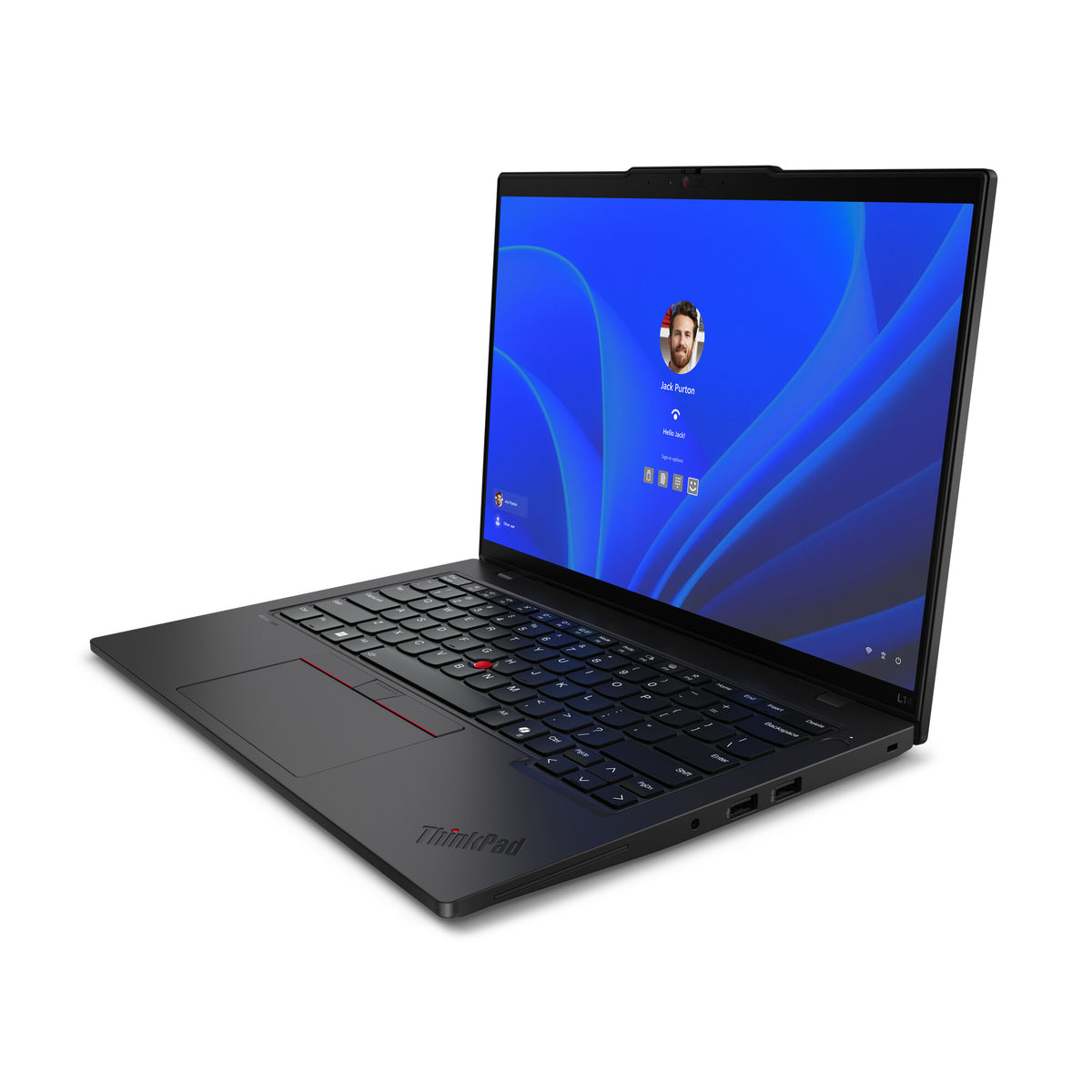

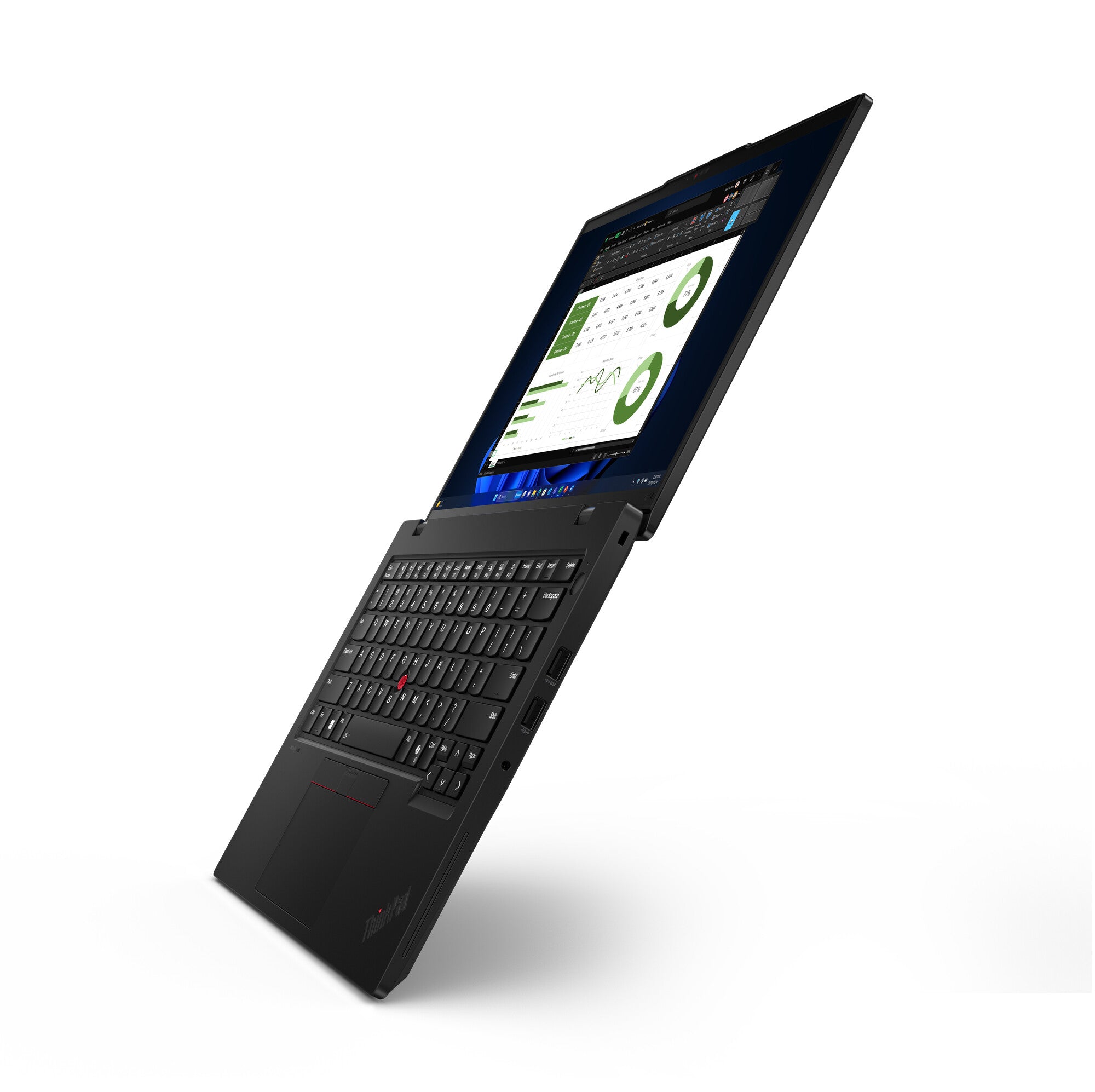

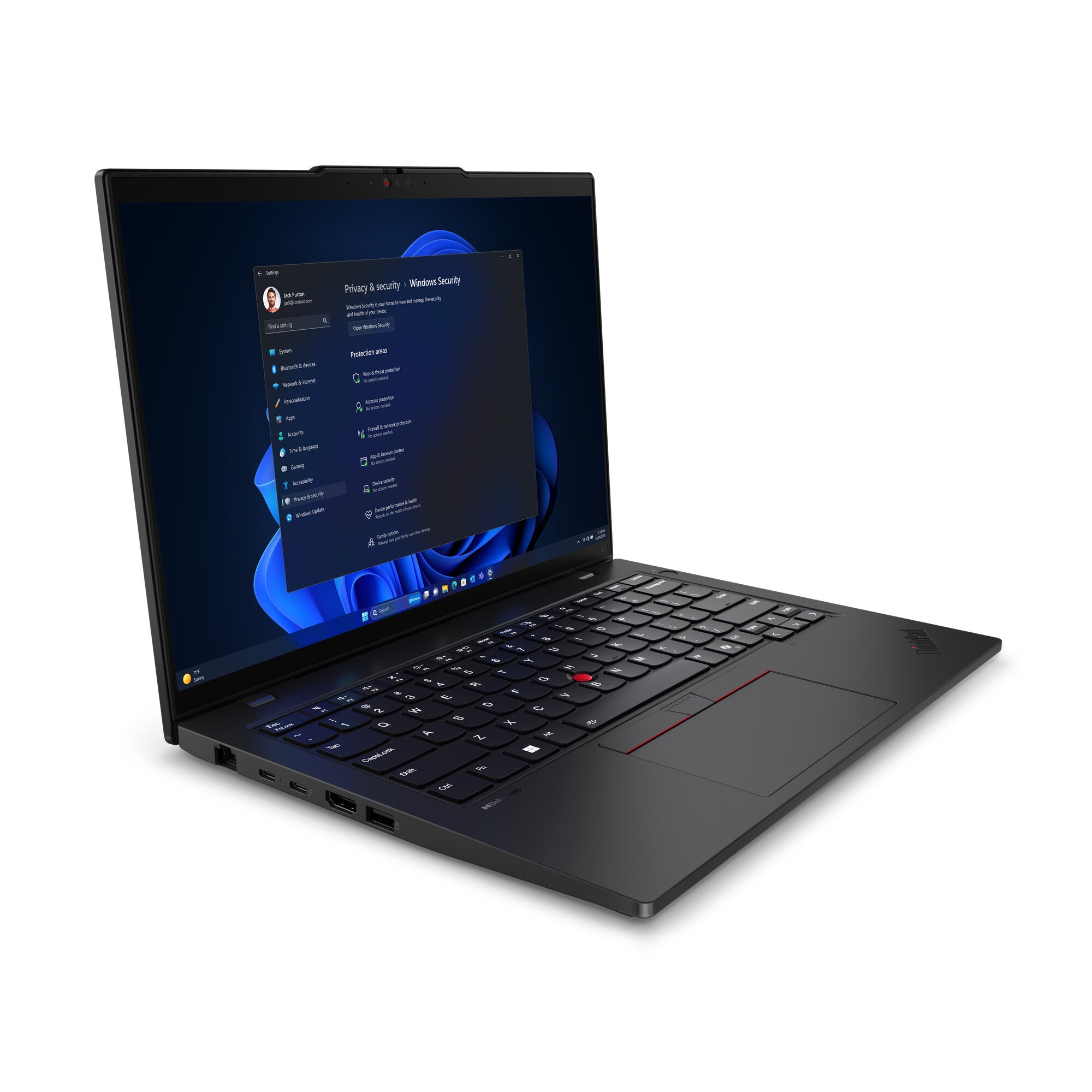

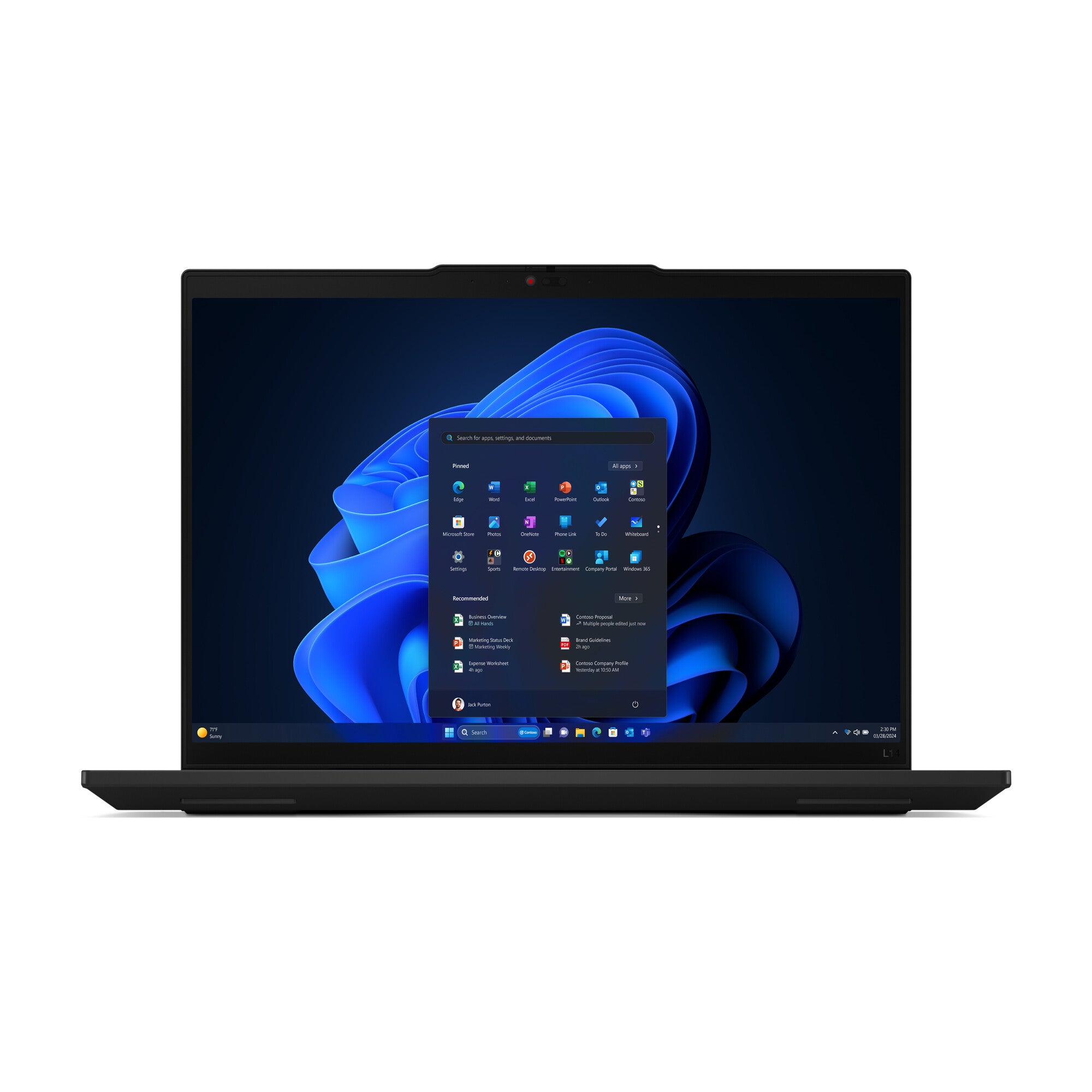

Streamline your workflow on the 14ʺ ThinkPad L14 Gen 5 laptop powered by Intel® Core™ Ultra processors. Last throughout the day on long battery life and experience faster responsiveness — every application loads promptly as the AI engines optimize the overall health and performance of the device. Boost your performance to new heights when you choose the optional Intel vPro®, which delivers robust security, undeniable stability, and comprehensive IT management.
Commitment to Using Recycled Materials
Even with all its productivity and performance-enhancing features, this ThinkPad was designed with recycling in mind. We used post-consumer content (PCC) in various components, including 90% in the speaker enclosure, power adapter, and battery compartment. Keycaps use 70-85% PCC recycled plastic. The bottom cover uses 50% PCC, while the keyboard frame relies on 60% PCC. Moreover, the top cover uses 50% recycled aluminum. To top it off, the packaging is 100% plastic-free and Forest Stewardship Council® (FSC) certified.
Easily Upgradeable for an Extended Lifecycle
The ThinkPad L14 Gen 5 laptop makes it easy to replace and repair your system with convenient customer replaceable units (CRUs), even if you have no tech expertise! In fact, for its ease of maintenance and remarkable do-it-yourself serviceability, this laptop boasts an industry-leading 10/10 on the iFixit Repairability Score. So, whether your goal is to upgrade components down the road or extend the lifecycle of your device with a simple repair, you can trust our support services to keep your system — and by default, your business — up and running.
Meaningful Collaborations Online
Jump on a video call with your team and connect to the best available network with Intel® Connectivity Performance Suite. With the ThinkPad L14 Gen 5 laptop, you’re sure to look and sound great with the hi-res camera and crystal clear audio of Dolby Voice®. What’s more, your team will look terrific too, as the display features 3M’s optical solution to increase brightness. Plus when you have to put in those long hours, you’ll appreciate the various low blue light certifications that decrease the likelihood of eye strain and fatigue.
More Accessible. More Usable.

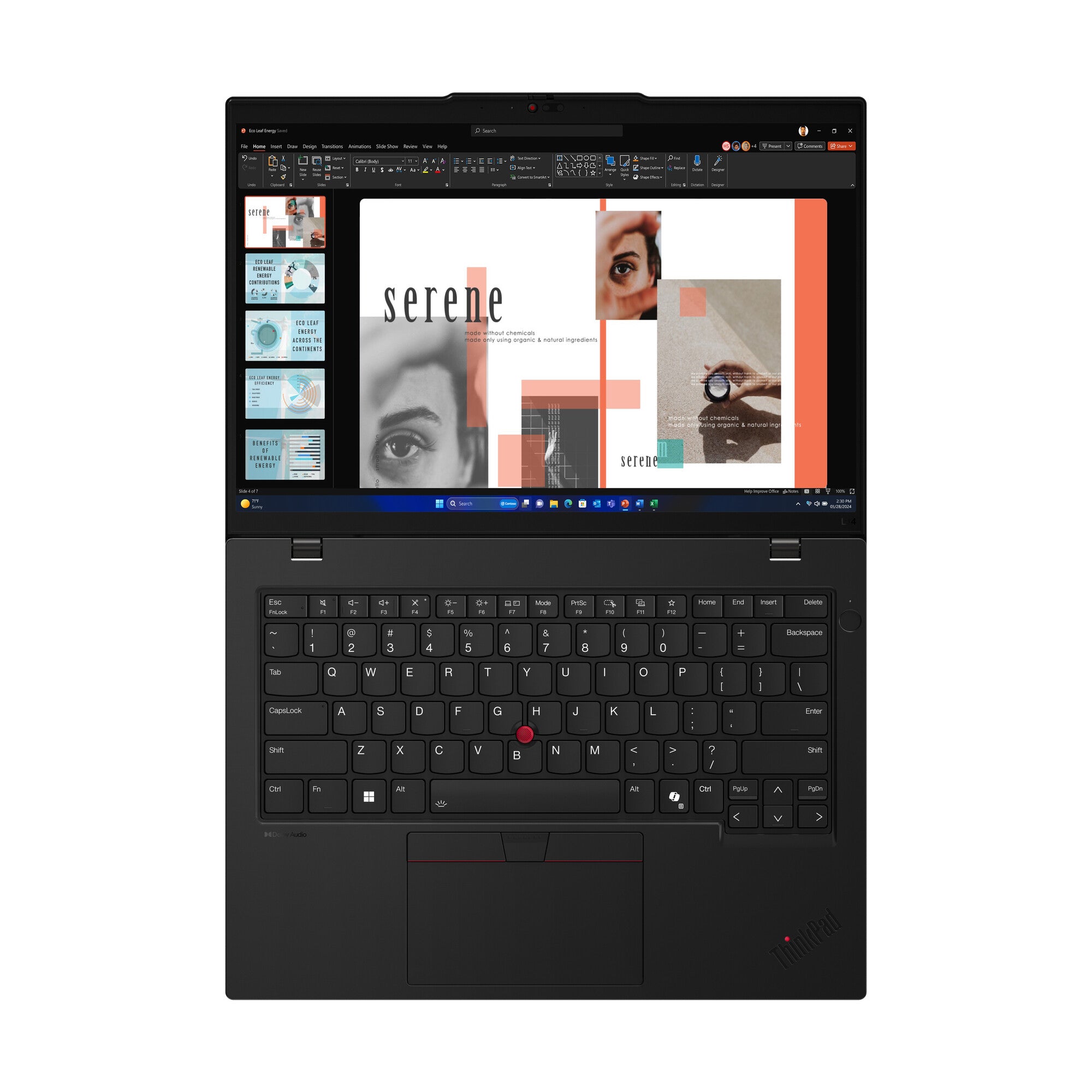

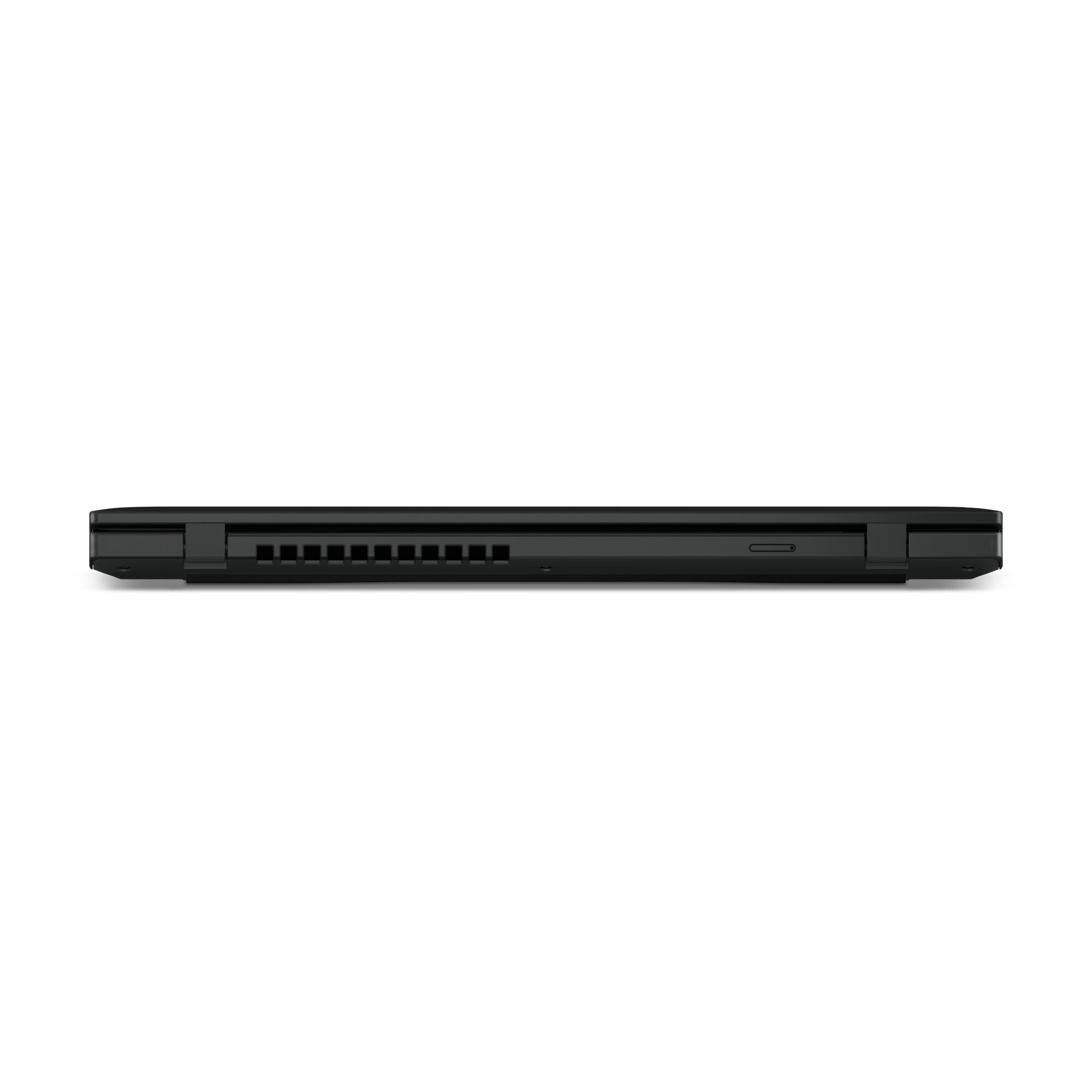

We’ve improved accessibility on our ThinkPad keyboard by adding an LED Braille indicator to indicate the power port and tactile markings on keys so everyone can quickly and correctly identify and navigate. Plus, you can do more with our iconic TrackPoint than just navigate — double-tap to open the customizable TrackPoint Quick Menu to optimize audio-video settings. For added usability, we’ve increased the size of the TrackPad and swapped the locations of the Ctrl and Fn keys. Airflow vents to the rear to keep the system running cooler and performing even better.
Round-the-Clock Security
Biometrics safeguard the ThinkPad L14 Gen 5 laptop, from the fingerprint reader to facial recognition software. ThinkShield, our comprehensive suite of security solutions, boasts discrete Trusted Platform Module (dTPM) to safeguard critical data with encryption. Plus, when you choose Intel vPro® technology, you’ll get multilayer security including AI-based Intel® Hardware Shield, which helps prevent and defend against attacks.
Specifications may vary depending upon region / model.
Design | |
---|---|
Housing material | Polycarbonate (PC), Acrylonitrile butadiene styrene (ABS) |
Form factor | Clamshell |
Product colour | Black |
Product type | Laptop |
Display | |
---|---|
Contrast ratio (typical) | 1000:1 |
Maximum refresh rate | 60 Hz |
RGB colour space | NTSC |
Colour gamut | 45% |
Display brightness | 400 cd/m² |
Anti-glare screen | Yes |
LED backlight | Yes |
Native aspect ratio | 16:10 |
Panel type | IPS |
HD type | WUXGA |
Touchscreen | No |
Display resolution | 1920 x 1200 pixels |
Display diagonal | 35.6 cm (14") |
Processor | |
---|---|
Processor base power | 15 W |
Maximum turbo power | 57 W |
Processor cache type | Smart Cache |
Processor cache | 12 MB |
Processor cores | 12 |
Performance cores | 2 |
Efficient cores | 8 |
Processor threads | 14 |
Performance-core Max Turbo Frequency | 4.8 GHz |
Efficient-core Max Turbo Frequency | 3.8 GHz |
Processor boost frequency | 4.8 GHz |
Performance-core base frequency | 1.7 GHz |
Efficient-core base frequency | 1.2 GHz |
Processor model | 155U |
Low Power Efficient-core Base Frequency | 700 MHz |
Low Power Efficient-core Max Turbo Frequency | 2.1 GHz |
Low Power Efficient-cores | 2 |
Processor generation | Intel® Core™ Ultra (Series 1) |
Processor family | Intel Core Ultra 7 |
Processor manufacturer | Intel |
Neural processor unit (NPU) | |
---|---|
AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
AI datatype support on NPU | FP16, FP32, Int8 |
Windows Studio effects support | Yes |
Sparsity support | Yes |
Maximum frequency NPU | 1.4 GHz |
Neural processor unit (NPU) | Intel AI Boost |
Memory | |
---|---|
Memory channels | Dual-channel |
Maximum internal memory | 64 GB |
Memory slots | 2x SO-DIMM |
Memory layout (slots x size) | 1 x 16 GB |
Memory clock speed | 5600 MHz |
Memory form factor | SO-DIMM |
Internal memory type | DDR5-SDRAM |
Internal memory | 16 GB |
Storage | |
---|---|
Card reader integrated | No |
Optical drive type | No |
SSD form factor | M.2 |
SSD interface | PCI Express 4.0 |
NVMe | Yes |
SSD capacity | 512 GB |
Number of SSDs installed | 1 |
Total SSDs capacity | 512 GB |
Storage media | SSD |
Total storage capacity | 512 GB |
Graphics | |
---|---|
On-board graphics card model | Intel Graphics |
On-board graphics card family | Intel Graphics |
On-board GPU manufacturer | Intel |
Discrete graphics card model | Not available |
Discrete graphics card | No |
On-board graphics card | Yes |
Audio | |
---|---|
Number of microphones | 2 |
Built-in microphone | Yes |
Speaker power | 2 W |
Number of built-in speakers | 2 |
Audio system | Dolby Audio |
Camera | |
---|---|
Privacy type | Privacy shutter |
Privacy camera | Yes |
Infrared (IR) camera | Yes |
Front camera resolution (numeric) | 5 MP |
Front camera | Yes |
Network | |
---|---|
Bluetooth version | 5.3 |
Bluetooth | Yes |
Ethernet LAN data rates | 100,1000 Mbit/s |
Ethernet LAN | Yes |
WLAN controller model | Intel Wi-Fi 6E AX211 |
WLAN controller manufacturer | Intel |
Antenna type | 2x2 |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Mobile network connection | No |

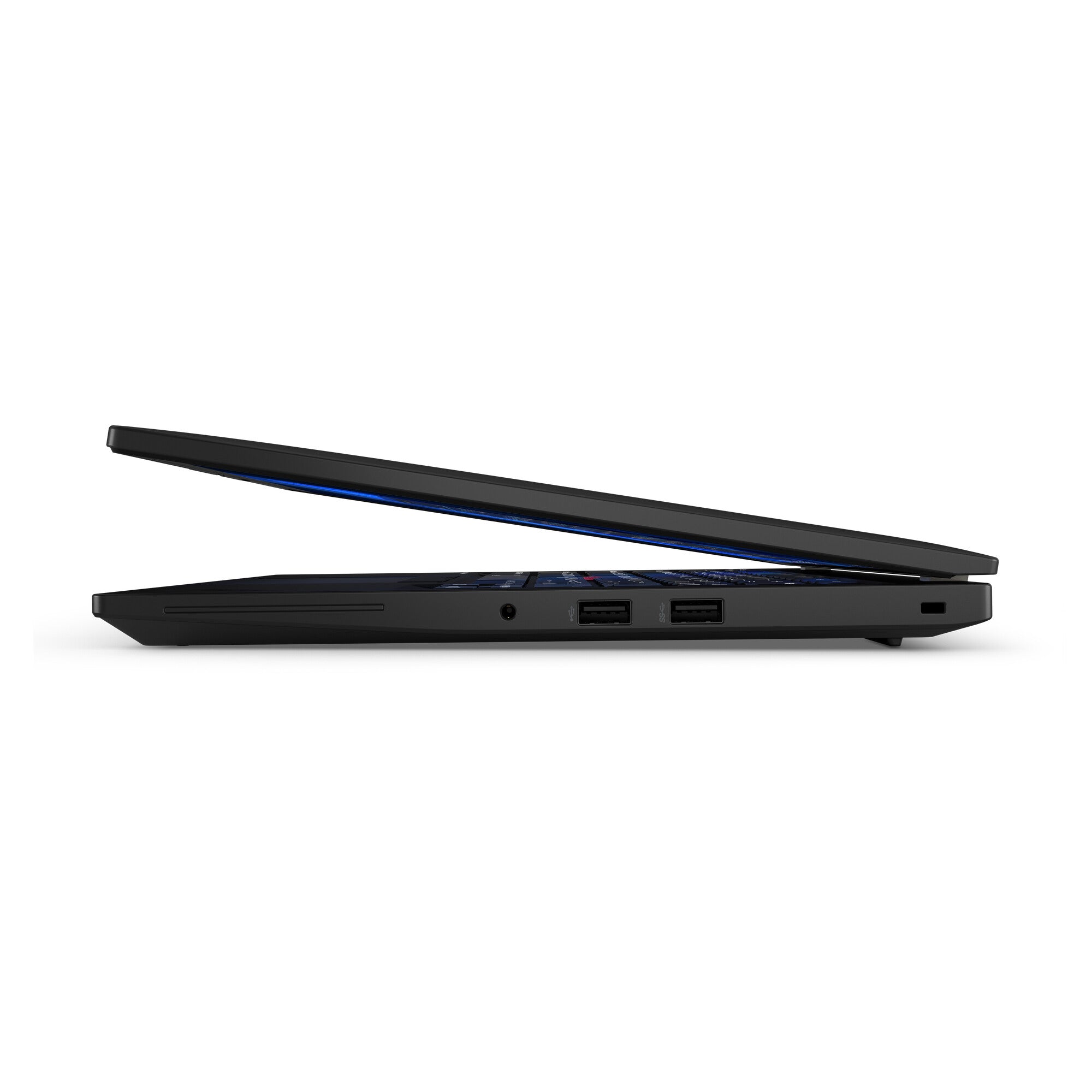

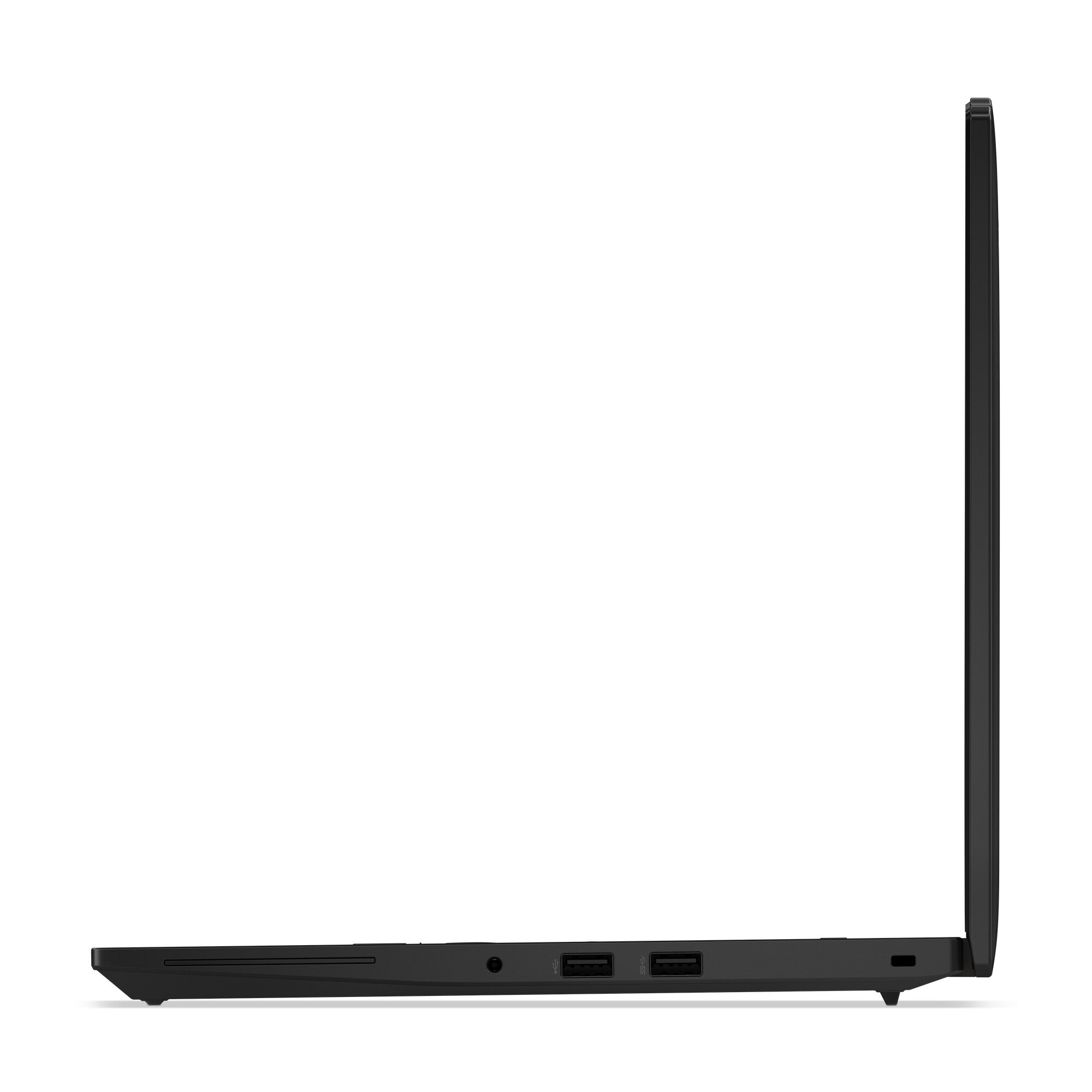

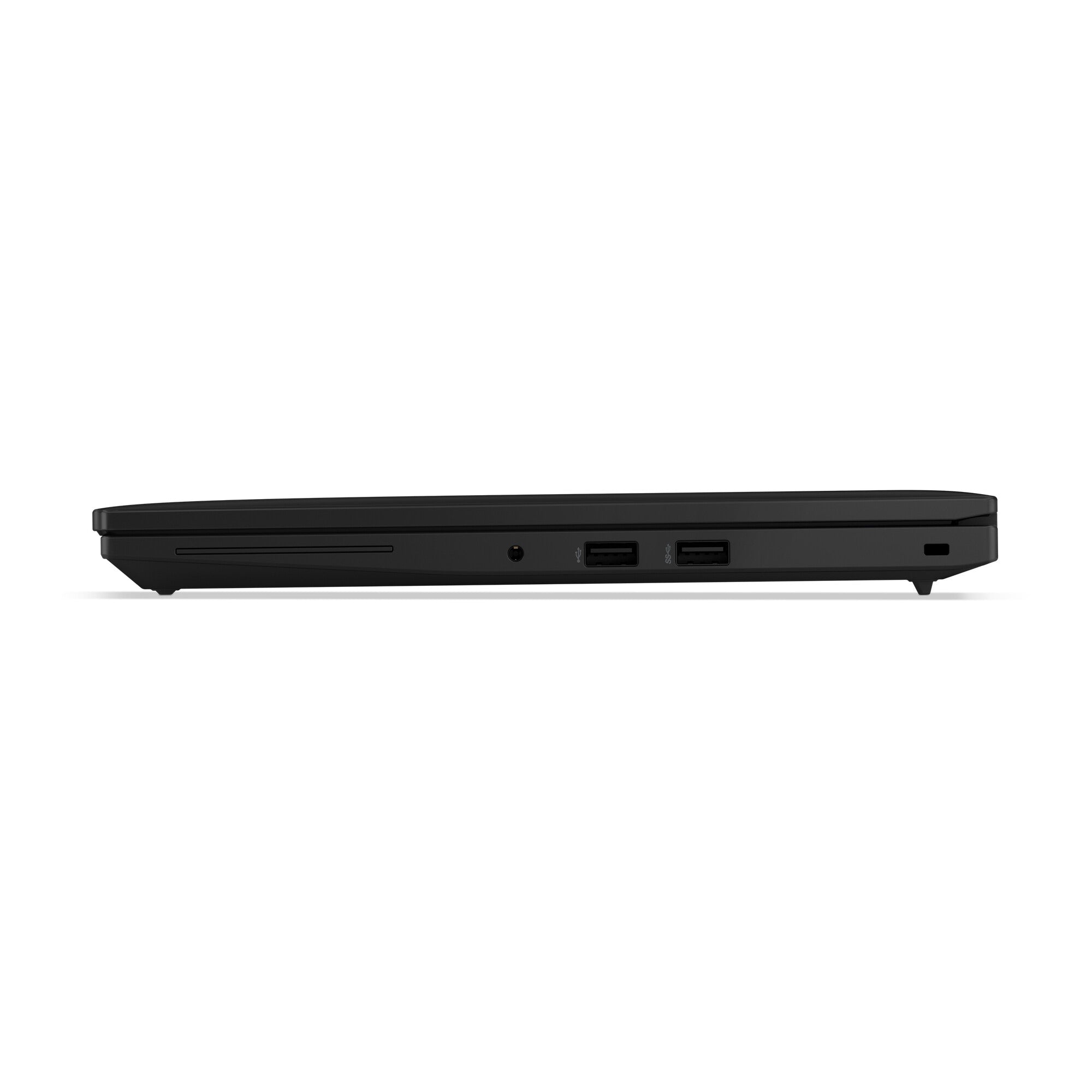

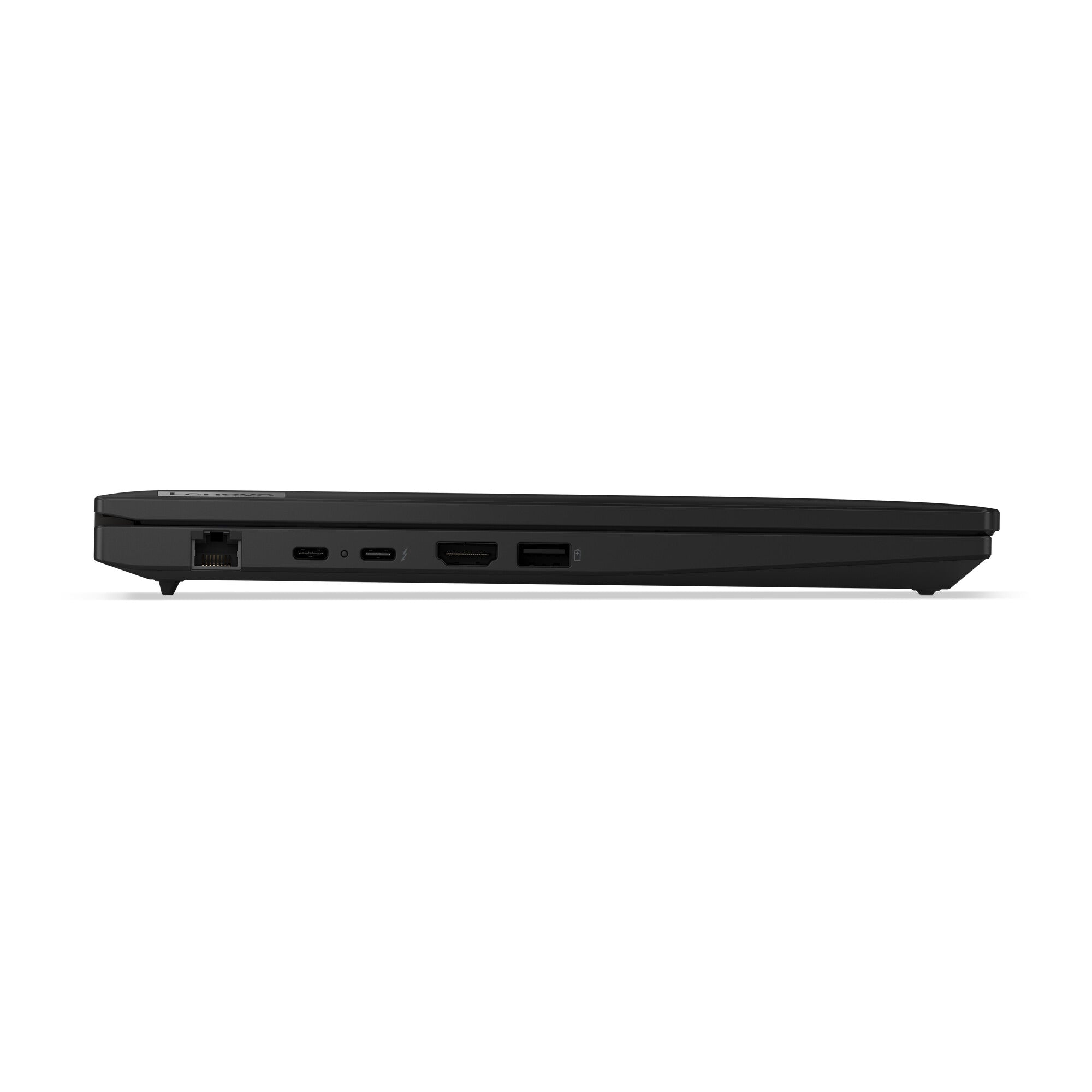

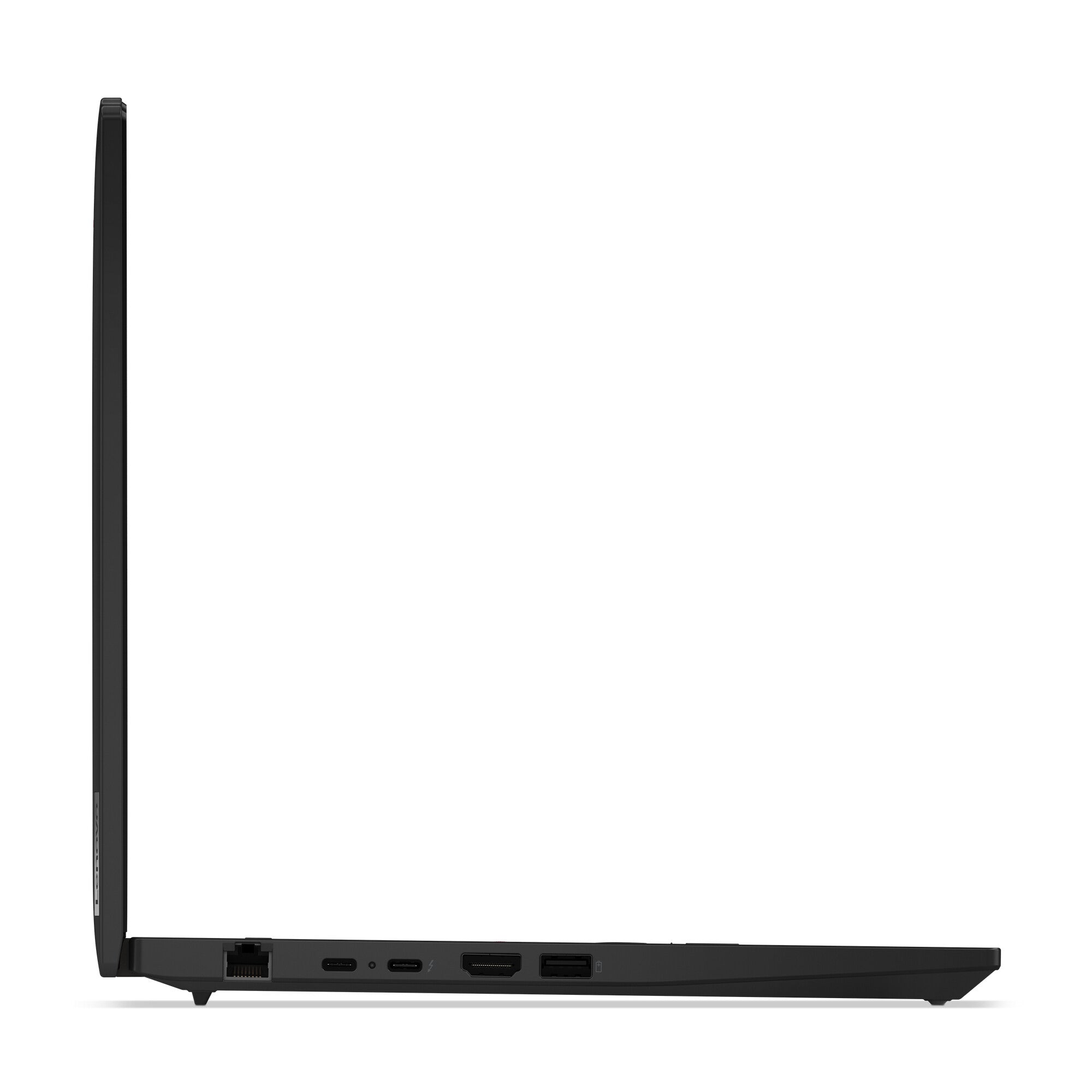

Ports & interfaces | |
---|---|
USB Sleep-and-Charge ports | 2 |
USB Sleep-and-Charge | Yes |
USB Power Delivery | Yes |
USB Type-C DisplayPort Alternate Mode | Yes |
Combo headphone/mic port | Yes |
Thunderbolt 4 ports quantity | 1 |
Intel® Thunderbolt 4 | Yes |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 1 |
Keyboard | |
---|---|
Spill-resistant keyboard | Yes |
Keyboard backlit | Yes |
Numeric keypad | No |
Keyboard language | UK English |
Pointing device | ThinkPad UltraNav |
Software | |
---|---|
Operating system installed | No |
Battery | |
---|---|
Fast charging | Yes |
Battery capacity | 57 Wh |
Battery technology | Lithium Polymer (LiPo) |
Power | |
---|---|
AC adapter input voltage | 100 - 240 V |
AC adapter frequency | 50/60 Hz |
AC adapter power | 65 W |
Security | |
---|---|
Password protection type | HDD, Power on, Supervisor |
Password protection | Yes |
Trusted Platform Module (TPM) | Yes |
Trusted Platform Module (TPM) version | 2.0 |
Windows Hello | Yes |
Fingerprint reader | Yes |
Smart card reader | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Operational conditions | |
---|---|
Maximum shipping altitude | 3048 m |
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 8 - 95% |
Storage temperature (T-T) | 5 - 43 °C |
Operating temperature (T-T) | 5 - 35 °C |
Certificates | |
---|---|
Certification | ErP Lot 6ErP Lot 26MIL-STD-810H |
Sustainability | |
---|---|
Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, TCO |
Sustainability compliance | Yes |
Weight & dimensions | |
---|---|
Depth | 226 mm |
Width | 313.7 mm |
General | |
---|---|
Product Family | ThinkPad |
Product Series | L |
