Redesigned with collaboration in mind

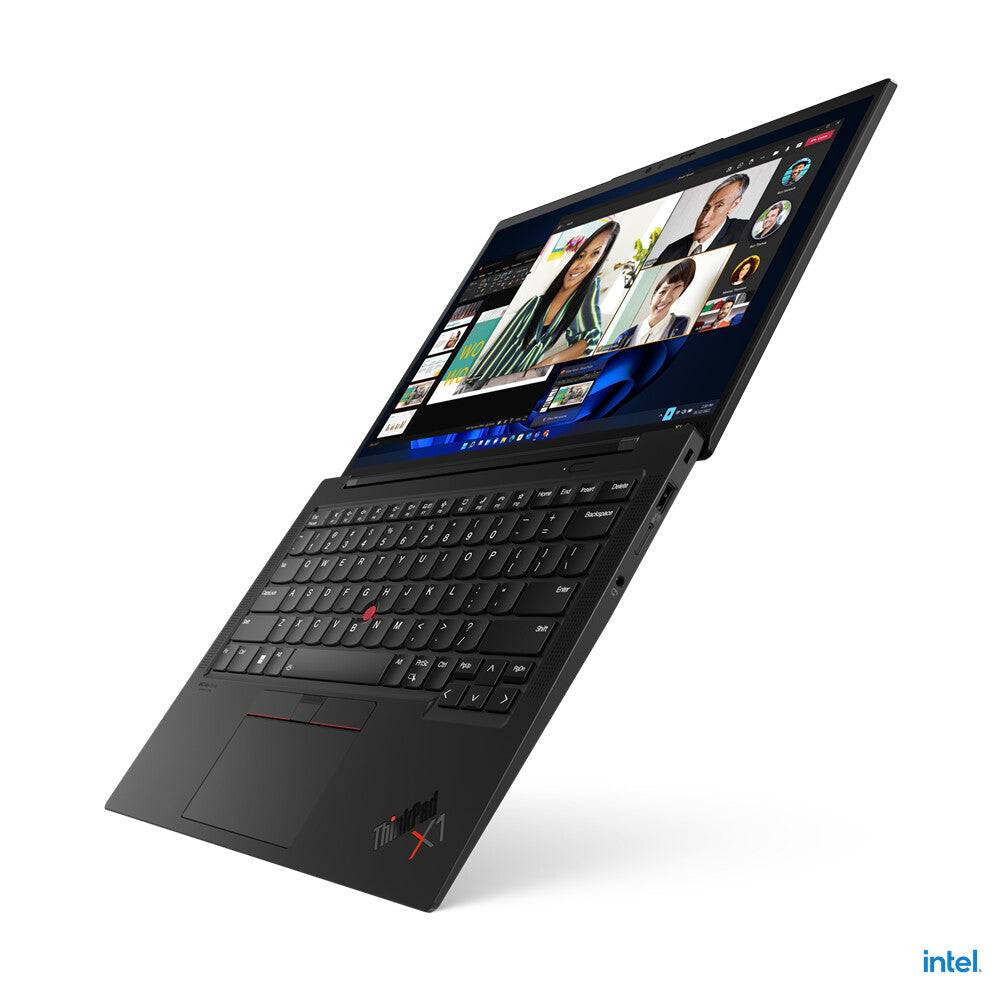

The 10th generation of our premium ThinkPad X1 Carbon laptop is built on the Intel® Evo platform and powered by up to 12th Gen Intel® Core™ vPro® processors. It still has the legendary ThinkPad keyboard, only now we’ve redesigned the keys to create better airflow, in addition to rear exhaust ventilation. We’ve also transformed the camera into a Communications Bar to improve videoconferencing.
Serious productivity enhancer
Powered by 12th Gen Intel® Core™ vPro® processors—with up to 14 cores—our legendary ThinkPad X1 Carbon Gen 10 laptop takes multitasking to the next level. These CPUs have a revolutionary design that intelligently allocate workloads to the right thread, on the right core, at the right time—which allows for better video collaboration and productivity based on how you’re actually using your device.
Communication just got a lot nicer
Say hello to the Communications Bar, a gorgeous new design that houses the higher resolution FHD camera with optional infrared (IR) and Computer Vision features—all with a webcam privacy shutter. It also shows off the 4 x 360-degree mics with integrated AI-based noise-cancellation and Dolby Voice®. The Communications Bar not only looks great—it inspires seamless collaboration and vibrant video calls.
Keeps cool under pressure

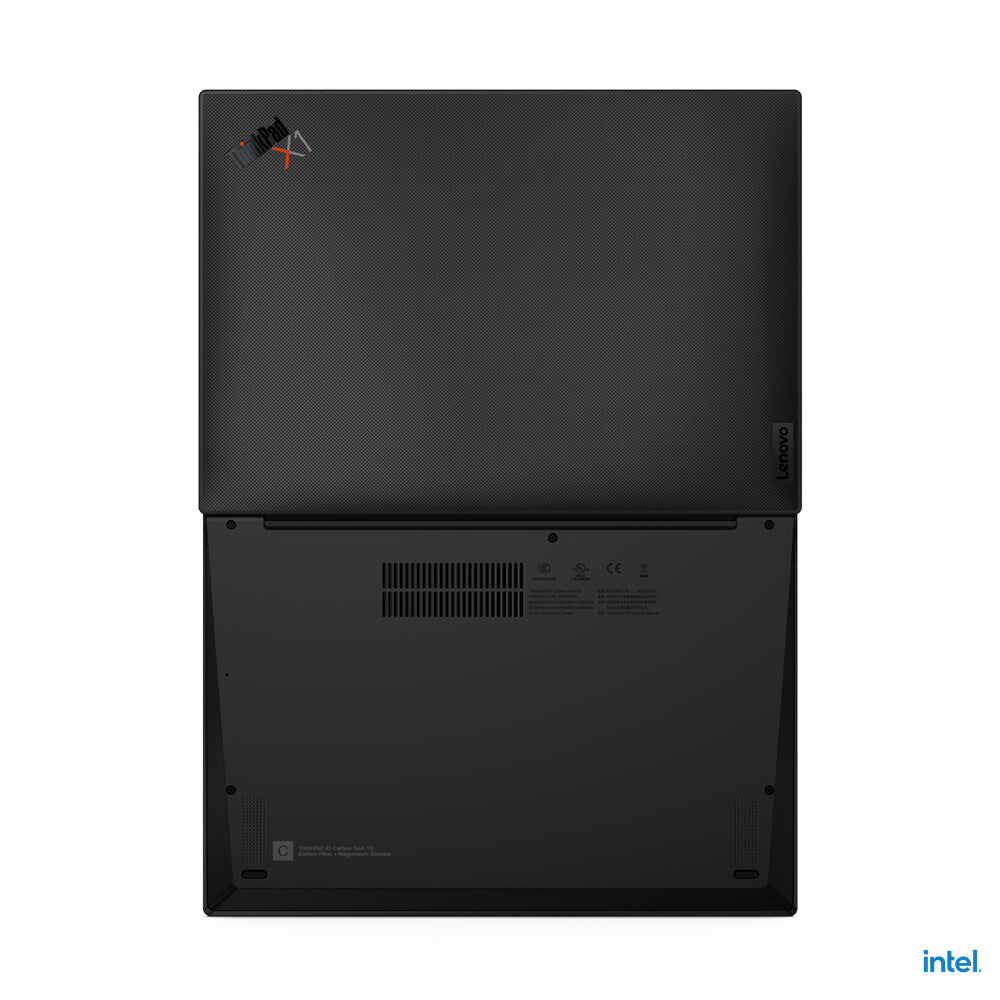

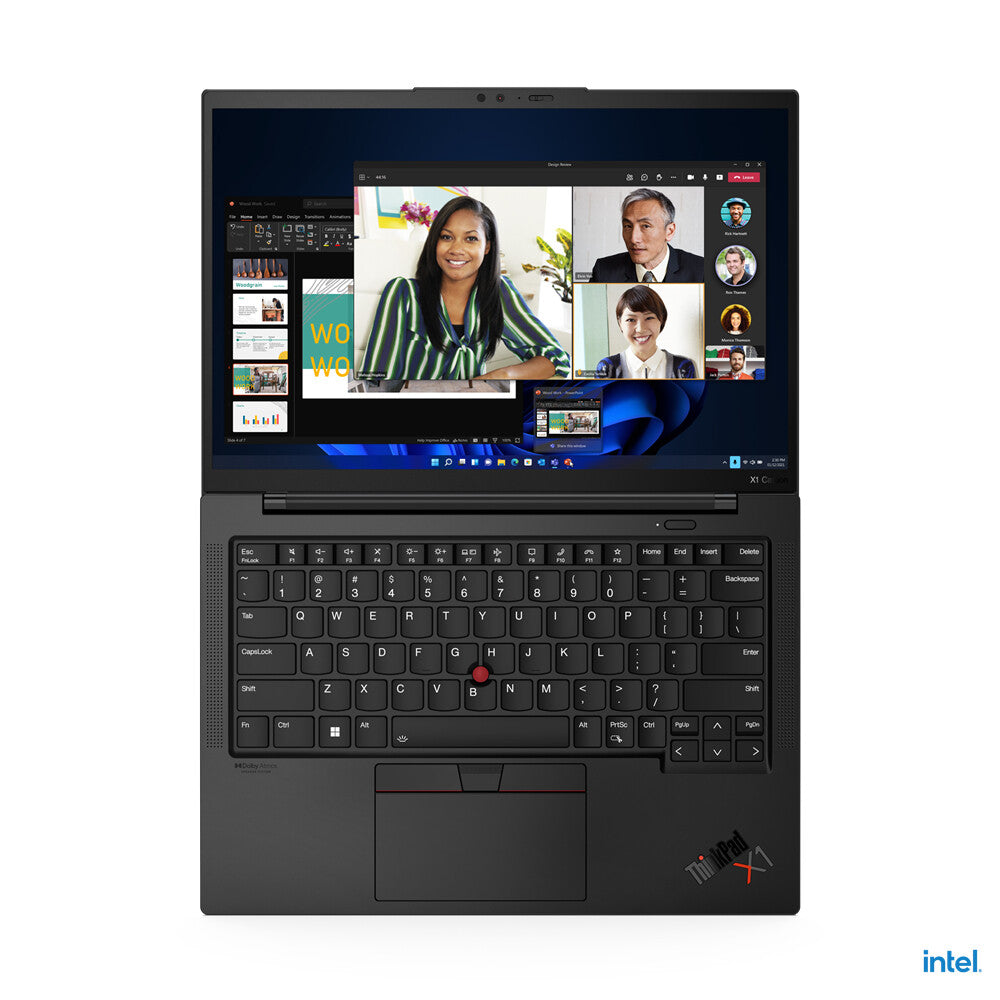

The underside of the keys on our legendary ThinkPad keyboard have been redesigned for air intake to create better airflow. Combined with the dual fan and rear venting, the ThinkPad X1 Carbon Gen 10 laptop delivers improved thermals—so go ahead and put in long hours working and playing as this X1 will stay as cool as you are.
Missing laptop? No problem.
If you misplace your laptop, or worse, if someone takes it, locating your device has never been so easy. Now Tile® ready, the ThinkPad X1 Carbon Gen 10 works with your smartphone to find your device—even when your X1 is powered off. Simply subscribe to the Tile® service, and then download, set up, and activate.
Security as unique as your DNA
Biometrics provide extra security on the ThinkPad X1 Carbon Gen 10 laptop—from the power button integrated with the fingerprint reader that lets you log in and boot up instantaneously, to the facial recognition software that works with the IR camera. Plus, Computer Vision based presence detection automatically locks your device when you move away, and with the optional PrivacyGuard display, no wandering eyes see what’s on your screen.
Displays that dazzle

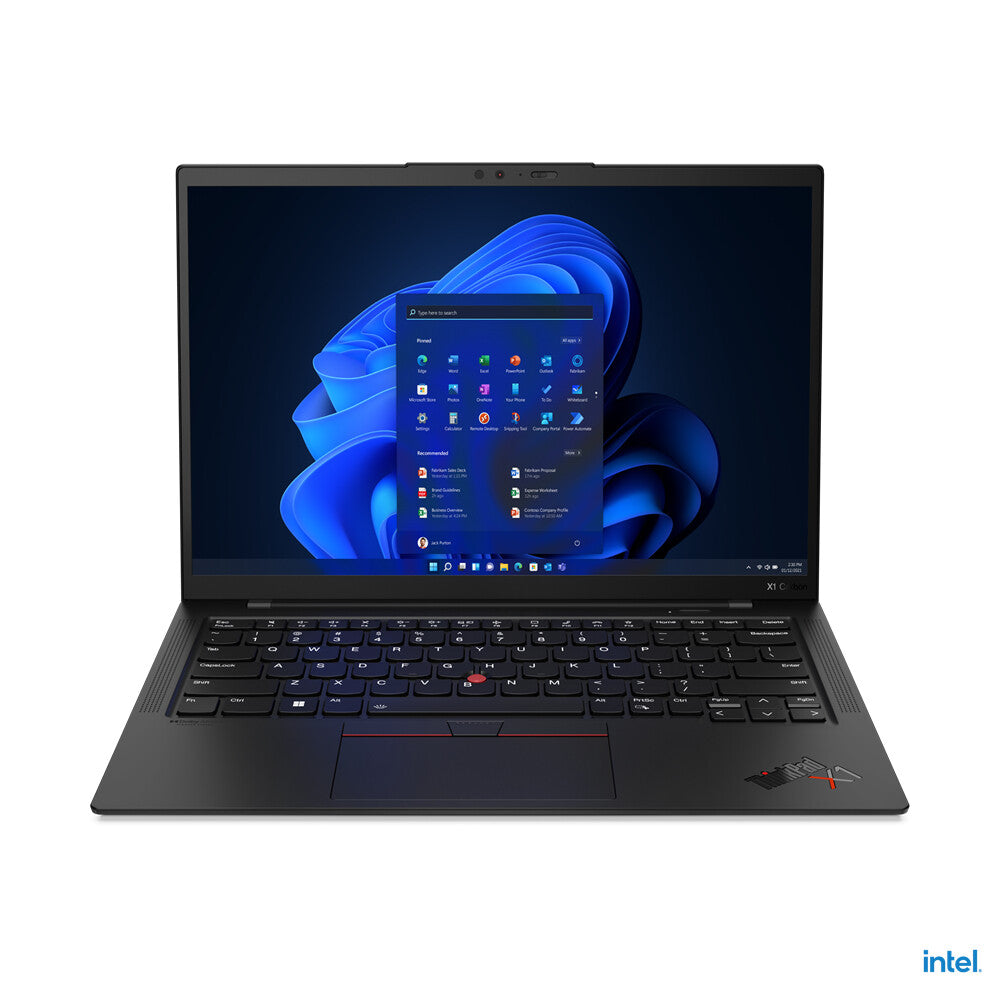

Whether your position requires richly detailed graphical displays or extra security to keep spying eyes away, the ThinkPad X1 Carbon Gen 10 laptop has an option for you. Ranging from 4K WQUXGA touch to 2.8K OLED, to WUXGA and even ePrivacy, all 14" panels feature a 16:10 aspect ratio with narrow bezels. Most displays also include low-power usage and Eyesafe® certification to reduce blue-light emissions.
Count on ThinkPad every time
We use the US Department of Defense's MIL-STD 810H standards to create a balance of reliability and durability for our ThinkPad laptops. We test against 12 standards and more than 200 quality checks to ensure they run in extreme conditions. These tests cover harsh variables like Arctic wilderness and desert dust storms, including temperature, pressure, humidity, vibration, and more.
Design | |
---|---|
Housing material | Aluminium, Carbon fibre |
Form factor | Clamshell |
Colour name | Black |
Product colour | Black |
Product type | Laptop |
Display | |
---|---|
Contrast ratio (typical) | 1000:1 |
Display brightness | 400 cd/m² |
Anti-glare screen | Yes |
LED backlight | Yes |
Native aspect ratio | 16:10 |
Panel type | OLED |
HD type | 2.8K |
Touchscreen | No |
Display resolution | 2880 x 1800 pixels |
Display diagonal | 35.6 cm (14") |
Processor | |
---|---|
Configurable TDP-down | 20 W |
Motherboard chipset | Intel SoC |
Processor cache | 12 MB |
Processor cores | 12 |
Processor boost frequency | 4.7 GHz |
Processor frequency | 2.1 GHz |
Processor model | i7-1260P |
Processor generation | 12th gen Intel® Core™ i7 |
Processor family | Intel® Core™ i7 |
Processor manufacturer | Intel |
Memory | |
---|---|
Maximum internal memory | 32 GB |
Memory clock speed | 5200 MHz |
Memory form factor | On-board |
Internal memory type | LPDDR5-SDRAM |
Internal memory | 32 GB |
Storage | |
---|---|
Card reader integrated | No |
Optical drive type | No |
SSD form factor | M.2 |
SSD interface | NVMe, PCI Express 4.0 |
NVMe | Yes |
SSD capacity | 1 TB |
Number of SSDs installed | 1 |
Total SSDs capacity | 1 TB |
Storage media | SSD |
Total storage capacity | 1 TB |
Graphics | |
---|---|
On-board graphics card model | Intel Iris Xe Graphics |
On-board graphics card family | Intel Iris Xe Graphics |
On-board GPU manufacturer | Intel |
Discrete graphics card model | Not available |
Discrete graphics card | No |
On-board graphics card | Yes |
Audio | |
---|---|
Number of microphones | 4 |
Built-in microphone | Yes |
Number of built-in speakers | 4 |
Audio system | Dolby Atmos |
Audio chip | Realtek ALC3306 |
Camera | |
---|---|
Privacy type | Privacy shutter |
Privacy camera | Yes |
Infrared (IR) camera | Yes |
Front camera resolution | 1920 x 1080 pixels |
Front camera HD type | Full HD |
Front camera | Yes |
Network | |
---|---|
WWAN | Installed |
Near Field Communication (NFC) | Yes |
Bluetooth version | 5.1 |
Bluetooth | Yes |
Ethernet LAN | No |
WLAN controller model | Intel Wi-Fi 6E AX211 |
WLAN controller manufacturer | Intel |
Antenna type | 2x2 |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Mobile network connection | No |
Ports & interfaces | |
---|---|
USB Sleep-and-Charge ports | 1 |
USB Sleep-and-Charge | Yes |
USB Power Delivery | Yes |
USB Type-C DisplayPort Alternate Mode | Yes |

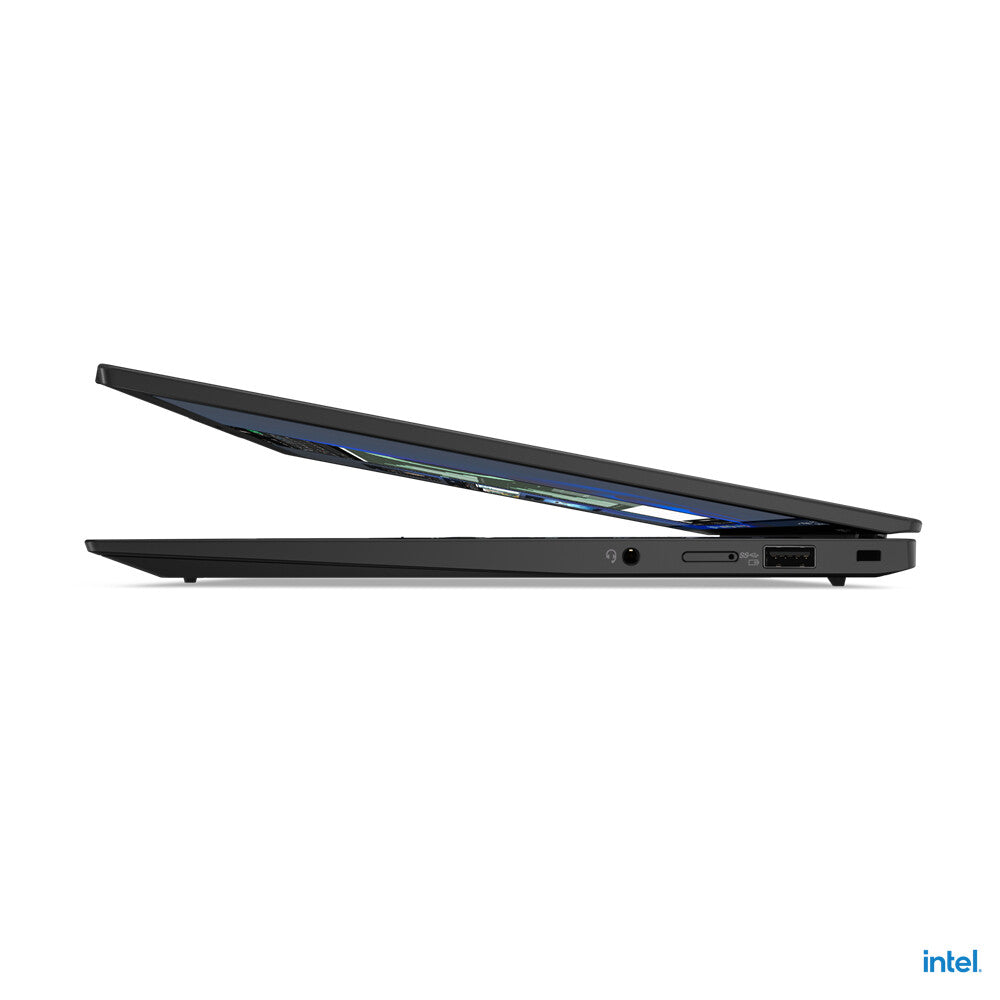

Combo headphone/mic port | Yes |

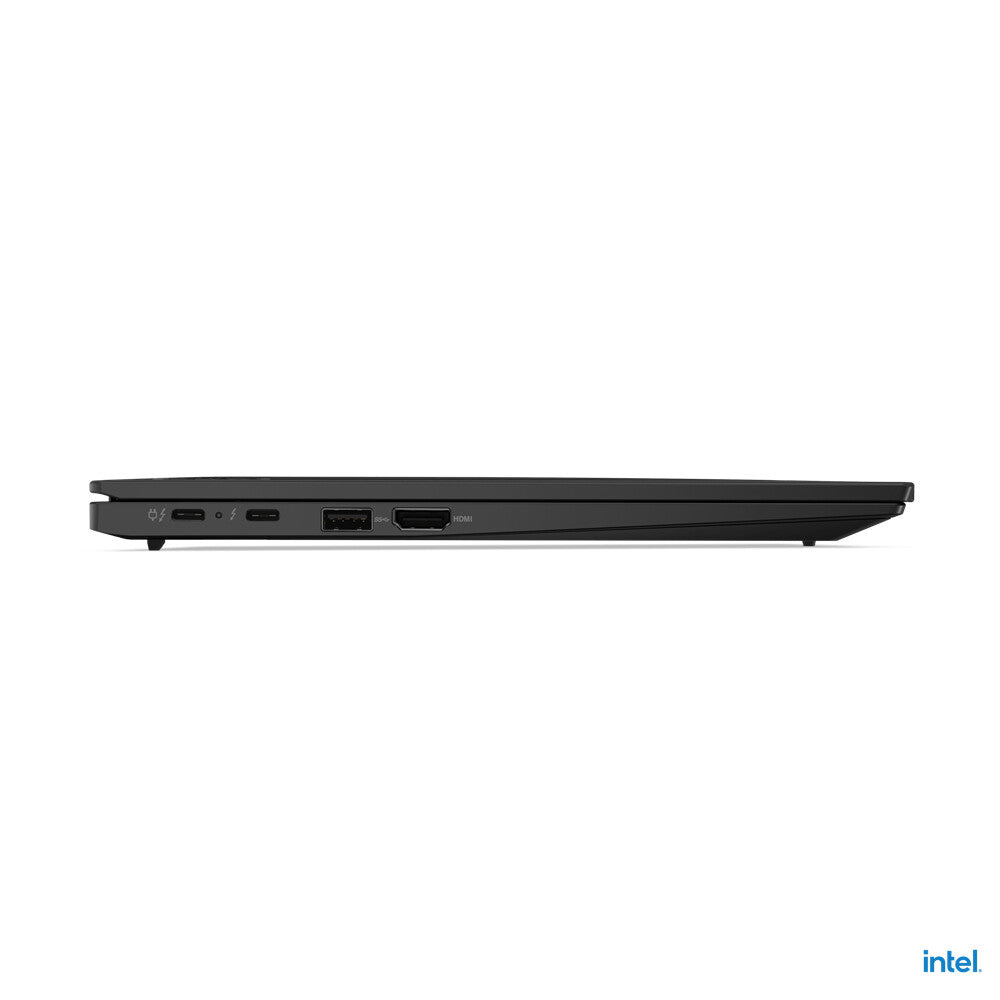

Thunderbolt 4 ports quantity | 2 |
Intel® Thunderbolt 4 | Yes |
HDMI ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Keyboard | |
---|---|
Spill-resistant keyboard | Yes |
Keyboard backlit | Yes |
Numeric keypad | No |
Keyboard language | UK English |
Keyboard layout | QWERTY |
Pointing device | ThinkPad UltraNav |
Software | |
---|---|
Bundled software | Intel Connectivity Performance Suite |
Operating system architecture | 64-bit |
Operating system installed | Windows 11 Pro |
Processor special features | |
---|---|
Intel Flex Memory Access | Yes |
Intel Trusted Execution Technology | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Execute Disable Bit | Yes |
CPU configuration (max) | 1 |
Embedded options available | No |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel Virtualization Technology (VT-x) | Yes |
Battery | |
---|---|
Battery capacity | 57 Wh |
Battery technology | Lithium Polymer (LiPo) |
Power | |
---|---|
AC adapter input voltage | 100 - 240 V |
AC adapter frequency | 50 - 60 Hz |
AC adapter power | 65 W |
Security | |
---|---|
Password protection type | Power on, Supervisor, SSD |
Password protection | Yes |
Trusted Platform Module (TPM) | Yes |
Trusted Platform Module (TPM) version | 2.0 |
Fingerprint reader | Yes |
Smart card reader | No |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Operational conditions | |
---|---|
Storage relative humidity (H-H) | 5 - 95% |
Operating relative humidity (H-H) | 8 - 95% |
Storage temperature (T-T) | 5 - 43 °C |
Operating temperature (T-T) | 5 - 35 °C |
Certificates | |
---|---|
Compliance certificates | RoHS |
Sustainability | |
---|---|
Sustainability certificates | ENERGY STAR, EPEAT Gold, ErP, TCO |
Weight & dimensions | |
---|---|
Height | 15.4 mm |
Depth | 222.5 mm |
Width | 315.6 mm |
Weight | 1.12 kg |
General | |
---|---|
Product Family | ThinkPad |
Product Series | X |
Logistics data | |
---|---|
Harmonized System (HS) code | 84713000 |
