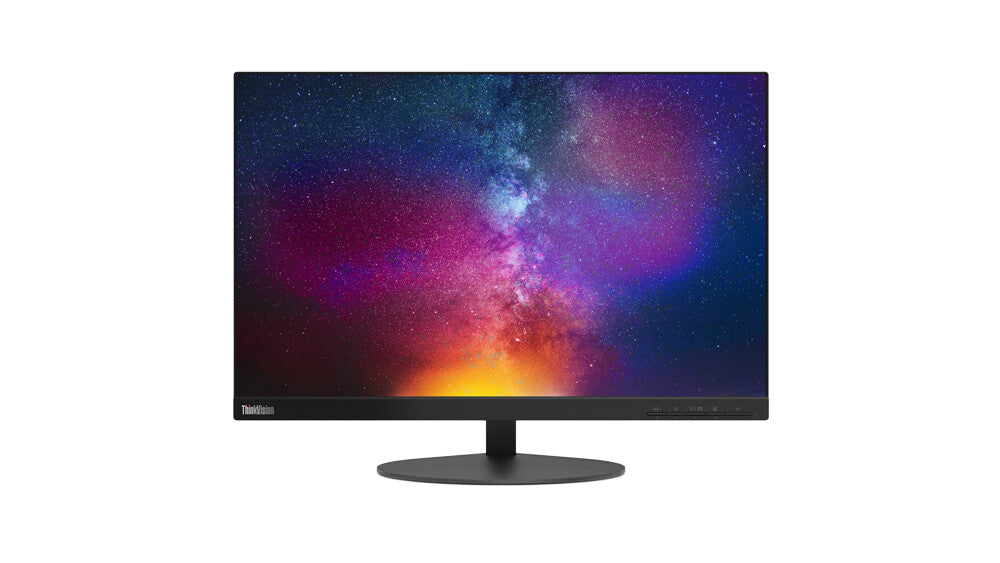

The Lenovo ThinkVision T23D-10 is a superior monitor that is meant to take your efficiency to new heights. With the vivid 22.5-inch display and versatile connectivity options, the ThinkVision T23D-10 lets you perform to your full potential.
The 16:10 aspect ratio of the T23D-10 monitor makes for an extra wide display and a superior viewing experience. The borderless panel of the bright WUXGA monitor and the super narrow bezel make it ideal for multi-screen connection, adding to your productivity. With up to 4 ms response time, the anti-glare display minimises motion blur and eliminates streaking and ghosting for a smooth interaction. The ThinkVision T23D-10 has a range of ports such as VGA, DP and HDMI to boost productivity.
Display | |
---|---|
Colour gamut | 72% |
Viewable size, vertical | 31.4 cm |
Viewable size, horizontal | 49.6 cm |
Pixel pitch | 0.25 x 0.25 mm |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Contrast ratio (typical) | 1000:1 |
Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
Screen shape | Flat |
Response time | 6 ms |
Display brightness (typical) | 250 cd/m² |
Panel type | IPS |
HD type | WUXGA |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:10 |
Display resolution | 1920 x 1200 pixels |
Display diagonal | 57.1 cm (22.5") |
Multimedia | |
---|---|
Built-in camera | No |
Built-in speaker(s) | No |
Design | |
---|---|
Detachable stand | Yes |
Product colour | Black |
Ports & interfaces | |
---|---|
DC-in jack | Yes |
DisplayPorts quantity | 1 |
HDMI ports quantity | 1 |
HDMI | Yes |
DVI port | No |
VGA (D-Sub) ports quantity | 1 |
Built-in USB hub | No |
Network | |
---|---|
Bluetooth | No |
Wi-Fi | No |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
LED indicators | Yes |
Plug and Play | Yes |
Number of OSD languages | 8 |
On Screen Display (OSD) | Yes |
Tilt angle range | -5 - 30° |
Swivel angle range | -45 - 45° |
Swivelling | Yes |
Pivot angle | 0 - 90° |
Pivot | Yes |
Height adjustment | 11 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
Power consumption (max) | 18 W |
Power consumption (standby) | 0.3 W |
Power consumption (typical) | 15 W |
Packaging content | |
---|---|
HDMI cable length | 1.8 m |
DisplayPort cable length | 1.8 m |
Stand included | Yes |
Weight & dimensions | |
---|---|
Bezel width (side) | 2.3 mm |
Weight (with stand) | 4.85 kg |
Height (with stand) | 491.9 mm |
Depth (with stand) | 251.9 mm |
Width (with stand) | 501.2 mm |
Sustainability | |
---|---|
Sustainability certificates | EPEAT Silver, ENERGY STAR |
General | |
---|---|
Product Family | ThinkVision |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |
Technical details | |
---|---|
Compliance certificates | RoHS |
