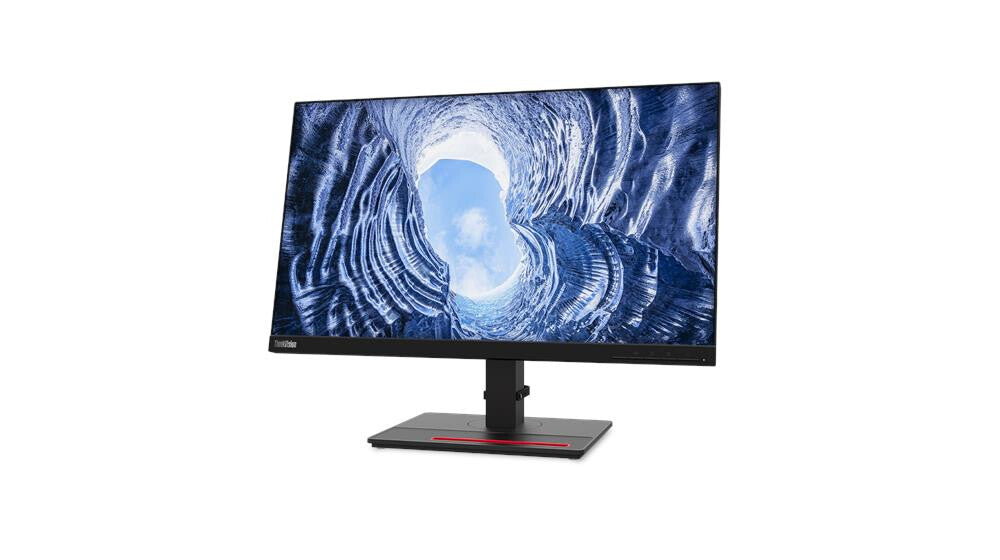

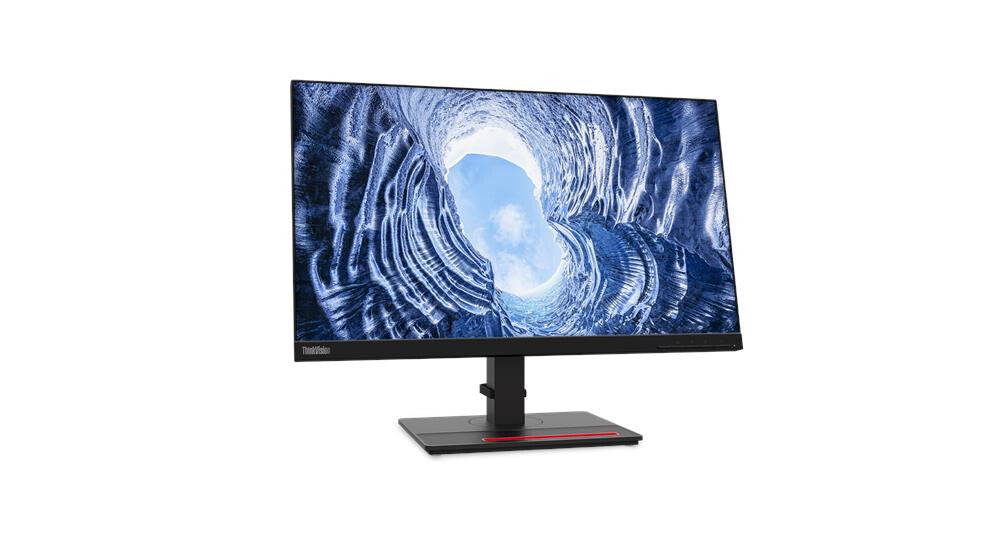

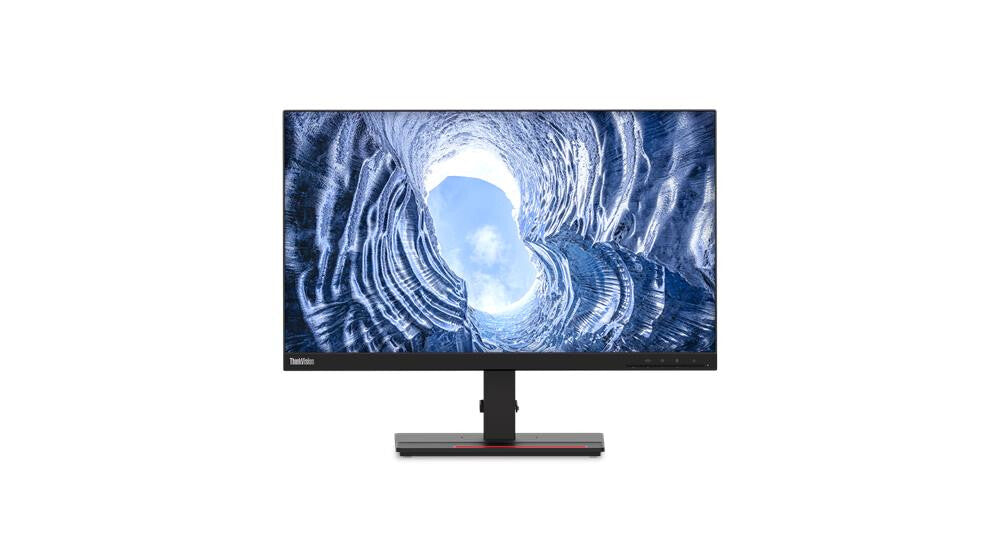

Everyday tasks are a breeze with the efficiency of the ThinkVision T24H-20 monitor. A well-designed QHD 2560 x 1440 resolution screen, multiple ports, and wide color gamut make it one of the most sought after 23.8-inch commercials displays available. Boost your productivity with a dual or multi-monitor setup taking advantage of the 3-side NearEdgeless bezels that offer a seamless, virtually borderless experience. It has a specially engineered panel to reduce glare, an ergonomic stand for improved customization, and a VESA mount for wall hanging. Maximize your desk space with the USB Type-C one-cable solution that comes integrated with Smart Power for better connectivity and power efficiency.
Display | |
---|---|
Colour gamut standard | sRGB |
sRGB coverage (typical) | 99% |
Colour depth | 8 bit |
Viewable size, vertical | 29.6 cm |
Viewable size, horizontal | 52.7 cm |
Pixel density | 123 ppi |
Pixel pitch | 0.2058 x 0.2058 mm |
Response time (fast) | 4 ms |
Display number of colours | 16.78 million colours |
Viewing angle, vertical | 178° |
Viewing angle, horizontal | 178° |
Maximum refresh rate | 60 Hz |
Contrast ratio (dynamic) | 3000000:1 |
Contrast ratio (typical) | 1000:1 |
Supported graphics resolutions | 2560 x 1440 |
Screen shape | Flat |
Response time | 6 ms |
Display brightness (typical) | 300 cd/m² |
Backlight type | W-LED |
Panel type | IPS |
HD type | Quad HD |
Touchscreen | No |
Display technology | LED |
Native aspect ratio | 16:9 |
Display resolution | 2560 x 1440 pixels |
Display diagonal | 60.5 cm (23.8") |
Performance | |
---|---|
Low Blue Light technology | Yes |
Multimedia | |
---|---|
Built-in camera | No |
Built-in speaker(s) | No |
Design | |
---|---|
Certification | CCC, TCO 8.0, TCO Edge 2.0 |
Feet colour | Black |
Front bezel colour | Black |
Colour name | Raven Black |
Product colour | Black |

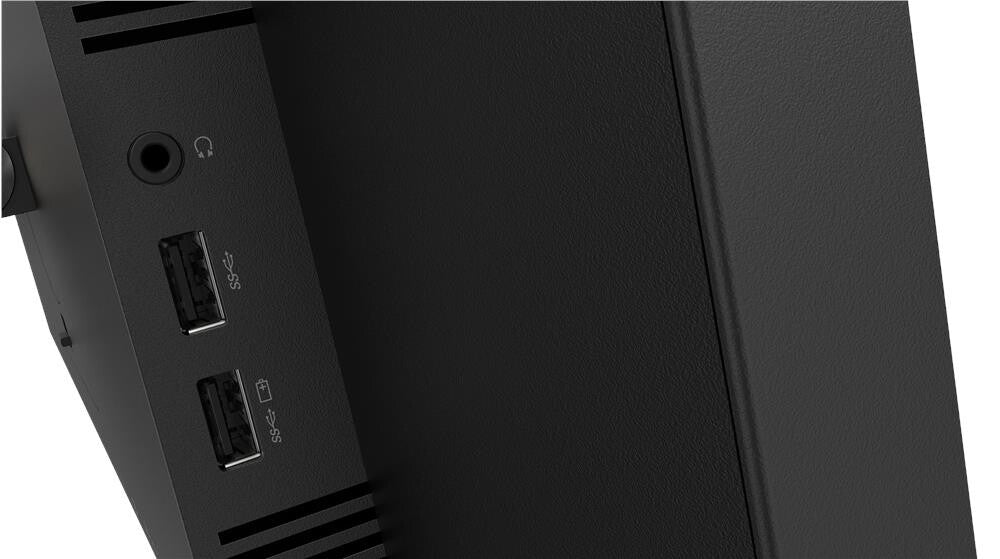

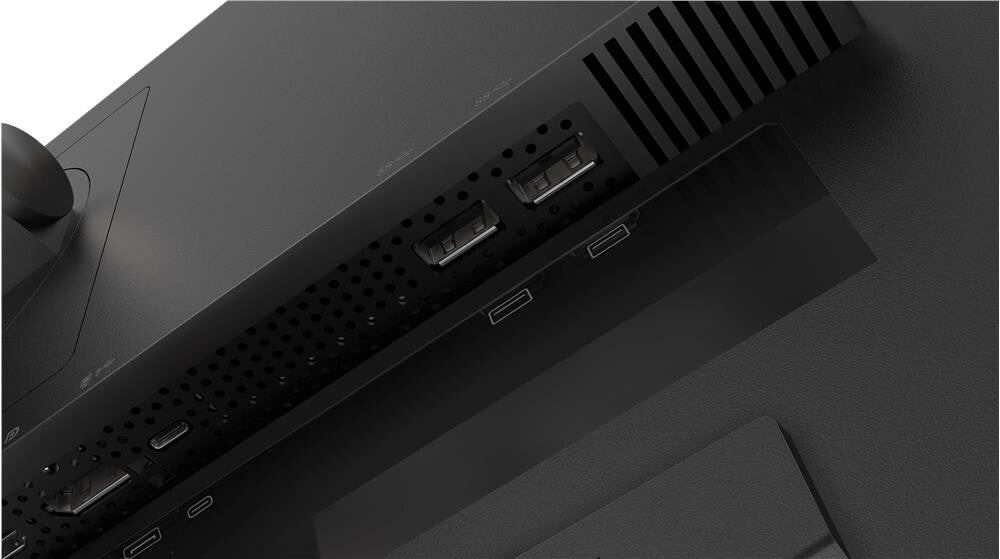

Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | No |
DisplayPort version | 1.2 |
DisplayPorts quantity | 1 |
HDMI version | 1.4 |
HDMI ports quantity | 1 |
HDMI | Yes |
DVI port | No |
USB Power Delivery up to | 75 W |
USB Type-C DisplayPort Alternate Mode | Yes |
USB Type-A downstream ports quantity | 4 |
Number of upstream ports | 1 |
USB upstream port type | USB Type-C |
USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
Built-in USB hub | Yes |

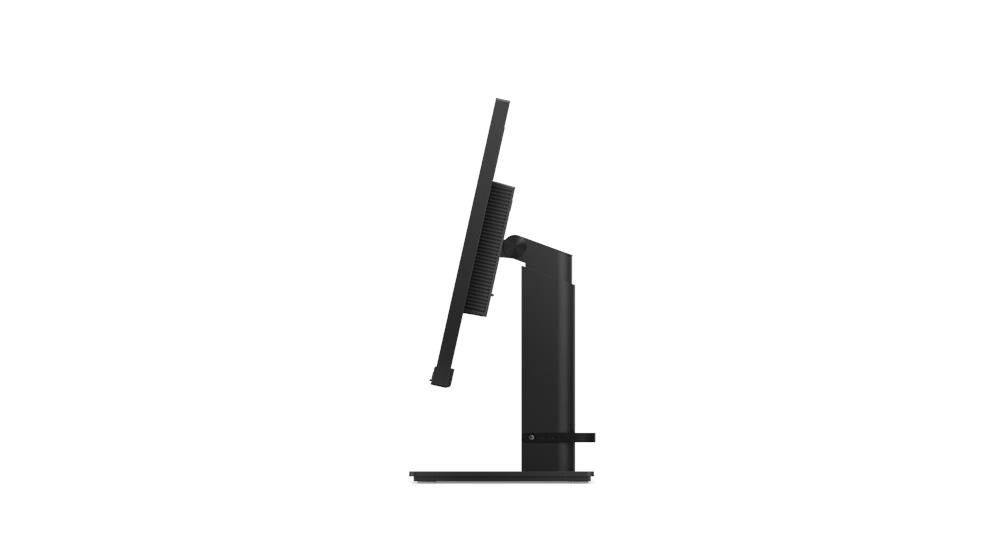

Ergonomics | |
---|---|
Tilt adjustment | Yes |
Number of OSD languages | 8 |
On Screen Display (OSD) | Yes |
Tilt angle range | -5 - 35° |
Swivel angle range | -45 - 45° |
Swivelling | Yes |
Pivot angle | -90 - 90° |
Pivot | Yes |
Height adjustment | 15 cm |
Height adjustment | Yes |
Cable lock slot type | Kensington |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
VESA mounting | Yes |
Power | |
---|---|
AC input frequency | 47/63 Hz |
AC input voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
Power consumption (typical) | 23 W |
Packaging content | |
---|---|
Cables included | AC, USB Type-C to USB Type-C |
Stand included | Yes |
Weight & dimensions | |
---|---|
Bezel width (bottom) | 2.41 cm |
Bezel width (top) | 2 mm |
Bezel width (side) | 2 mm |
Weight (without stand) | 3.85 kg |
Height (without stand) | 325.7 mm |
Depth (without stand) | 44.6 mm |
Width (without stand) | 539.8 mm |
Weight (with stand) | 6.18 kg |
Height (with stand) | 420 mm |
Depth (with stand) | 205 mm |
Width (with stand) | 539.8 mm |
Packaging data | |
---|---|
Package weight | 8.1 kg |
Package height | 620 mm |
Package depth | 149 mm |
Package width | 423 mm |
Sustainability | |
---|---|
Sustainability certificates | EPEAT Silver, ENERGY STAR |
General | |
---|---|
Product Family | ThinkVision |
Logistics data | |
---|---|
Harmonized System (HS) code | 85285210 |
Technical details | |
---|---|
Compliance certificates | RoHS |
