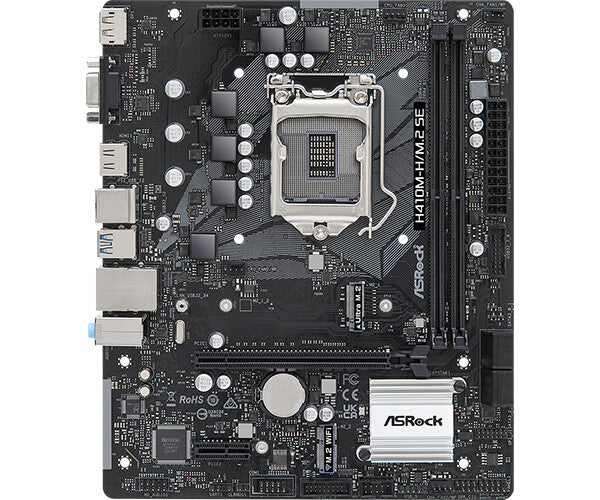

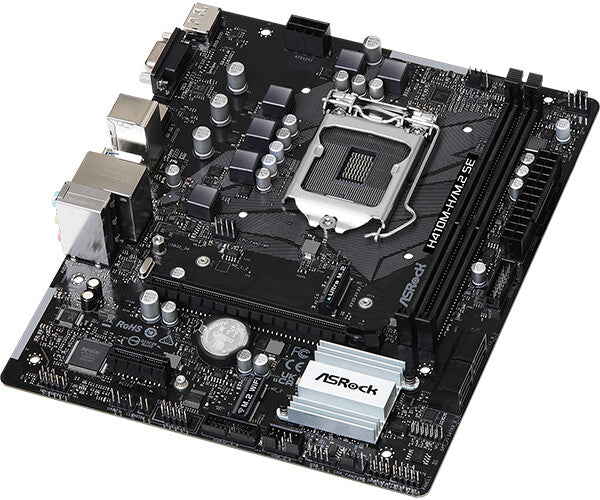

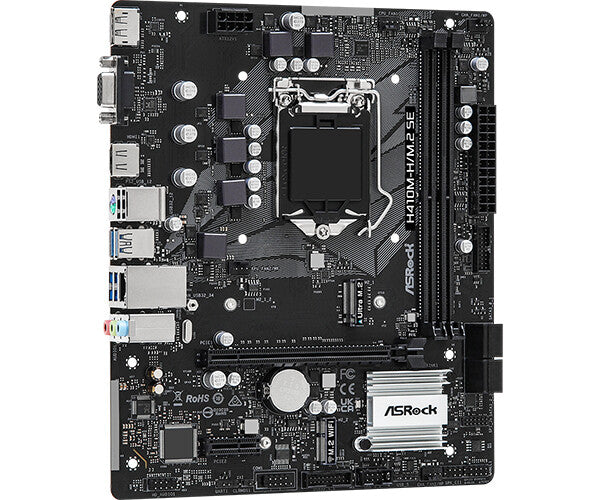

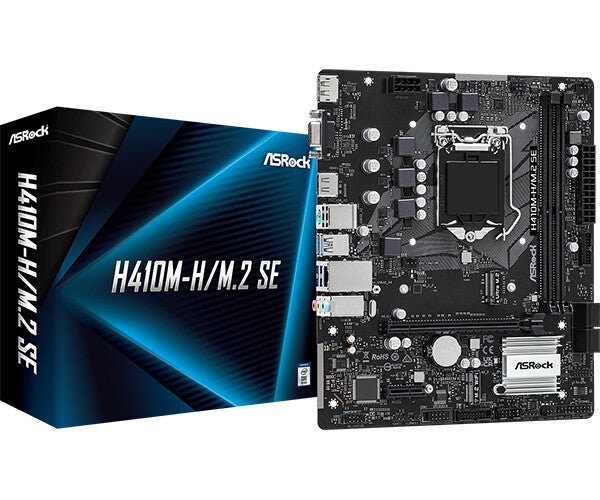

LGA 1200 (Socket H5), Intel H370 Chipset, 2 x DDR4-SDRAM up to 64GB, LAN, 1 x RJ-45, 4 x SATA III, 1 x M.2(M), EFI AMI, Micro ATX
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
USB3.2 Gen1
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
| Processor |
|---|
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket |
LGA 1200 (Socket H5) |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
64 GB |
| Supported memory clock speeds |
2133,2400,2666,2800,2933 MHz |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
|---|
| Supported storage drive interfaces |
M.2, SATA III |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| Number of COM connectors |
1 |
| EPS power connector (8-pin) |
Yes |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
2 |

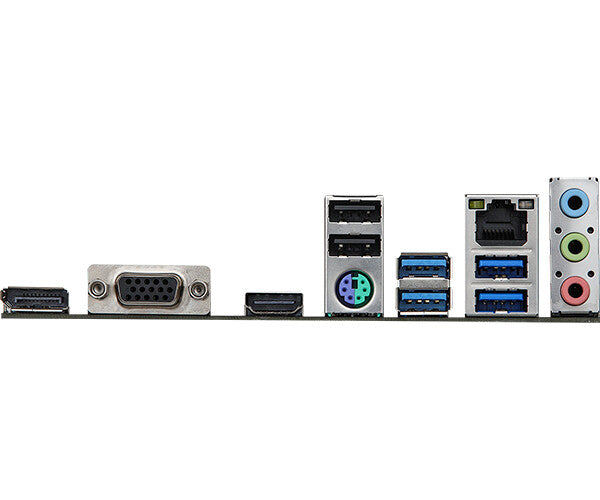

| Rear panel I/O ports |
|---|
| Microphone in |
Yes |
| Line-in |
Yes |
| DisplayPort version |
1.2 |
| DisplayPorts quantity |
1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| PS/2 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Network |
|---|
| Wi-Fi |
No |
| LAN controller |
Realtek RTL8111H |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
Intel® H370 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
1 |
| PCI Express x16 (Gen 3.x) slots |
1 |
| PCI Express x1 (Gen 3.x) slots |
1 |
| BIOS |
|---|
| BIOS memory size |
128 Mbit |
| BIOS type |
EFI AMI |
| Weight & dimensions |
|---|
| Depth |
188 mm |
| Width |
226 mm |
| Packaging content |
|---|
| Cables included |
SATA |
| Screws included |
Yes |
