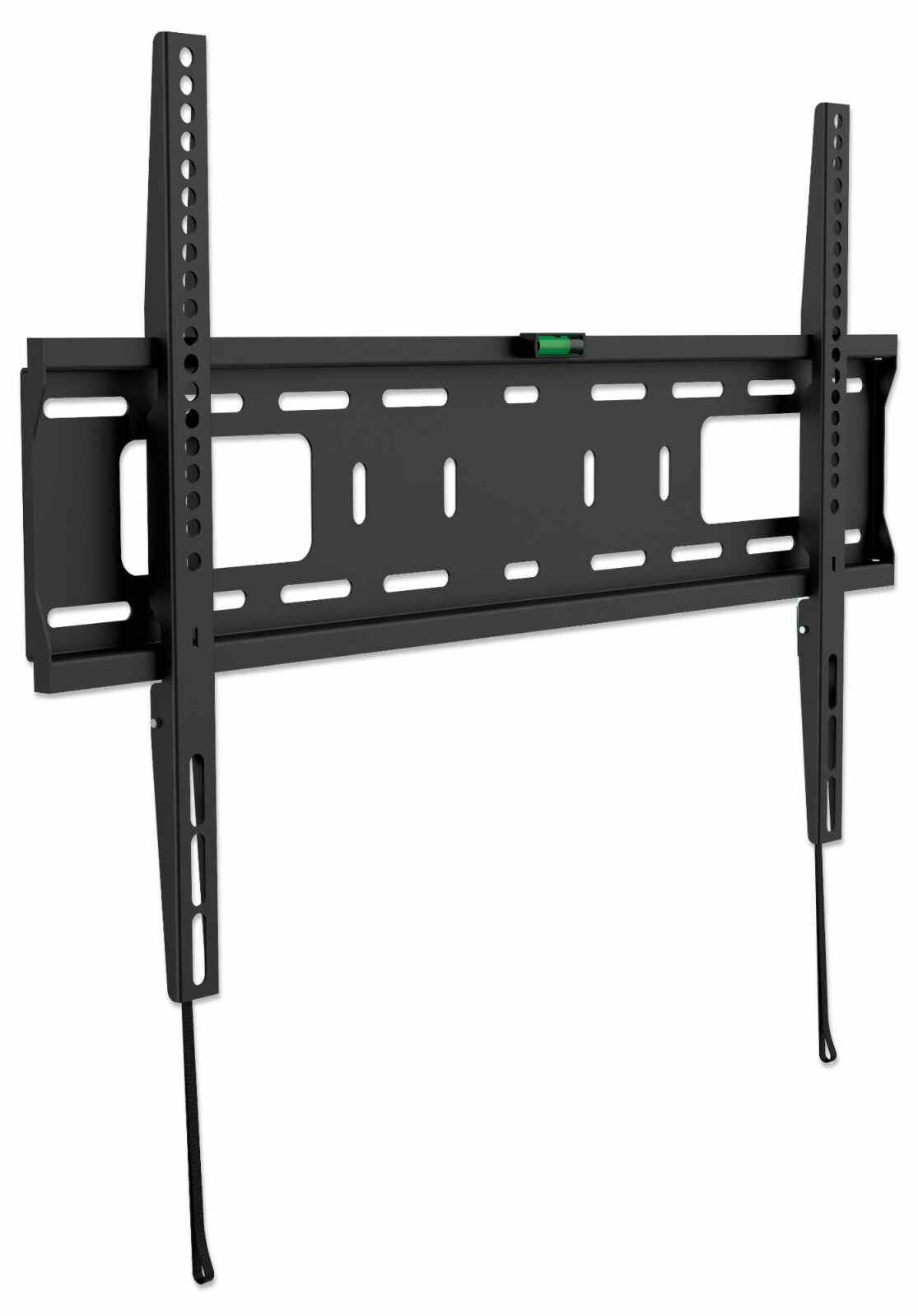

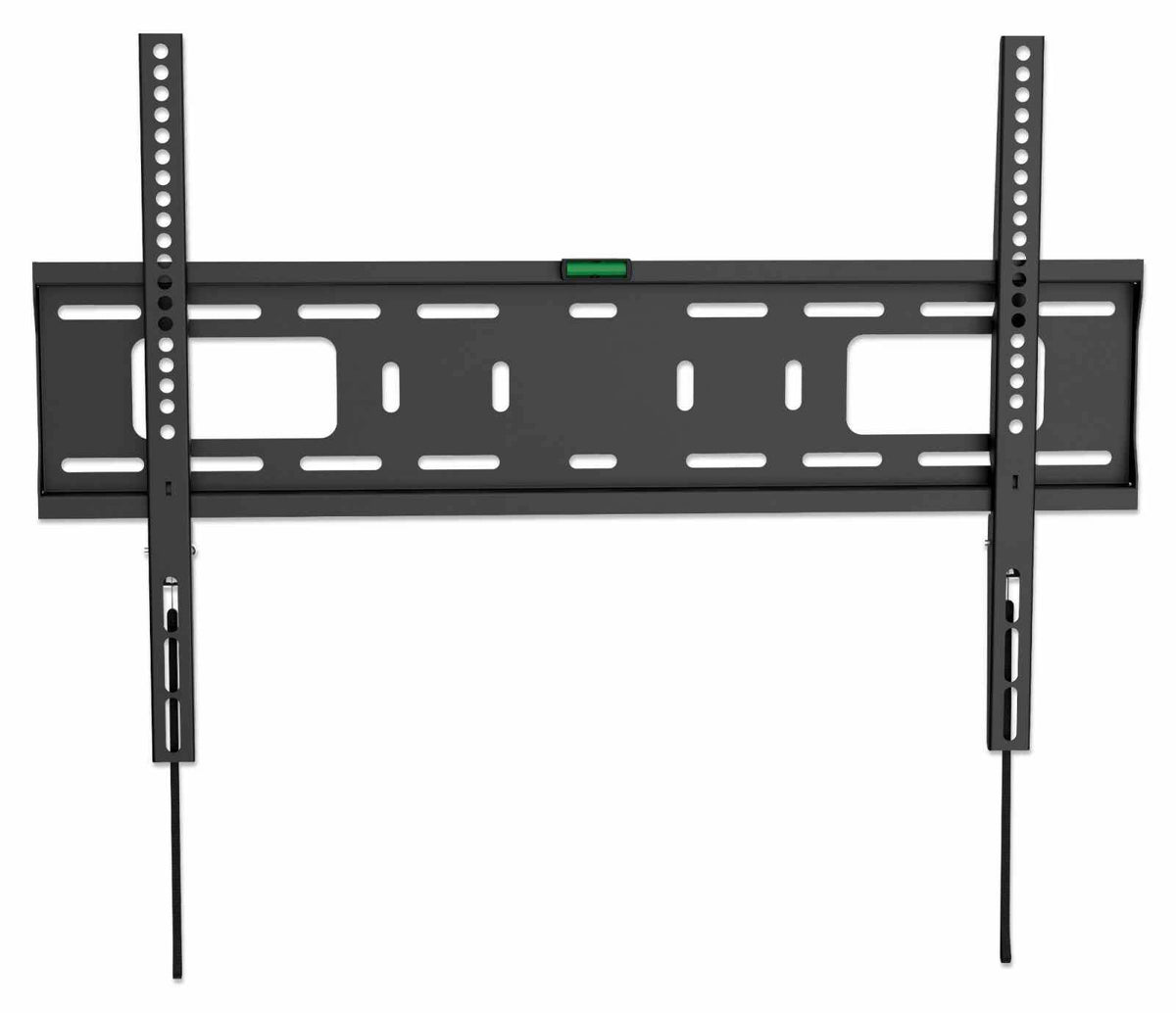

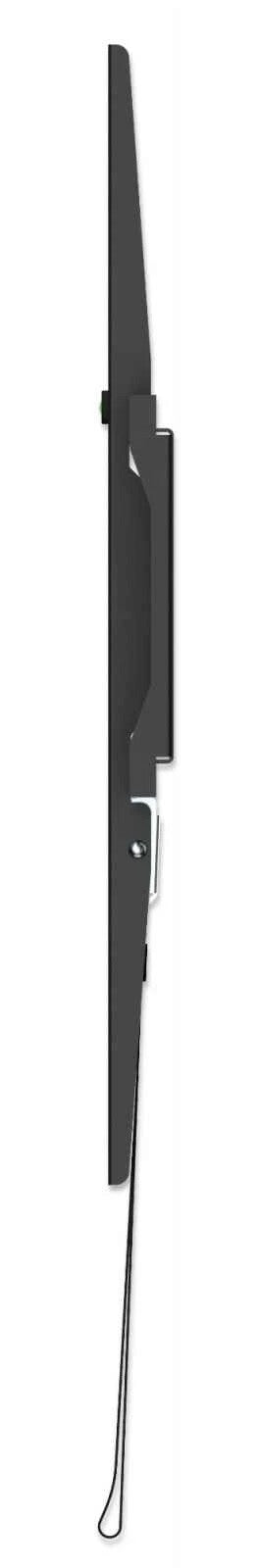

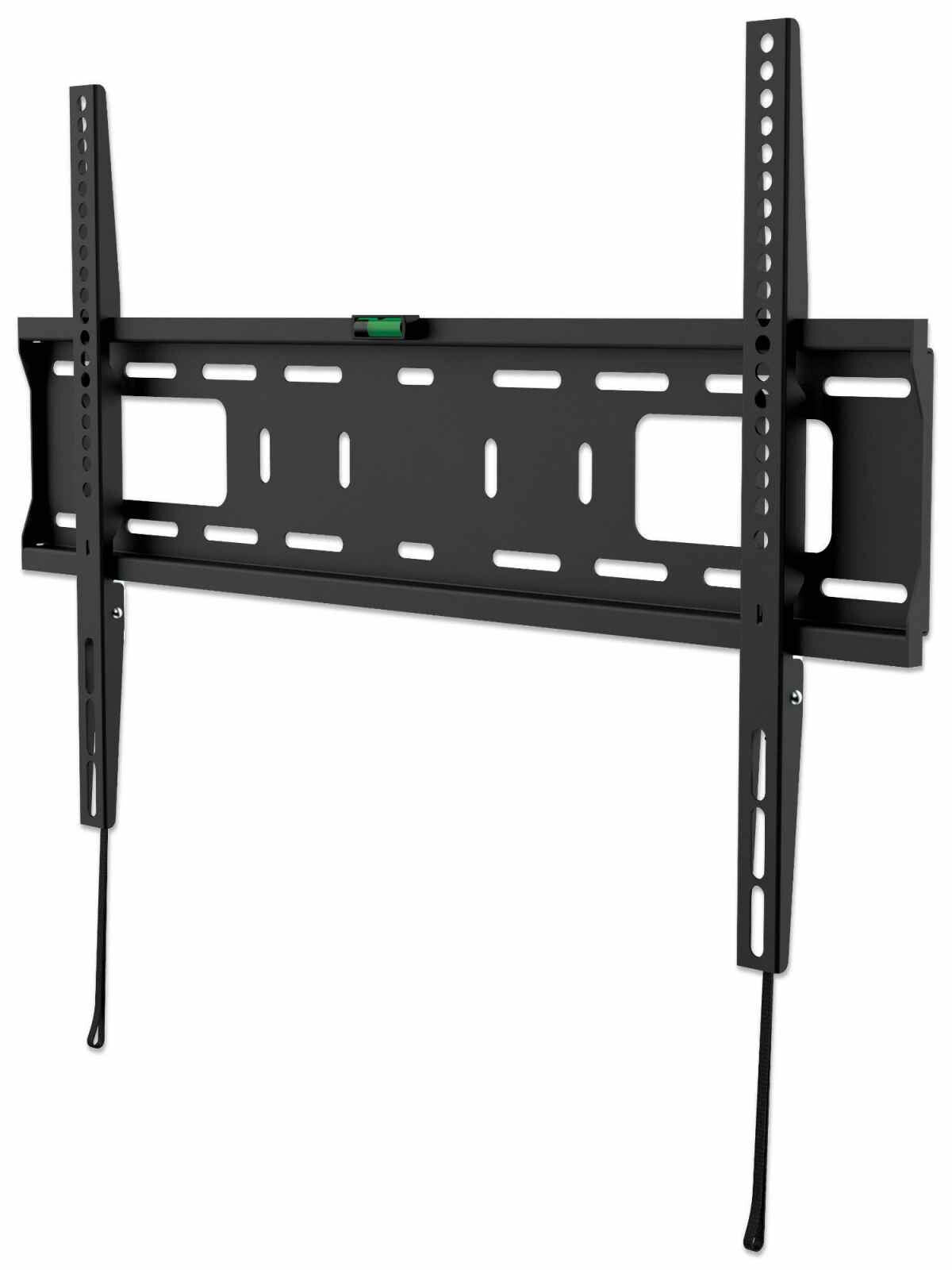

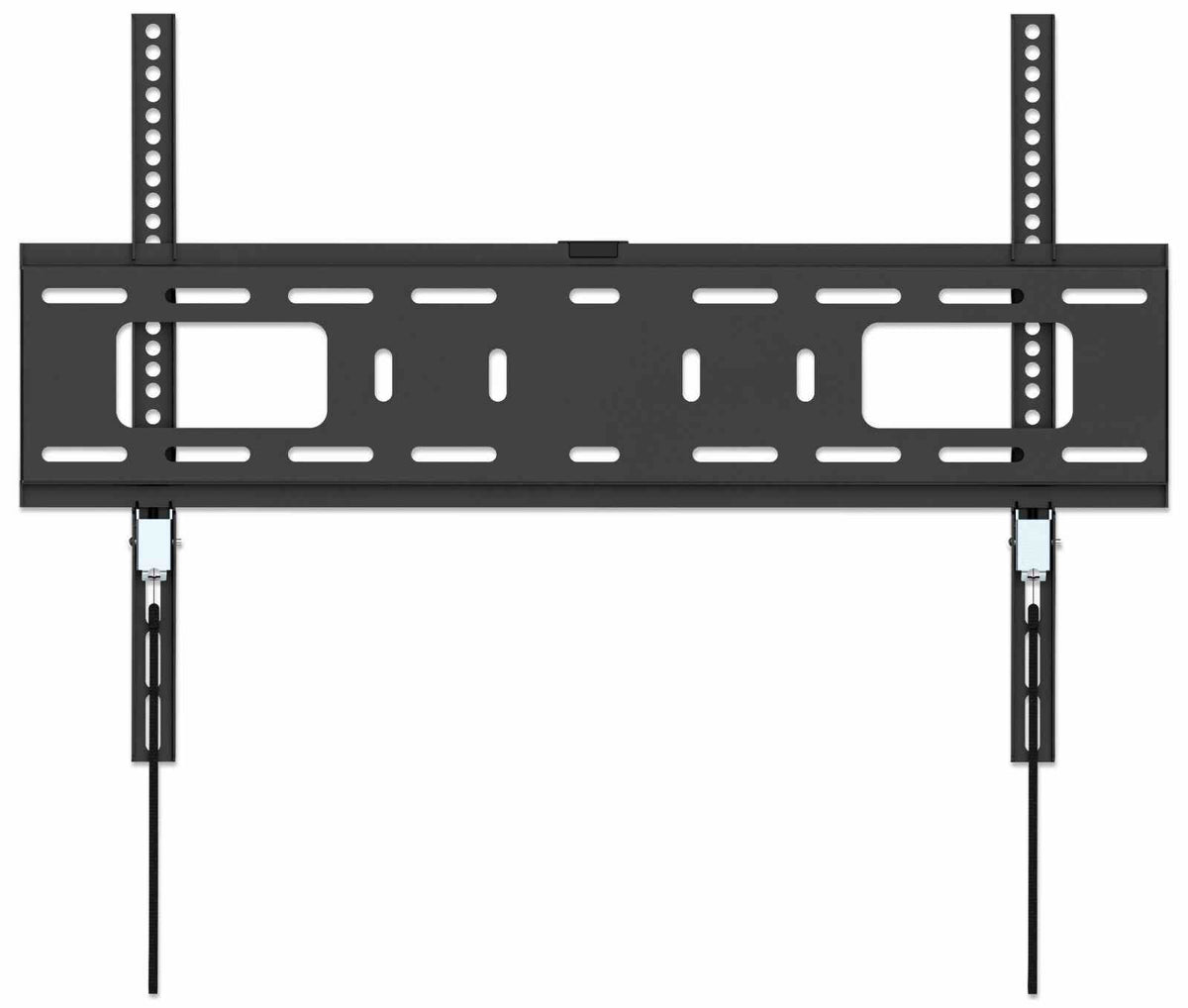

Heavy-Duty Low-Profile TV Wall Mount — a strong mount for flush-as-possible TV installations
When viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This mount extends only 25 mm (0.98 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat and curved LCD, LED or plasma TVs up to 70" and weighing up to 50 kg (110 lbs.). It offers VESA compliance up to 600x400. Intuitive snap-in spring locks with release cords let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Mounting | |
---|---|
Distance to the wall (max) | 2.5 cm |
Number of displays supported | 1 |
Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
Maximum VESA mount | 600 x 400 mm |
Minimum VESA mount | 200 x 200 mm |
Suitable for TV | Yes |
Mounting type | Wall |
Maximum screen size | 177.8 cm (70") |
Minimum screen size | 94 cm (37") |
Maximum weight capacity | 50 kg |
Design | |
---|---|
Housing material | Steel |
Product colour | Black |
Technical details | |
---|---|
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Package type | Box |
Weight | 1.98 kg |
Height | 425 mm |
Depth | 25 mm |
Width | 653 mm |
Packaging content | |
---|---|
Manual | Yes |
Mounting kit | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 85299097 |
Other features | |
---|---|
Depth (max) | 2.5 cm |
