Heavy-Duty Low-Profile Large-Screen TV Wall Mount — a strong mount for flush-as-possible TV installations

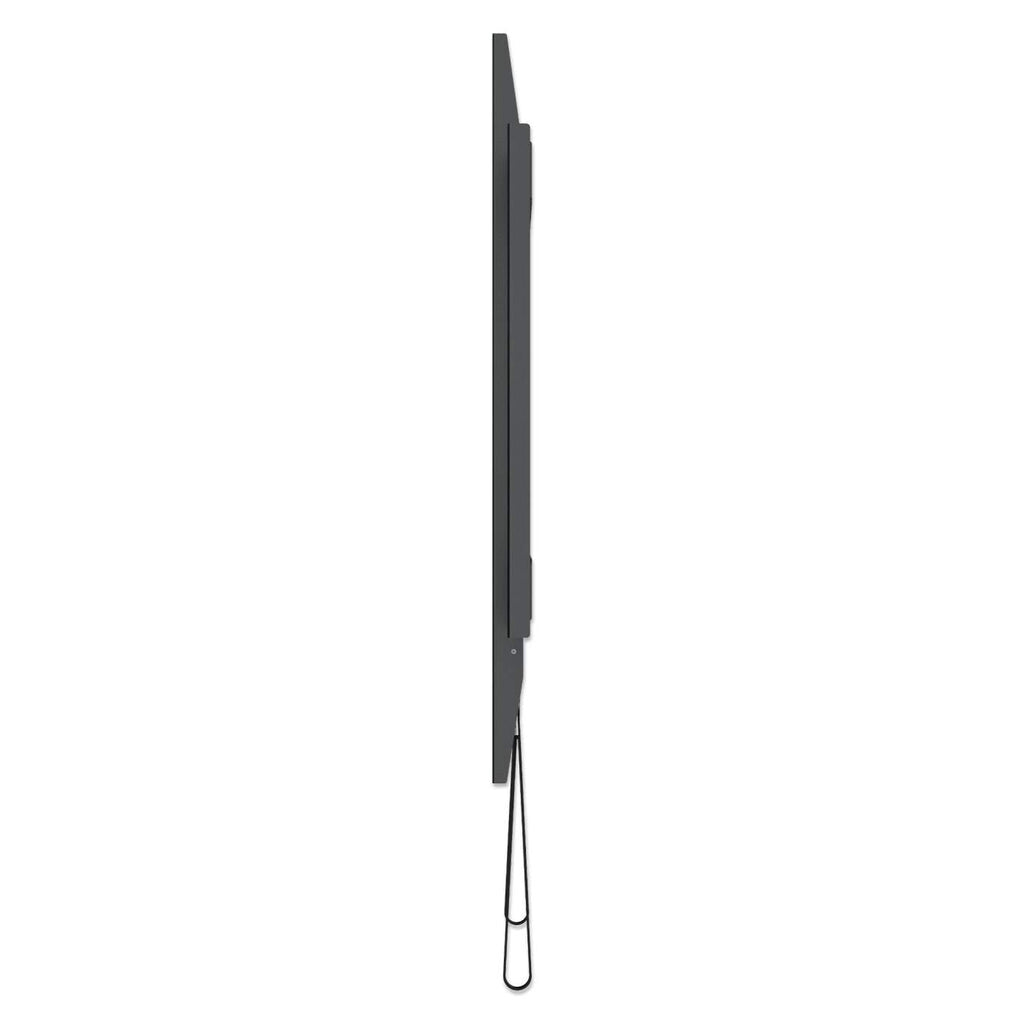

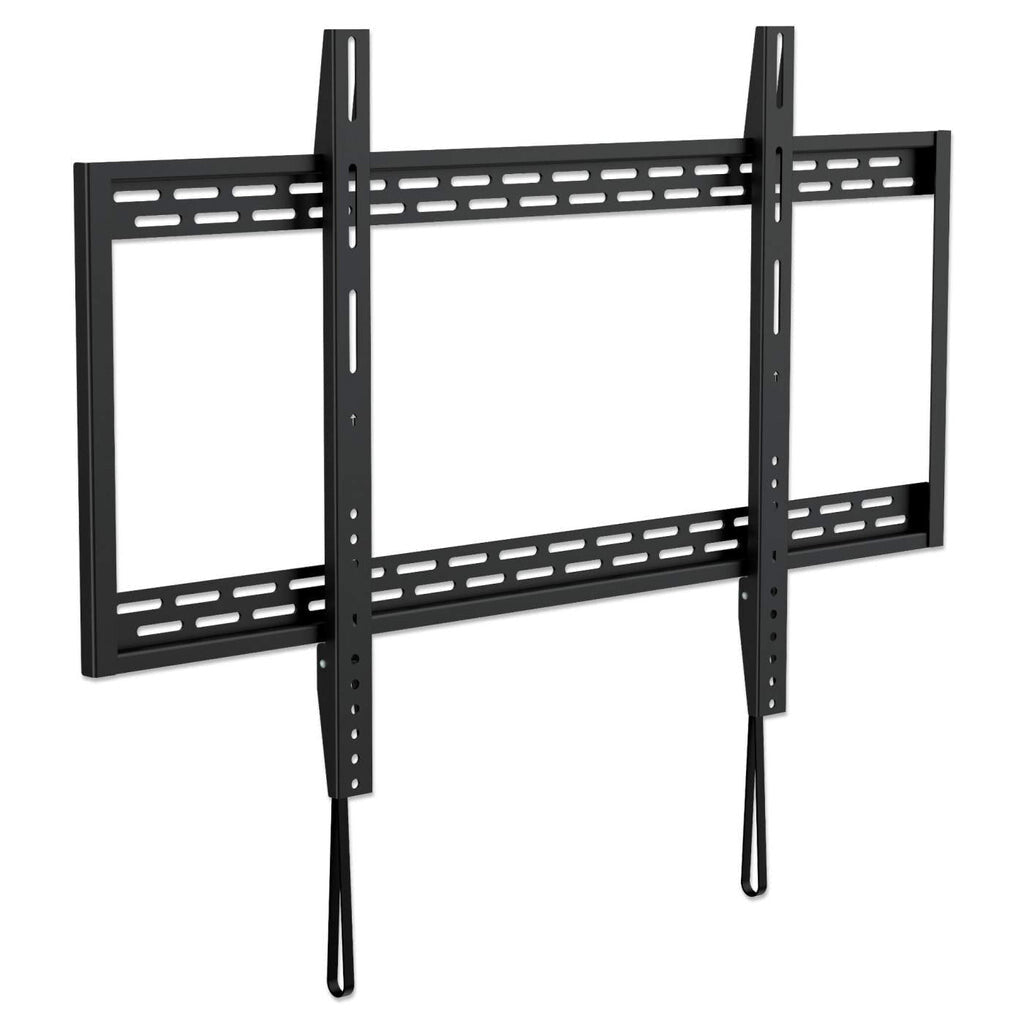

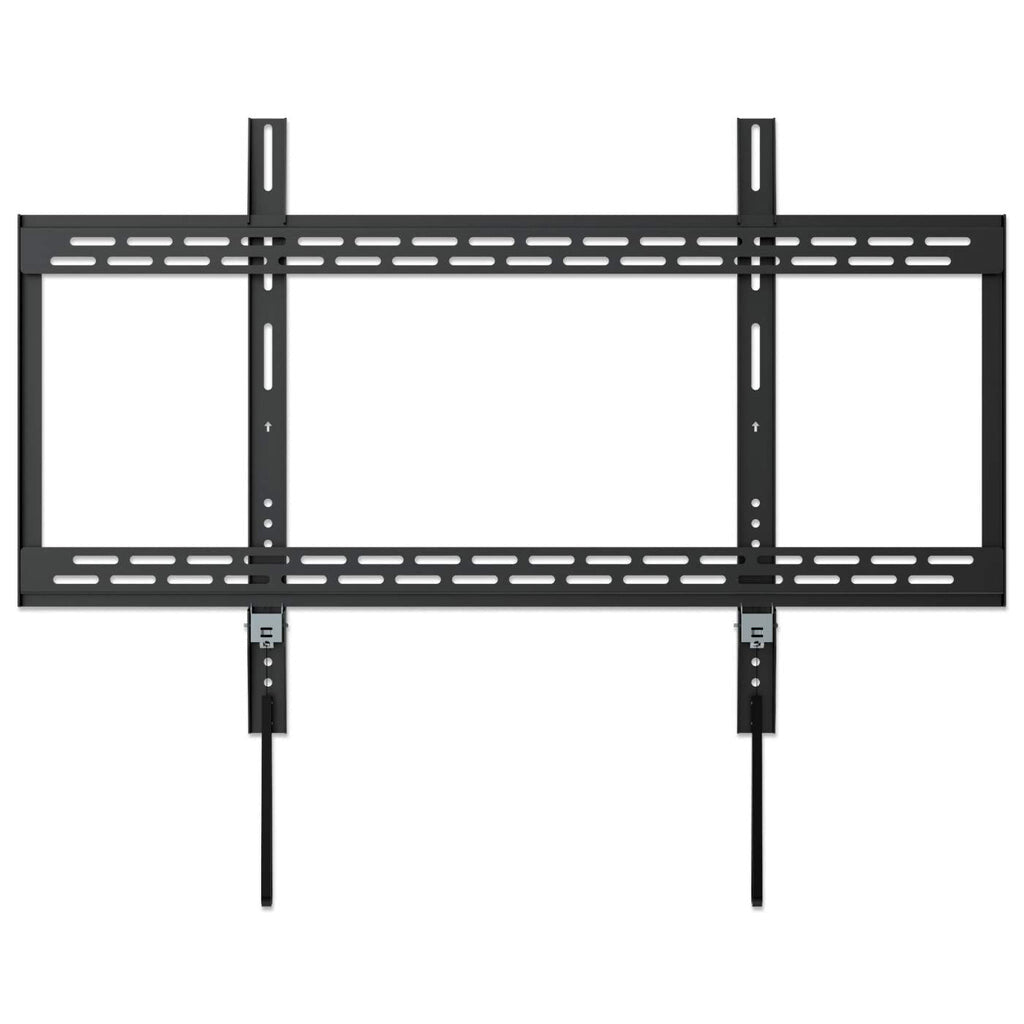

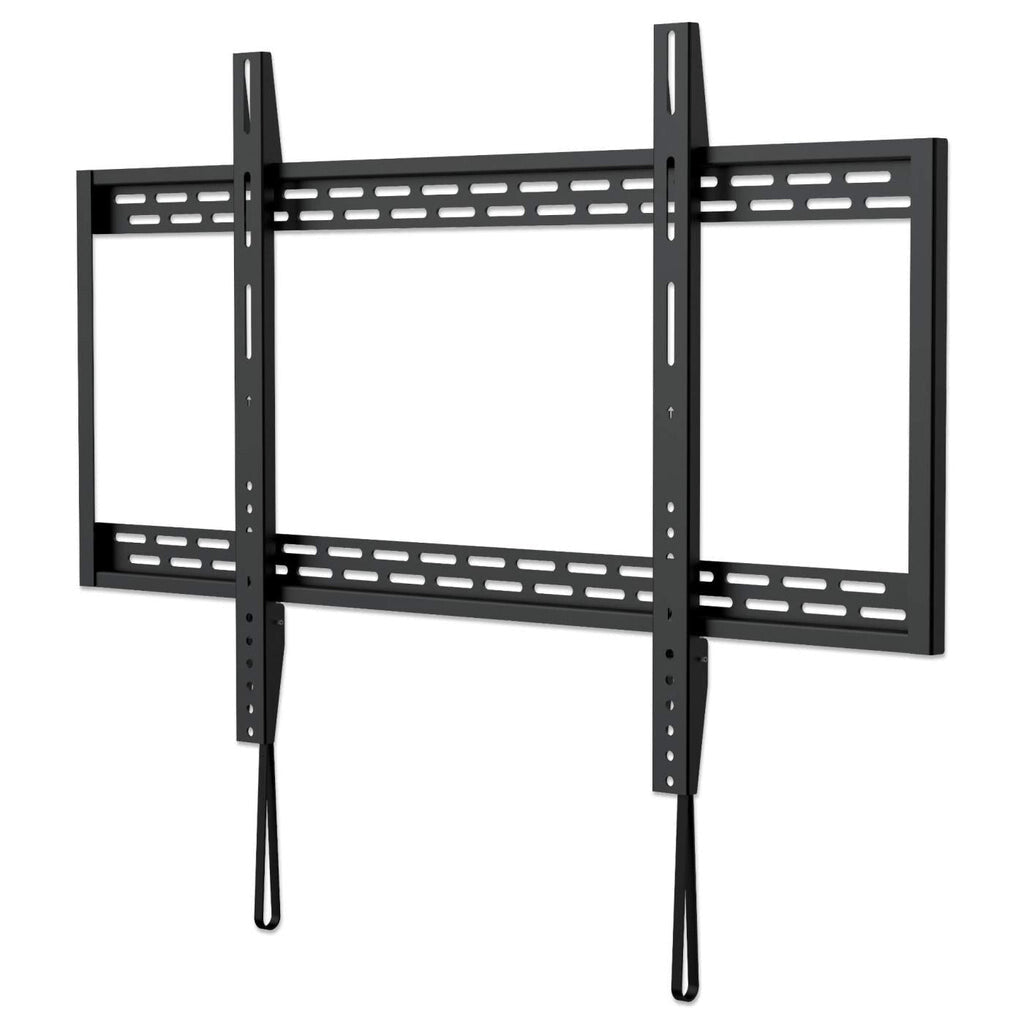

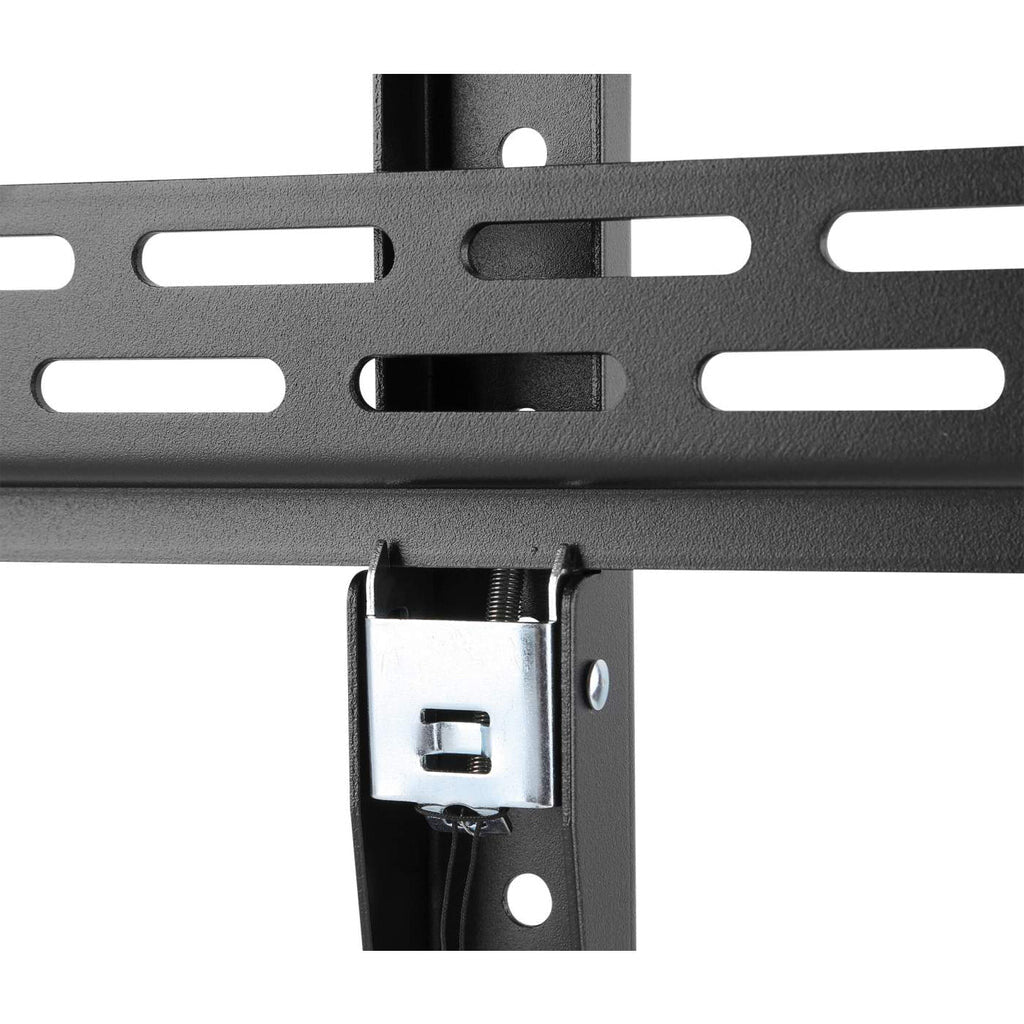

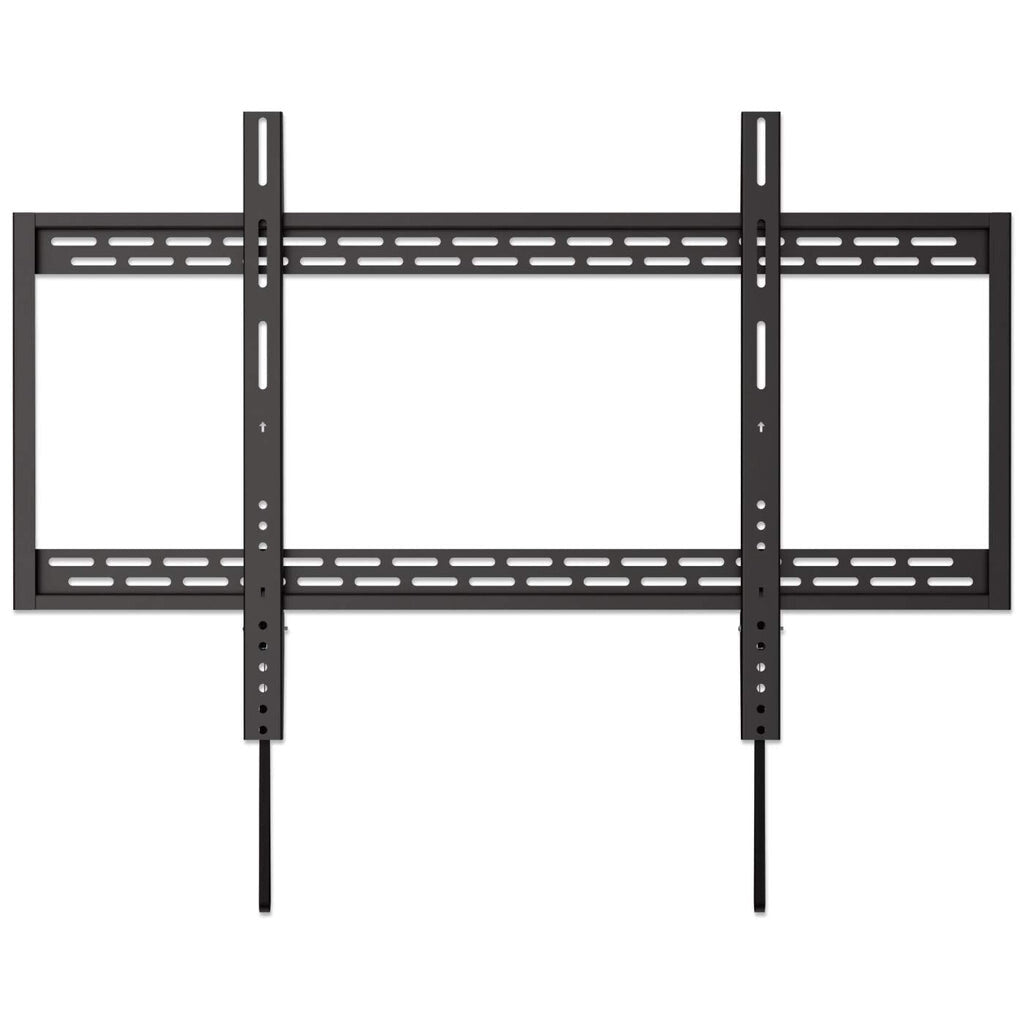

When viewing locations and TV heights are fixed at optimal positions, the Manhattan Heavy-Duty Low-Profile Large-Screen TV Wall Mount creates nearly flush, close-to-the-wall installations that enhance thin, modern TV silhouettes. This mount extends only 32 mm (1.3 in.) from the wall. Constructed of high-quality, powder-coated steel, this ultra-slim TV mount fits flat and curved LCD, LED or plasma TVs up to 100"" and weighing up to 100 kg (220 lbs.). It offers VESA compliance up to 900x600. Intuitive snap-in spring locks with release cords let you easily put the TV in place for a confident above-the-floor installation. It's ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications.
Mounting | |
---|---|
Number of displays supported | 1 |
Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,800 x 400,800 x 600,900 x 600 |
Maximum VESA mount | 900 x 600 mm |
Minimum VESA mount | 200 x 200 mm |
Mounting type | Wall |
Maximum screen size | 2.54 m (100") |
Minimum screen size | 152.4 cm (60") |
Maximum weight capacity | 100 kg |
Design | |
---|---|
Certification | UL |
Housing material | Steel |
Product colour | Black |
Technical details | |
---|---|
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Weight | 5.9 kg |
Height | 630 mm |
Width | 1009 mm |
Packaging content | |
---|---|
Manual | Yes |
Mounting kit | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 85299097 |
Other features | |
---|---|
Depth (max) | 3.2 cm |
