Faster and Smoother
with 4G+ Speed and Dual Band WiFi

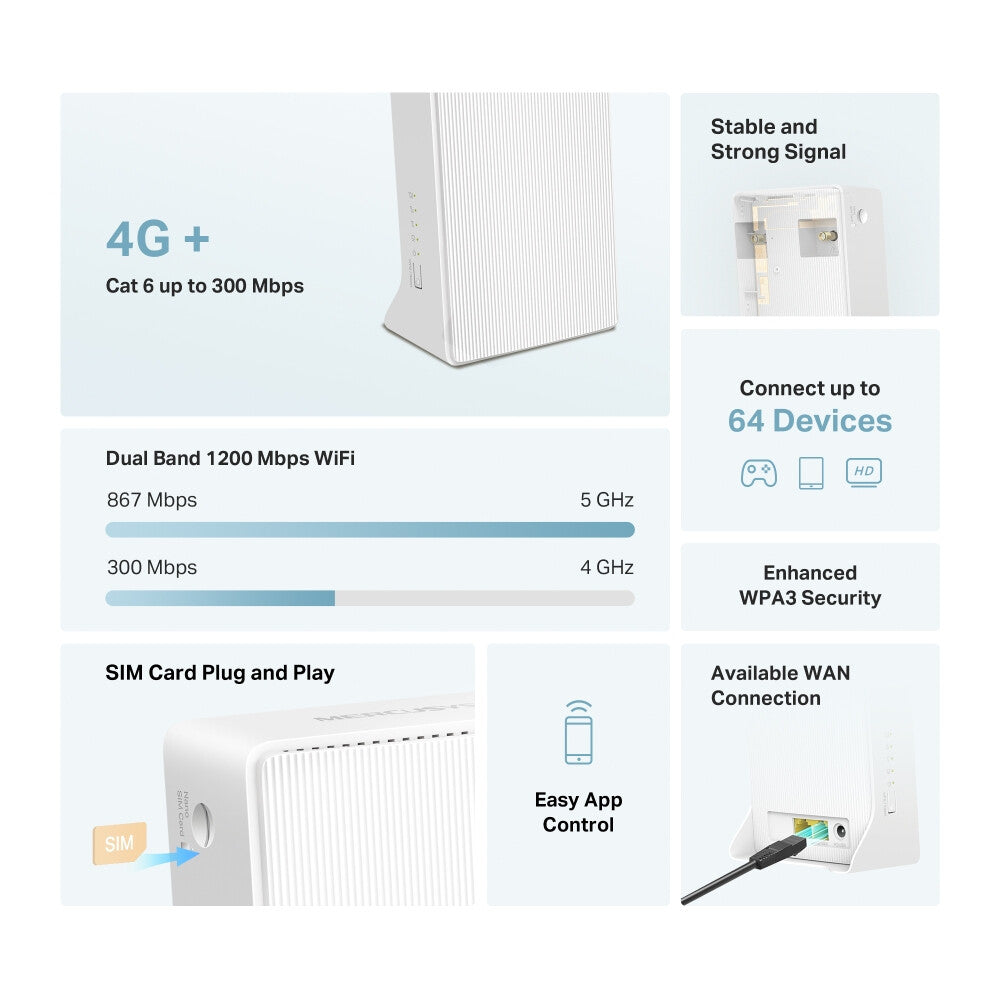

4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router

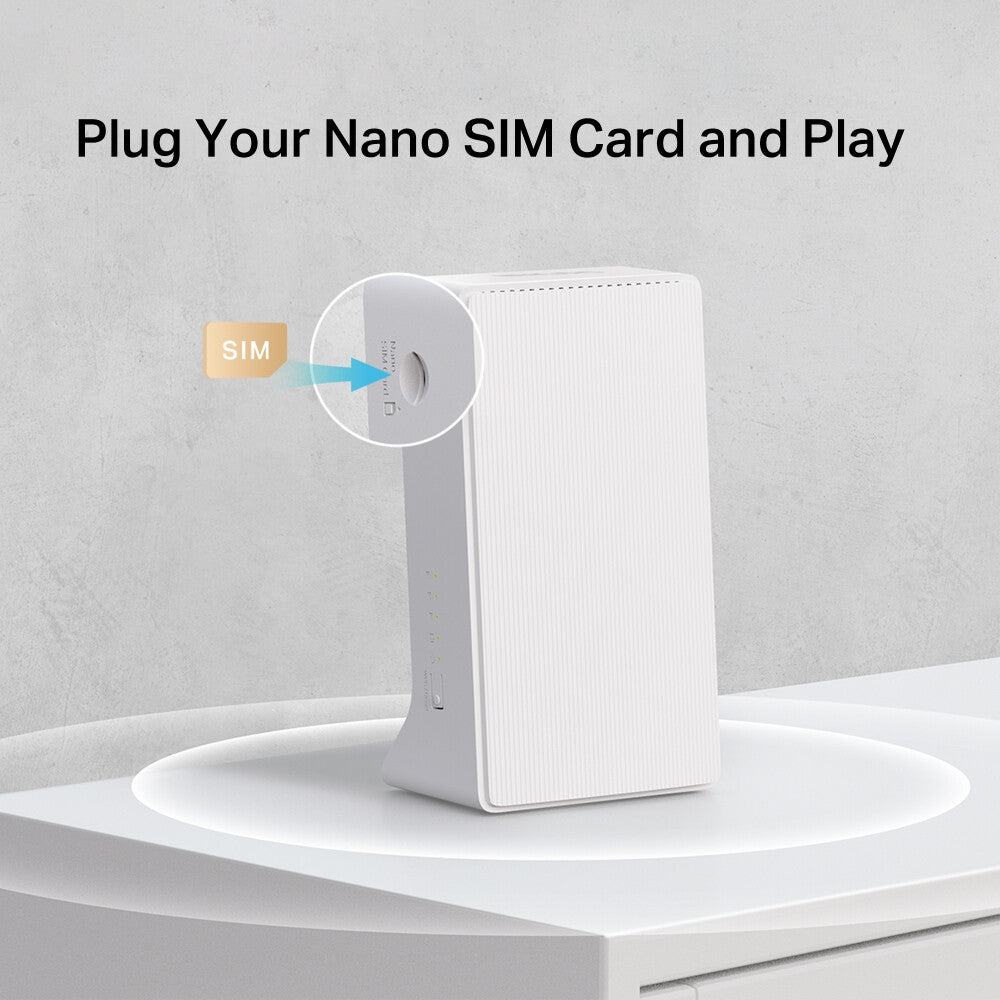

Plug Your Nano SIM Card and Play
Fully compatible with FDD-LTE and TDD-LTE to work with most service providers worldwide. Insert a nano SIM card and turn on the router to share your 4G LTE network with multiple Wi-Fi devices.
Get Wi-Fi Where You Need It
Enjoy unmatched convenience and versatility and the utilize fast and stable Wi-Fi, whether you're at home or working remote.

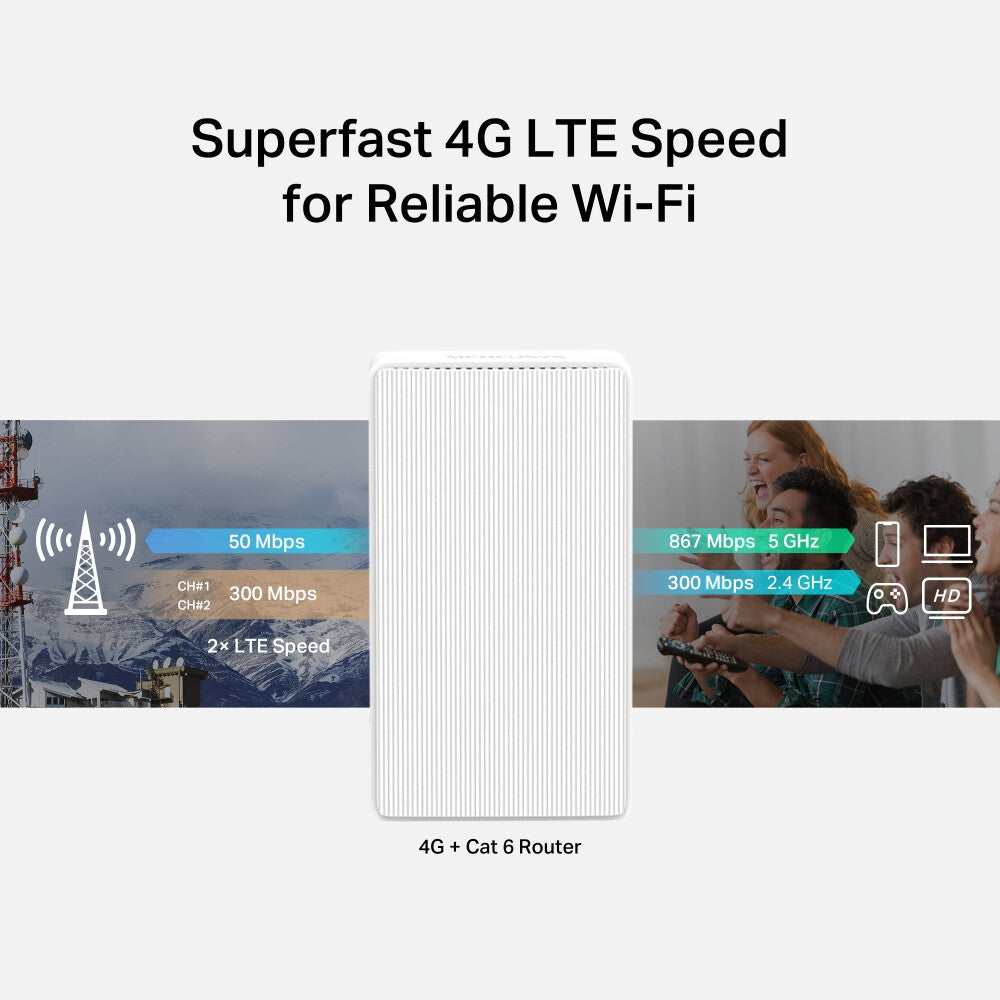

Extra Fast 4G+ Cat 6 Speed for Reliable Wi-Fi
MB230-4G supports the 4G+ Cat 6, which uses Carrier Aggregation technology, to achieve superfast LTE speeds up to 300 Mbps download and 50 Mbps upload. It can also share a dual band Wi-Fi network for gaming, streaming, and more.
Share the WiFi with Friends
An remarkable number of wireless gadgets are compatible with this 4G router without any issues. Up to 64 simultaneous connections for tablets, laptops, mobile phones, and other devices.
Full with Strong and Stable Signal
Internal high gain antennas strengthen the WiFi signal, extend the range of connection establishment, and boost the sensitivity of the router.

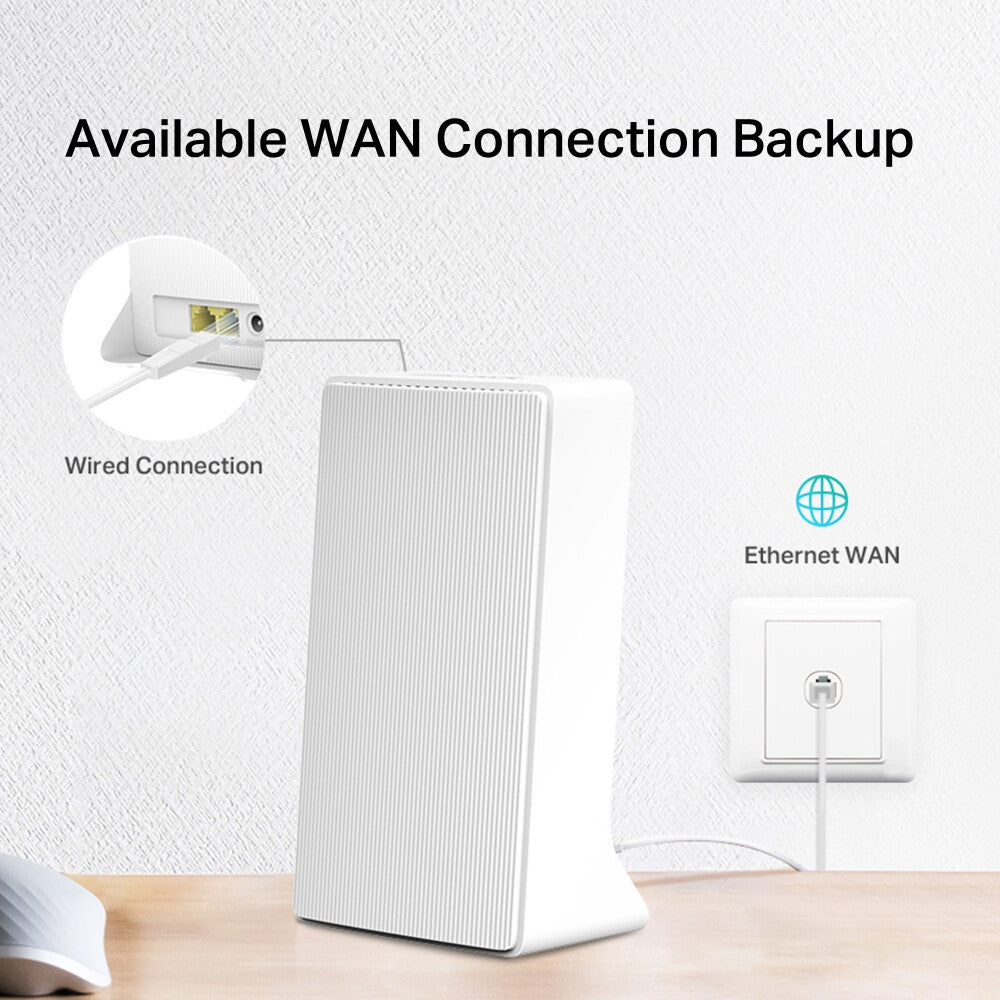

Available WAN Connection Backup
With a fully functional WAN/LAN port, MB230-4G can work as a router which is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.
Easy Setup and Management via MERCUSYS App
Set up and manage your Wi-Fi through the MERCUSYS app from your smartphone (Android, iOS).
WAN connection | |
---|---|
WAN connection type | RJ-45 |
3G/4G USB modem compatibility | Yes |
SIM card slot | Yes |
DSL WAN | No |
Ethernet WAN | Yes |
Wireless LAN features | |
---|---|
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
WLAN data transfer rate (max) | 1200 Mbit/s |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Network | |
---|---|
Receiver sensitivity | 11g 6Mbps: -95dBm; 11g 54Mbps: -77dBm; 11n HT20 MCS7: -74dBm; 11n HT40 MCS7: -71dBm; 11a 6Mbps: -92dBm; 11a 54Mbps: -75dBm; 11ac VHT20 MCS8: -70dBm; 11ac VHT40 MCS9: -65dBm; 11ac VHT80 MCS9: -61dBm |
Dynamic DNS (DDNS) | Yes |
Port forwarding | Yes |
Port triggering | Yes |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Mobile network | |
---|---|
SIM card type | NanoSIM |
UMTS bands supported | 850,900,2100 MHz |
4G bands supported | 700,800,850,900,1800,2100,2300,2600 MHz |
4G standard | LTE-TDD & LTE-FDD |
3G standards | HSPA, HSPA+, UMTS |
Dual SIM support | No |
Mobile network generation | 4G |
Ports & interfaces | |
---|---|
DC-in jack | Yes |
USB port | No |
Ethernet LAN (RJ-45) ports | 2 |
Management features | |
---|---|
WPS push button | Yes |
Reset button | Yes |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
Security | |
---|---|
DMZ support | Yes |
System event log | Yes |
Port-based Network Access Control (PNAC) | Yes |
Firewall | Yes |
Security algorithms | 64-bit WEP, WPA-PSK, WPA2-PSK, WPA3-SAE |
Protocols | |
---|---|
VoIP protocols | IPv4, IPv6 |
Universal Plug and Play (UPnP) | Yes |
DHCP server | Yes |
Design | |
---|---|
Indication light | Yes |
Product colour | White |
Product type | Desktop/pole router |
Packaging content | |
---|---|
Quick installation guide | Yes |
AC adapter included | Yes |
Antenna | |
---|---|
Antenna design | Internal |
Features | |
---|---|
Firmware upgradeable | Yes |
Power | |
---|---|
Output current | 1 A |
Output voltage | 12 V |
Power source type | DC |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 60 °C |
Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
---|---|
Width | 95 mm |
Depth | 61 mm |
Height | 166 mm |
Packaging data | |
---|---|
Number of products included | 1 pc(s) |
Package type | Box |
