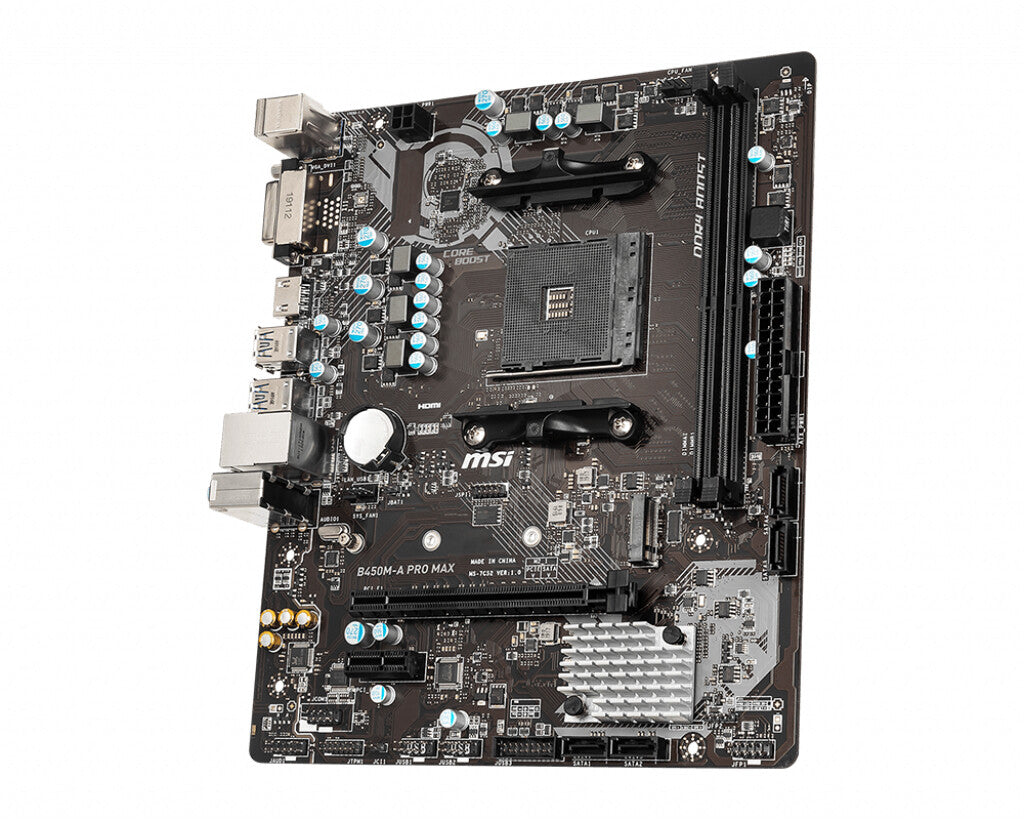

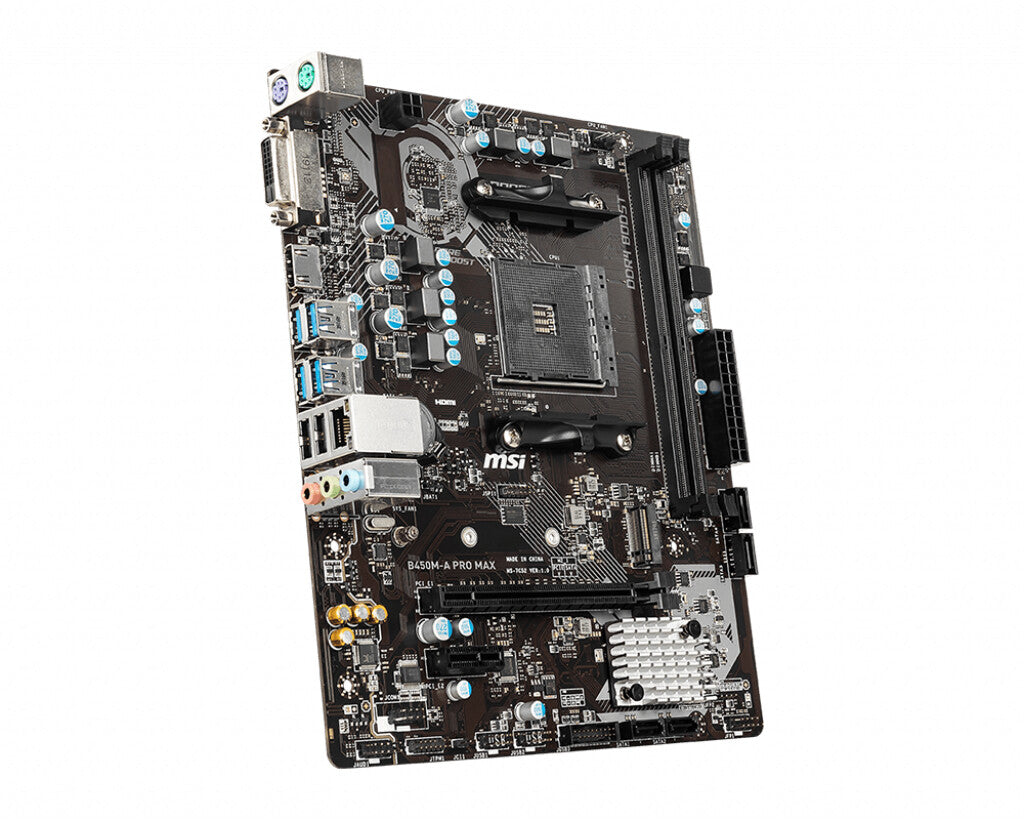

AMD AM4
motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1
DIY FRIENDLY MSI
motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want.
ENHANCED PERFORMANCE
MSI motherboards featured all the latest solution for enthusiast gamers and prosumers. CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield.
IN-STUDIO ADVANTAGE MSI
motherboards provide the most fascinating in-studio advantages, designed to satisfy any professional workflow. Elevate your listening pleasure and network connection with MSI Audio & LAN. Enjoy extreme sound quality and uninterrupted online experience.
EXHILARATING AND INSPIRING
Each MSI motherboard is built based on the specific topic in order to match different tastes and favors. Furthermore, MSI also adopts the modern style to design the heatsink through huge surface and sleek but simple cuts in order to make the heatsink and appearance looks ripped and powerful. Combined with neutral color, such as black, grey and silver, as the main background, MSI motherboard can perfect fit different RGB LED effects and strongly shows the gamers tunes.
LOYAL COMRADE
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
Processor | |
---|---|
Supported processor sockets | Socket AM4 |
Maximum number of SMP processors | 1 |
Compatible processor series | AMD Athlon, AMD Ryzen, AMD Ryzen™ 3, 2nd Generation AMD Ryzen™ 3, 3rd Generation AMD Ryzen™ 3, AMD Ryzen™ 5, 2nd Generation AMD Ryzen™ 5, 3rd Generation AMD Ryzen 5, AMD Ryzen™ 7, 2nd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen™ 9 |
Processor socket | Socket AM4 |
Processor manufacturer | AMD |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 32 GB |
Supported memory module capacities | 4GB, 8GB, 16GB |
Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3733,3866,4000,4133 MHz |
Non-ECC | Yes |
ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 2 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
Supported storage drive interfaces | SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
Discrete graphics support | Yes |
DirectX version | 12.0 |
Maximum resolution | 4096 x 2160 pixels |
Parallel processing technology support | Not supported |
Maximum graphics card memory | 2048 MB |
Internal I/O | |
---|---|
Serial port headers | 1 |
Parallel connector | Yes |
TPM connector | Yes |
Chassis intrusion connector | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

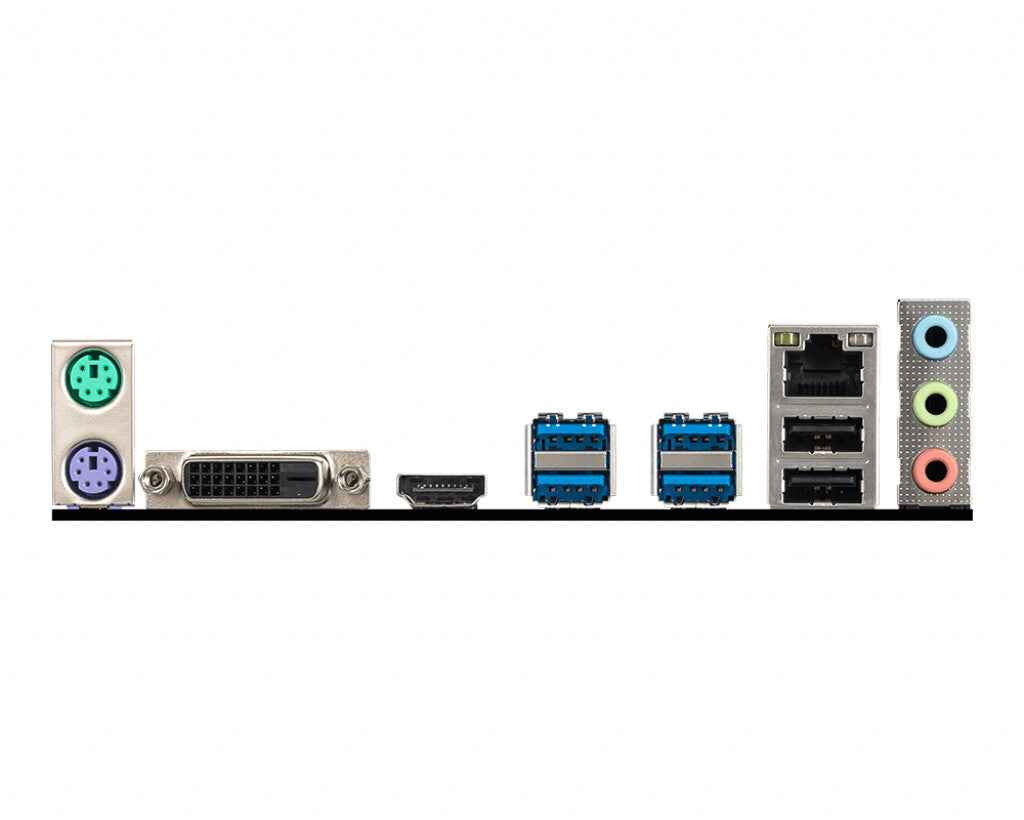

Rear panel I/O ports | |
---|---|
USB connector type | USB Type-A |
Microphone in | Yes |
Headphone outputs | 1 |
DVI-D ports quantity | 1 |
HDMI ports quantity | 1 |
PS/2 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
Wi-Fi | No |
LAN controller | Realtek 8111H |
Ethernet interface type | Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 7 x64 |
Number of mounting holes | 6 |
Power source type | ATX |
Cooling type | Passive |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC892 |
Motherboard chipset | AMD B450 |
Motherboard chipset family | AMD |
Motherboard form factor | micro ATX |
Expansion slots | |
---|---|
PCI Express x16 slots | 1 |
PCI Express x1 (Gen 2.x) slots | 1 |
BIOS | |
---|---|
Clear CMOS jumper | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 200 mm |
Width | 236 mm |
Packaging content | |
---|---|
Drivers included | Yes |
Cables included | SATA |
Other features | |
---|---|
Quick installation guide | Yes |
HDD size | 2.5/3.5" |
