SMALL PACKAGE, BIG PUNCH

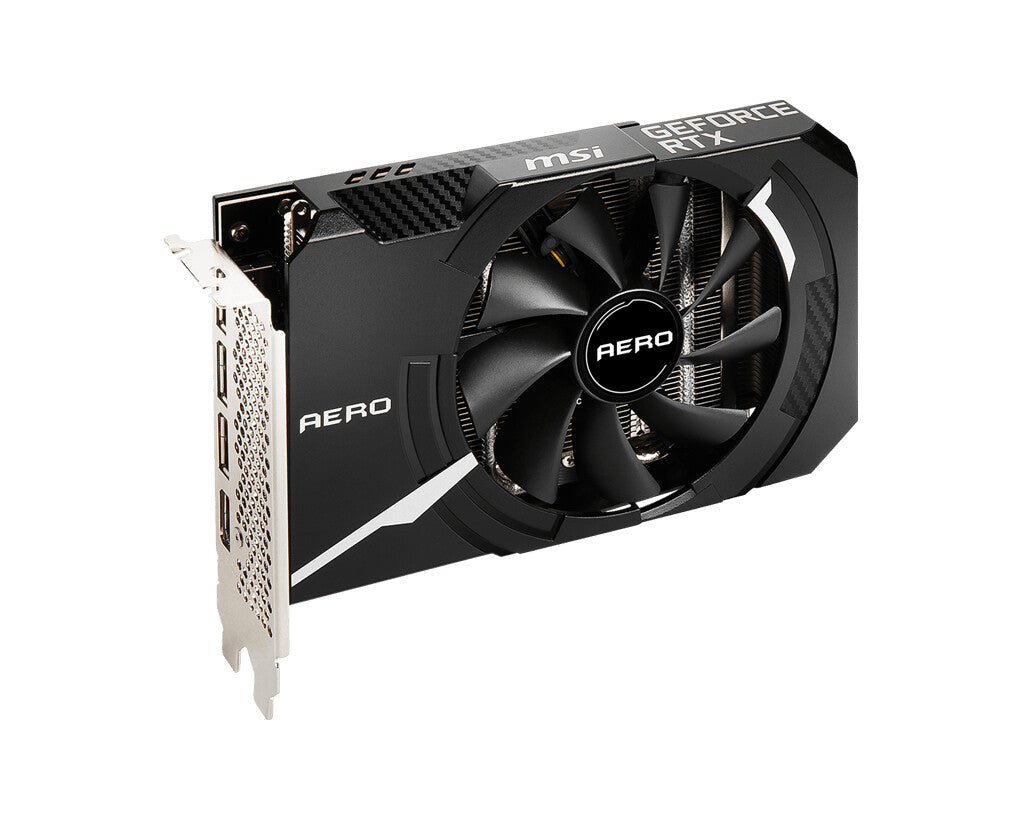

The power of a full size graphics card in an incredibly small package. MSI AERO ITX graphics cards are perfect for small form factor systems and HTPC’s as they only take up a fraction of the space of a full size graphics card. This means they will fit into virtually any system and ensure a smooth gaming experience.
WE'VE GOT YOUR BACK
A protective backplate helps to strengthen the graphics card and complements the design to look even better.
DESIGNED FOR BETTER DISSIPATION
Compared to generic fan designs, AERO ITX series fans utilize custom fan design with a unique curve to enhance heat dissipation by generating more airflow and air pressure.
HIGH-EFFICIENCY HEATPIPES
Up to 6mm thick copper heat pipes maximize heat transfer from the surface of the baseplate for better cooling.
PERFECT IN ANY CASE
The saying “Good things come in small packages” is certainly true for AERO ITX cards. Thanks to its small form factor it will fit into virtually any case. Its compact size also means that its weight is dramatically less than that of a full size graphics card.
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor boost clock speed | 1807 MHz |
CUDA cores | 2560 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 3050 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 14 Gbit/s |
Memory bus | 128 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 8 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express x8 4.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
OpenGL version | 4.6 |
DirectX version | 12.0 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black |
Number of fans | 1 fan(s) |
Cooling type | Active |
Power | |
---|---|
Power supply | 550 W |
Power consumption (typical) | 130 W |
Supplementary power connectors | 1x 8-pin |
General | |
---|---|
Product Family | AERO ITX |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 172 mm |
Height | 43 mm |
Width | 125 mm |
Weight | 486 g |
Packaging data | |
---|---|
Package weight | 816 g |
