20 YEARS IN THE MAKING
While striving for the SUperior gaming experience, our PRofound journey across decades took us to destinations previously thought IMpossible. Across years of high-performance circuit design, MSI is proud to bring its latest masterpiece to life. SUPRIM is the next leap in graphic cards design.
CHISELED TO PERFECTION
Built upon two decades of award-winning graphics cards, the time to evolve beyond Gaming has come. A new design philosophy takes shape to pave the way for a new prestigious series.
NEVER LOSE YOUR COOL
TRI FROZR 2S stays cool in style. Thermals are kept in check in masterful ways under a sculpted SUPRIM exterior, letting you focus on enjoying your games in all their glory.
VIP COOLING TREATMENT
Dedication yields results. The memory modules get the private treatment with their own dedicated close quarters heatpipe that runs to a dedicated heatsink.
FACING THE HEAT HEAD-ON
Heat from the GPU is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heatpipes. This widening of the thermal transfer systems with highly efficient mechanisms starting at the base improves overall efficiency.
KEEPING THE CORE COOL
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
A SYMPHONY OF SILENT DESIGN
Don’t sweat it. Airflow Control improves airflow dynamics through the heatsink for improved thermals and quieter acoustics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
Processor | |
---|---|
Maximum displays per videocard | 4 |
Processor boost clock speed | 1875 MHz |
CUDA cores | 6144 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 3070 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 19 Gbit/s |
Memory bus | 256 bit |
Graphics card memory type | GDDR6X |
Discrete graphics card memory | 8 GB |
Ports & interfaces | |
---|---|

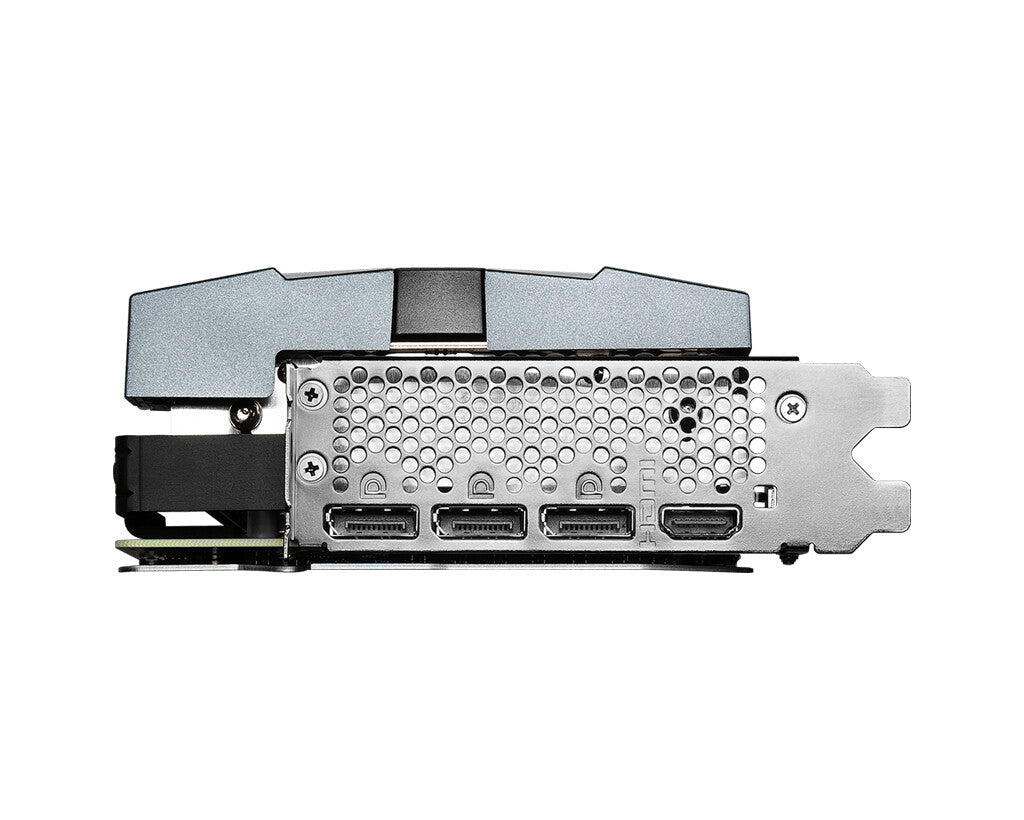

DisplayPort version | 1.4a |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
Dual Link DVI | No |
HDCP | Yes |
Virtual Reality (VR) ready | Yes |
OpenGL version | 4.6 |
DirectX version | 12.0 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Stainless steel |
Illumination | Yes |
Illumination colour | Multi |
Number of fans | 3 fan(s) |
Cooling technology | MSI TORX Fan 4.0 |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 310 W |
Supplementary power connectors | 2x 8-pin |
Minimum system power supply | 850 W |
System requirements | |
---|---|
Windows operating systems supported | Yes |
General | |
---|---|
Product Family | SUPRIM |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 61 mm |
Height | 140 mm |
Length | 335 mm |
Weight | 1.77 kg |
Packaging data | |
---|---|
User guide | Yes |
Drivers included | Yes |
