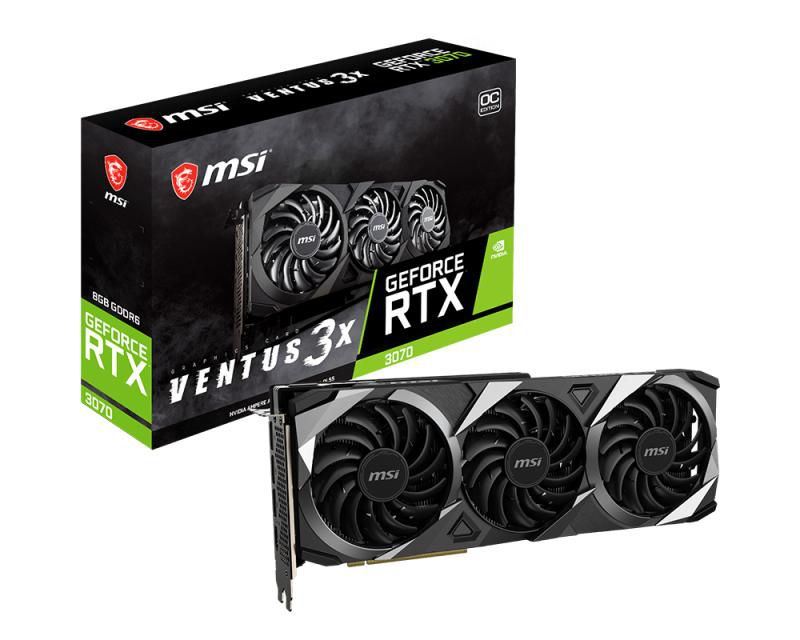

VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build. GRAPHENE BACKPLATE A lightweight composite Graphene backplate reinforces the length of the graphics card while providing passive thermal conduction properties. Bringing It All Together MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
Processor | |
---|---|
Graphics processor family | NVIDIA |
Processor frequency | 1755 MHz |
Maximum displays per videocard | 4 |
CUDA cores | 5888 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 3070 |
Memory | |
Discrete graphics card memory | 8 GB |
Memory clock speed | 14000 MHz |
Memory bus | 256 bit |
Graphics card memory type | GDDR6 |
Ports & interfaces | |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
DisplayPort version | 1.4a |
DisplayPorts quantity | 3 |
Interface type | PCI Express 4.0 |
Video | |
DirectX version | 12.0 |
OpenGL version | 4.6 |
HDMI version | 2.1 |
HDCP | Yes |
Dual Link DVI | No |
CUDA cores | 5888 |
Performance | |
NVIDIA G-SYNC | Yes |
Virtual Reality (VR) ready | Yes |
DirectX version | 12.0 |
OpenGL version | 4.6 |
HDCP | Yes |
Dual Link DVI | No |
Design | |
Number of fans | 3 fan(s) |
Cooling type | Active |
Cooling technology | MSI TORX Fan 3.0 |
Power | |
Supplementary power connectors | 2x 8-pin |
Power consumption (typical) | 220 W |
Minimum system power supply | 650 W |
Technical details | |
Cooling type | Active |
System requirements | |
Minimum system power supply | 650 W |
Weight & dimensions | |
Weight | 991.6 g |
Width | 121 mm |
Height | 52 mm |
Depth | 305 mm |
Packaging data | |
Package weight | 1.59 kg |
