CHISELED TO PERFECTION
Built upon two decades of award-winning graphics cards, the time to evolve beyond Gaming has come. A new design philosophy takes shape to pave the way for a new prestigious series.
TORX FAN 4.0 is a masterpiece built on teamwork, with pairs of fan blades linked together with a revolutionary ring design to focus airflow and air pressure into the heatsink.
COPPER BASEPLATE FACING THE HEAT HEAD-ON
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heatpipes. This widening of the thermal transfer systems with highly efficient mechanisms starting at the base improves overall efficiency.
CORE PIPES KEEPING THE CORE COOL
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
AIRFLOW CONTROL
Don’t sweat it. Airflow Control improves airflow dynamics through the heatsink for improved thermals and quieter acoustics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded. The fans will automatically start spinning again when the heat is on during gaming.
UTTERLY UNSTOPPABLE
Extremely durable double-ball bearings spin your TORX FANs for years of intense and lengthy gaming sessions in zero noise.
THE FINISHING TOUCH
An abundance of thermal pads provide additional heat dissipation for board components.
COOL ALL AROUND

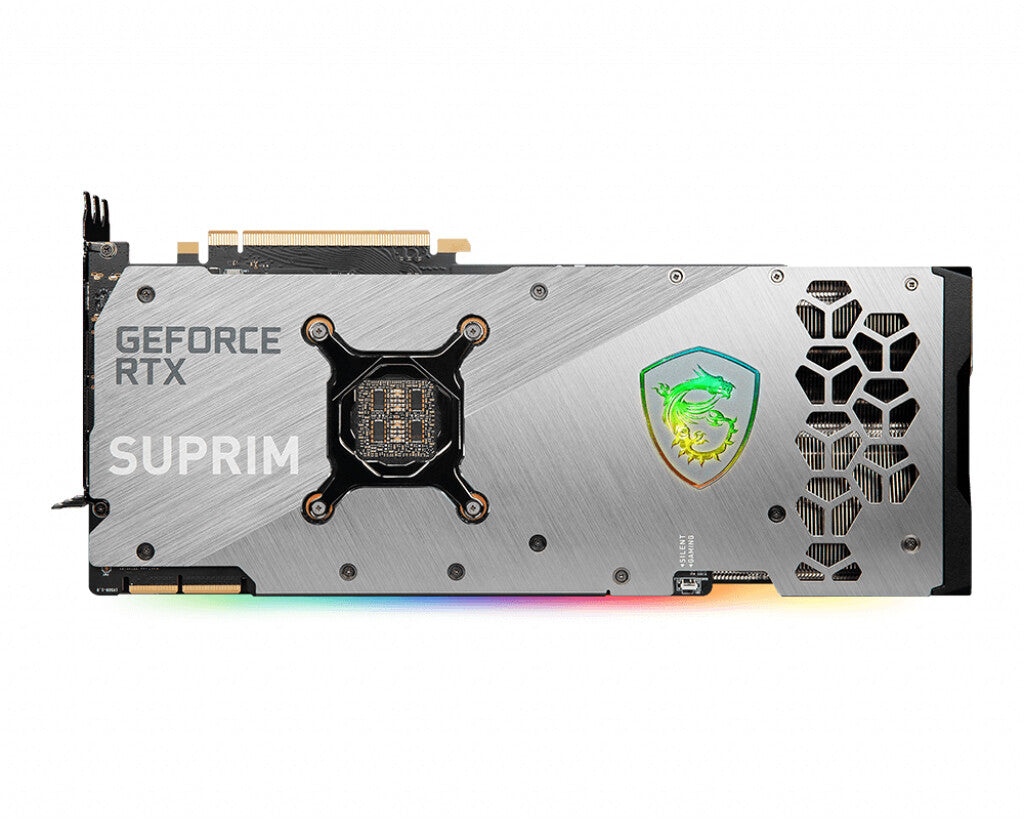

There's more than meets the eye. Thermal pads beneath the sturdy brushed-finish metal backplate provide additional cooling.
Go Big or Go Stealthy
Dual BIOS gives you the choice to prioritize for full performance in GAMING mode or low noise in SILENT mode.
Hardened Defenses
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Upgraded Foundations
A thickened copper layer inside the PCB increases conductivity which improves heat dissipation and high-performance reliability.
ANTI BENDING DEFYING GRAVITY
An enclosed rigid metal anti-bending plate provides additional strength to ensure structural integrity with the enlarged heatsink.
UNYIELDING SUPPORT
A bundled support holder provides additional graphics card reinforcement.
Processor | |
---|---|
Parallel processing technology support | NVLink |
FireStream | No |
Maximum displays per videocard | 4 |
Processor boost clock speed | 1860 MHz |
CUDA cores | 10752 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 3090 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory bus | 384 bit |
Graphics card memory type | GDDR6X |
Discrete graphics card memory | 24 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
Virtual Reality (VR) ready | Yes |
OpenGL version | 4.6 |
DirectX version | 12.0 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Blue, Grey, White |
Illumination | Yes |
Illumination colour | Multi |
Form factor | Full-Height/Half-Length (FH/HL) |
Bracket height | Full-Height (FH) |
Number of fans | 3 fan(s) |
Cooling technology | MSI TORX Fan 4.0 |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 450 W |
Supplementary power connectors | 1x 16-pin |
Minimum system power supply | 850 W |
General | |
---|---|
Product Family | SUPRIM |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 71 mm |
Height | 140 mm |
Length | 338 mm |
Weight | 2.15 kg |
Packaging data | |
---|---|
Package type | Box |
