TAKE THE ESSENTIALS
VENTUS brings a fundamentally solid experience to users looking for a performance graphics card. A sharp-looking updated design with TORX FAN 4.0 lets VENTUS breeze through any task.
CORE PIPE
Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the GPU baseplate to then spread heat along the full length of the heatsink.
COPPER BASEPLATE
Heat from the GPU and memory modules is immediately captured by a solid nickel-plated copper baseplate and then rapidly transferred to an array of heat pipes. This widening of the thermal transfer systems with highly efficient mechanisms improves overall efficiency.

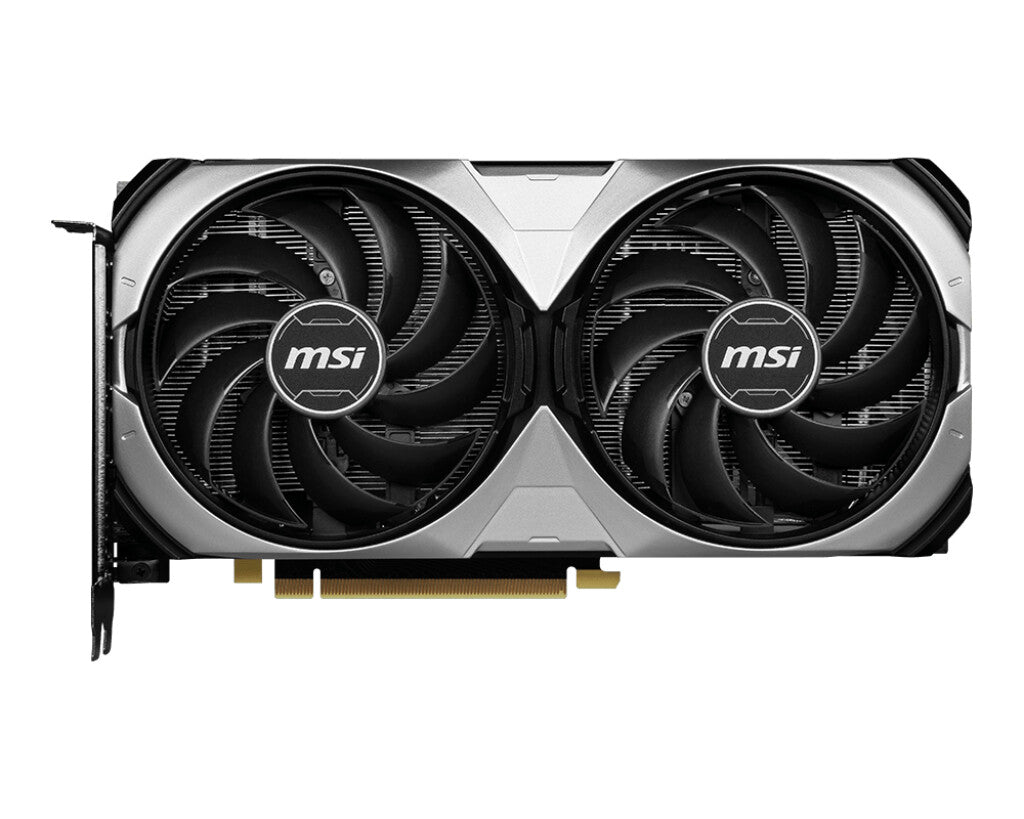

TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the Dual-Fan cooling system.
DrMos
DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
Fuse
Additional fuses built into the custom PCB provide additional safeguards against electrical damage.
Processor | |
---|---|
Maximum displays per videocard | 4 |
Processor boost clock speed | 2505 MHz |
Processor frequency | 2520 MHz |
CUDA cores | 5888 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 4070 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory bandwidth (max) | 21 GB/s |
Memory bus | 192 bit |
Graphics card memory type | GDDR6X |
Discrete graphics card memory | 12 GB |

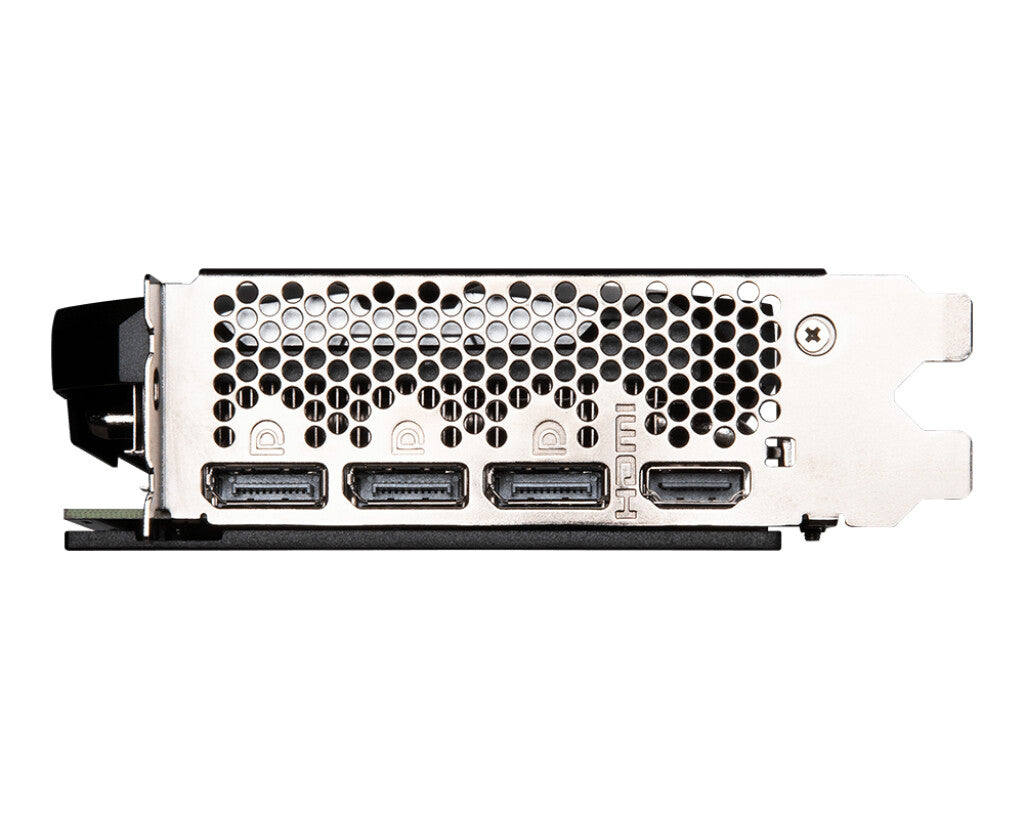

Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1a |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
OpenGL version | 4.6 |
DirectX version | 12 Ultimate |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Silver |
Form factor | Full-Height/Full-Length (FH/FL) |
Number of fans | 2 fan(s) |
Cooling technology | MSI TORX Fan 4.0 |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 200 W |
Supplementary power connectors | 1x 8-pin |
Minimum system power supply | 650 W |
General | |
---|---|
Product Family | VENTUS |
Weight & dimensions | |
---|---|
Depth | 43 mm |
Height | 125 mm |
Length | 651 mm |
Weight | 242 g |
Packaging data | |
---|---|
Package type | Box |
Package weight | 947 g |
