unite as one
The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
12+1+1 DUET RAIL POWER SYSTEM
Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings.
EZ M.2 CLIP
Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.
WINDOWS 11 CERTIFIED
With MSI you benefit from great compatibility and a worry-free user experience when using Microsoft Windows 11. With a true dedication to performance, our R&D team has made sure everything works as intended when using the latest version of Microsoft Windows on any MSI product.
PRE-INSTALLED I/O SHIELD
The design protect your IO ports and makes your installation process easier and safer.
XL CLIP
The enlarged PCI-E clip helps you swap or remove your devices easier. Keep the PCI-E slot stronger and safer.
EZ DEBUG LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.
KEEP OUT ZONE
MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MAG B760 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
USB FRONT TYPE-C
MSI gaming motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Processor | |
---|---|
Supported processor sockets | LGA 1700 |
Maximum number of SMP processors | 1 |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Maximum internal memory | 128 GB |
Supported memory clock speed (max) | 5333 MHz |
Supported memory clock speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4400,4600,4800,5000,5066,5200,5333 MHz |
Non-ECC | Yes |
ECC | No |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Supported storage drive interfaces | M.2, SATA III |
Graphics | |
---|---|
On-board graphics card | No |
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
TPM connector | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
S/PDIF out connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 4 |

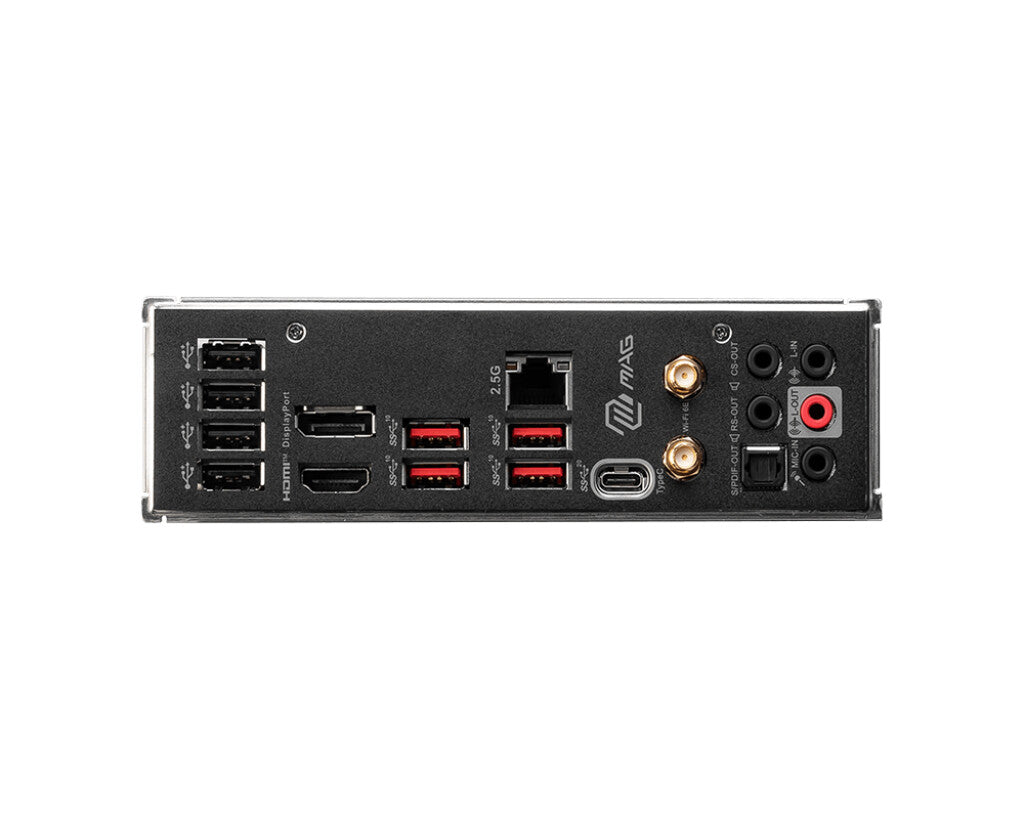

Rear panel I/O ports | |
---|---|
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 2.0 ports quantity | 4 |
Network | |
---|---|
Bluetooth version | 5.3 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10, Windows 11 |
Power source type | ATX |
Product colour | Black |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC897 |
Motherboard chipset | Intel B760 |
Motherboard chipset family | Intel |
Motherboard form factor | ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 3 |
PCI Express x16 slots | 2 |
PCI Express x1 slots | 1 |
BIOS | |
---|---|
System Management BIOS (SMBIOS) version | 3.5 |
ACPI version | 6.4 |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
---|---|
Depth | 304.8 mm |
Width | 243.8 mm |
