Stable Foundation, Durably Built

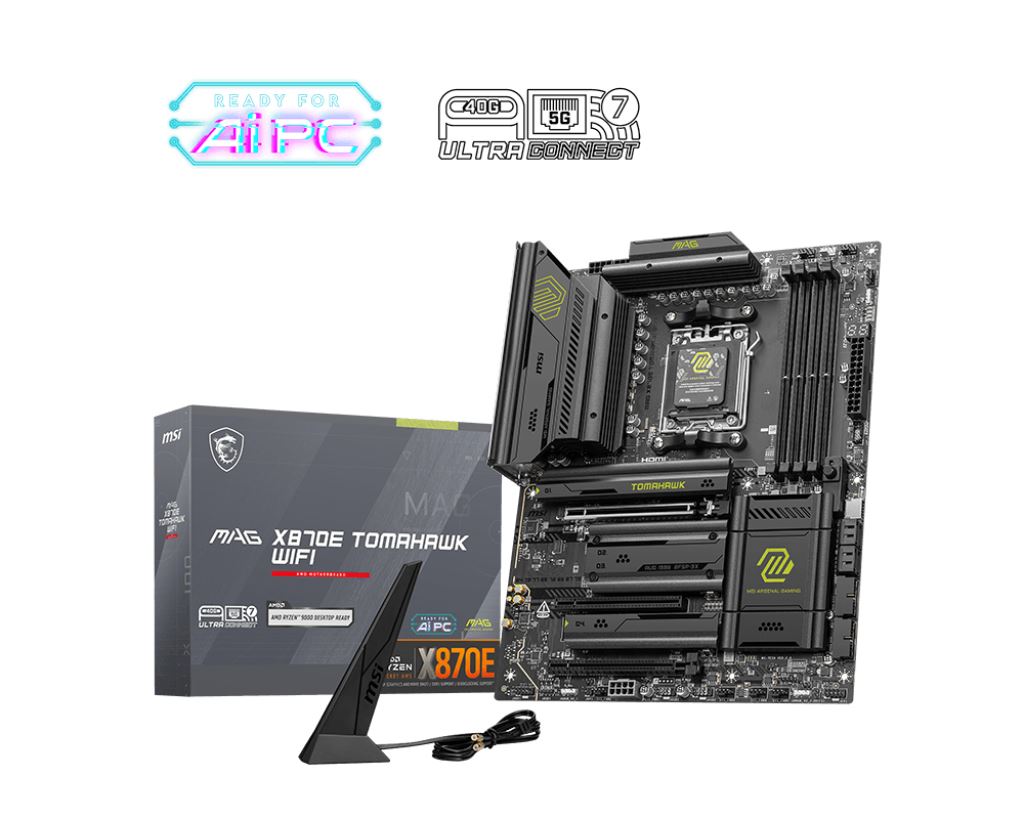

The MAG X870E TOMAHAWK WIFI is a gaming oriented ATX motherboard that is constructed with a 14 Duet Rail Power System and the latest AMD X870E chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 support that balances both value and premium hardware.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The MAG X870E TOMAHAWK WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors. Form Factor: ATX Socket Type: AM5 Chipset: AMD X870E
Ultra Power - 14 Duet Rail Power System with 80A Smart Power Stage
With exclusive Core Boost technology and dual 8 pin power connectors, the MAG X870E TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
Digital PWM IC
14 Duet Rail Power System (80A / SPS)
2 Phase SOC Power
1 Phase MISC Power
Frozr Guard
Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync
Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control
Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizzard and Frozr AI Cooling.
Memory Boost
A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode
Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
Internal I/O | |
---|---|
Number of M.2 (M) slots | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Total number of SATA connectors | 4 |
Supported storage drive interfaces | M.2, SATA III |
USB 2.0 connectors | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
mSATA ports quantity | 0 |
Number of SATA connectors | 0 |
Number of SATA III connectors | 4 |
Number of SATA II connectors | 0 |
EPS power connector (8-pin) | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Technical details | |
Motherboard chipset family | AMD |
Motherboard chipset | AMD X870E |
Supported processor sockets | Socket AM5 |
PC health monitoring | CPU, Fan, Temperature, Voltage |
On-board graphics card | No |
HDMI version | 2.1 |
Motherboard form factor | ATX |
Component for | PC |
Total number of SATA connectors | 4 |
Maximum internal memory supported by processor | 256 GB |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Number of HDDs supported | 4 |
Supported storage drive types | HDD & SSD |
Motherboard chipset family | AMD |
Motherboard chipset | AMD X870E |
Supported processor sockets | Socket AM5 |
PC health monitoring | CPU, Fan, Temperature, Voltage |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Processor | |
Processor manufacturer | AMD |
Maximum internal memory supported by processor | 256 GB |
Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
Supported processor sockets | Socket AM5 |
Processor socket | Socket AM5 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR5-SDRAM |
Memory channels | Dual-channel |
Supported memory clock speeds | 4800,5600,8400 MHz |
Maximum internal memory | 256 GB |
Supported memory clock speed (max) | 8400 MHz |
ECC сompatibility | Non-ECC |
Storage controllers | |
Number of HDDs supported | 4 |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2, SATA III |
Number of storage drives supported | 8 |
Graphics | |
On-board graphics card | No |
Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
DisplayPort version | 1.4 |
USB 2.0 ports quantity | 4 |
VGA (D-Sub) ports quantity | 0 |
S/PDIF out port | Yes |
Microphone in | Yes |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DVI-D ports quantity | 0 |
DisplayPorts quantity | 2 |
USB4 Gen 2x2 ports quantity | 1 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
LAN controller | Realtek RTL8126 |
Ethernet interface type | 5 Gigabit Ethernet |
Bluetooth | Yes |
Bluetooth version | 5.4 |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Features | |
Motherboard chipset family | AMD |
Motherboard chipset | AMD X870E |
Supported processor sockets | Socket AM5 |
PC health monitoring | CPU, Fan, Temperature, Voltage |
Audio output channels | 7.1 channels |
Motherboard form factor | ATX |
Component for | PC |
Product colour | Black |
Expansion slots | |
Number of M.2 (M) slots | 4 |
PCI Express x16 (Gen 3.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
1st M.2 largest key size | 22110 |
1st M.2 highest PCI Express generation | 5.0 |
2nd M.2 largest key size | 2280 |
2nd M.2 highest PCI Express generation | 5.0 |
3rd M.2 largest key size | 2280 |
3rd M.2 highest PCI Express generation | 4.0 |
4th M.2 largest key size | 2280 |
4th M.2 highest PCI Express generation | 4.0 |
Weight & dimensions | |
Width | 243.8 mm |
Depth | 304.8 mm |
Other features | |
mSATA ports quantity | 0 |
