The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
Processor | |
---|---|
Supported processor sockets | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory clock speed (max) | 5333 MHz |
Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200,3333,3466,3733,3866,4000,4266,4400,4533,4600,4800,5000,5066,5200,5333 MHz |
Non-ECC | Yes |
Memory channels | Dual-channel |
Number of memory slots | 4 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 5, 10 |
Internal storage capacity | 10 GB |
Supported storage drive interfaces | M.2, PCI Express |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
TPM connector | Yes |
Chassis intrusion connector | Yes |
CPU fan connector | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
Number of SATA II connectors | 6 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 4 |

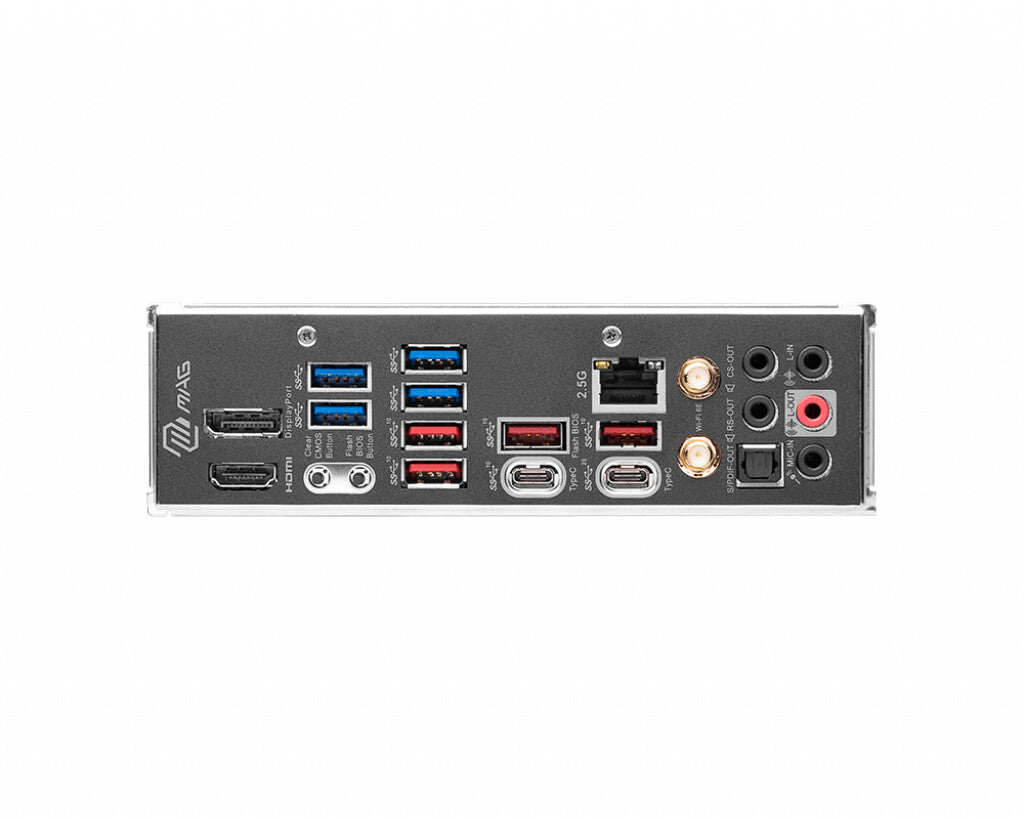

Rear panel I/O ports | |
---|---|
S/PDIF out port | Yes |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Network | |
---|---|
Bluetooth version | 5.3 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Audio output channels | 7.1 channels |
Motherboard chipset | Intel Z790 |
Motherboard chipset family | Intel |
Motherboard form factor | ATX |
Component for | PC |
BIOS | |
---|---|
BIOS memory size | 256 Mbit |
BIOS type | EFI AMI |
Weight & dimensions | |
---|---|
Depth | 304.8 mm |
Width | 243.8 mm |
Packaging content | |
---|---|
Cables included | SATA |
