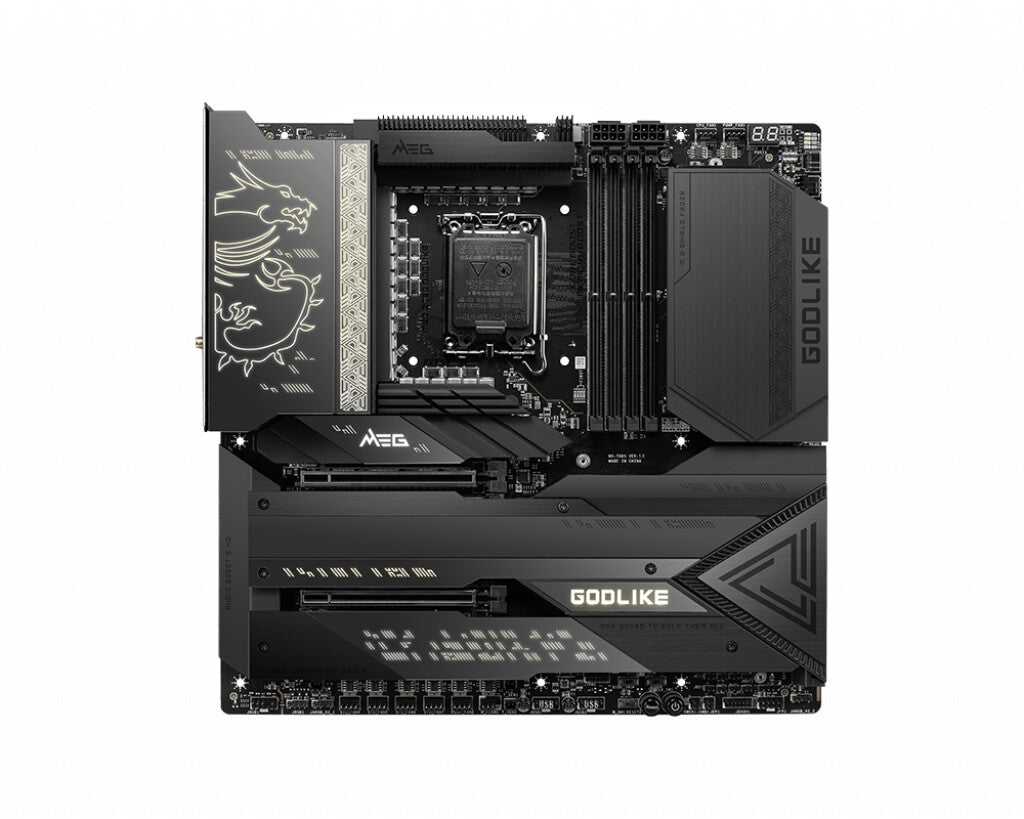

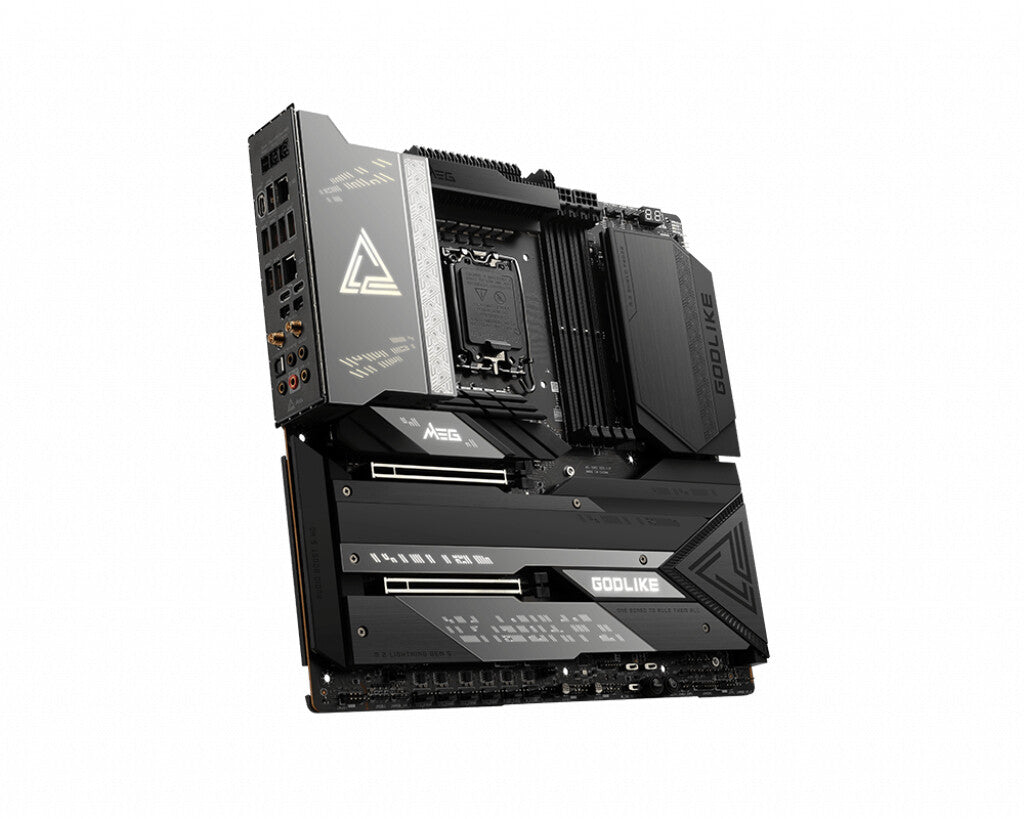

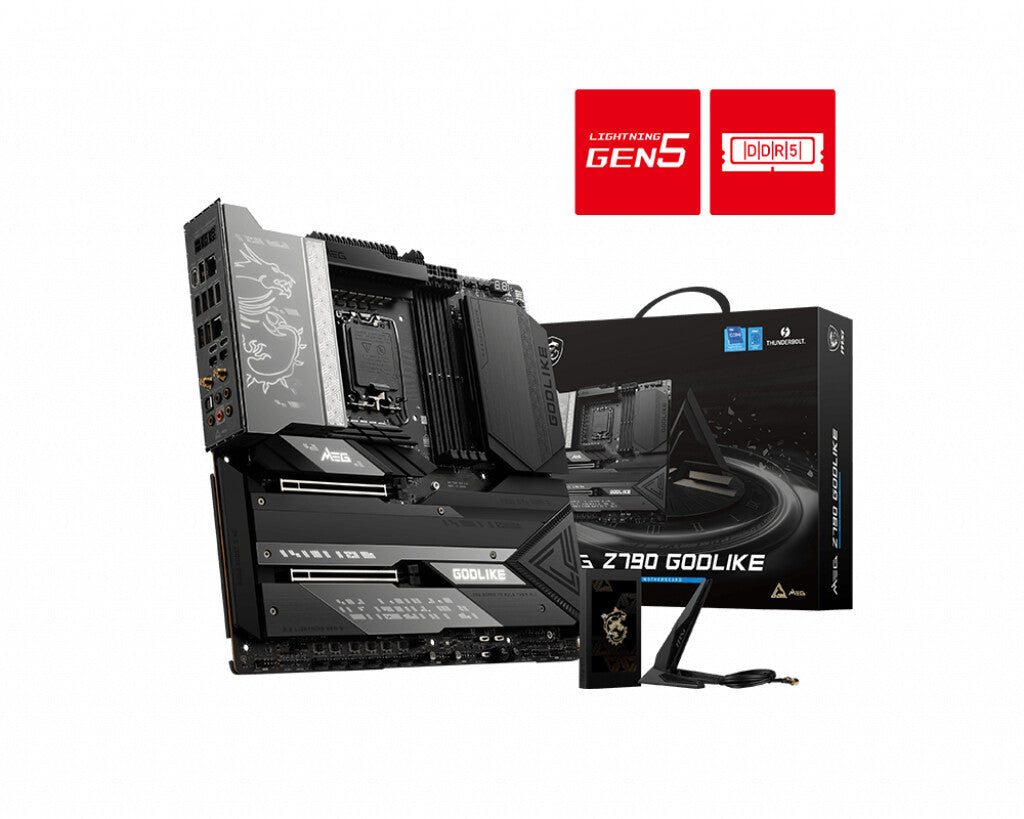

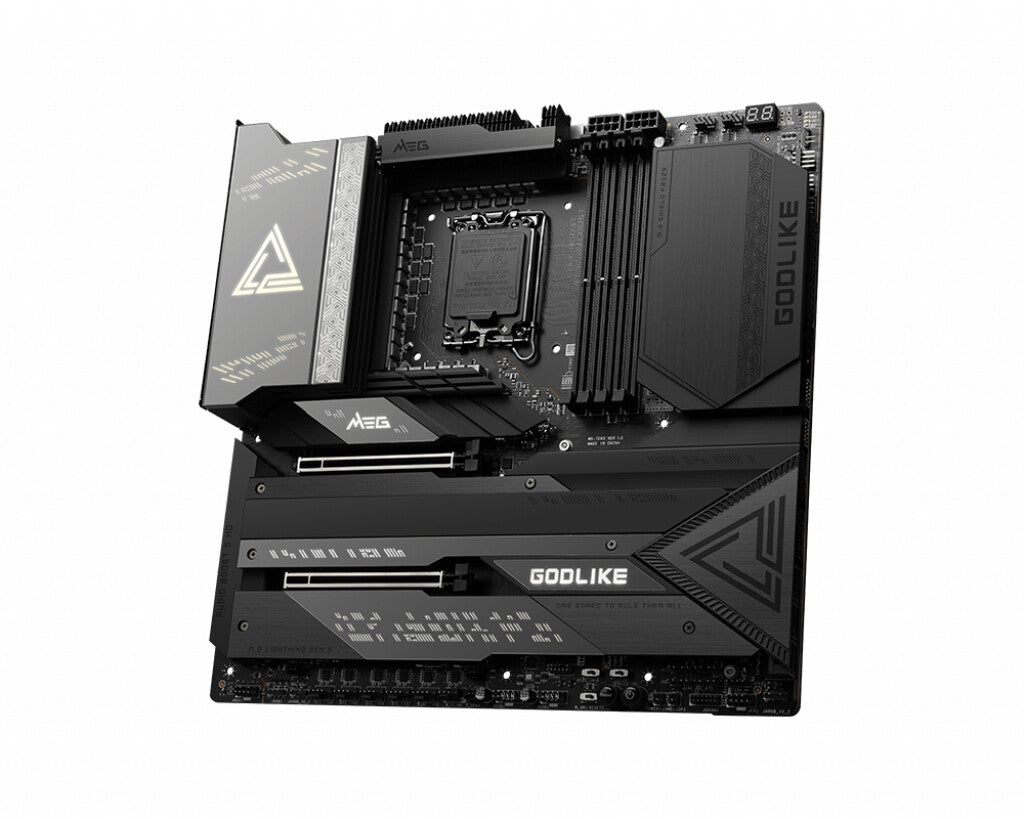

Designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and industry's first M-Vision Dashboard, the MEG Z790 GODLIKE is developed to unleash the extreme gaming potential of the latest 13th Gen Intel® Core processor and is ready to rule the tournament once again.
Onboard septuple M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution.
Lightning Gen 5 M.2 solution delivers 12,311MB/s read speed and 11,507 write speed to meet the demanding hardcore users.
Double-sided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster.
The screwless M.2 patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation.
The patented magnetic M.2 Shield Frozr design enables true “wire-less” RGB function, enhances the installation process and maximizes the storage performance.
Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag.
The latest Wi-Fi 6E solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.

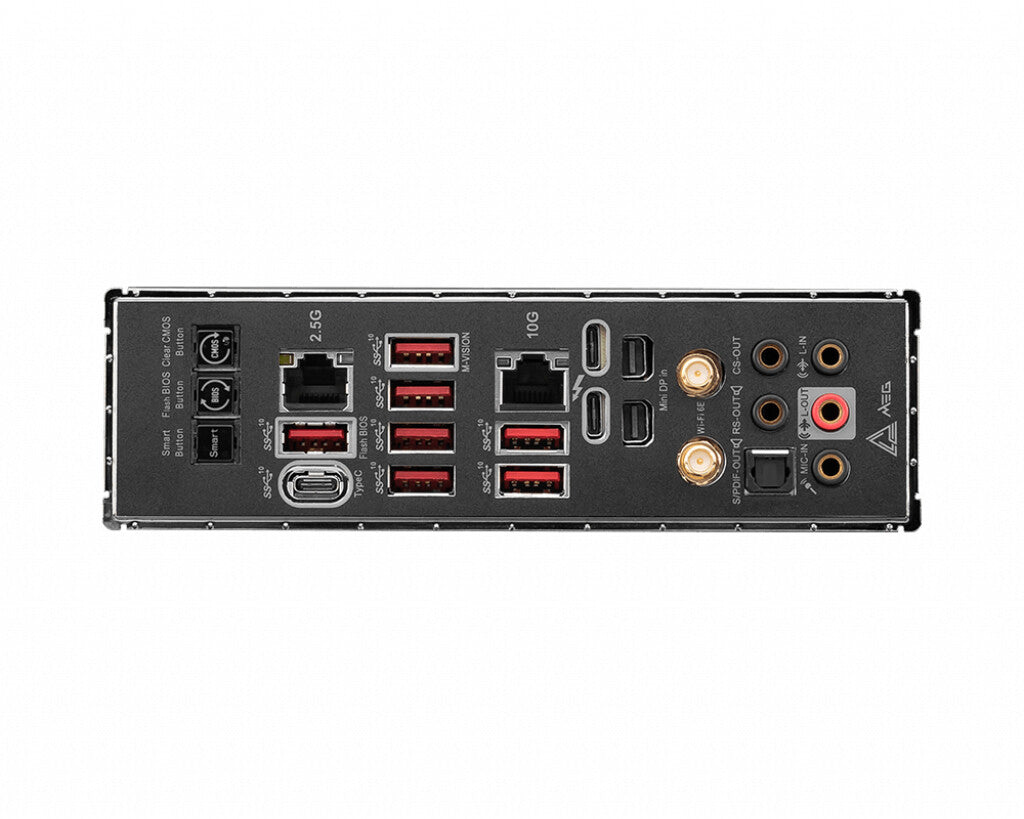

Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, Multi-Port Accessory Architecture and USB 4.0 Compliant.
M-VISION DASHBOARD
The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
ILLUSION LIGHTING
MEG Z790 GODLIKE features Illusion Lighting effect that adopts exclusive multiple structure, which allows GODLIKE to displays dual patterns in one area. The non-overlapping dual patterns not only showoff the well crafted of the GODLIKE, but also reinforce the DIY and MEG spirit.
LATEST DDR5 MEMORY
Take a huge step of DDR performance upgrade with the latest DDR5 memory. Combining a dedicated SMT welding process and with MSI memory boost technology, the MEG Z790 GODLIKE are ready to deliver world-class memory performance.
LIGHTNING GEN 5
The latest and the fastest PCI-e data transfer solution can reach 128GB/s of unidirectional transfer bandwidth of a x16 interface that has doubled compared to its previous generation. Optimized by Steel Armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
Processor | |
---|---|
Supported processor sockets | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory clock speeds | 4800,5000,5200,5400,5600,6000,6200,6400,6600,6800,7000,7200,7400,7600 MHz |
Non-ECC | Yes |
Memory channels | Dual-channel |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 5, 10 |
Internal storage capacity | 10 GB |
Supported storage drive interfaces | M.2, PCI Express |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
TPM connector | Yes |
Chassis intrusion connector | Yes |
CPU fan connector | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
Number of SATA II connectors | 6 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
USB 2.0 connectors | 4 |
Rear panel I/O ports | |
---|---|
S/PDIF out port | Yes |
DisplayPort version | 1.4 |
DisplayPorts quantity | 1 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
Network | |
---|---|
Bluetooth version | 5.3 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Wi-Fi | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Audio output channels | 7.1 channels |
Motherboard chipset | Intel Z790 |
Motherboard chipset family | Intel |
Motherboard form factor | Extended ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 4 |
BIOS | |
---|---|
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
---|---|
Depth | 310 mm |
Width | 304.8 mm |
Packaging content | |
---|---|
Cables included | SATA |
