LGA 1700, Intel Z790, 4x DDR5 7800 MHz, 1x HDMI, 1x DisplayPort, RAID, Wi-Fi 7, Bluetooth 5.4, ATX

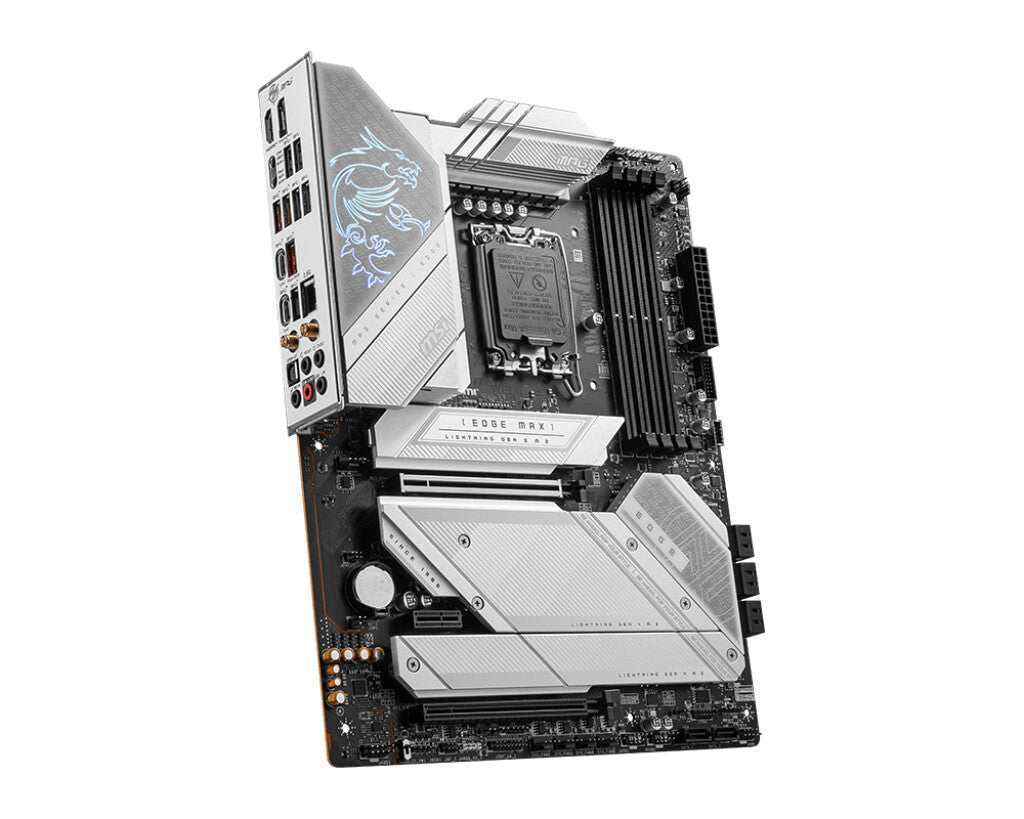

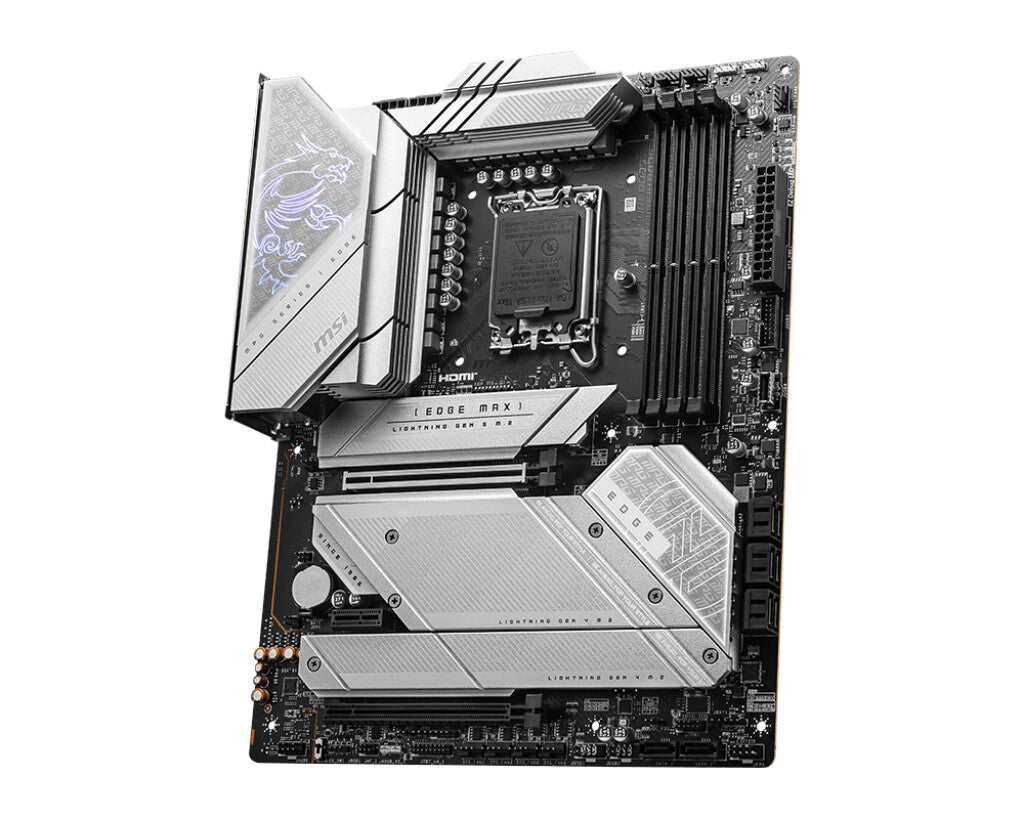

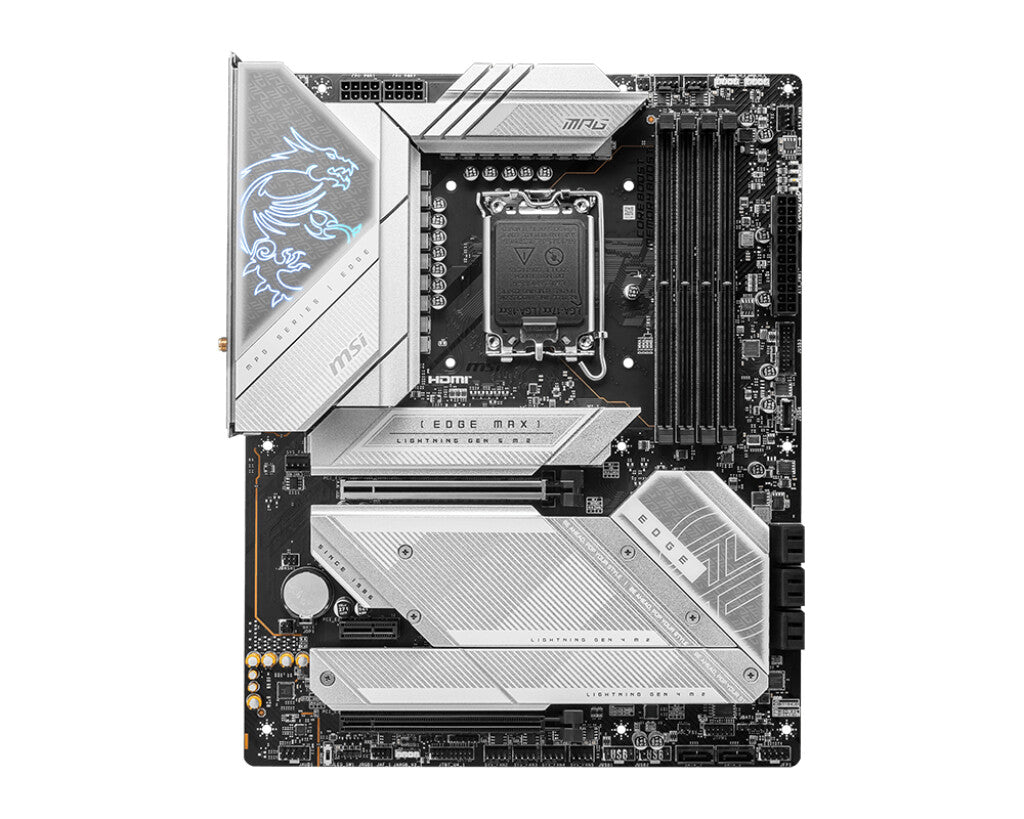

MPG Z790 EDGE TI MAX WIFI is covered with a silver-white color scheme for white PC build lovers to show off different personalities. It is also powerful because it features Wi-Fi 7 solution, an optimized DDR5 circuit, and the latest PCIe 5.0 M.2 with Screwless M.2 Shield Frozr, and this is the best white Z790 ATX motherboard for Intel® 14th Gen and 13th Gen Core processors.
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
TOOL-FREE M.2 INSTALLATION
Industrial first Magnetic with patented Screwless M.2 Shield Frozr & EZ M.2 Clip provide the easiest way for M.2 Installation.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Direct Touch Heat-pipe
Connecting two MOS heatsinks to enlarge the surface of heat dissipation.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performance.
Enhanced M.2 Thermal
Double-sided M.2 Shield Frozr and Enlarged heatsink desing keep PCIe 5.0 M.2 SSD safe while preventing throttling.
Enlarged PCH Heatsink
The enlarged heatsink design to reduce dust and noise as well as maintain high heat dissipation efficiency.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
| Processor |
|---|
| Supported processor sockets |
LGA 1700 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Unbuffered memory |
Yes |
| Maximum internal memory |
192 GB |
| Supported memory clock speeds |
7800, 7600, 7400, 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Number of memory slots |
4 |
| Supported memory types |
DDR5-SDRAM |
| Storage controllers |
|---|
| RAID levels |
0, 5, 10 |
| RAID support |
Yes |
| Number of storage drives supported |
10 |
| Supported storage drive interfaces |
M.2, PCI Express |
| Supported storage drive types |
HDD & SSD |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| RGB LED pin header |
Yes |
| TPM connector |
Yes |
| Chassis intrusion connector |
Yes |
| CPU fan connector |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Number of SATA III connectors |
8 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 2.0 connectors |
4 |

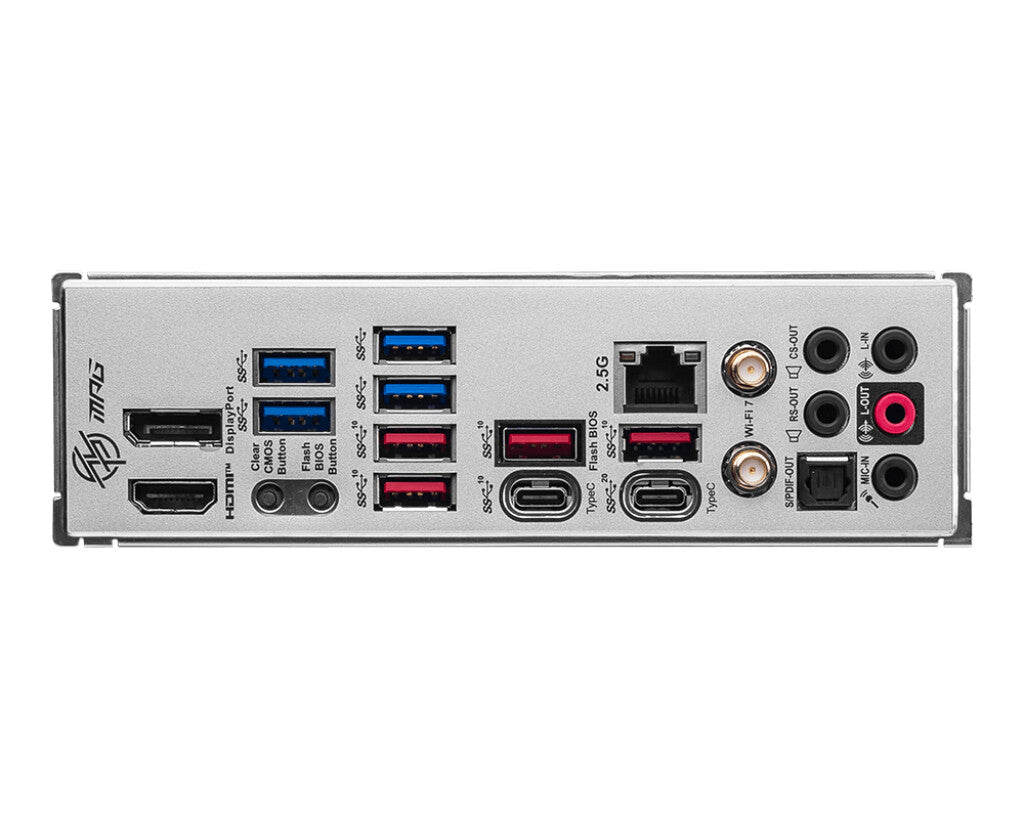

| Rear panel I/O ports |
|---|
| S/PDIF out port |
Yes |
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Network |
|---|
| Bluetooth version |
5.4 |
| Bluetooth |
Yes |
| Wi-Fi standards |
802.11a, 802.11ad, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi |
Yes |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Windows operating systems supported |
Yes |
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC4080 |
| Motherboard chipset |
Intel Z790 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
ATX |
| Component for |
PC |
| Expansion slots |
|---|
| Number of M.2 (M) slots |
5 |
| BIOS |
|---|
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Weight & dimensions |
|---|
| Depth |
304.8 mm |
| Width |
243.8 mm |
| Packaging content |
|---|
| Cables included |
SATA |
