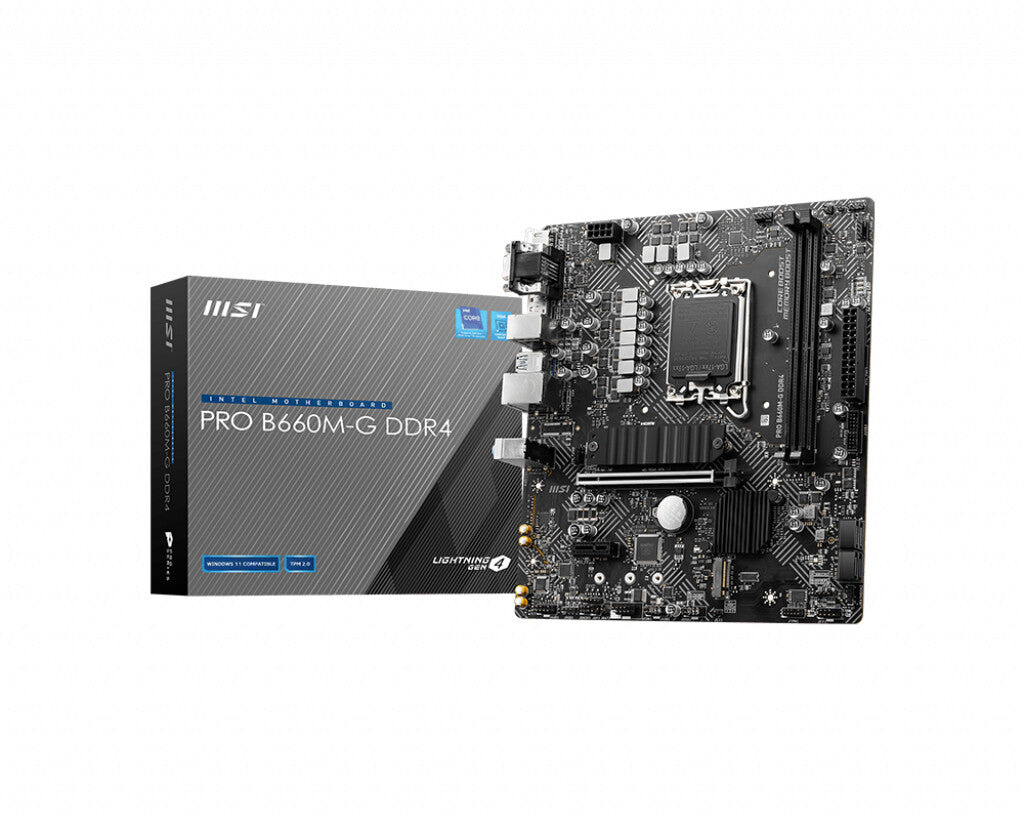

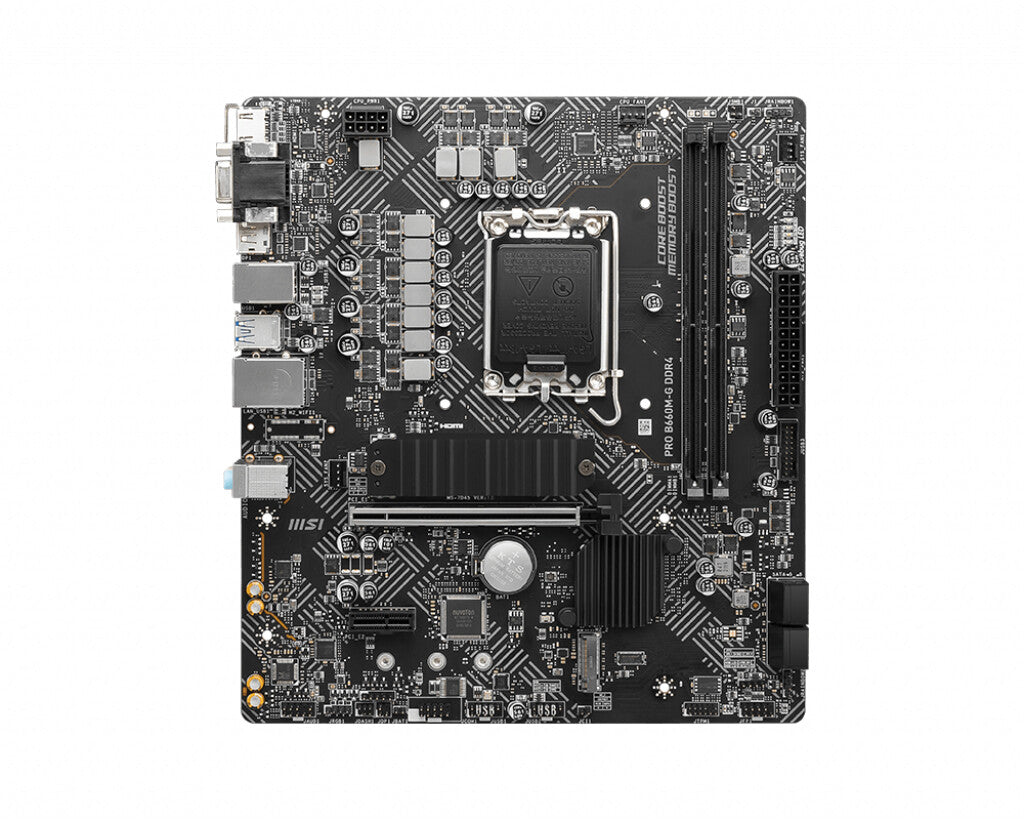

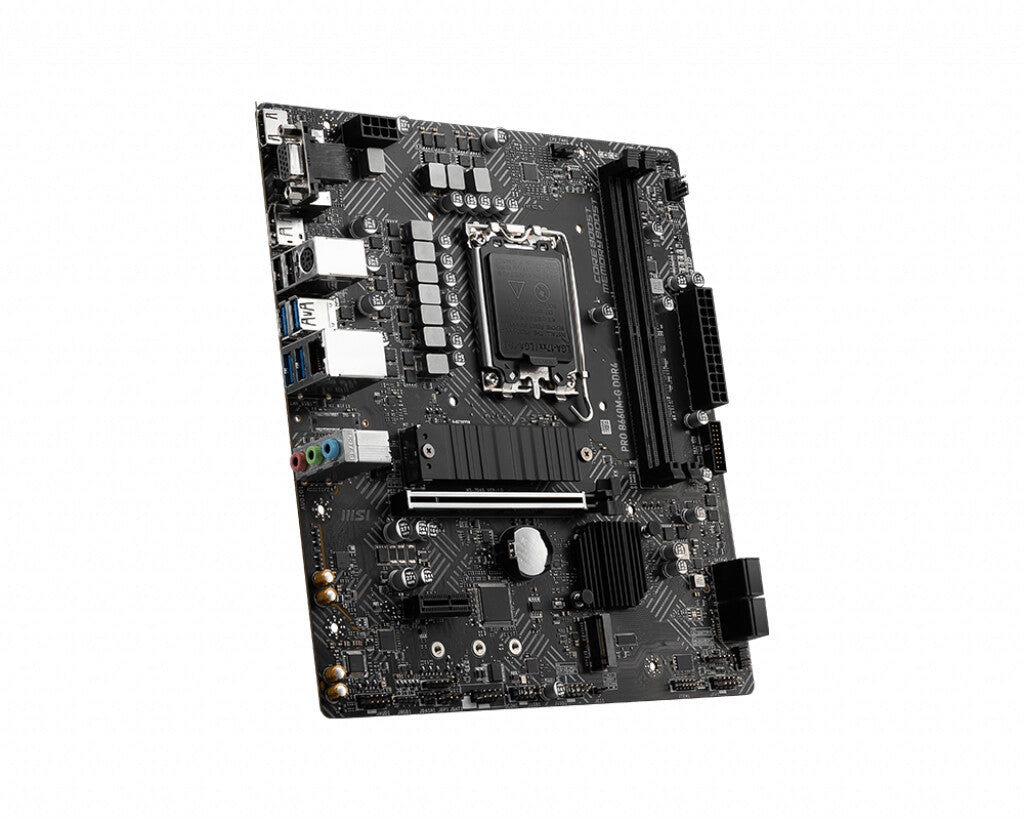

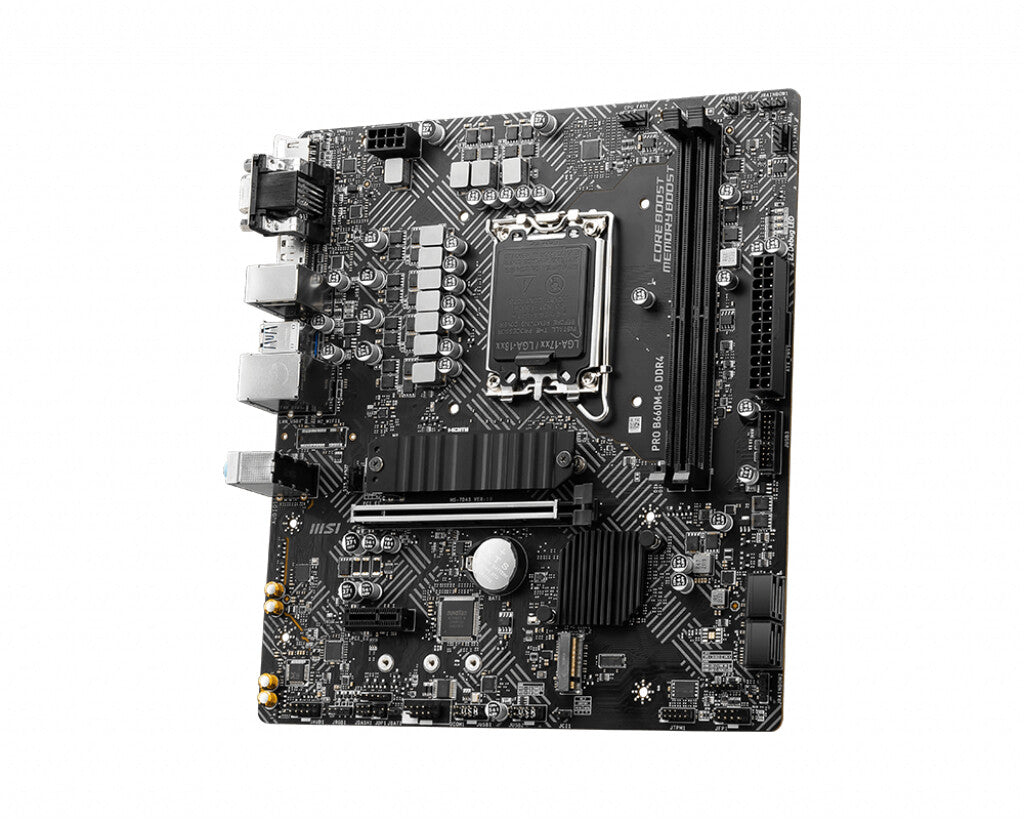

Micro-ATX, LGA1700, Intel B660, DDR4, SSD, 4x SATA, VGA, HDMI, DisplayPort 1.4
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
M.2 SHIELD FROZR
World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
A HUGE STEP OF DDR PERFORMANCE
MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
| Processor |
|---|
| Supported processor sockets |
LGA 1700 |
| Maximum number of SMP processors |
1 |
| Compatible processor series |
Intel® Core™ i9 |
| Processor socket |
LGA 1700 |
| Processor manufacturer |
Intel |
| Memory |
|---|
| Maximum internal memory |
64 GB |
| Supported memory clock speeds |
2133,2666,2933,3200,4000,4600 MHz |
| Non-ECC |
Yes |
| Memory channels |
Dual-channel |
| Memory slots type |
DIMM |
| Number of memory slots |
2 |
| Supported memory types |
DDR4-SDRAM |
| Storage controllers |
|---|
| Supported storage drive interfaces |
PCI Express 3.0, PCI Express 4.0 |
| Supported storage drive types |
SSD |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| Serial port headers |
1 |
| TPM connector |
Yes |
| Number of chassis fan connectors |
1 |
| CPU fan connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| Front panel connector |
Yes |
| Front panel audio connector |
Yes |
| Audio connector |
Yes |
| Number of SATA III connectors |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| USB 2.0 connectors |
2 |

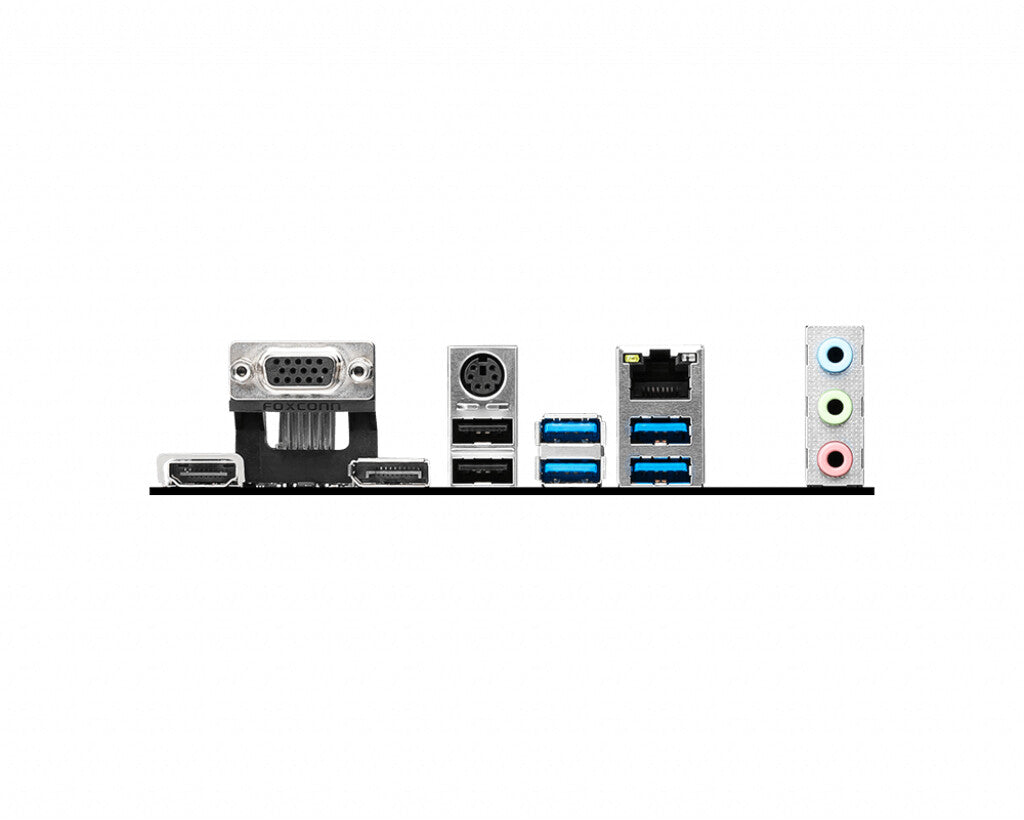

| Rear panel I/O ports |
|---|
| DisplayPort version |
1.4 |
| DisplayPorts quantity |
1 |
| HDMI version |
2.1 |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| USB 2.0 ports quantity |
2 |
| Network |
|---|
| Wi-Fi |
No |
| Ethernet interface type |
2.5 Gigabit Ethernet |
| Ethernet LAN |
Yes |
| Features |
|---|
| Audio output channels |
7.1 channels |
| Audio chip |
Realtek ALC897 |
| Motherboard chipset |
Intel B660 |
| Motherboard chipset family |
Intel |
| Motherboard form factor |
micro ATX |
| Component for |
PC |
| BIOS |
|---|
| System Management BIOS (SMBIOS) version |
3.4 |
| Clear CMOS jumper |
Yes |
| BIOS memory size |
256 Mbit |
| BIOS type |
UEFI AMI |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733020 |
| Weight & dimensions |
|---|
| Height |
65 mm |
| Depth |
220 mm |
| Width |
244 mm |
| Packaging content |
|---|
| Drivers included |
Yes |
| Cables included |
SATA |
| Other features |
|---|
| Weight |
764 g |
