PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. FROZR AI COOLING Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. FULLY CONTROLLABLE IN BIOS AND SOFTWARE MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. OPTIMIZE NETWORK FOR LOWER LATENCY! MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. A HUGE STEP OF DDR PERFORMANCE MSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for B660 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
Technical details | |
---|---|
Motherboard chipset family | Intel |
Motherboard chipset | Intel B660 |
Supported processor sockets | LGA 1700 |
Parallel processing technology support | Not supported |
Motherboard form factor | micro ATX |
Component for | PC |
Audio | |
Audio output channels | 7.1 channels |
Performance | |
Supported storage drive types | SSD |
Windows operating systems supported | Windows 10, Windows 11 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B660 |
RAID levels | 0, 1, 5, 10 |
Supported processor sockets | LGA 1700 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Component for | PC |
Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel Core i9 |
Supported processor sockets | LGA 1700 |
Processor socket | LGA 1700 |
Memory | |
Number of memory slots | 4 |
Memory slots type | DIMM |
Supported memory types | DDR4-SDRAM |
Memory channels | Dual-channel |
Non-ECC | Yes |
Supported memory clock speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600 MHz |
Maximum internal memory | 128 GB |
Storage controllers | |
Supported storage drive types | SSD |
Supported storage drive interfaces | M.2, SATA III |
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Graphics | |
Parallel processing technology support | Not supported |
DirectX version | 12.0 |
Internal I/O | |
12V power connector | Yes |
Supported storage drive interfaces | M.2, SATA III |
USB 2.0 connectors | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
TPM connector | Yes |
Number of SATA III connectors | 4 |
Front panel audio connector | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |

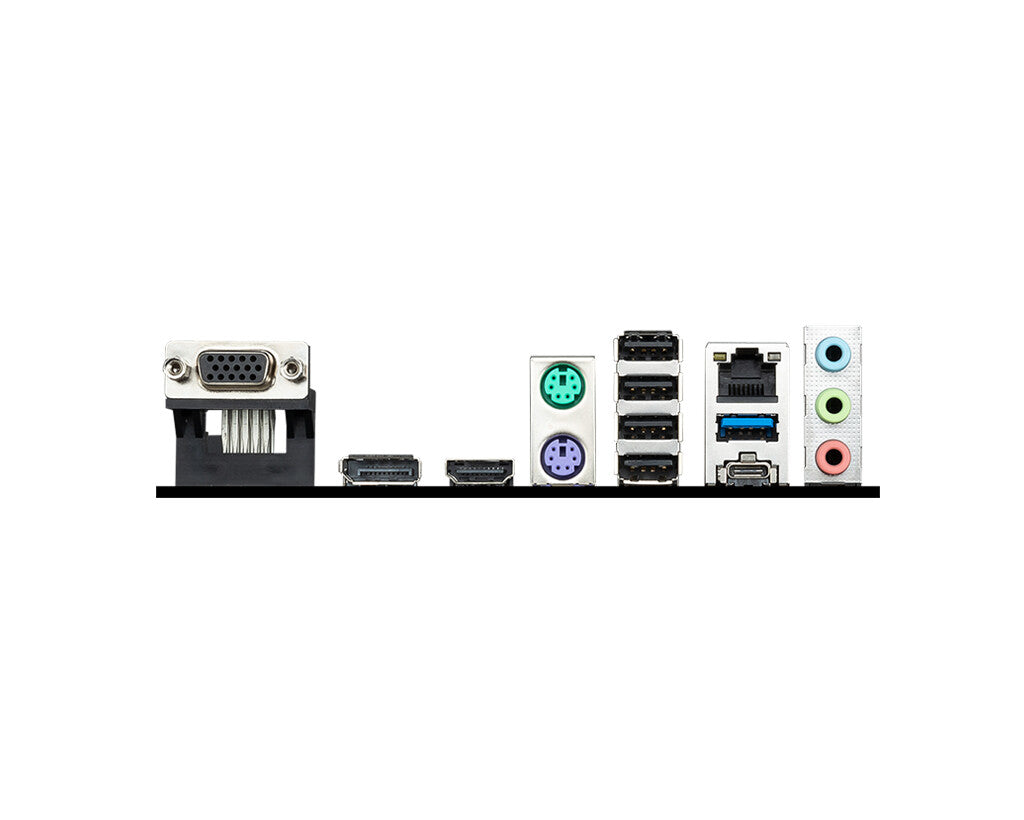

Rear panel I/O ports | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 2.0 ports quantity | 4 |
VGA (D-Sub) ports quantity | 1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DisplayPorts quantity | 1 |
Network | |
Ethernet LAN | Yes |
Wi-Fi | No |
Ethernet interface type | Gigabit Ethernet |
Features | |
Windows operating systems supported | Windows 10, Windows 11 |
Motherboard chipset family | Intel |
Motherboard chipset | Intel B660 |
Supported processor sockets | LGA 1700 |
Audio output channels | 7.1 channels |
Motherboard form factor | micro ATX |
Component for | PC |
Audio chip | Realtek ALC897 |
Harmonized System (HS) code | 84733020 |
Expansion slots | |
PCI Express x1 (Gen 3.x) slots | 1 |
PCI Express x16 slots | 1 |
Video | |
DirectX version | 12.0 |
Software | |
Windows operating systems supported | Windows 10, Windows 11 |
Drivers included | Yes |
Weight & dimensions | |
Width | 244 mm |
Depth | 244 mm |
Packaging content | |
Drivers included | Yes |
Cables included | SATA |
