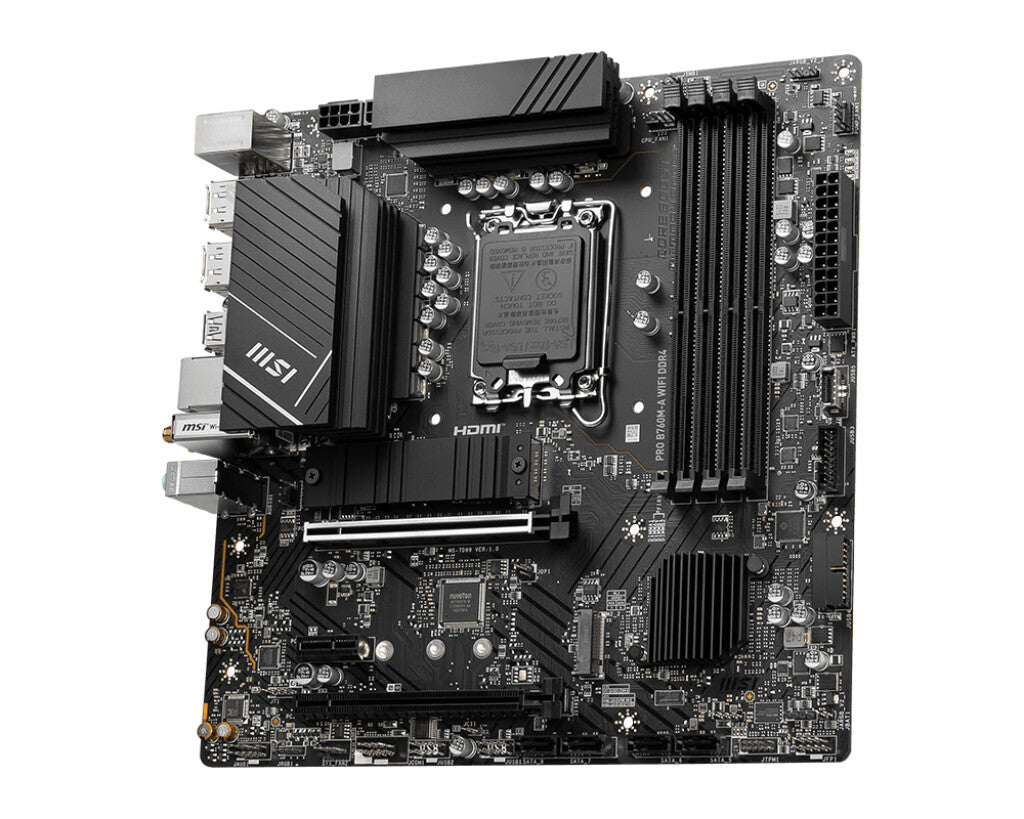

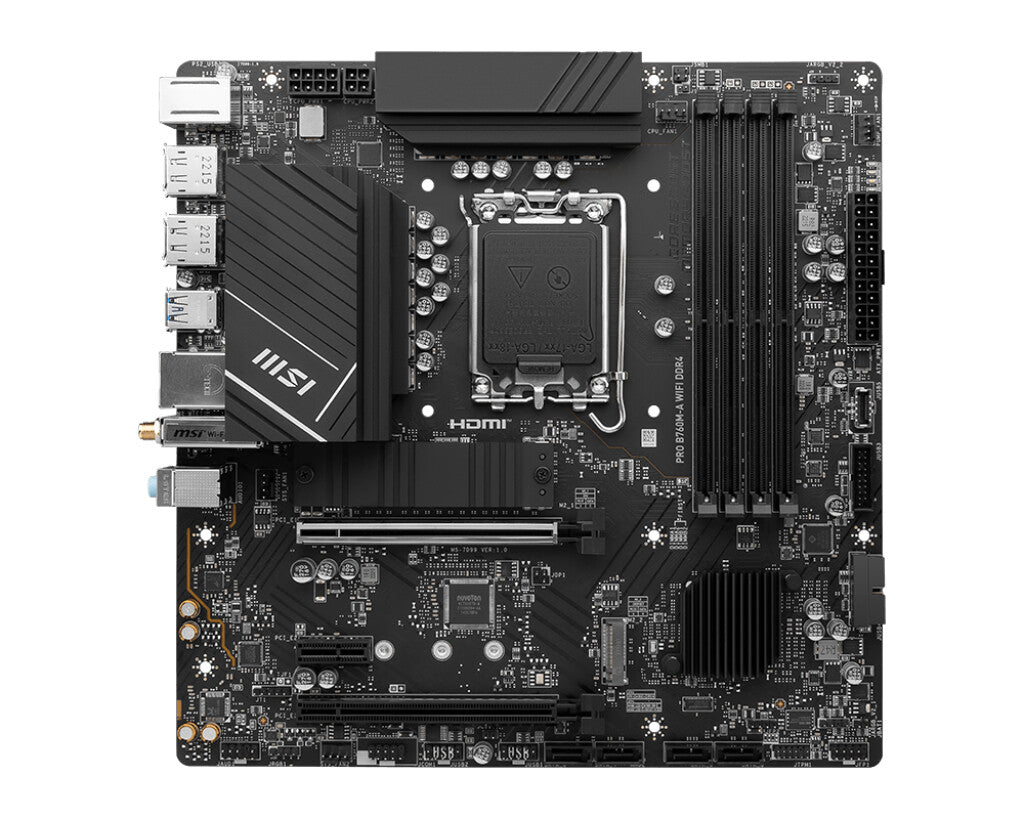

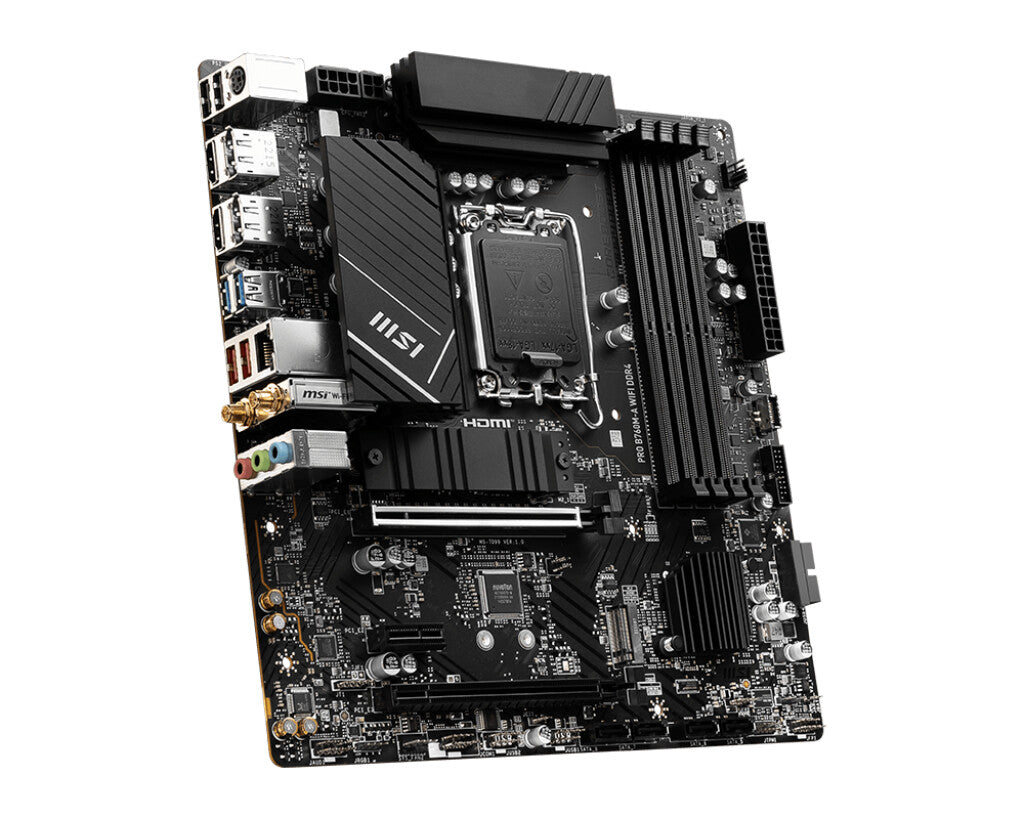

PRO B790M-A WIFI DDR4

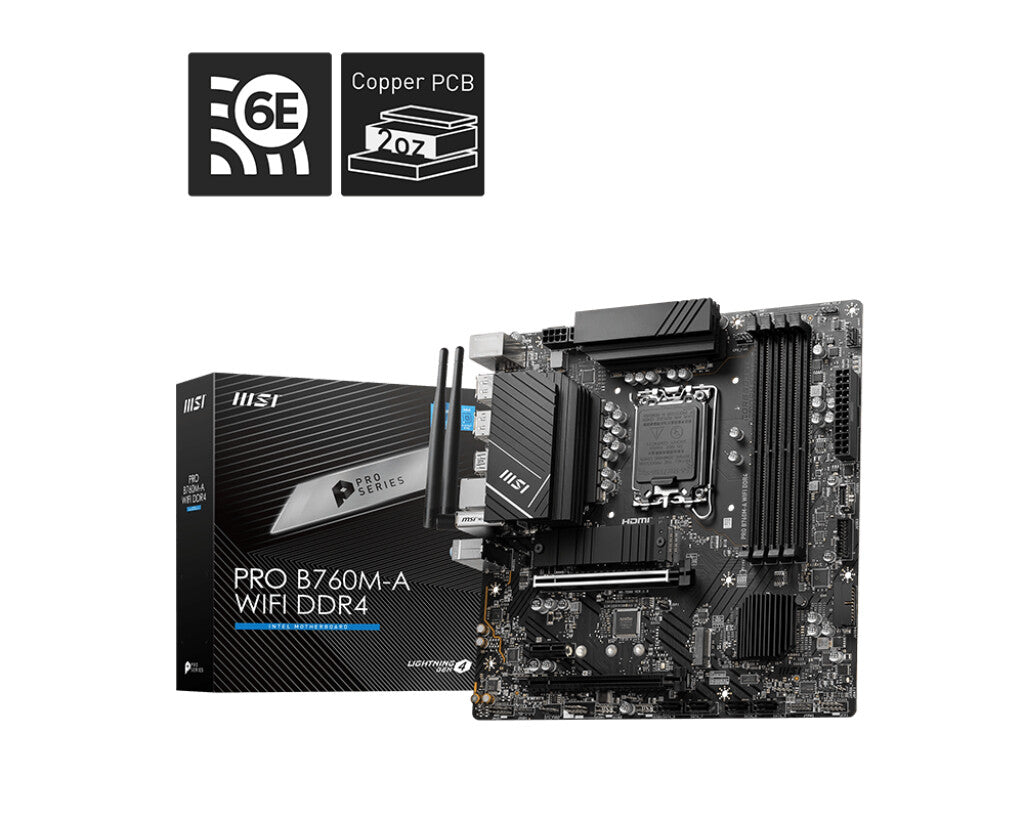

PRO B760M-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
USB FRONT TYPE-C
MSI PRO motherboards support USB Front Type-C that allows gamers to connect with the latest USB devices. Built up a system with MSI PC case to have the most convenient experience.
Processor | |
---|---|
Supported processor sockets | LGA 1700 |
Maximum number of SMP processors | 1 |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Maximum internal memory | 128 GB |
Supported memory clock speed (max) | 5333 MHz |
Supported memory clock speeds | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200,5333 MHz |
Non-ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR4-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5, 10 |
RAID support | Yes |
Supported storage drive interfaces | M.2, SATA III |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
TPM connector | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel connector | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
USB 2.0 connectors | 4 |

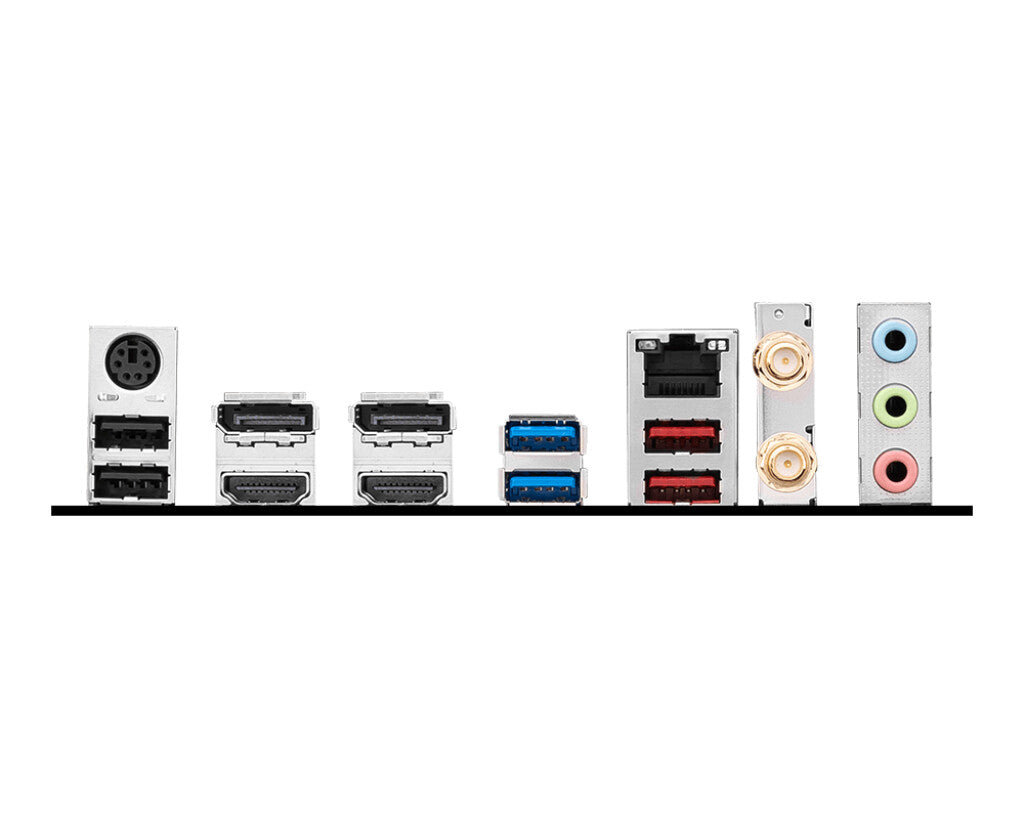

Rear panel I/O ports | |
---|---|
DisplayPorts quantity | 2 |
HDMI ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 2.0 ports quantity | 2 |
Network | |
---|---|
Bluetooth | Yes |
Wi-Fi | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10, Windows 11 |
Power source type | ATX |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC897 |
Motherboard chipset | Intel B760 |
Motherboard chipset family | Intel |
Motherboard form factor | micro ATX |
Component for | PC |
Expansion slots | |
---|---|
PCI Express x1 (Gen 3.x) slots | 2 |
BIOS | |
---|---|
System Management BIOS (SMBIOS) version | 3.5 |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Weight & dimensions | |
---|---|
Depth | 243.8 mm |
Width | 243.8 mm |
