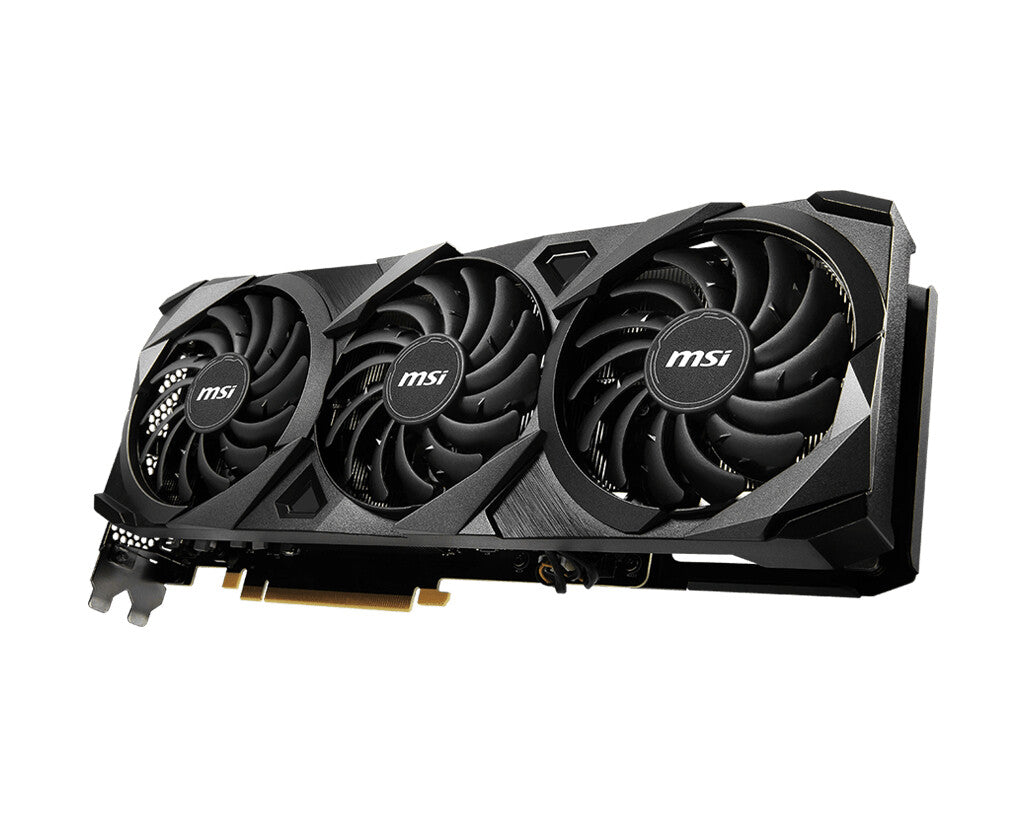

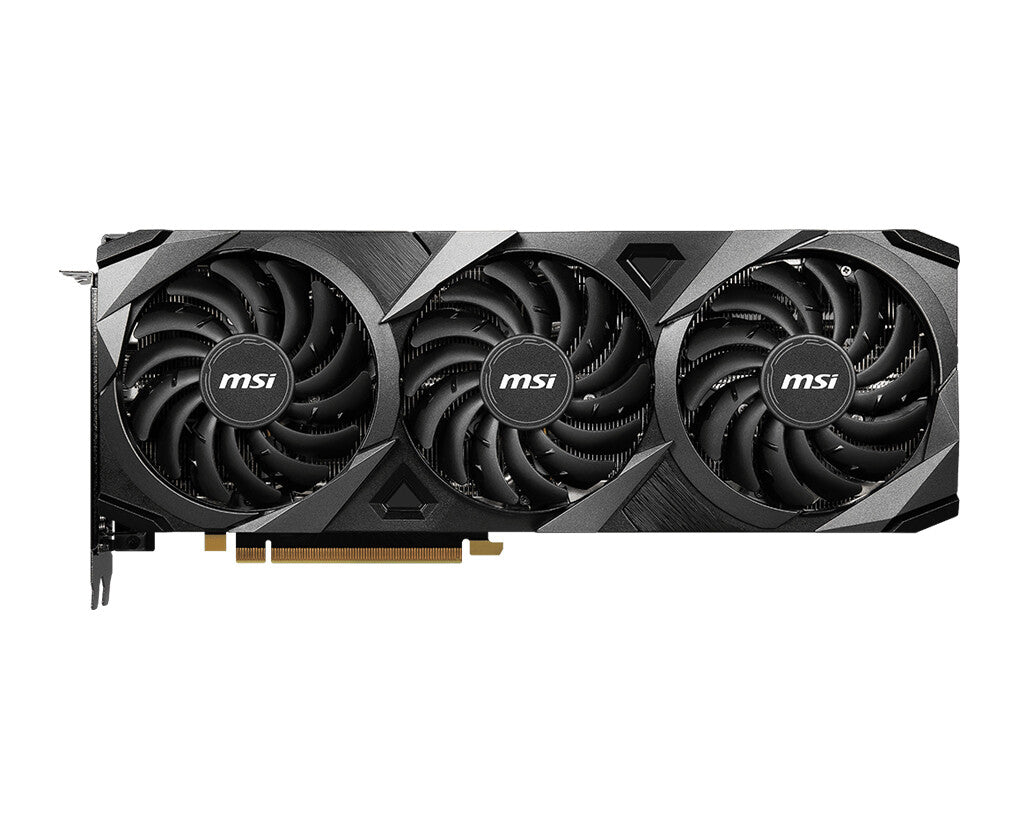

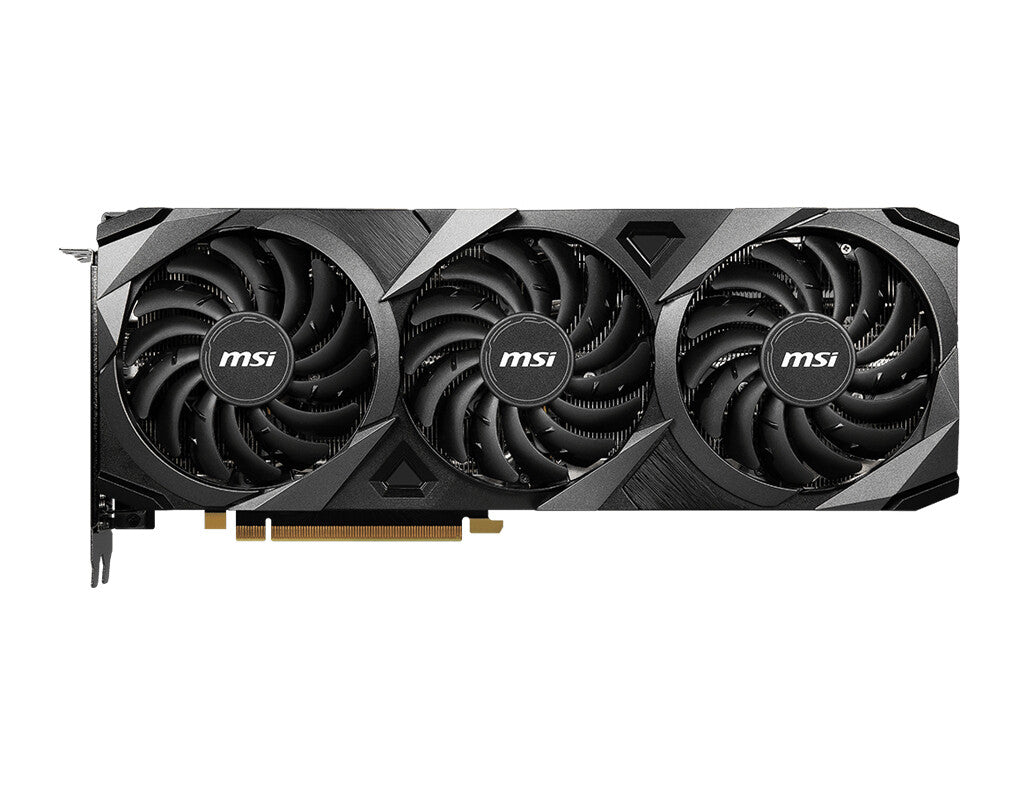

VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. A capable triple fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
WE’VE GOT YOUR BACK

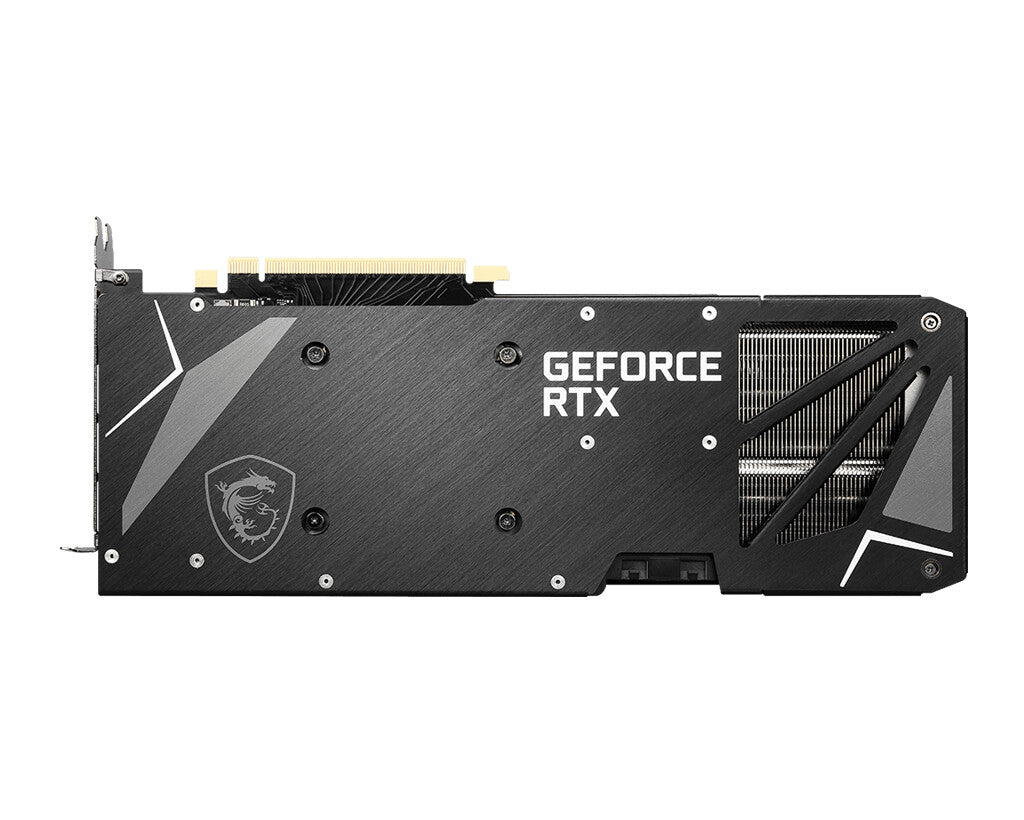

A brushed metal backplate provides a clean visual finish to the card. It also strengthens the card and thanks to some cleverly place thermal pads even helps to keep the temperature low.
Bringing It All Together
MSI's exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor boost clock speed | 1800 MHz |
CUDA cores | 6144 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 3070 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 19 Gbit/s |
Memory bus | 256 bit |
Graphics card memory type | GDDR6X |
Discrete graphics card memory | 8 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
Virtual Reality (VR) ready | Yes |
OpenGL version | 4.6 |
DirectX version | 12.0 |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Grey |
Number of slots | 2 |
Form factor | Full-Height/Full-Length (FH/FL) |
Bracket height | Full-Height (FH) |
Number of fans | 3 fan(s) |
Cooling technology | MSI TORX Fan 3.0 |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 290 W |
Supplementary power connectors | 2x 8-pin |
Minimum system power supply | 750 W |
General | |
---|---|
Product Family | VENTUS |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Weight & dimensions | |
---|---|
Depth | 305 mm |
Height | 120 mm |
Width | 57 mm |
Weight | 1.16 kg |
Packaging data | |
---|---|
Package type | Box |
