NVIDIA Turing Architecture
This revolutionary architecture, combined with our all-new GeForce RTX platform, fuses together real-time ray tracing, artificial intelligence, and programmable shading. You’ve never created and enjoyed games like this before.
Real-Time Ray Tracing In Games
Ray tracing is the definitive solution for lifelike lighting, reflections, and shadows, offering a level of realism far beyond what’s possible using traditional rendering techniques. NVIDIA Turing is the first GPU capable of real-time ray tracing.
PERFORMANCE
GeForce RTX gaming GPUs come loaded with next-generation GDDR6 memory, support for DirectX 12 features, and more. This is graphics reinvented.
PREMIUM DESIGN

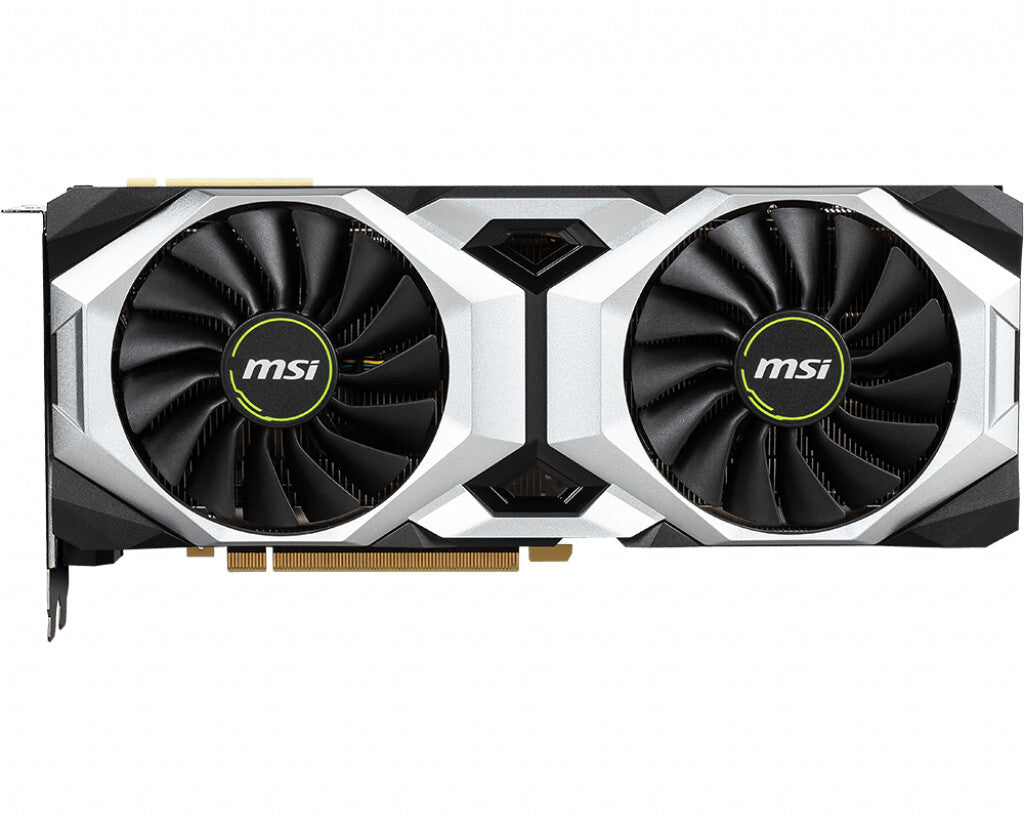

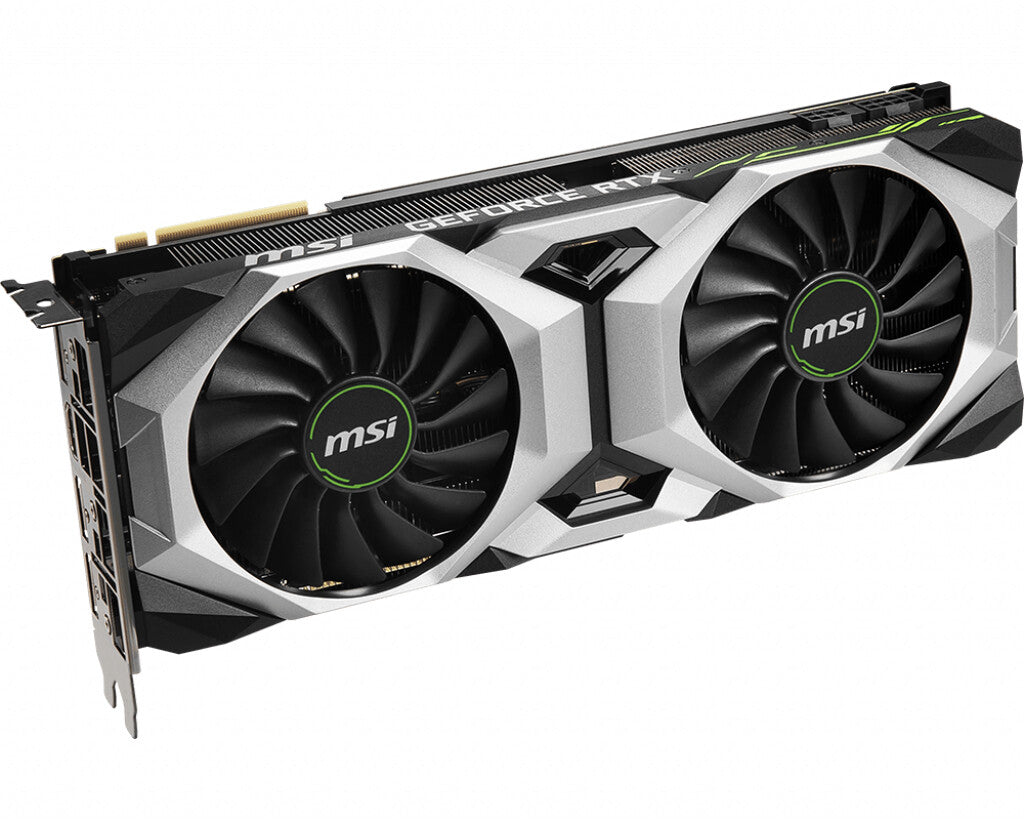

A fresh new dual fan design, VENTUS proudly displays its industrial shapes in neutral colors to fit any build.
DOUBLE BALL BEARINGS
Double Ball Bearings give the unique MSI customized Fans a strong and lasting core for years of smooth gaming. They also remain virtually silent while spinning under load, keeping your graphics card cool during intense and lengthy gaming sessions.
DESIGNED FOR MORE AIR PRESSURE
Compared to more generic fan designs, VENTUS fans utilize more fan blades with a unique curve to enhance heat dissipation by generating more concentrated air pressure.
Smooth Heat Pipes
Up to 6mm thick copper heat pipes with a smooth squared shape at the bottom maximize heat transfer from the surface of the copper base plate.
Solid Baseplate
To temper the heat generated by a powerful GPU, MSI graphics cards use a solid nickel-plated copper base plate. The base plate catches the heat from the GPU and transfers it to the heat pipes for dissipation so you can keep cool.
Premium Thermal Compound
Every detail counts when it comes to creating the ultimate thermal design, which is why VENTUS uses a premium thermal compound to make sure it outlives the competition.
TOUGH AS THEY COME
Rugged Anti Bending strip connected with heatsink makes the card extremely rigid while actively helping keep it cool.
WE'VE GOT YOUR BACK

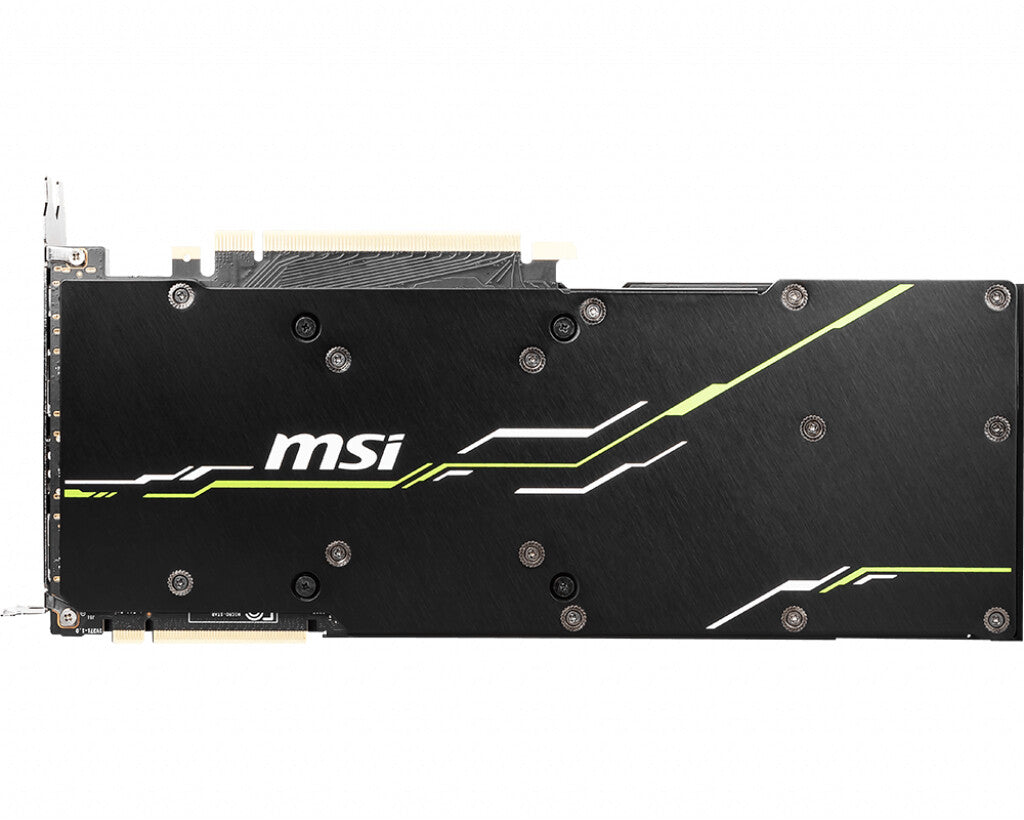

A sturdy backplate helps to strengthen the graphics card and complements the design to look even better.
Processor | |
---|---|
Parallel processing technology support | 2-Way NVLink, NVLink |
FireStream | No |
Maximum displays per videocard | 4 |
Processor boost clock speed | 1545 MHz |
CUDA cores | 4352 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 2080 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Data transfer rate | 14 Gbit/s |
Memory bus | 352 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 11 GB |
Ports & interfaces | |
---|---|

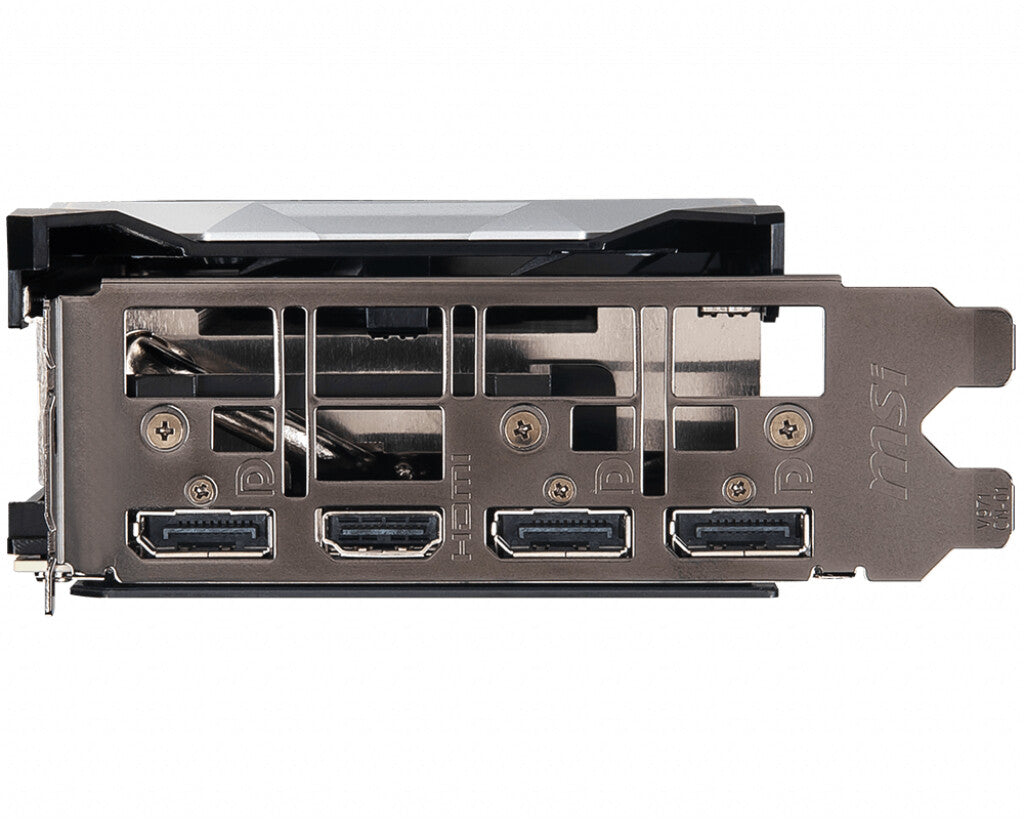

DisplayPort version | 1.4 |
HDMI version | 2.0b |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express x16 3.0 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
Virtual Reality (VR) ready | Yes |
OpenGL version | 4.5 |
DirectX version | 12.0 |
TV tuner integrated | No |
Design | |
---|---|
Number of fans | 2 fan(s) |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 250 W |
Supplementary power connectors | 2x 8-pin |
Minimum system power supply | 650 W |
General | |
---|---|
Product Family | VENTUS |
Weight & dimensions | |
---|---|
Depth | 50 mm |
Height | 112 mm |
Length | 268 mm |
Weight | 1.09 kg |
Packaging data | |
---|---|
Package weight | 1.58 kg |
