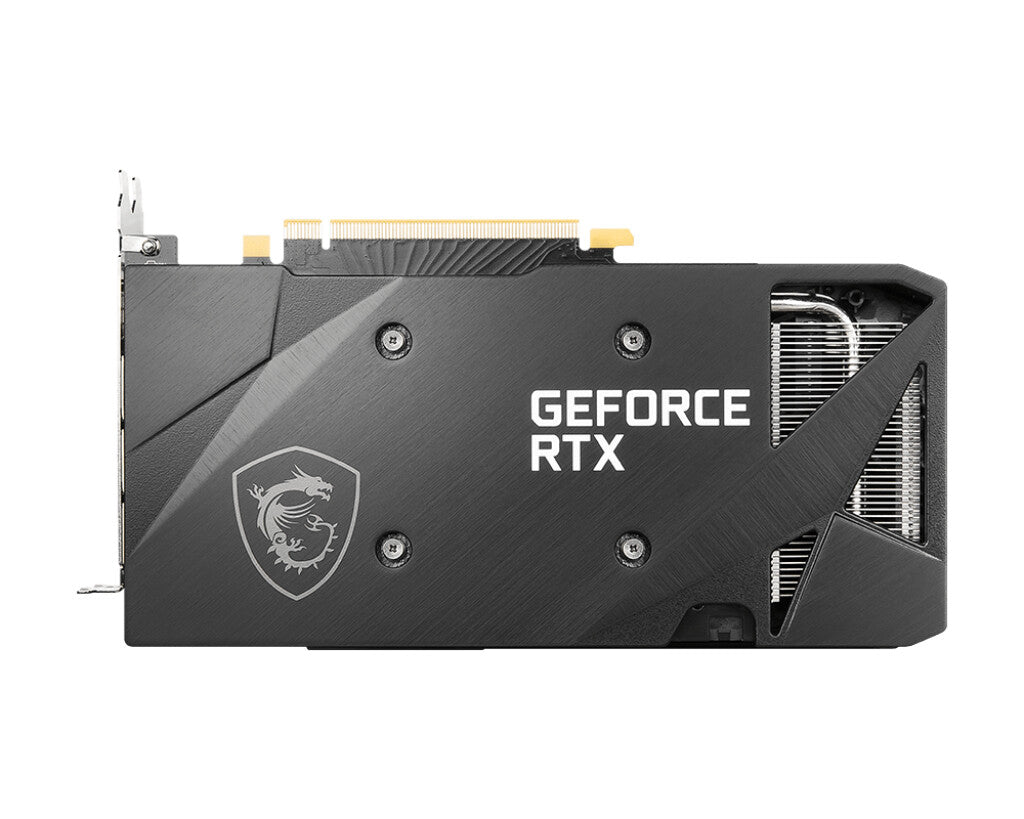

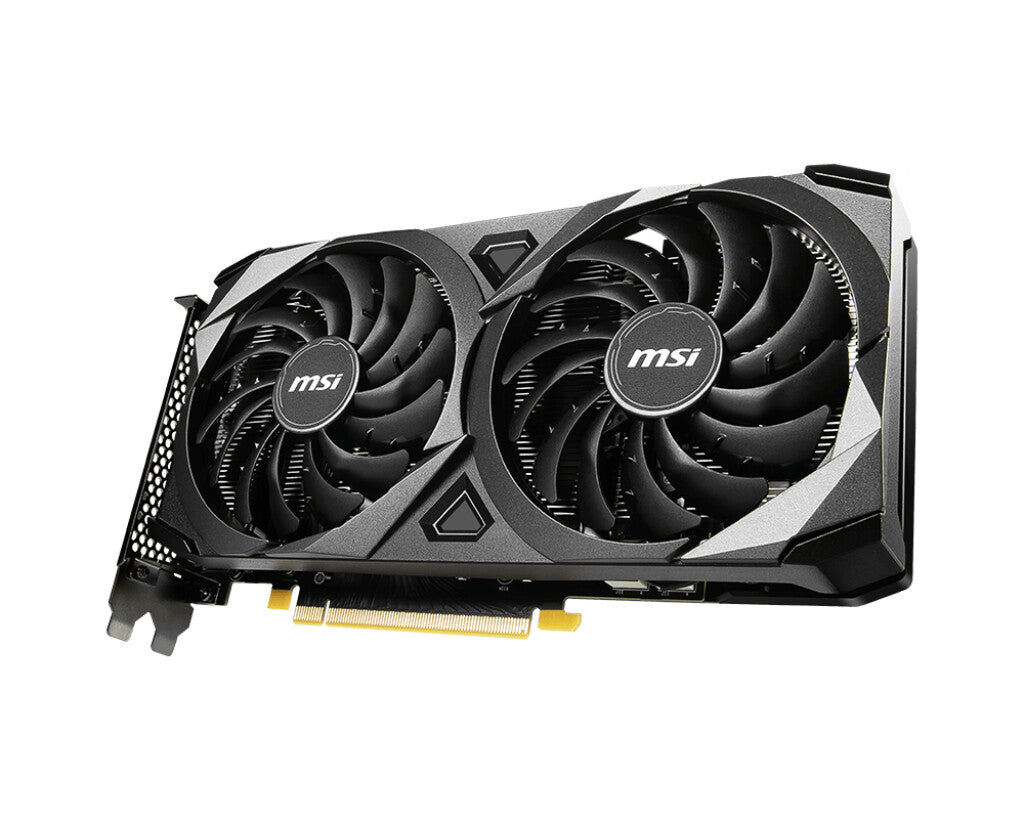

The GeForce RTX™ 3060 lets you take on the latest games using the power of Ampere—NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.

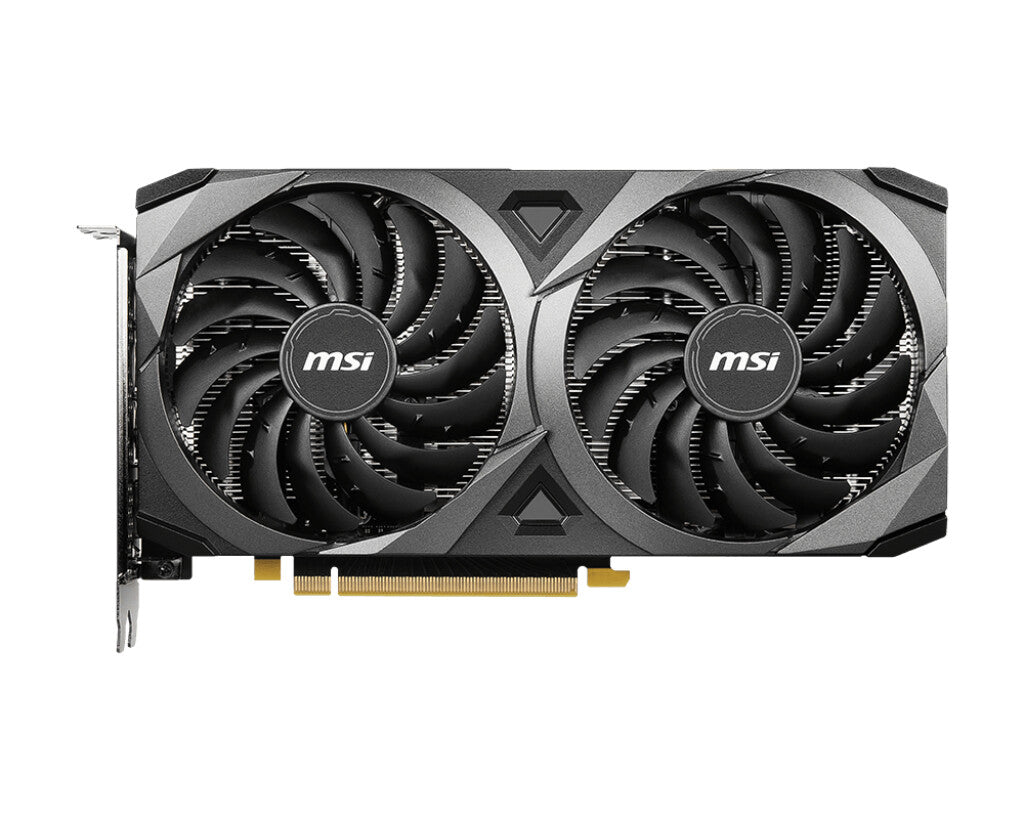

Dual Fan Thermal Design
TORX Fan 3.0: The award-winning MSI TORX Fan 3.0 design creates high static pressure and pushes the limits of thermal performance.
Afterburner
Take full control with the most recognized and widely used graphics card overclocking software in the world.
MSI Center
The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
Processor | |
---|---|
Processor boost clock speed | 1807 MHz |
CUDA cores | 3584 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 3060 |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory bandwidth (max) | 15 GB/s |
Memory bus | 128 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 8 GB |

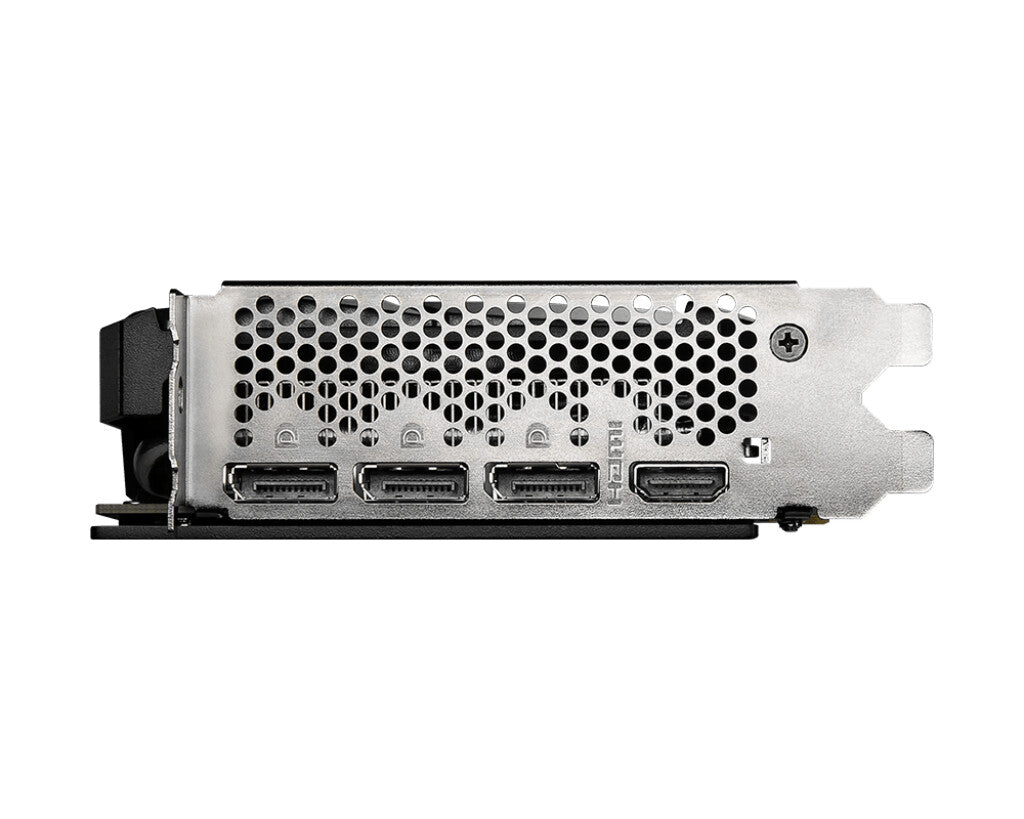

Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express x4 |
Performance | |
---|---|
NVIDIA G-SYNC | Yes |
HDCP | Yes |
Virtual Reality (VR) ready | Yes |
OpenGL version | 4.6 |
Shader model version | No |
DirectX version | 12 Ultimate |
TV tuner integrated | No |
Design | |
---|---|
Number of fans | 2 fan(s) |
Cooling technology | MSI TORX Fan 3.0 |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 170 W |
Supplementary power connectors | 1x 8-pin |
Minimum system power supply | 550 W |
General | |
---|---|
Product Family | VENTUS |
Weight & dimensions | |
---|---|
Depth | 42 mm |
Height | 124 mm |
Length | 235 mm |
Weight | 675 g |
Packaging data | |
---|---|
Package type | Box |
Package weight | 1.03 kg |
