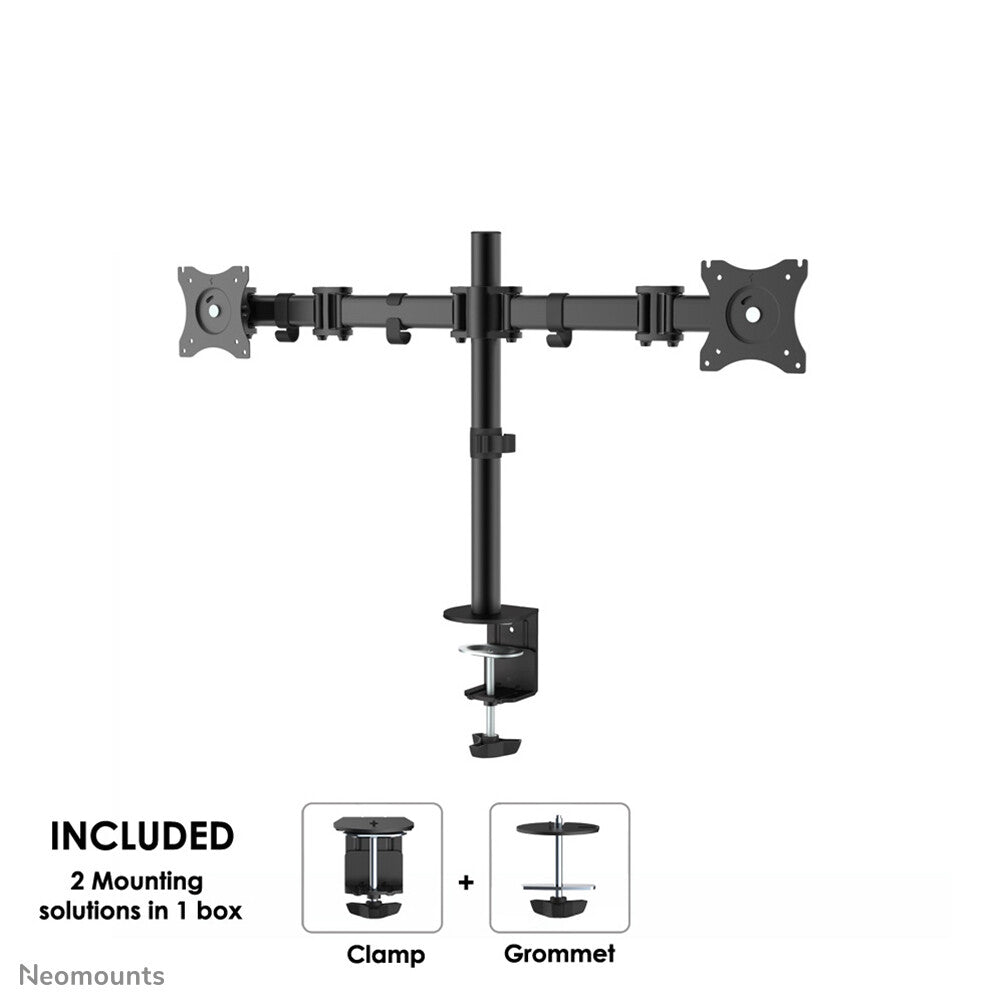

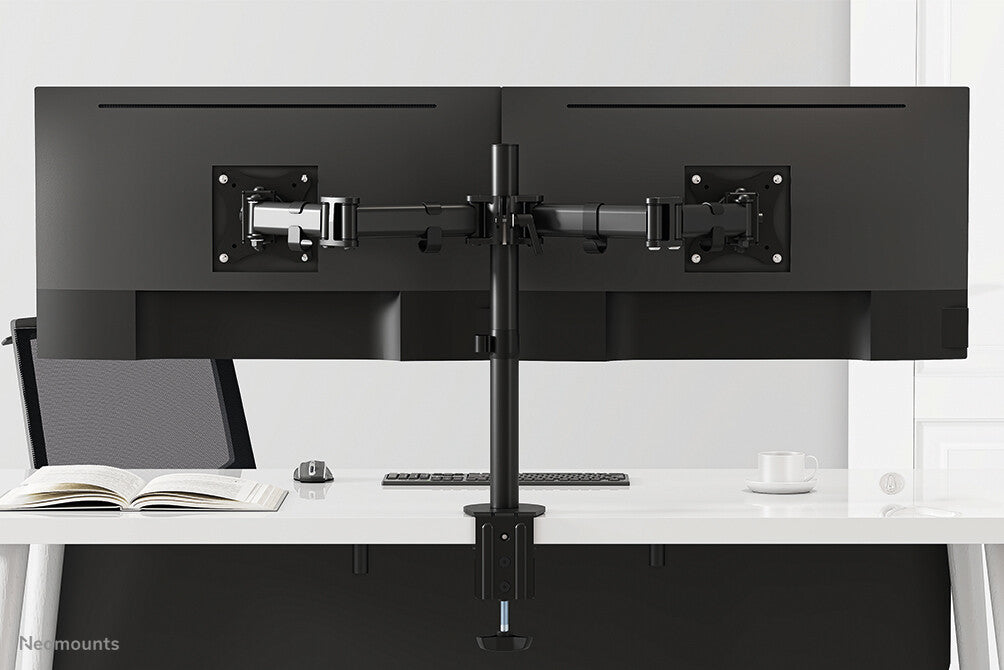

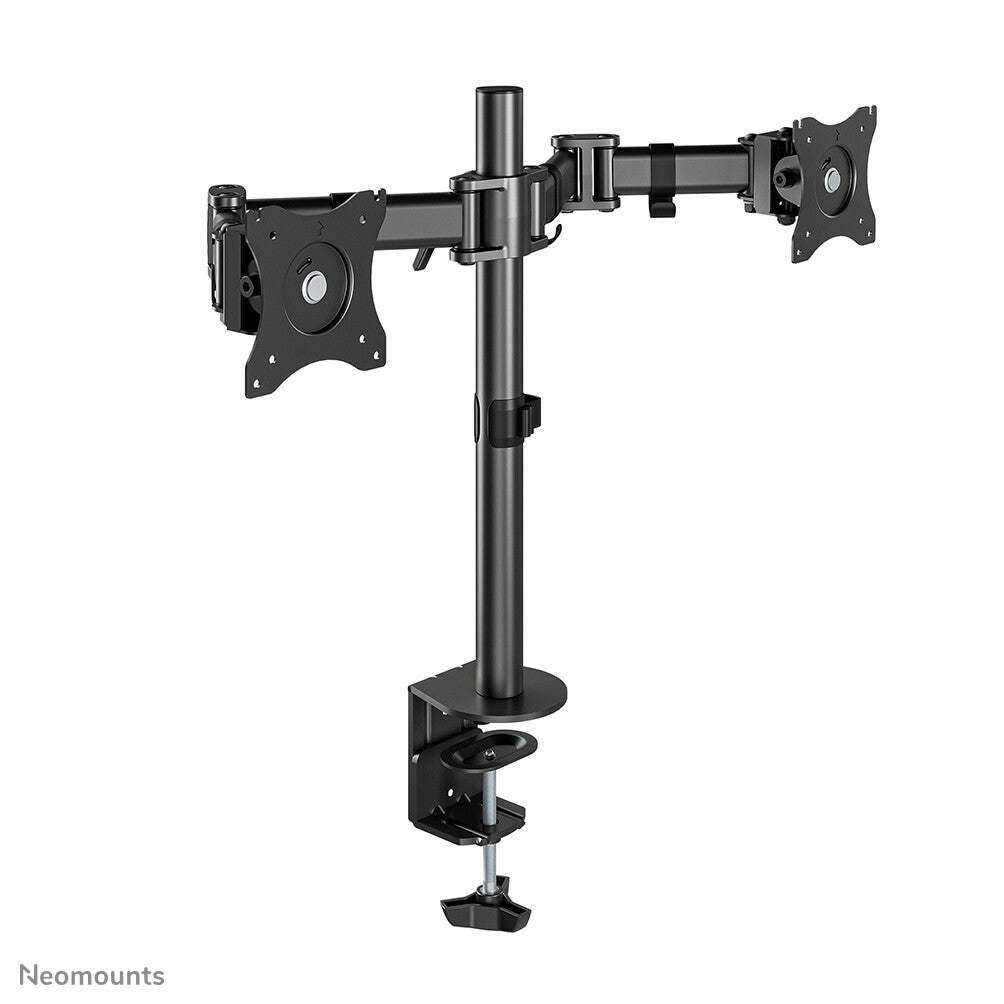

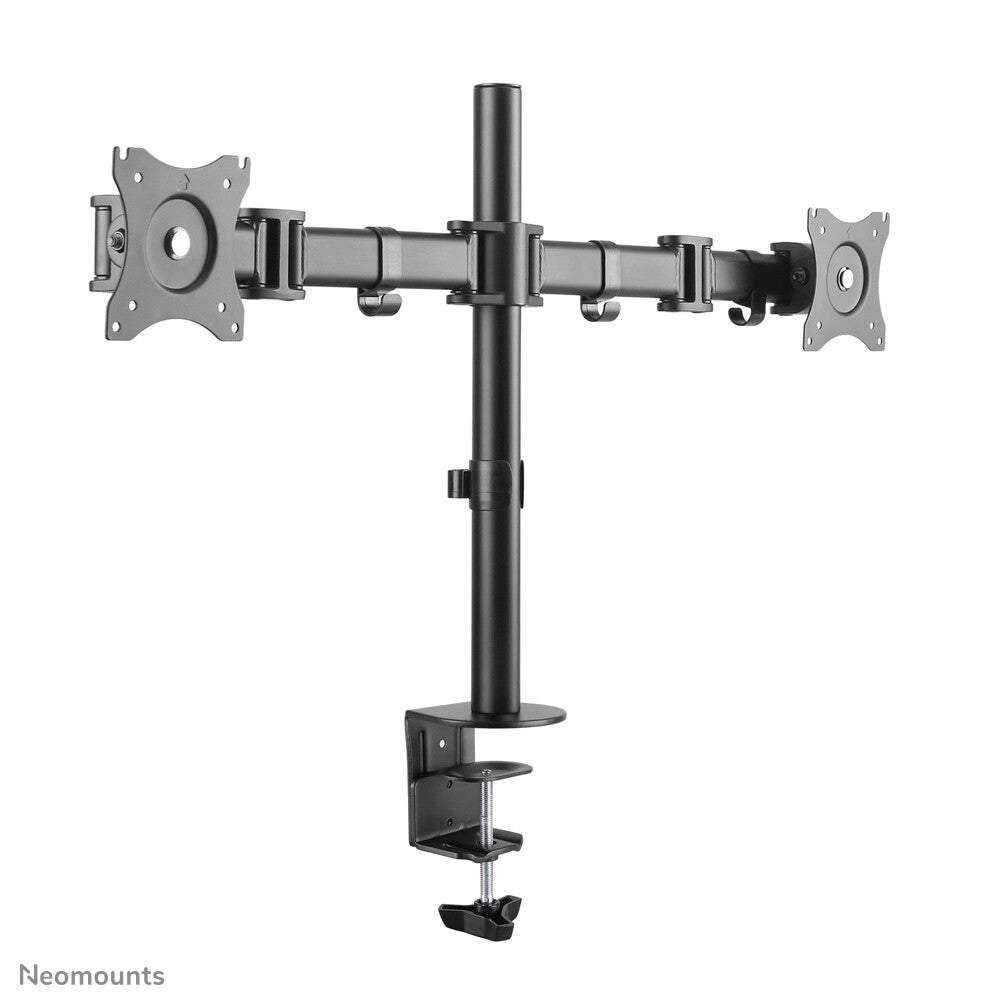

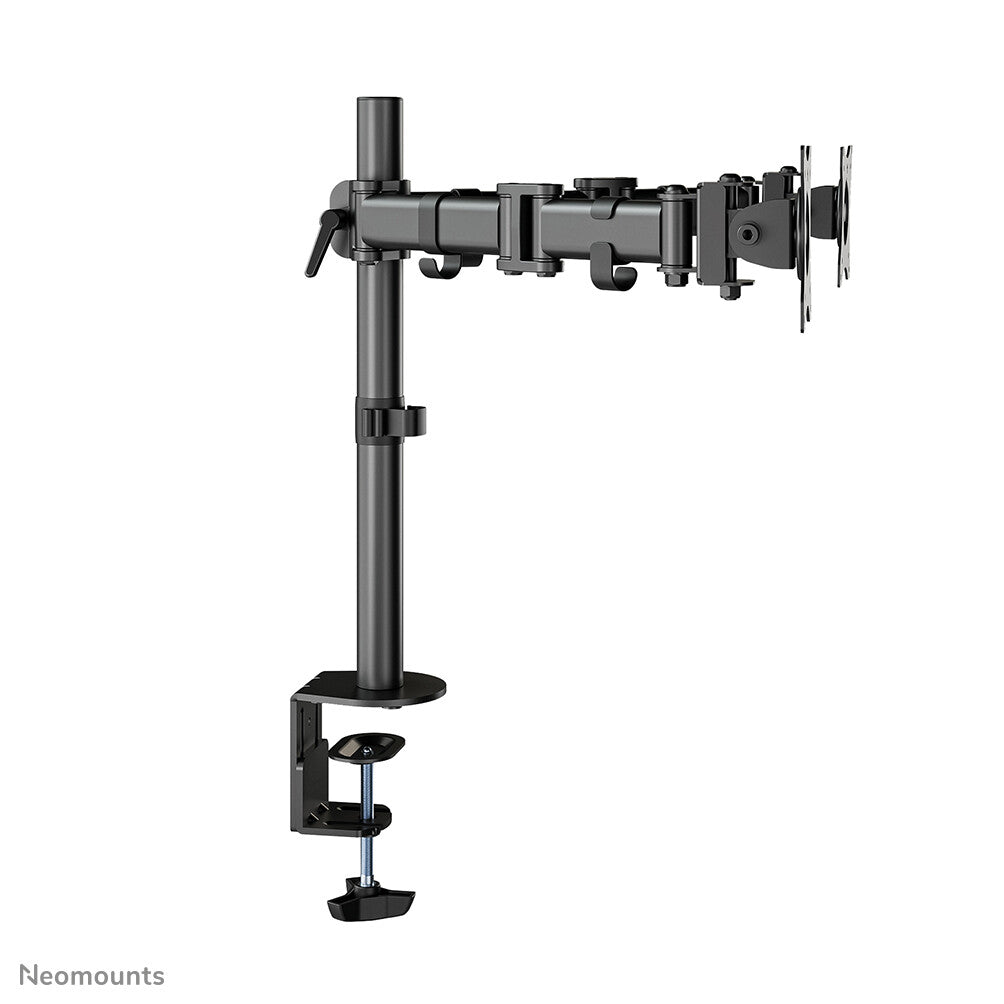

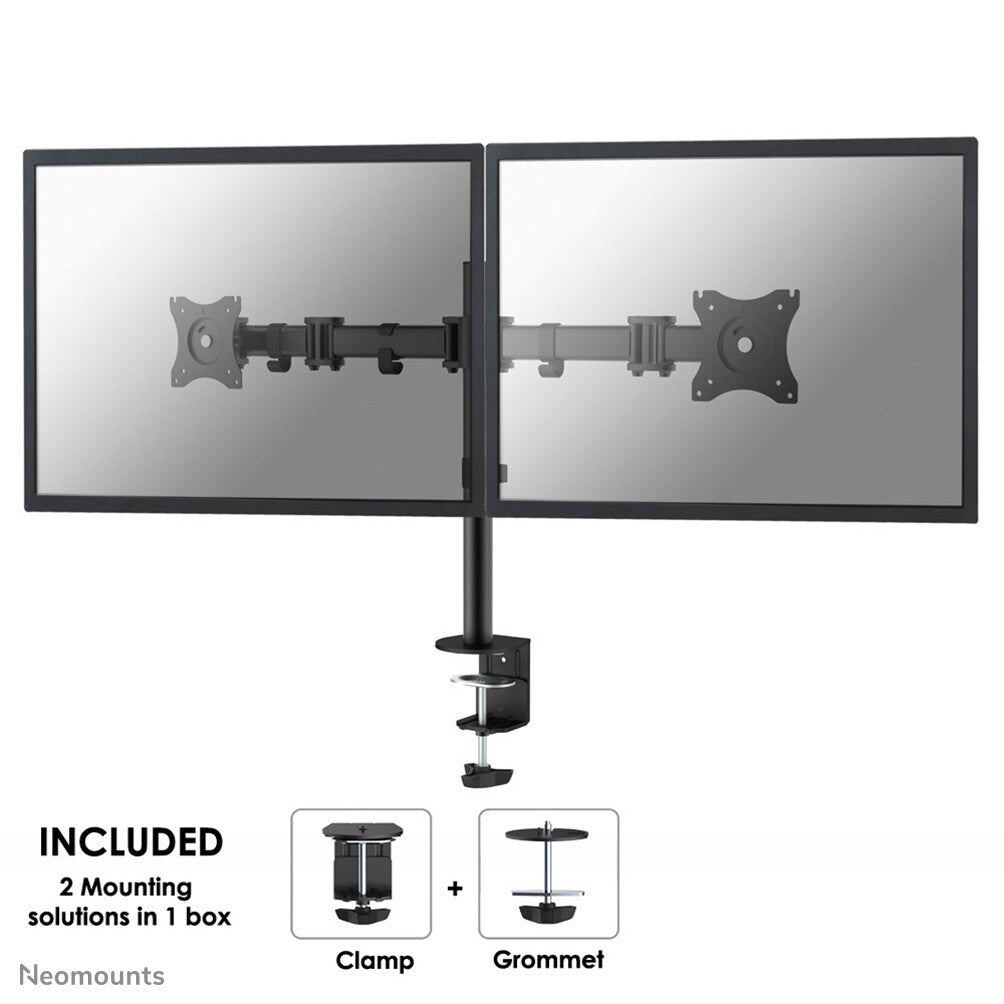

The Neomounts desk mount, model NM-D135DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.

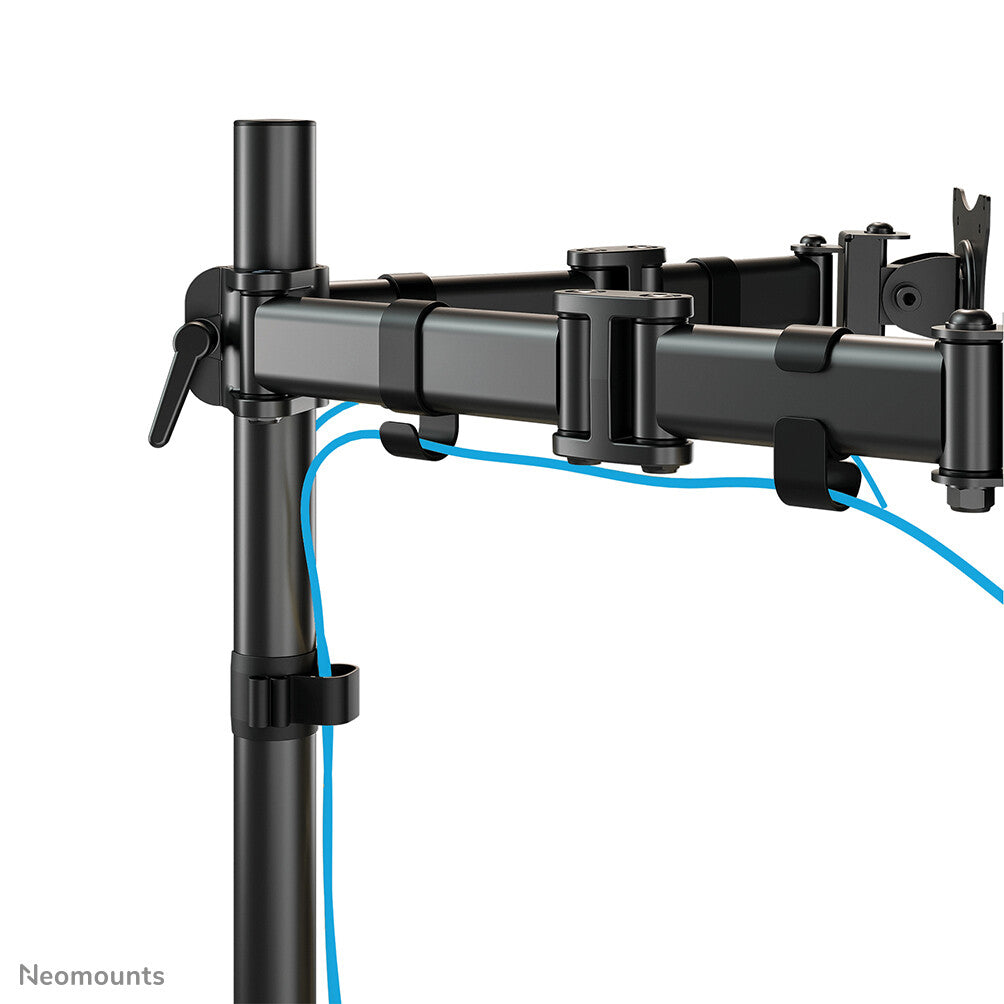

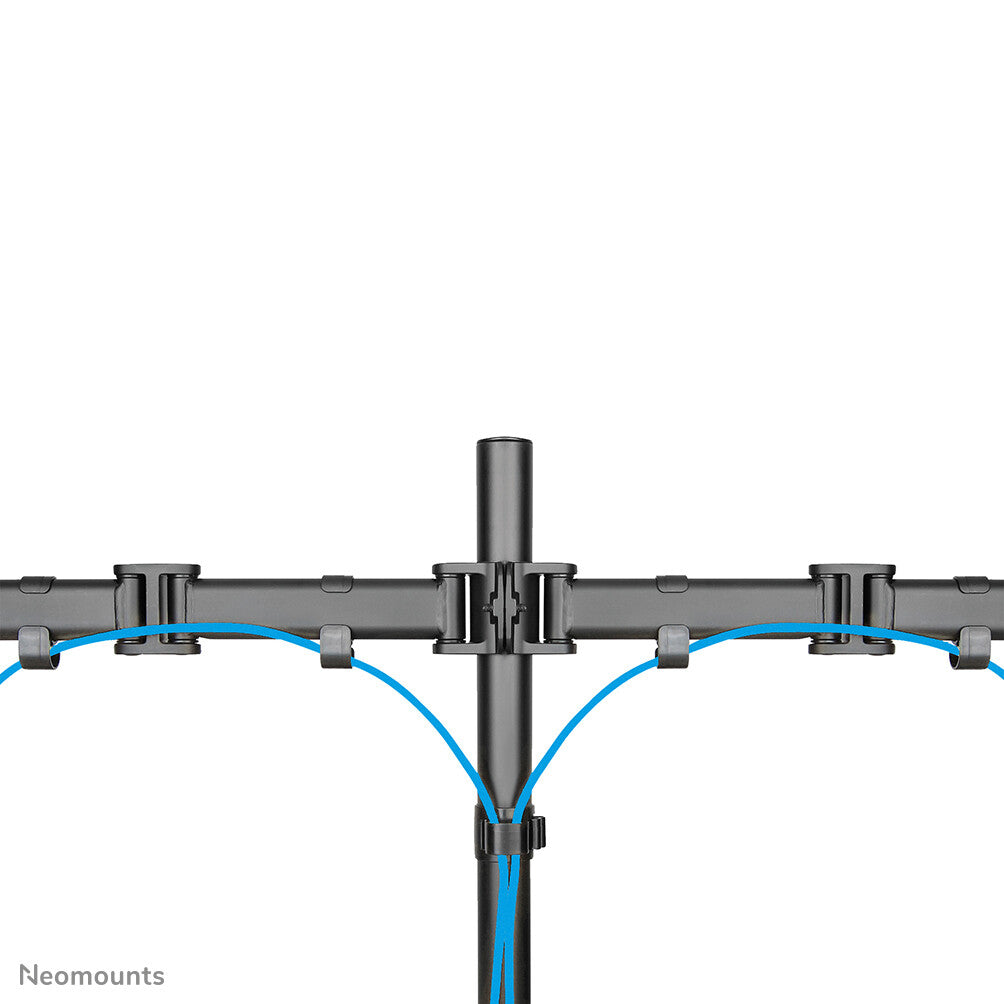

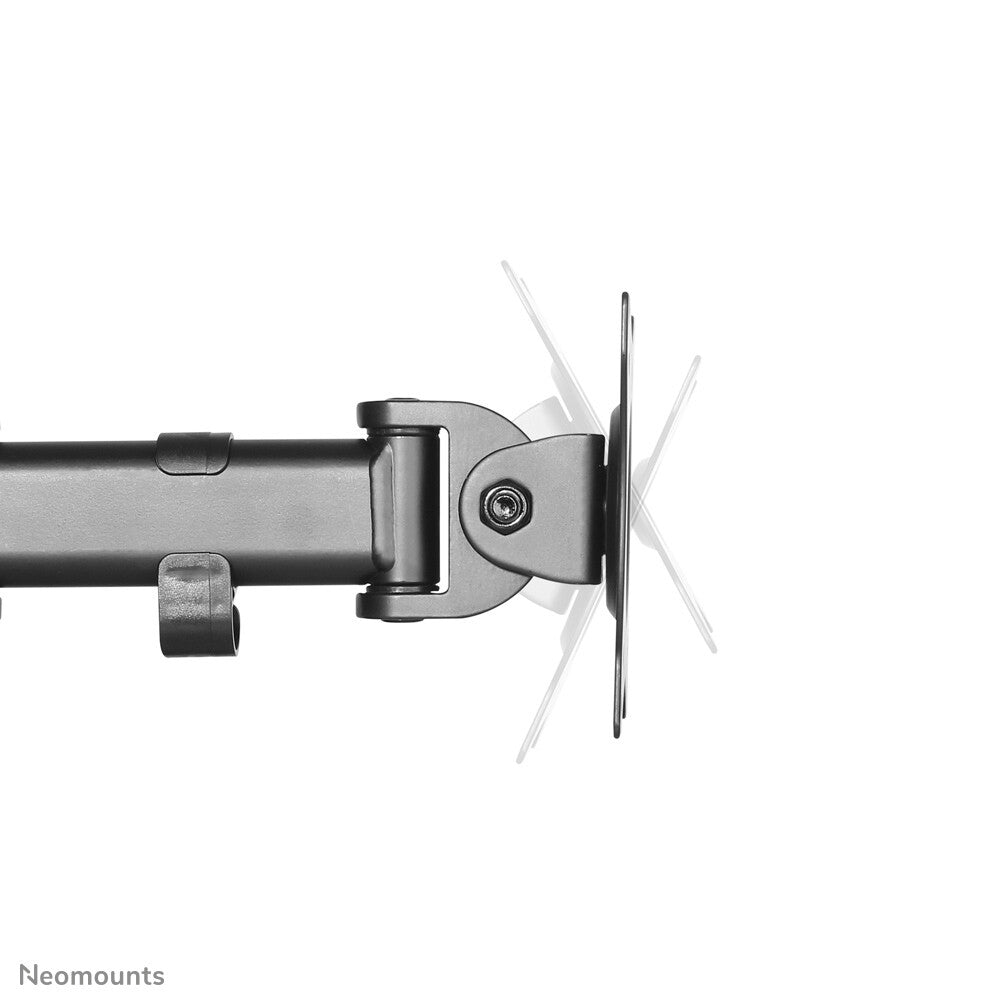

Neomounts versatile tilt (90°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 41,5 centimetres. Depth adjustable from 0 to 42,7 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

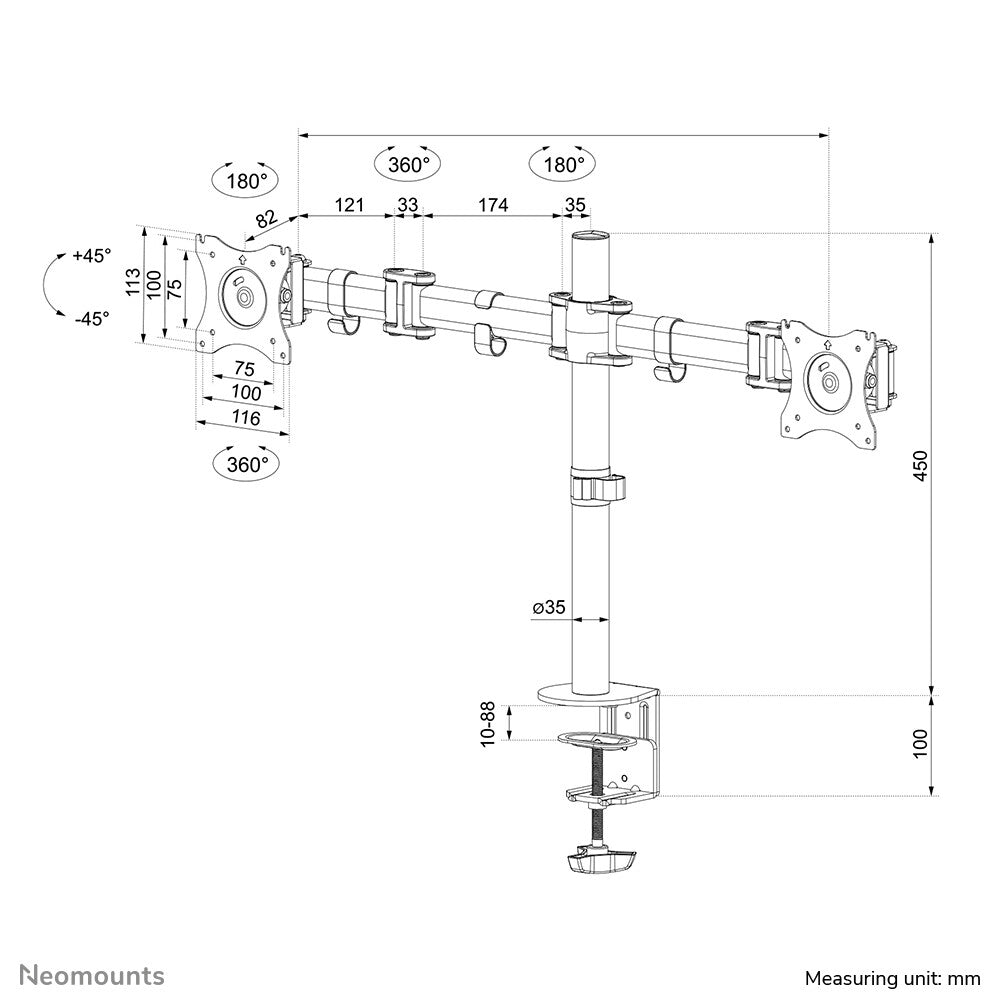

Neomounts NM-D135DBLACK has three pivot points and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Mounting | |
---|---|
Distance to the wall (max) | 43 cm |
Distance to the wall (min) | 4 cm |
Number of displays supported | 2 |
Maximum VESA mount | 100 x 100 mm |
Minimum VESA mount | 75 x 75 mm |
Mounting | Clamp/Bolt-through |
Mounting type | Desk |
Maximum screen size | 68.6 cm (27") |
Minimum screen size | 25.4 cm (10") |
Maximum weight capacity | 8 kg |
Ergonomics | |
---|---|
Angle of rotation | 360° |
Swivel angle | 180° |
Tilt angle range | 0 - 90° |
Height adjustment range | 0 - 415 mm |
Height adjustment type | Manual |
Height adjustment | Yes |
Design | |
---|---|
Product colour | Black |
Weight & dimensions | |
---|---|
Package net weight | 4.44 kg |
Package height | 473 mm |
Package depth | 130 mm |
Package width | 150 mm |
Height | 415 mm |
Depth | 427 mm |
Logistics data | |
---|---|
Master (outer) case net weight | 17.8 kg |
Products per pallet (EU) | 120 pc(s) |
Harmonized System (HS) code | 7326909890 |
Products per master (outer) case | 4 pc(s) |
Master (outer) case height | 270 mm |
Master (outer) case length | 315 mm |
Master (outer) case width | 495 mm |
Other features | |
---|---|
Country of origin | China |
