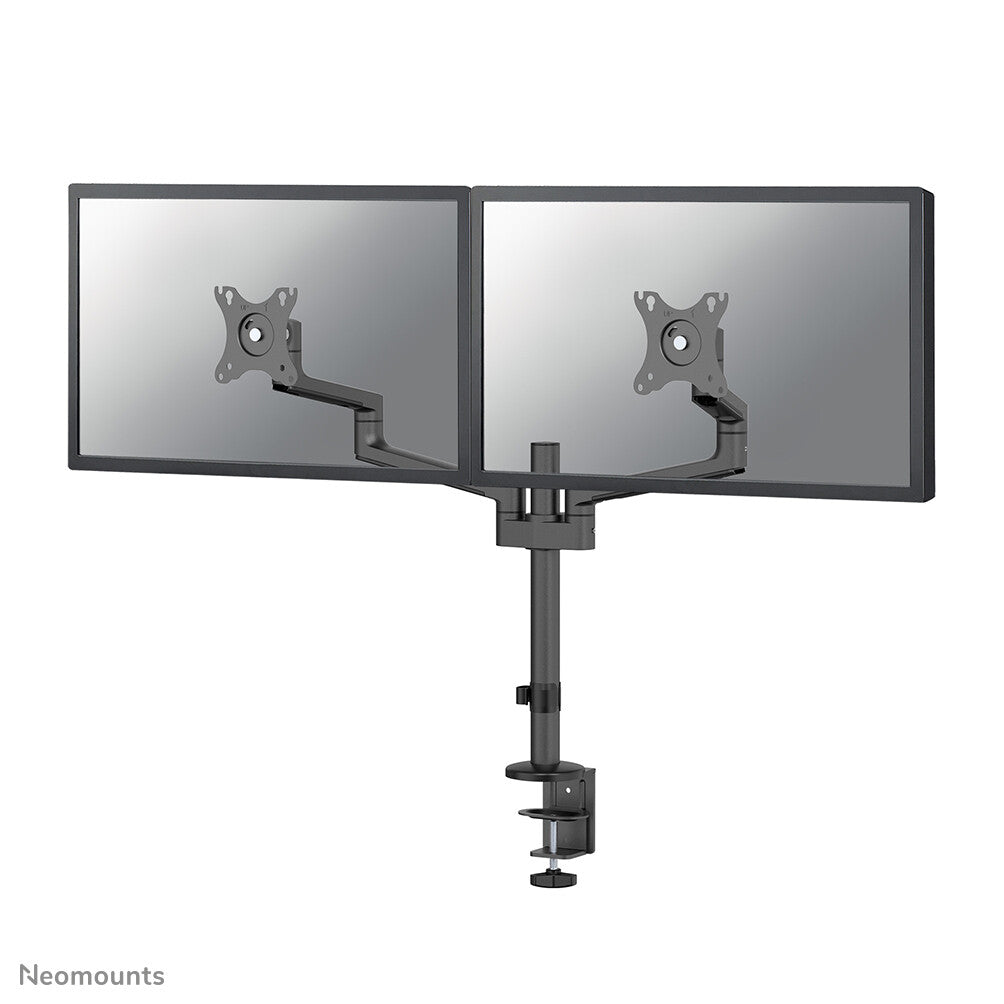

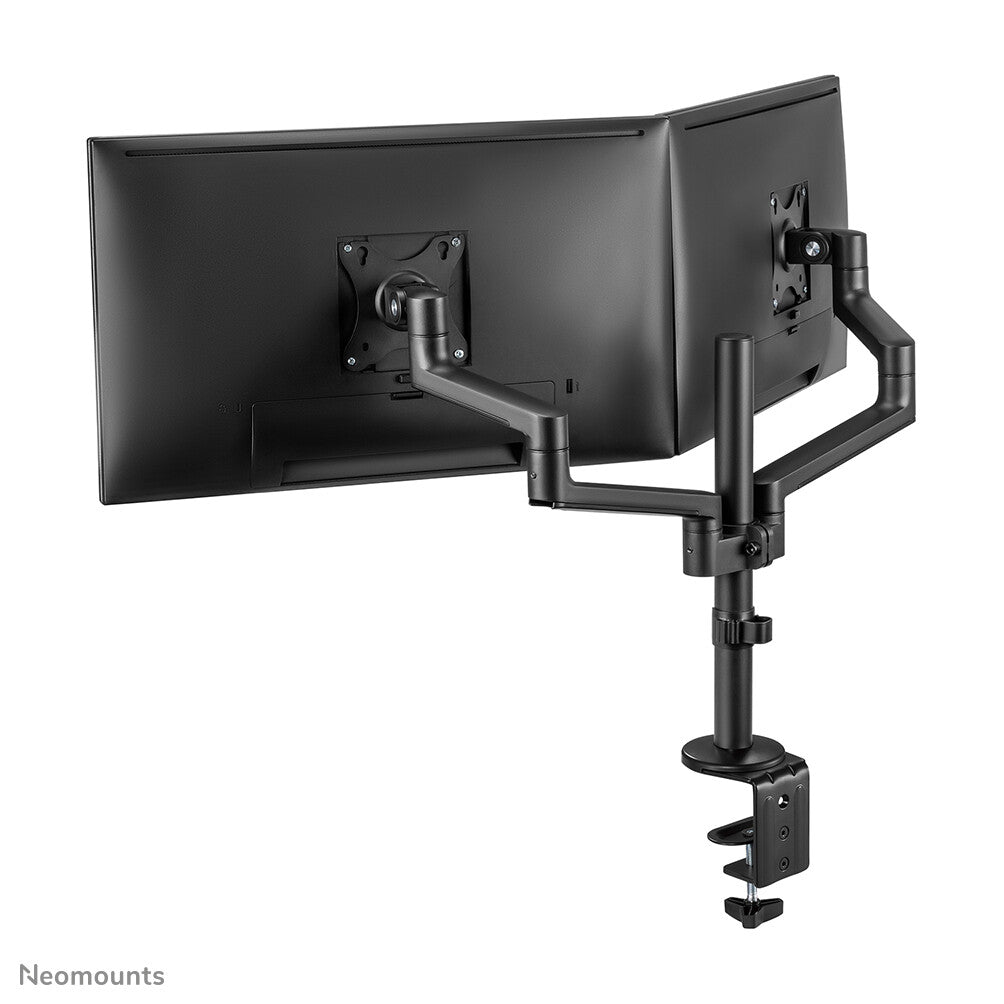

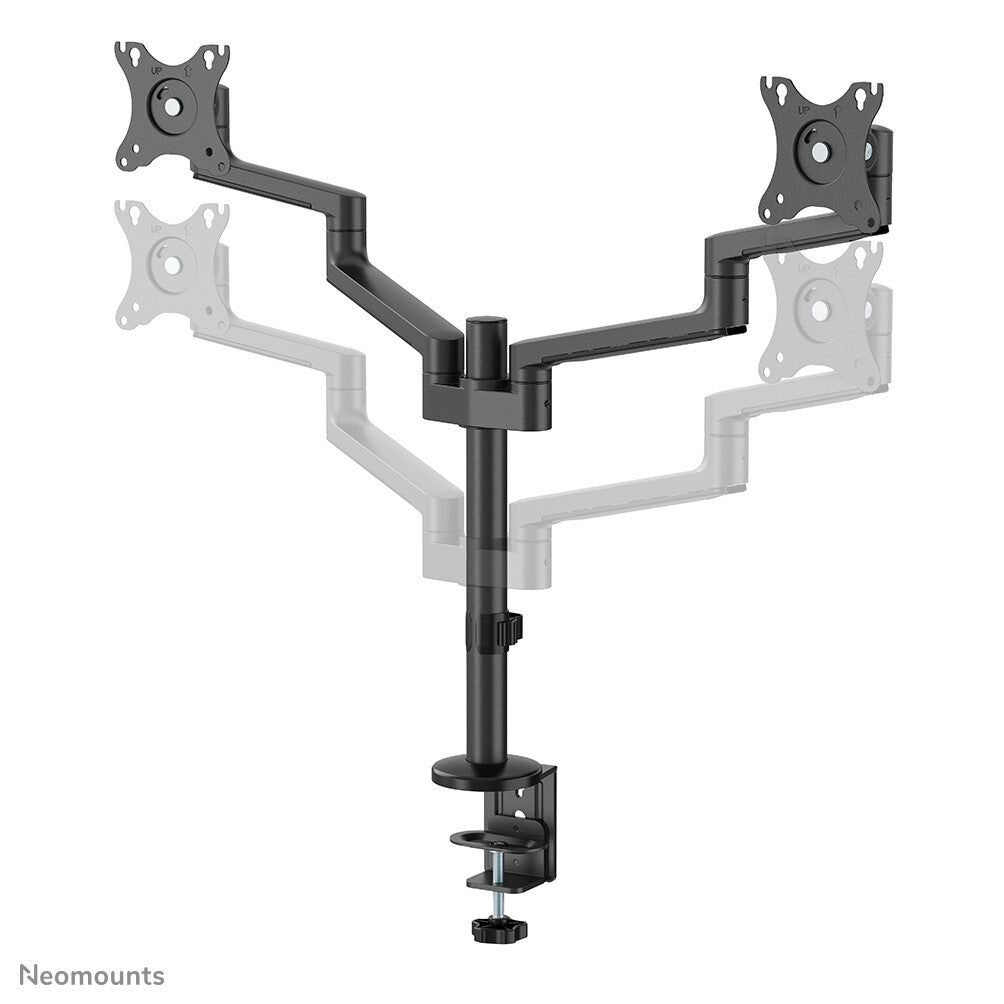

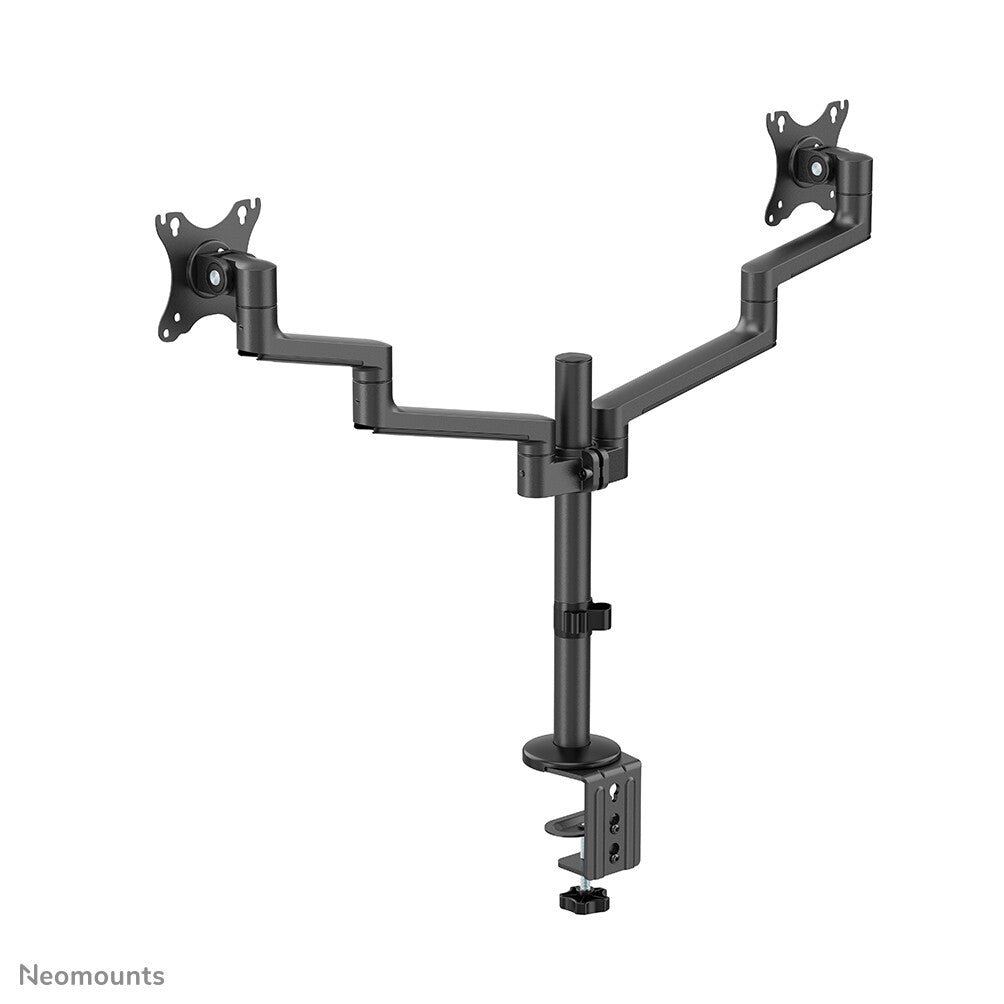

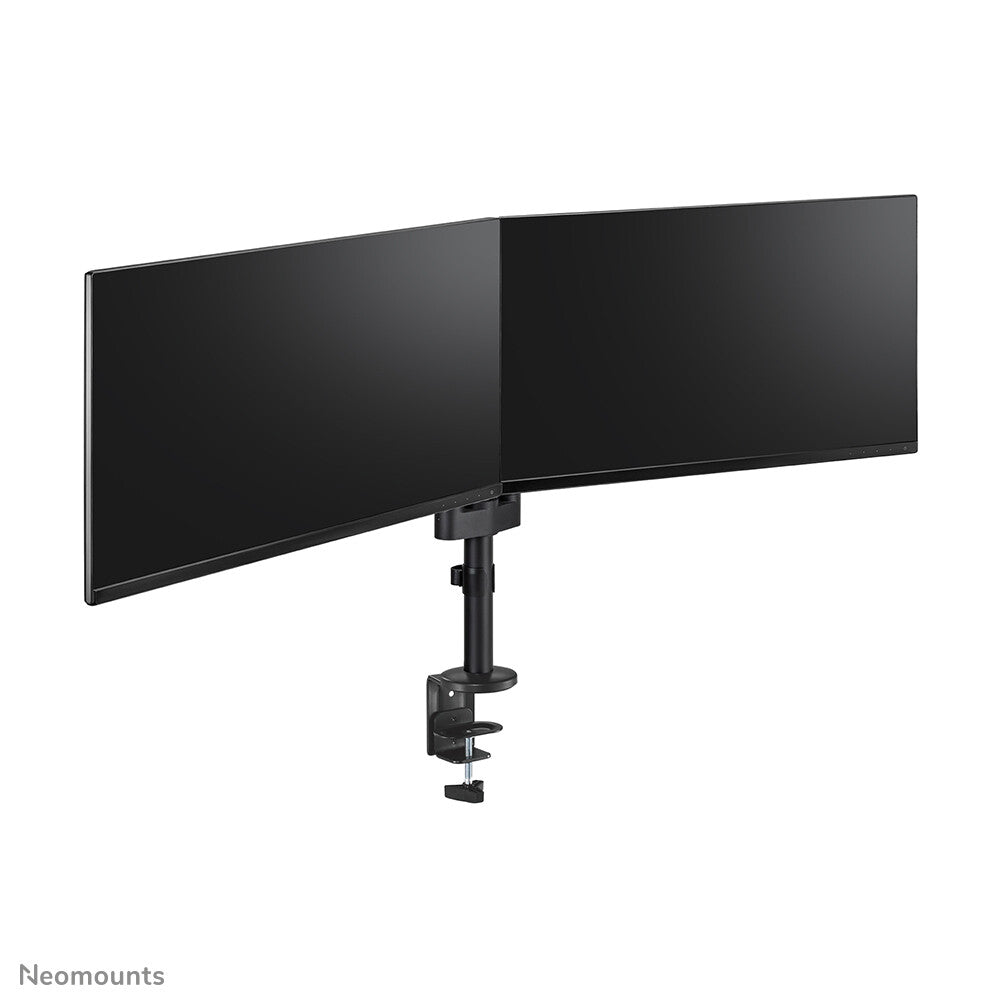

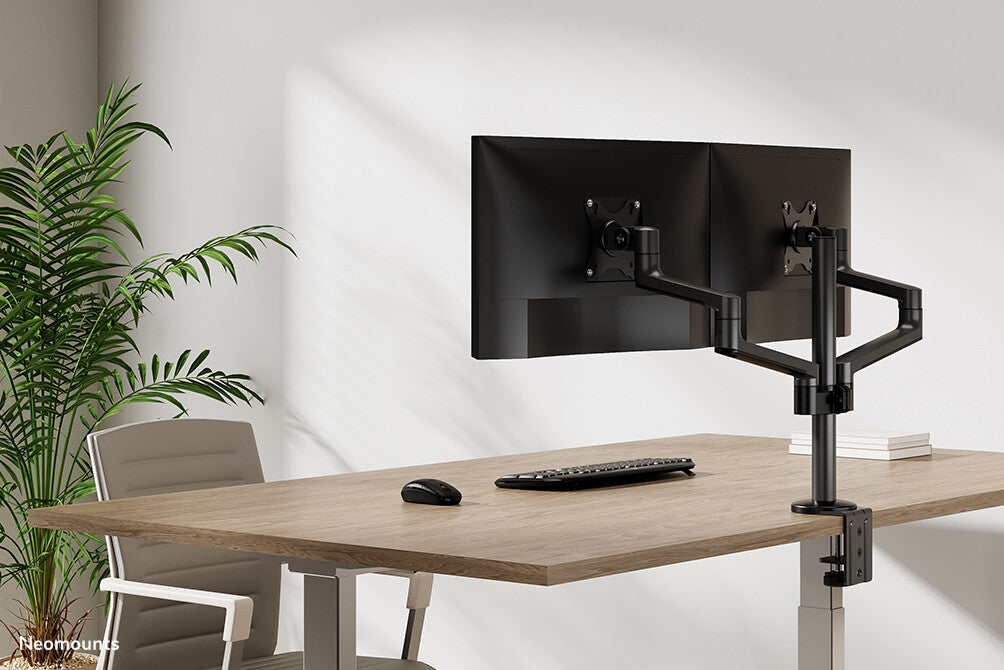

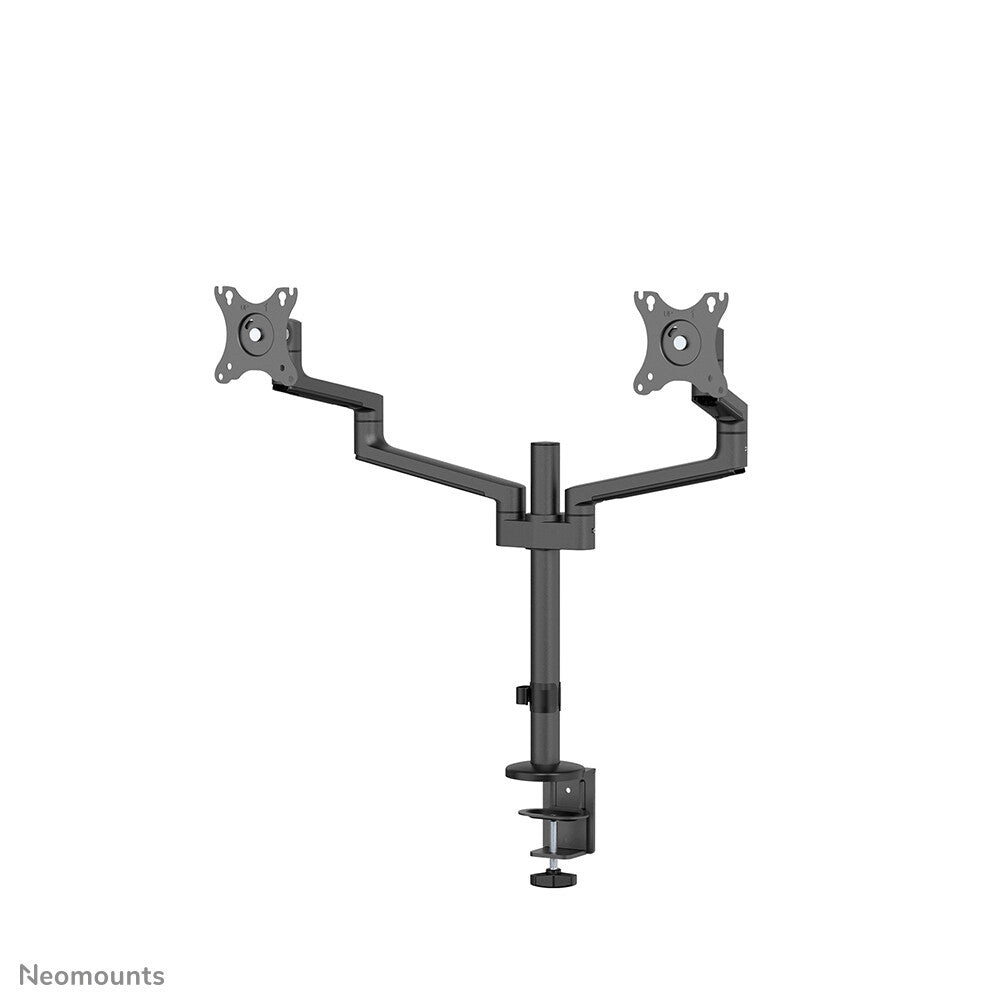

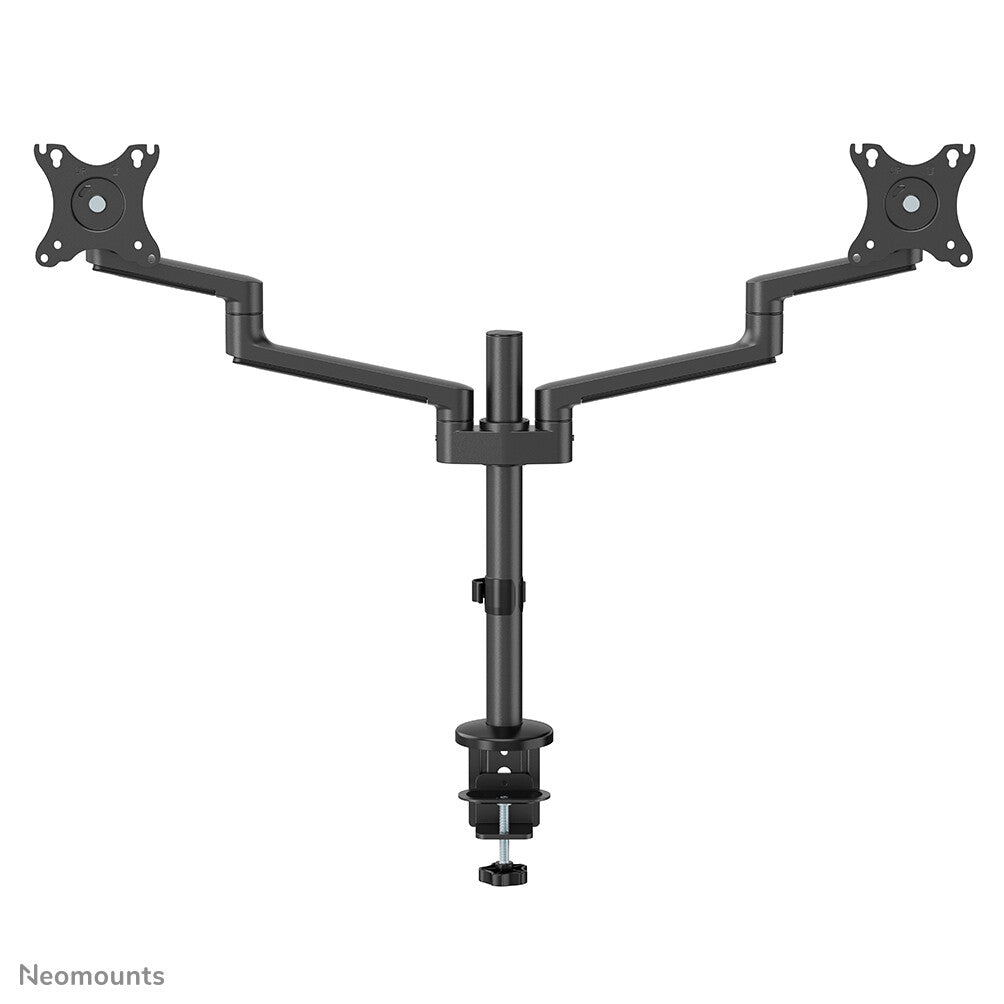

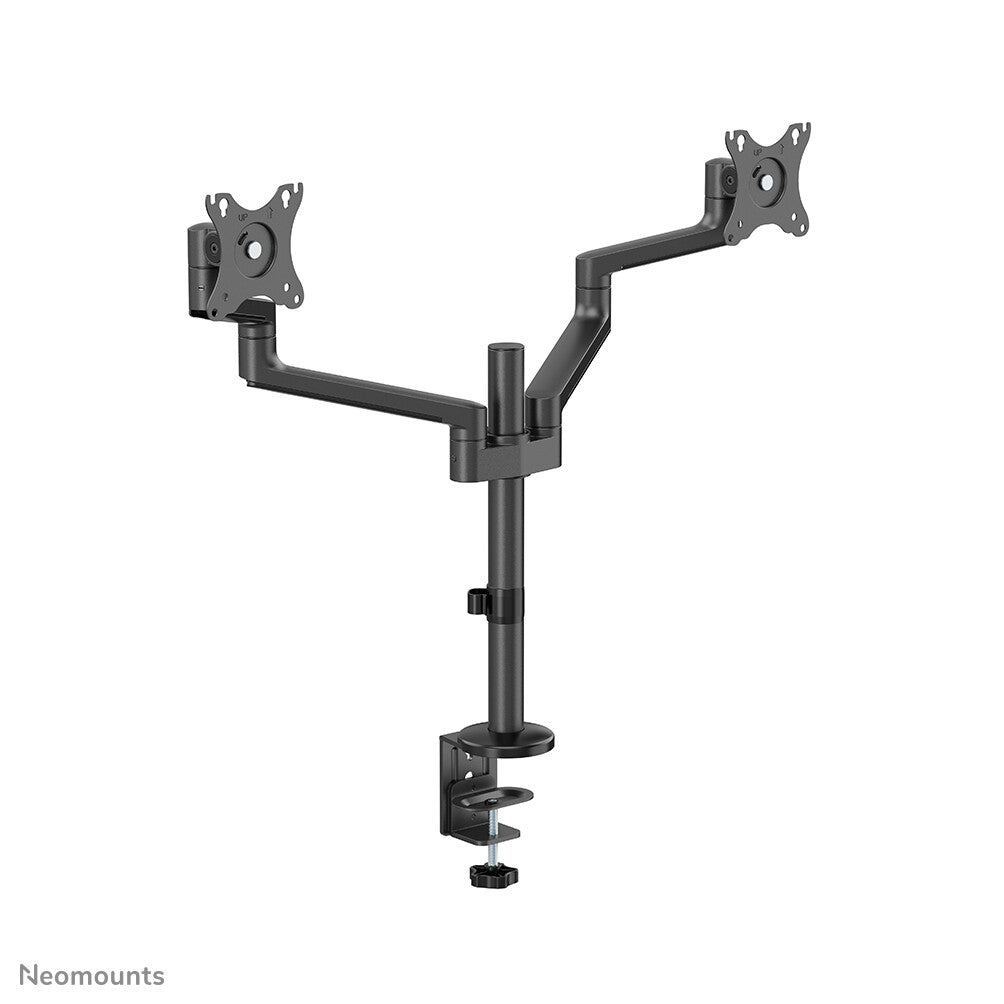

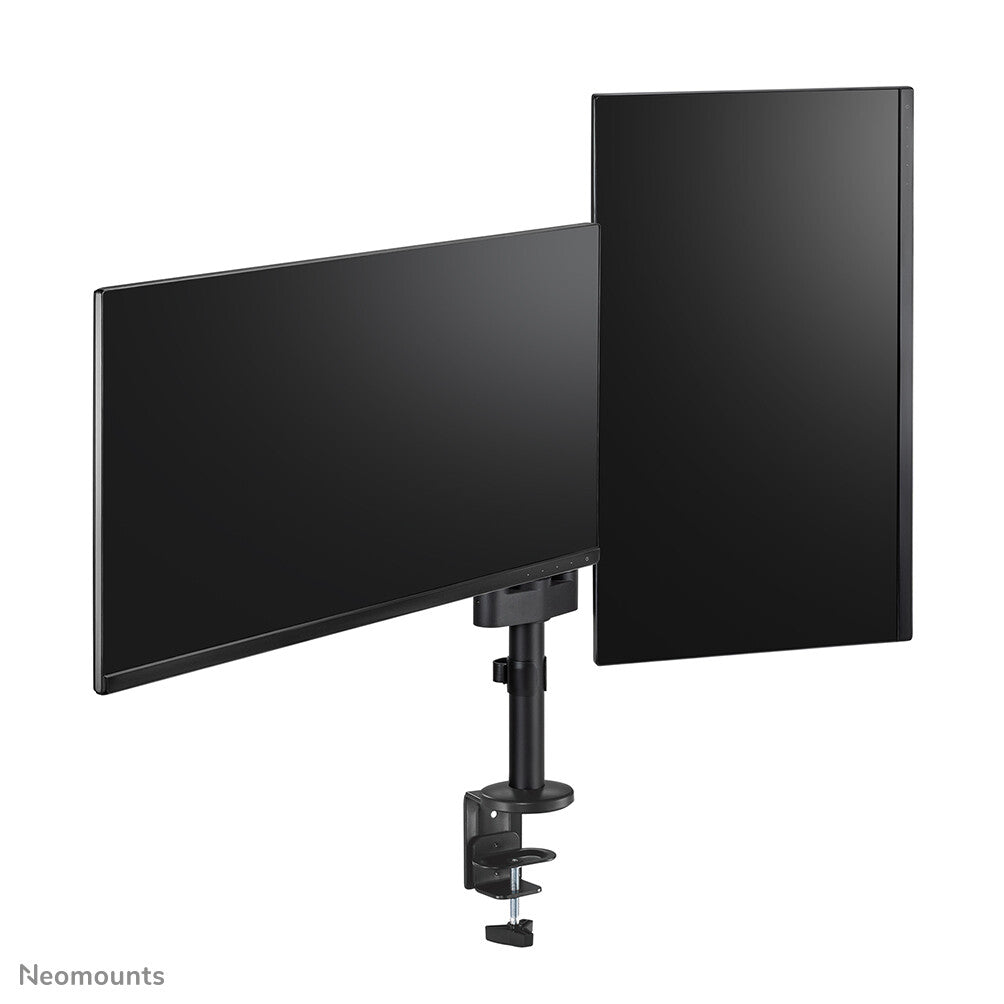

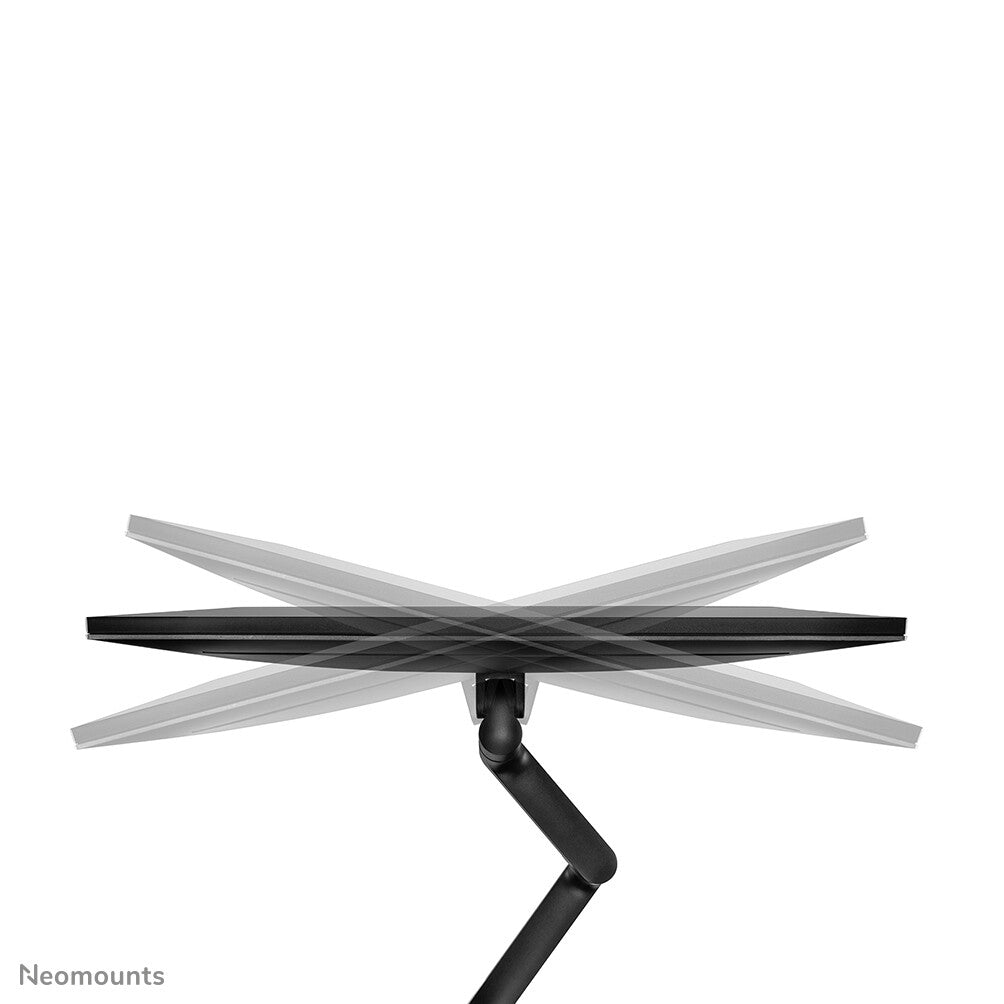

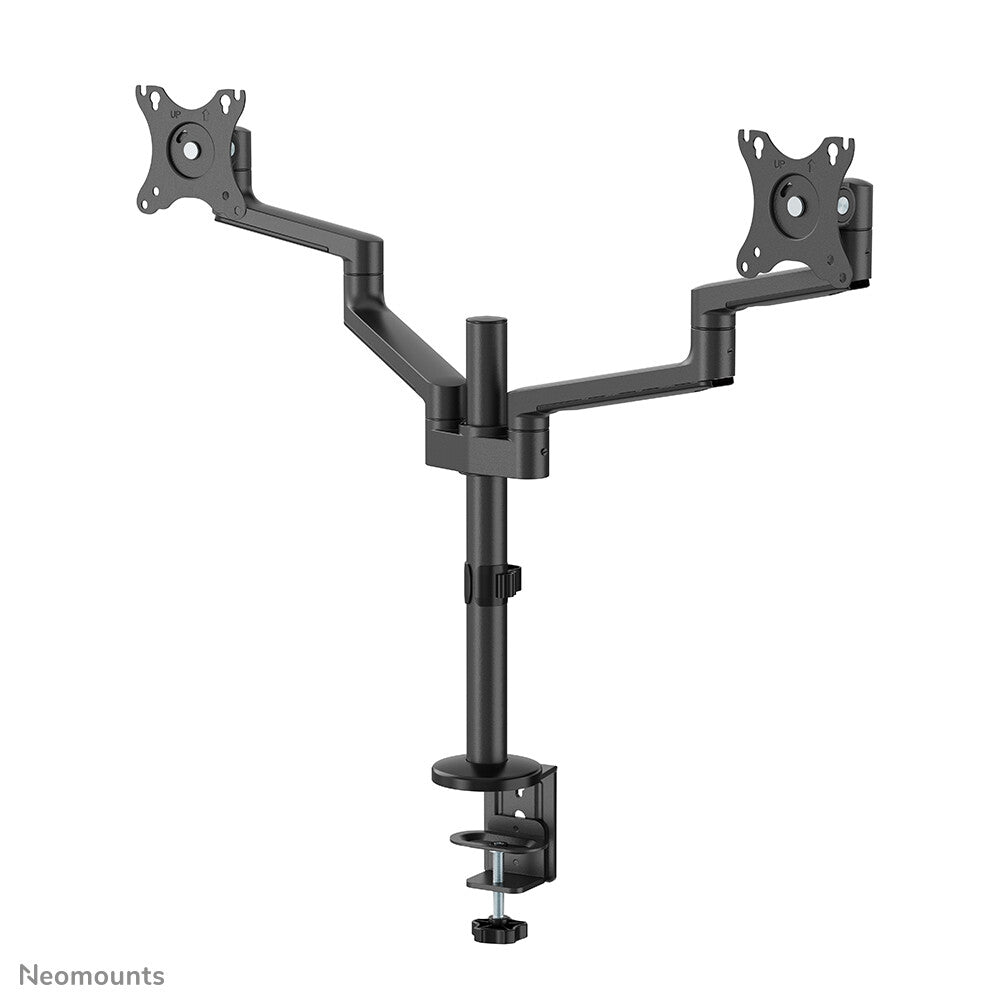

The Neomounts DS60-425BL2 NEXT Lite is a full motion desk mount for two screens up to 27" with a maximum weight capacity of 8 kg per screen. The versatile tilt (120°), rotate (360°) and swivel (180°) technology allows you to adjust the mount to the optimal viewing angle for your screens. Additionally, the mount has manual height and depth adjustment to create the perfect working position.

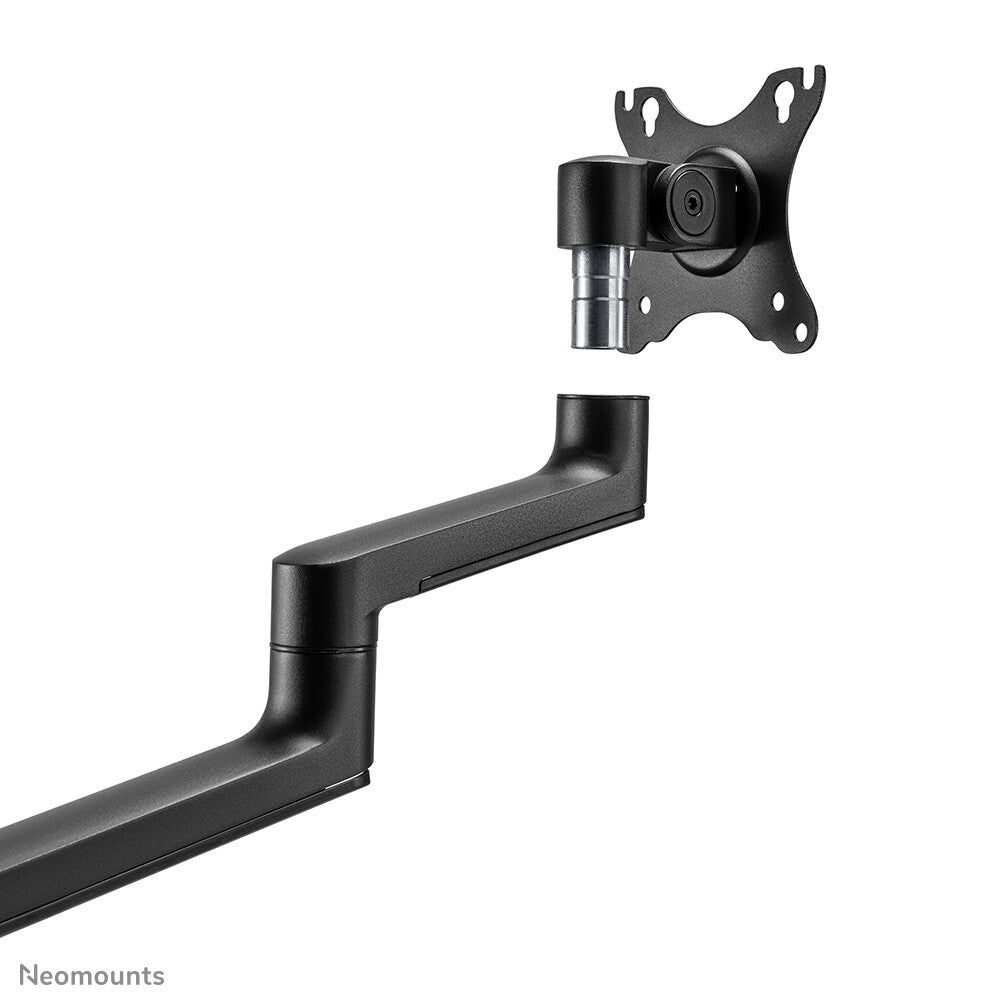

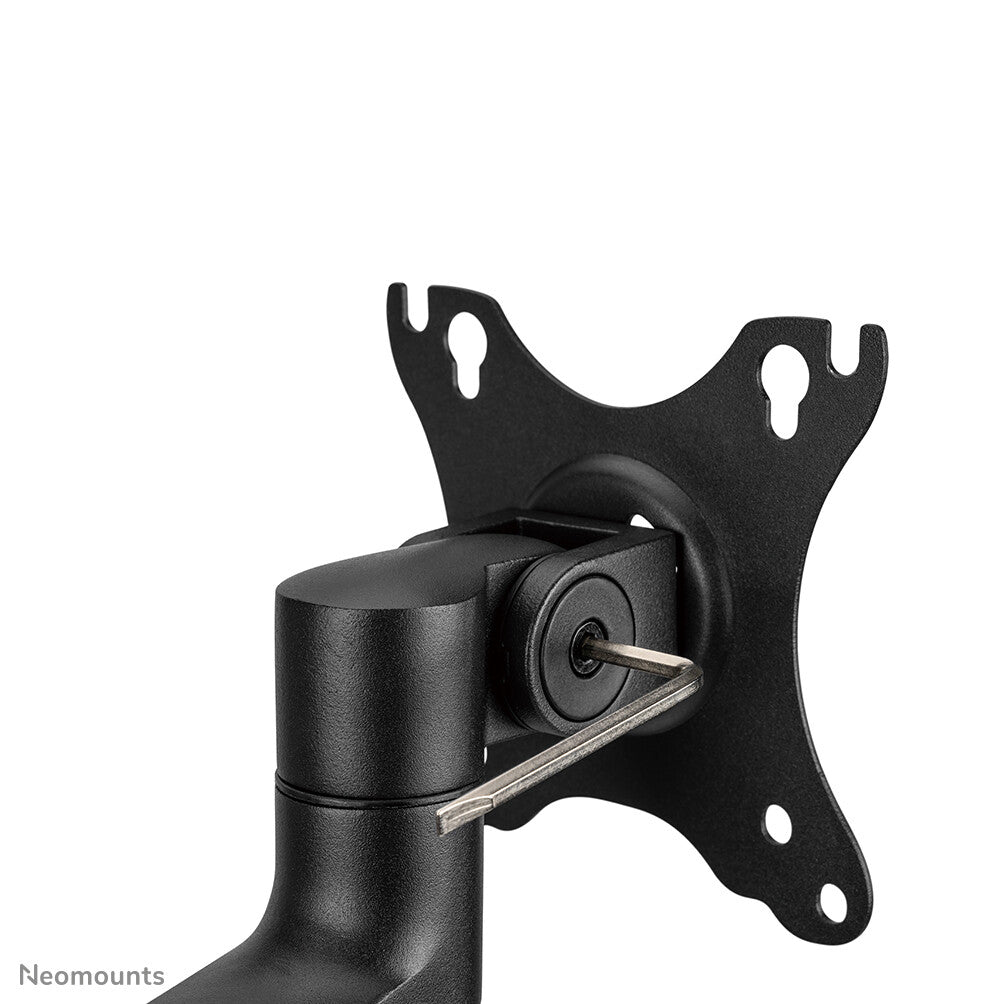

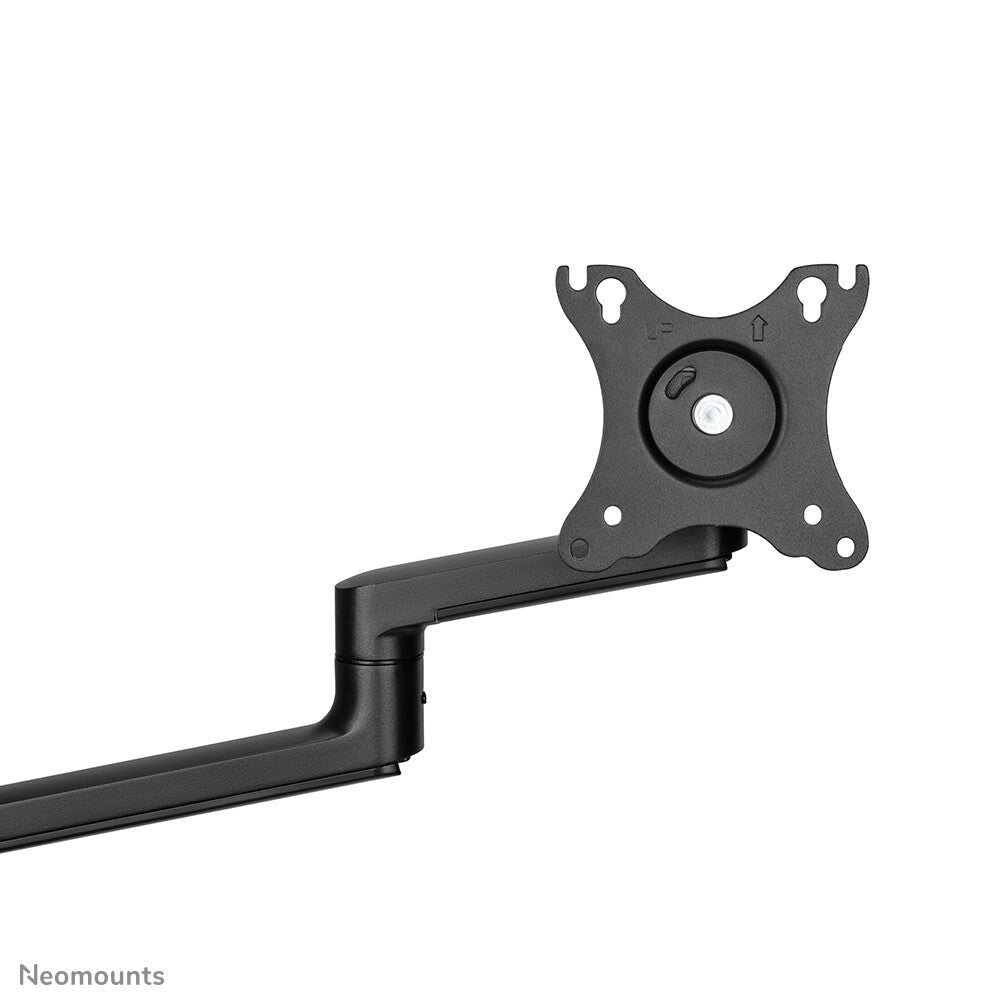

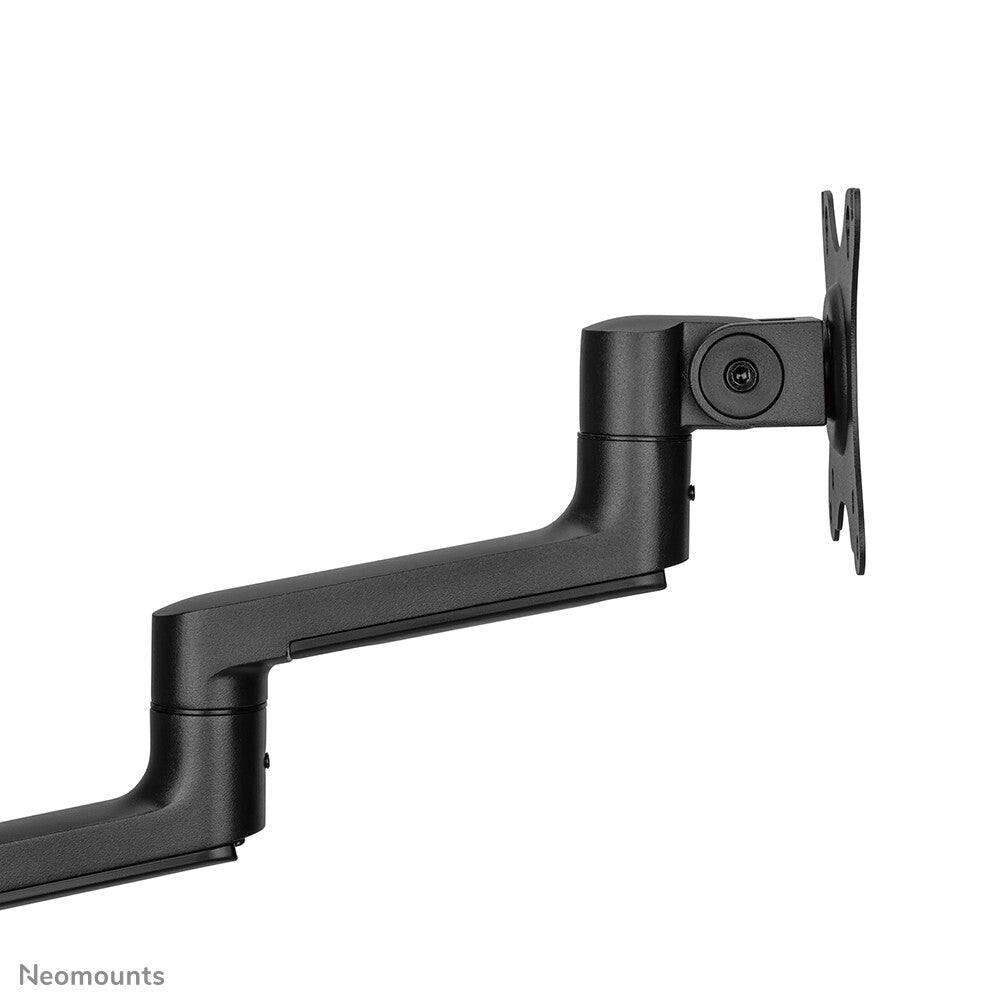

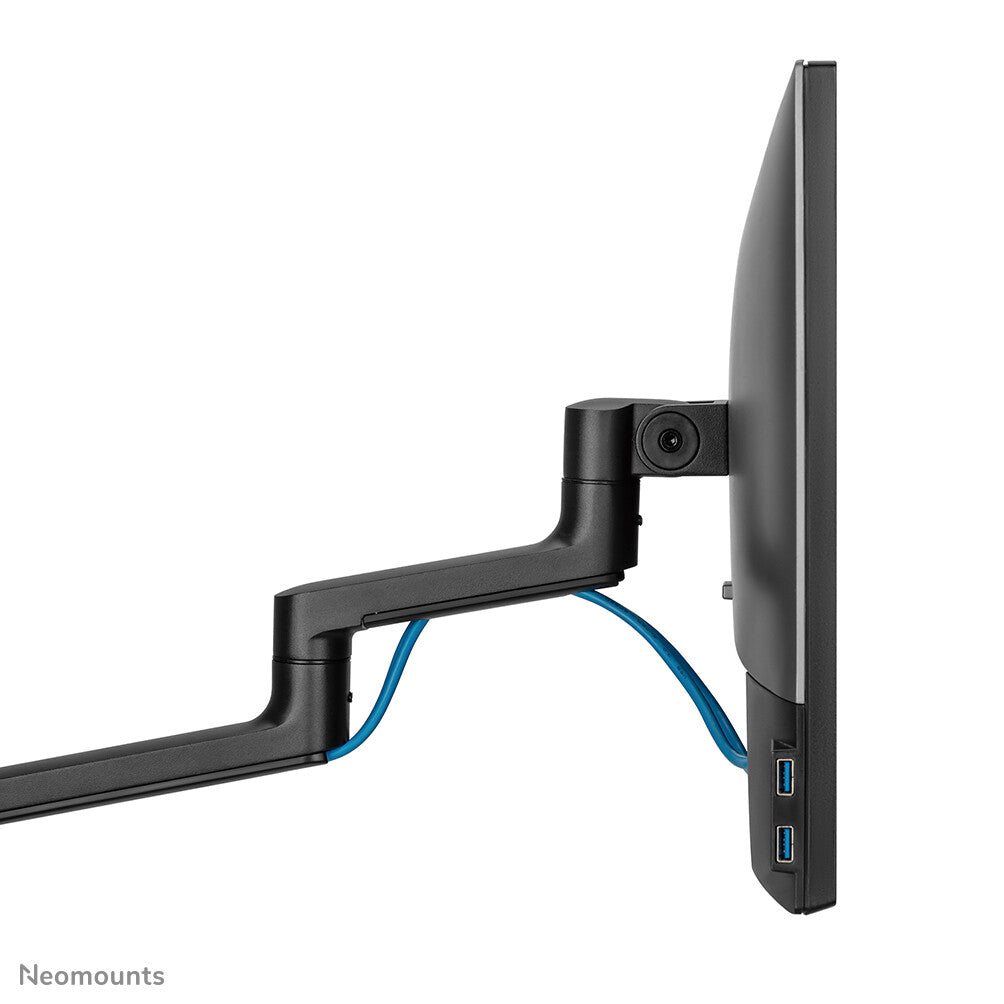

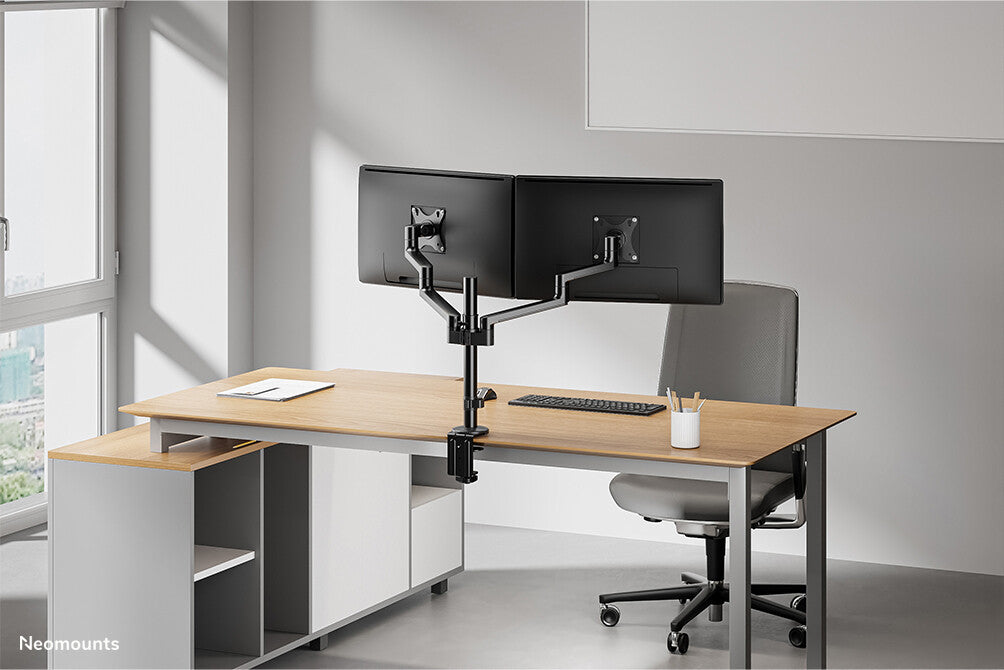

Due to the short T-Rex® upper arm of the NEXT Lite, only minimal depth is required when placed near a wall or separation panel. This allows the screens to be positioned further away from the user which is better for the eyes and also leaves more space for good ergonomic working posture. The smart internal cable management system ensures orderly routing of the cables. The DS60-425BL2 is suitable for screens that meet VESA hole pattern 75x75 or 100x100 mm. Neomounts offers various optional VESA adapter plates for deviating hole patterns. The DS60-425BL2 is equipped with an Easy-release VESA system for easy installation and comes with both desk clamp and grommet.
The packaging of the NEXT Lite is 100% plastic free and entirely made from cardboard and paper.

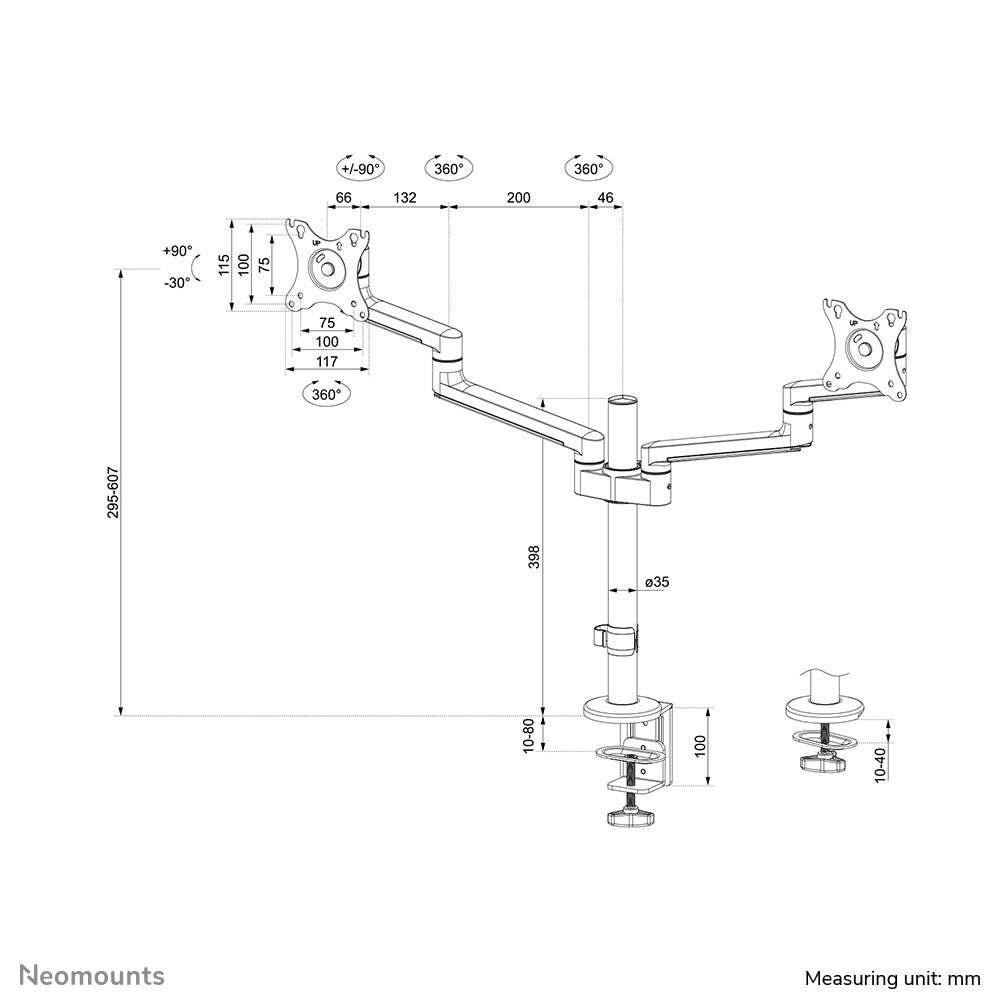

Mounting | |
---|---|
Distance to the wall (max) | 46 cm |
Distance to the wall (min) | 12.8 cm |
Grommet mount desk thickness (max) | 4 cm |

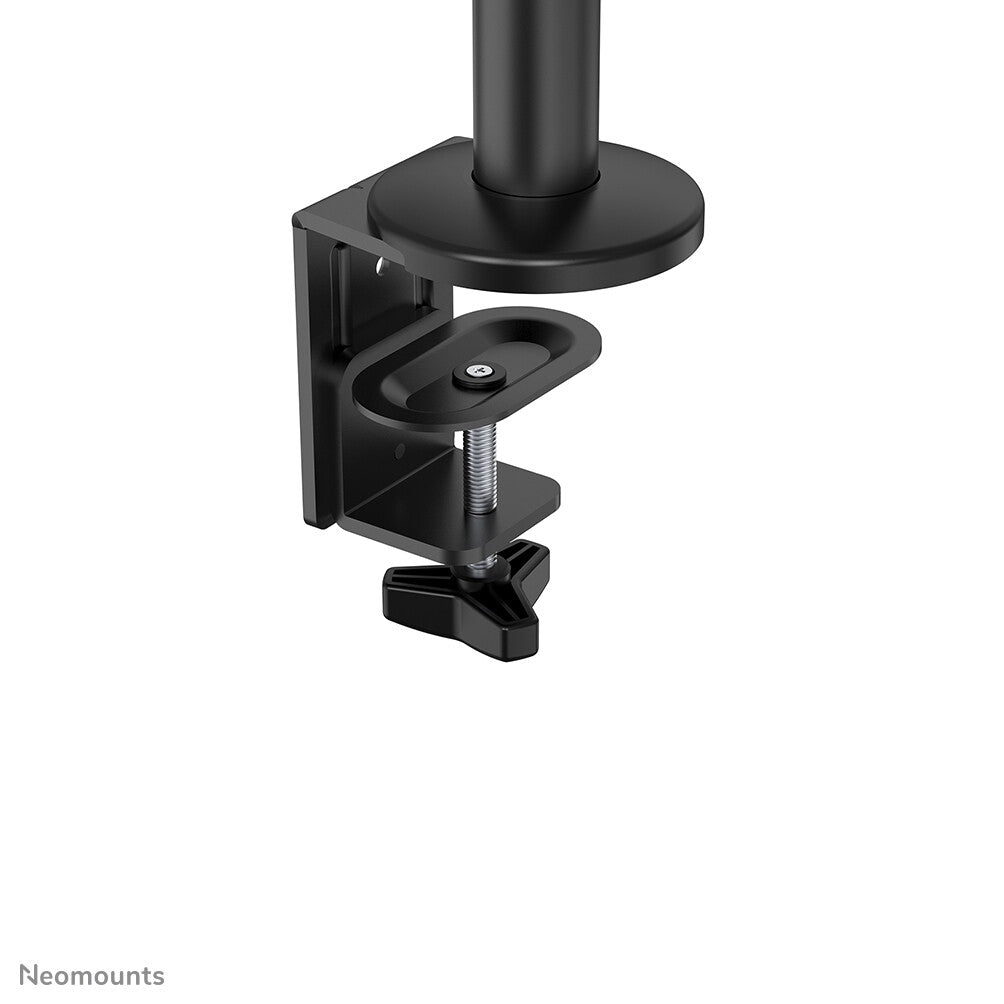

Clamp mount desk thickness (max) | 8 cm |
Desk thickness (max) | 8 cm |
Desk thickness (min) | 1 cm |
Number of displays supported | 2 |
Panel mounting interface | 100 x 100 mm |
Maximum VESA mount | 100 x 100 mm |
Minimum VESA mount | 75 x 75 mm |
Mounting | Clamp/Bolt-through |
Maximum weight capacity (per display) | 8 kg |
Mounting type | Desk |
Maximum screen size | 68.6 cm (27") |
Minimum screen size | 43.2 cm (17") |
Ergonomics | |
---|---|
Feet colour | Black |
Feet | Yes |
Cable management | Yes |
Angle of rotation | 360° |
Swivel angle range | -30 - 90° |
Swivelling | Yes |
Tilt angle range | -30 - 90° |
Depth adjustment range | 6.6 - 39.8 mm |
Adjustable depth | Yes |
Height adjustment range | 29.5 - 60.7 mm |
Height adjustment type | Manual |
Height adjustment | Yes |
Design | |
---|---|
Orientation | Landscape/Portrait |
Housing material | Steel |
Product colour | Black |
Weight & dimensions | |
---|---|
Package net weight | 4.6 kg |
Package height | 440 mm |
Package depth | 105 mm |
Package width | 210 mm |
Height | 763 mm |
Depth | 460 mm |
Width | 888 mm |
Packaging content | |
---|---|
VESA mount included | Yes |
Clamp included | Yes |
Packaging data | |
---|---|
Quantity per pack | 1 pc(s) |
Logistics data | |
---|---|
Master (outer) case net weight | 15.1 kg |
Products per pallet (EU) | 84 pc(s) |
Harmonized System (HS) code | HS7326909890 |
Products per master (outer) case | 4 pc(s) |
Master (outer) case height | 455 mm |
Master (outer) case length | 435 mm |
Master (outer) case width | 220 mm |
Other features | |
---|---|
Country of origin | China |
