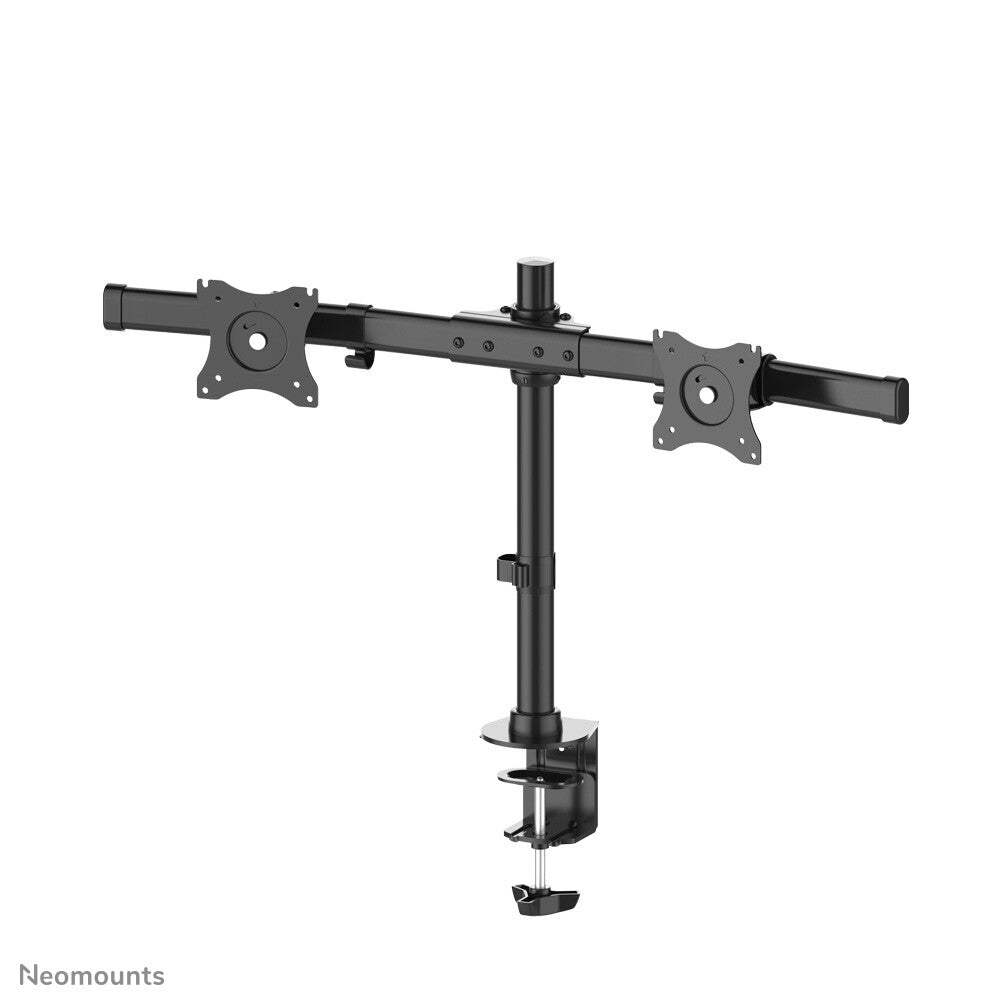

The Neomounts desk mount, model FPMA-DCB100DBLACK is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27". This dual crossbar mount is a great choice for space saving placement on desks using a desk clamp or desk grommet.
Neomounts versatile tilt (+45°/-45°), rotate (360°) and swivel (30°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 45 centimetres. The cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

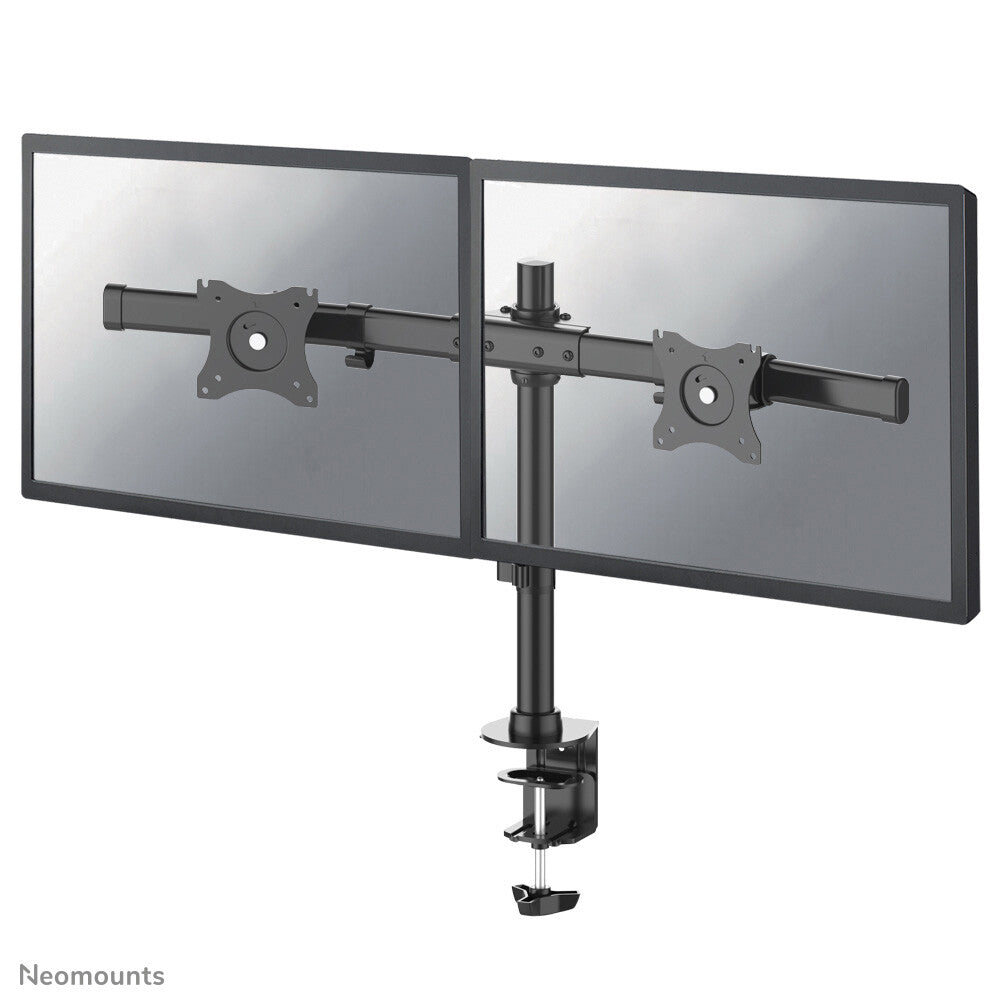

Neomounts FPMA-DCB100DBLACK has a crossbar with two monitor holders with one pivot point and is suitable for screens up to 27" (69 cm). The weight capacity of this product is 10 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.

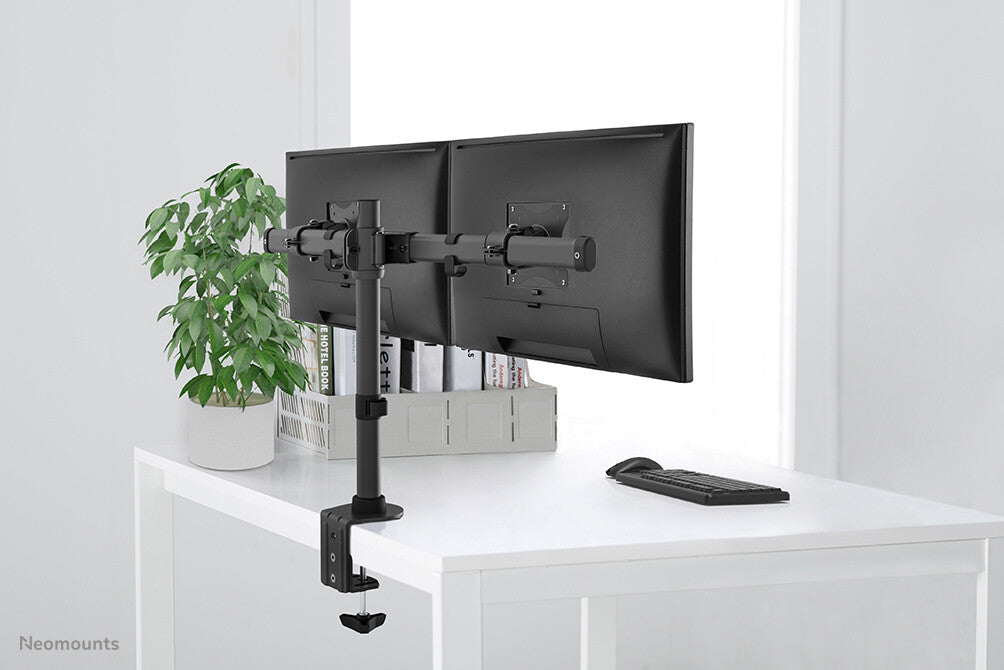

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area. This mount is the ultimate save spacer on your desk.
All installation material is included with the product.
Mounting | |
---|---|
Number of displays supported | 2 |
Panel mounting interface | 75 x 75,100 x 100 mm |
Maximum VESA mount | 100 x 100 mm |
Minimum VESA mount | 75 x 75 mm |
Mounting | Clamp/Bolt-through |
Mounting type | Desk |
Maximum screen size | 68.6 cm (27") |
Minimum screen size | 25.4 cm (10") |
Maximum weight capacity | 10 kg |
Ergonomics | |
---|---|
Number of pivot points | 1 |
Angle of rotation | 360° |
Swivel angle | 30° |
Tilt angle range | 0 - 90° |
Depth adjustment range | 0 - 80 mm |
Height adjustment range | 0 - 450 mm |
Height adjustment type | Manual |
Height adjustment | Yes |
Design | |
---|---|
Product colour | Black |
Weight & dimensions | |
---|---|
Package height | 512 mm |
Package depth | 120 mm |
Package width | 166 mm |

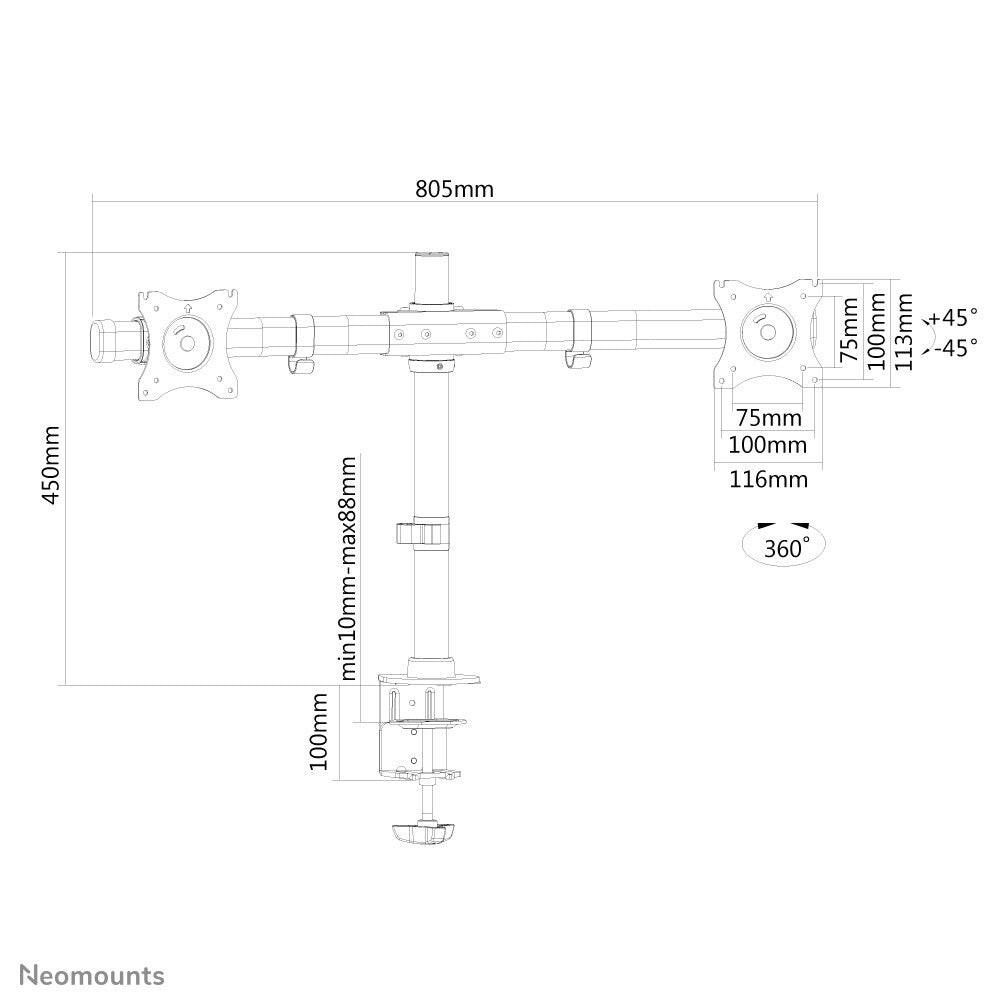

Height | 450 mm |
Depth | 80 mm |
Logistics data | |
---|---|
Products per pallet (EU) | 100 pc(s) |
Harmonized System (HS) code | 7326909890 |
Products per master (outer) case | 4 pc(s) |
Master (outer) case height | 525 mm |
Master (outer) case length | 255 mm |
Master (outer) case width | 345 mm |
Other features | |
---|---|
Country of origin | China |
