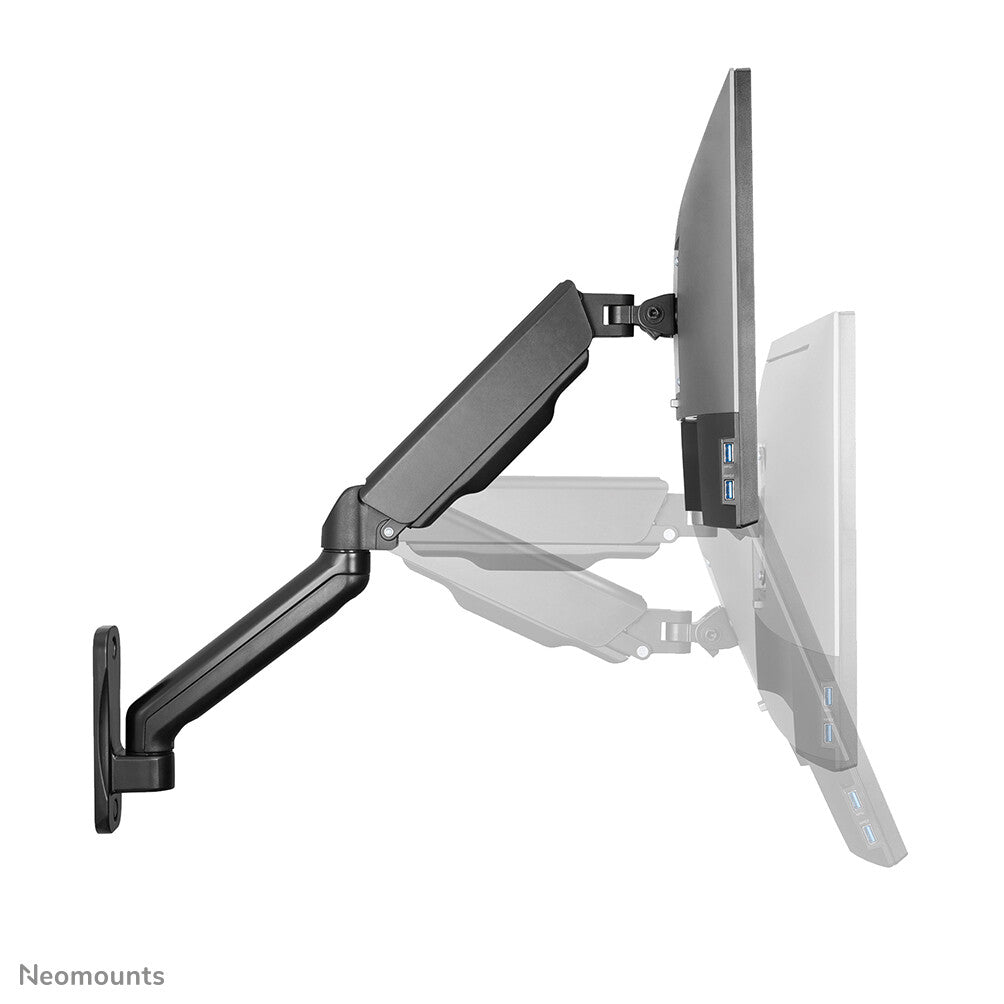

The Neomounts WL70-450BL11 is a full motion wall mount for flat screens up to 32" with a maximum weight capacity of 9 kg. The versatile tilt (135°), rotate (360°) and swivel (180°) technology allows you to create the optimum viewing angle.
The WL70-450BL11 has a depth of 9-54 cm and is suitable for screens that meet VESA hole pattern 75x75 to 100x100 mm.
The mount can be easily adjusted in height using the gas spring. The cable management system allows you to route and secure any loose cables at the back of the screen. Additionally, the mount features an Easy-release VESA, that allows you to attach the TV in a wink of an eye.
Mounting | |
---|---|
Distance to the wall (max) | 54 cm |
Distance to the wall (min) | 9 cm |
Number of displays supported | 1 |
Panel mounting interface | 75 x 75,100 x 100 mm |
Maximum VESA mount | 100 x 100 mm |
Minimum VESA mount | 75 x 75 mm |
Suitable for TV | Yes |
Mounting | Screws |
Mounting type | Wall |
Maximum screen size | 81.3 cm (32") |
Minimum screen size | 43.2 cm (17") |
Maximum weight capacity | 9 kg |
Ergonomics | |
---|---|
Tilt adjustment | Yes |
Cable management | Yes |
Angle of rotation | 360° |
Swivel angle | 180° |
Tilt angle range | -45 - 90° |
Height adjustment range | 0 - 250 mm |
Height adjustment type | Gas spring |
Height adjustment | Yes |
Design | |
---|---|
Product colour | Black |
Weight & dimensions | |
---|---|
Package net weight | 2.3 kg |
Package height | 90 mm |
Package depth | 405 mm |
Package width | 305 mm |
Height | 491 mm |
Depth | 475 mm |
Width | 117 mm |
Packaging data | |
---|---|
Quantity per pack | 1 pc(s) |
Logistics data | |
---|---|
Master (outer) case net weight | 1.6 kg |
Products per pallet (EU) | 90 pc(s) |
Harmonized System (HS) code | 7326909890 |
Products per master (outer) case | 1 pc(s) |
Master (outer) case height | 90 mm |
Master (outer) case length | 405 mm |
Master (outer) case width | 305 mm |
Other features | |
---|---|
Country of origin | China |
