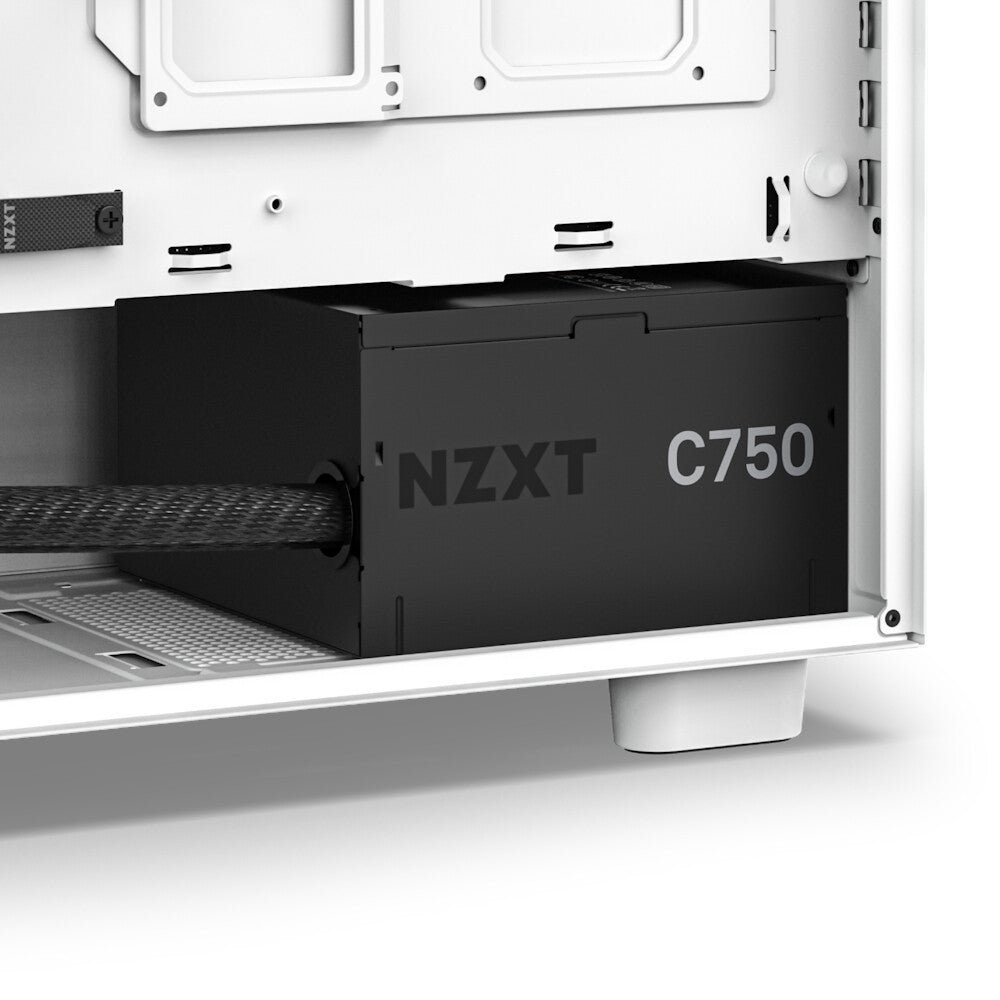

The C750 Bronze offers entry-level high-performance power for any gamer looking to start their PC gaming journey.
Reliable Power
DC-to-DC conversion ensures consistent power delivery to GPUs up to 220W, such as the RTX 3070.
Dark Gray BackgroundDark Gray Background
NZXT C750W Bronze PSU Power Efficiency Graph 88% Efficiency at 50% LoadNZXT C750W Bronze PSU
Highly Efficient
Up to 88% efficiency at 50% load exceeds 80 Plus Bronze standards, reducing energy waste and heat.
Dark Gray BackgroundDark Gray Background
NZXT C750W Bronze PSU Fan Noise Graph 19dB Fan Noise at 50% LoadNZXT C750W Bronze PSU Fan
Quiet Cooling

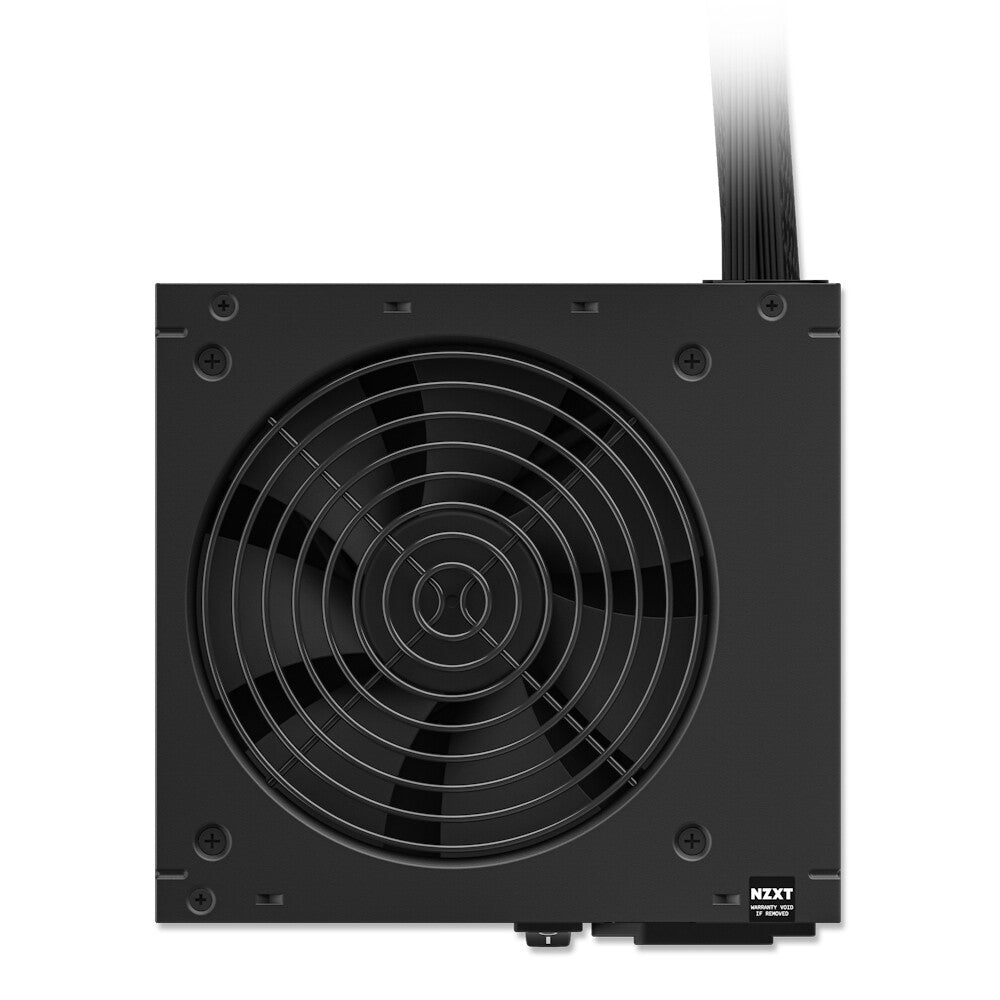

A 120mm fluid dynamic bearing fan delivers low-noise performance with enhanced longevity.
Enhanced Safety
Tested for safety at up to 40°C, and features over-temperature and over-current protections.
Durable & Sleek
Main PSU cables are nylon-sleeved for durability with a matte black finish to match any build.
Power | |
---|---|
Power protection features | Over current, Over voltage, Overheating, Short circuit, Under voltage |
Max output current (+5Vsb) | 2.5 A |
Max output current (-12V) | 0.3 A |
Max output current (+5V) | 20 A |
Max output current (+12V) | 62.5 A |
Max output current (+3.3V) | 20 A |
Combined power (+5Vsb) | 12.5 W |
Combined power (-12V) | 3.6 W |
Combined power (+5V) | 120 W |
Combined power (+12V) | 750 W |
Combined power (+3.3V) | 120 W |
Power Factor Correction (PFC) type | Active |
Maximum input current (@220V) | 5 A |
Maximum input current (@110V) | 10 A |
Input current | 10-5 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Ports & interfaces | |
---|---|
Cabling type | Non-Modular |
ATX Power connector (24-pin) | Yes |
CPU power connector (4+4 pin) | Yes |
PCI Express power connectors (6+2 pin) | 2 |
Peripheral (Molex) power cable length | 150,500 mm |
Peripheral (Molex) power connectors (4-pin) | 4 |
SATA power cable length | 150,500 mm |
Number of SATA power connectors | 4 |
Motherboard power cable length | 60 cm |
Motherboard power connector | 24-pin ATX |
Performance | |
---|---|
Mean time between failures (MTBF) | 100000 h |
Noise level | 39.92 dB |
EPS version | 2.92 |
ATX version | 2.53 |
80 PLUS certification | 80 PLUS Bronze |
Power supply unit (PSU) form factor | ATX |
Purpose | PC |
Design | |
---|---|
On/off switch | Yes |
Fan speed | 2400 - 2400 RPM |
Number of fans | 1 fan(s) |
Fan diameter | 12 cm |
Cooling type | Active |
Product colour | Black |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Packaging content | |
---|---|
Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions | |
---|---|
Height | 86 mm |
Depth | 140 mm |
Width | 150 mm |
Technical details | |
---|---|
Sustainability compliance | Yes |
Warranty period | 3 year(s) |
Compliance certificates | CE, China RoHS, REACH, RoHS, UKCA |
