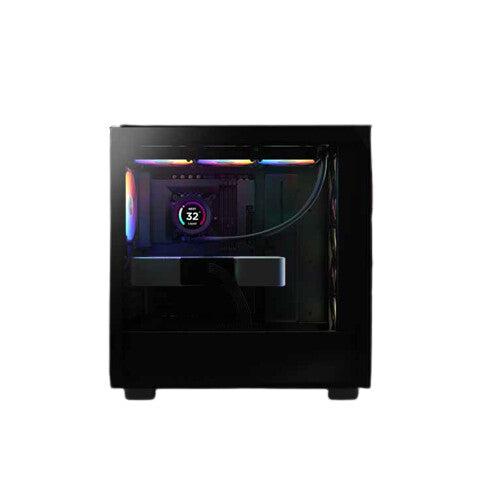

Light up your build to fit your style. The H7 Elite features excellent RGB features and a glass front panel to showcase your ideal build.
LIGHT IT UP

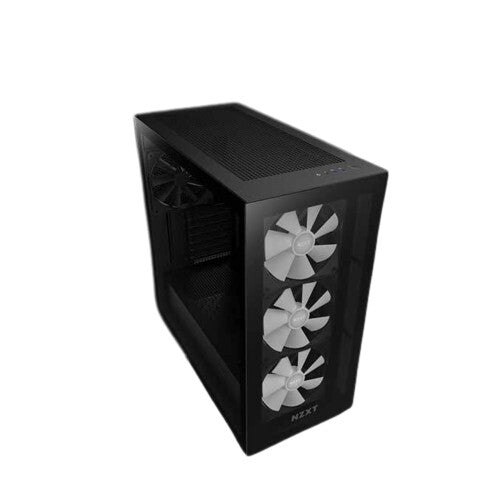

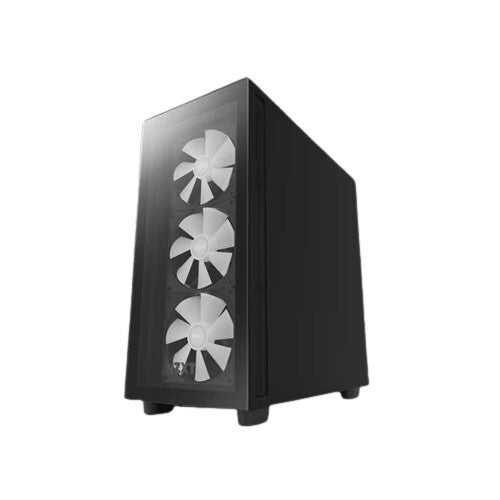

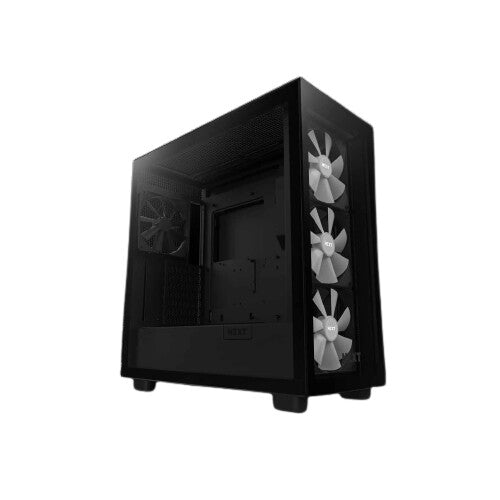

Achieve a vibrantly colorful build with pre-installed F140 RGB Core fans. This case also offers personalization and NZXT CAM controls, thanks to a built-in RGB controller.
KEEP IT COOL
Get excellent thermal efficiency thanks to a perforated top panel. The perforated panel provides improved ventilation as warm air flows through the top of the chassis, enabling even cooler temperatures. The top and front of the case support radiators up to 360mm for maximum cooling support. Three pre-installed RGB fans mean users get RGB cooling right out of the box.
BUILD WITH EASE
Streamline the build process with an improved cable management system. Wider cable channels provide more room to easily route cables, while the addition of hooks adds stability to hold everything in place. Ample space and clearance make the H7 Flow and H7 Elite a spacious chassis for ambitious builds.
Design | |
---|---|
Maximum PSU length | 20 cm |
Maximum graphics card length | 40 cm |
Maximum CPU cooler height | 18.5 cm |
Cable management | Yes |
Anti-dust filter | Yes |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 6 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | Black |
Material | SGCC, Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
Audio input | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 360 mm |
Rear radiator sizes supported | 140 mm |
Front radiator sizes supported | 360 mm |
Fan speed | 500 - 1500 RPM |
Maximum airflow | 90.8 cfm |
Noise level (high speed) | 34 dB |
Fan 2 maximum airflow | 99.56 cfm |
Maximum air pressure | 3.22 mmH2O |
Fan 2 maximum air pressure | 1.14 mmH2O |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 140 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 140 mm |
Storage | |
---|---|
HDD/SSD combo cage | Yes |
Supported HDD sizes | 2.5,3.5" |
Weight & dimensions | |
---|---|
Weight | 11 kg |
Height | 505 mm |
Depth | 480 mm |
Width | 230 mm |
Packaging data | |
---|---|
Package weight | 13.3 kg |
Package volume | 101657.5 cm³ |
Package height | 310 mm |
Package depth | 565 mm |
Package width | 570 mm |
Logistics data | |
---|---|
Master (outer) cases per pallet layer | 12 pc(s) |
Pallet gross height | 126 cm |
Pallet gross length | 94 cm |
Pallet gross width | 116 cm |
Other features | |
---|---|
Screws included | Yes |
