The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance

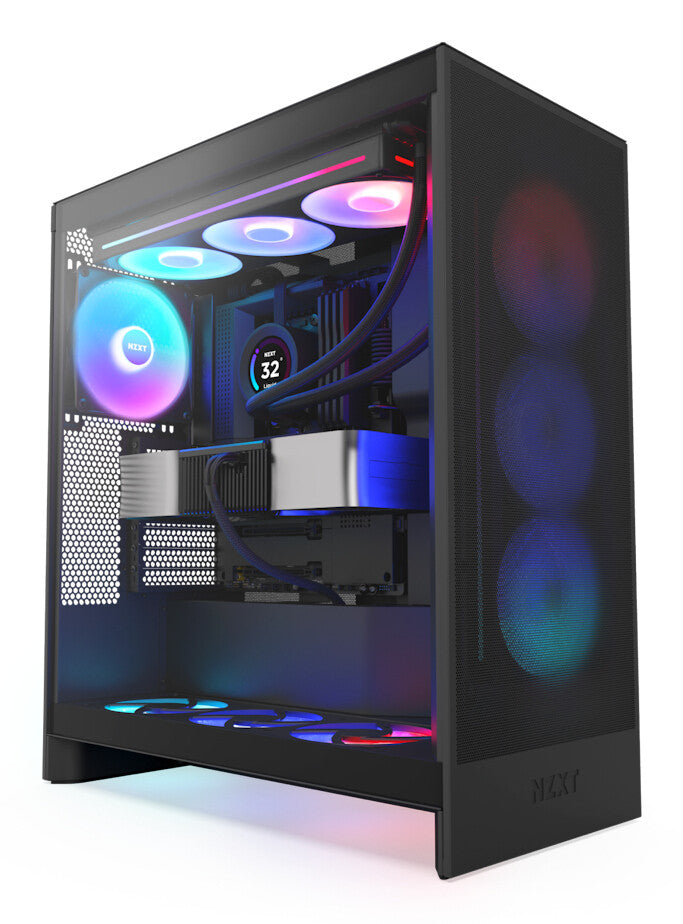

Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

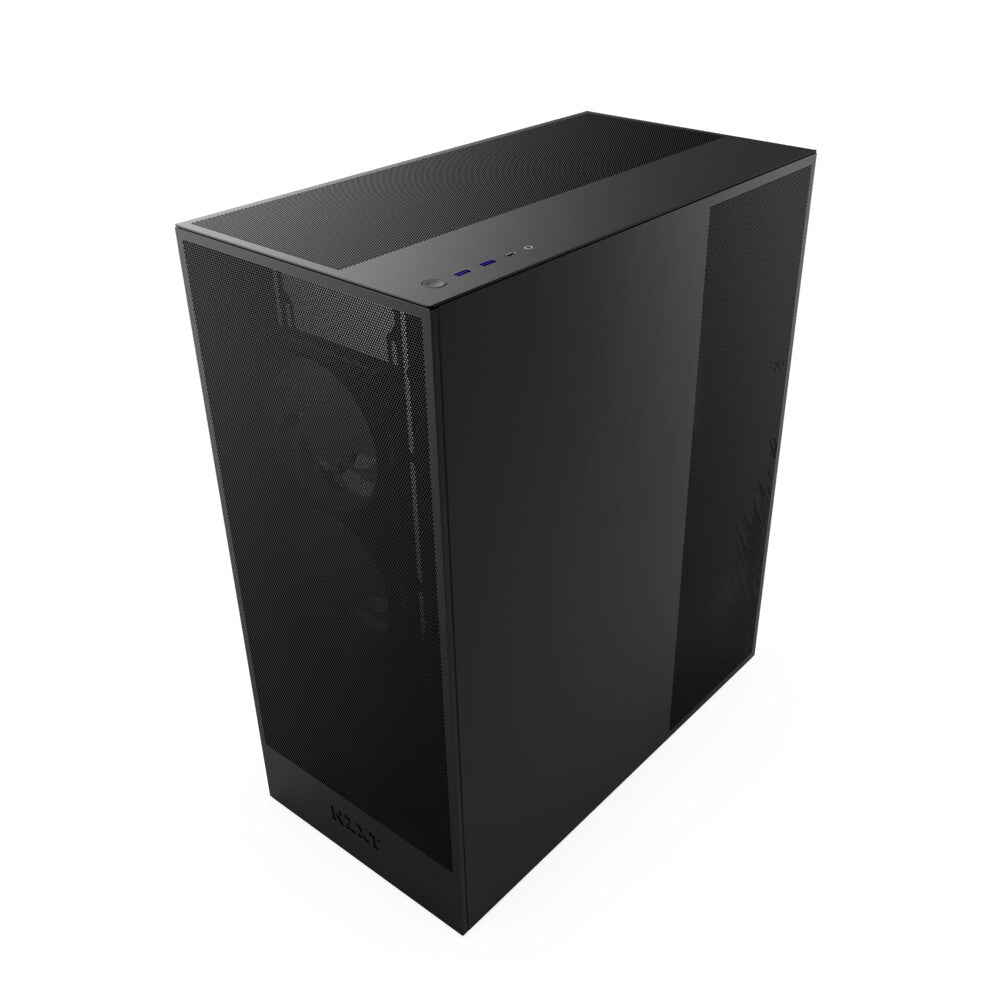

Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

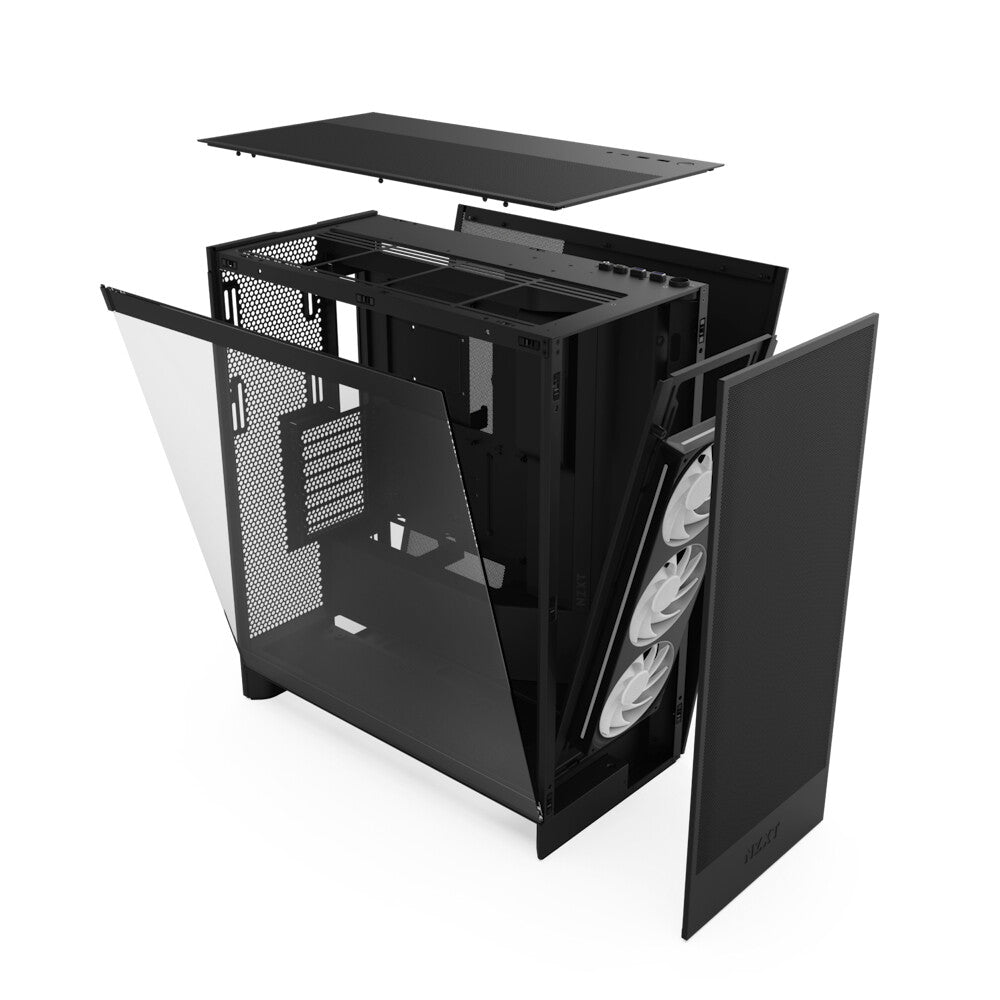

Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Design | |
---|---|
Maximum PSU length | 20 cm |
Maximum graphics card length | 41 cm |
Maximum CPU cooler height | 18.5 cm |
On/off button | Yes |
Reset button | No |
Cable management | Yes |
Tempered glass panel(s) | Yes |
Illumination | Yes |
Side window | Yes |
Number of 2.5" bays | 4 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
Product colour | Black |
Material | SGCC, Tempered glass |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Power supply included | No |
Ports & interfaces | |
---|---|
Audio output | Yes |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 360 mm |
Rear radiator sizes supported | 140 mm |
Front radiator sizes supported | 360,420 mm |
Fan speed | 1200 - 1500 RPM |
Maximum airflow | 50.1 cfm |
Fan 2 maximum airflow | 50.1 cfm |
Maximum air pressure | 1.27 mmH2O |
Fan 2 maximum air pressure | 1.27 mmH2O |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 120 mm |
Fan speed control | No |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Technical details | |
---|---|
Warranty period | 2 year(s) |
Weight & dimensions | |
---|---|
Weight | 11.1 kg |
Height | 544 mm |
Depth | 468 mm |
Width | 244 mm |
