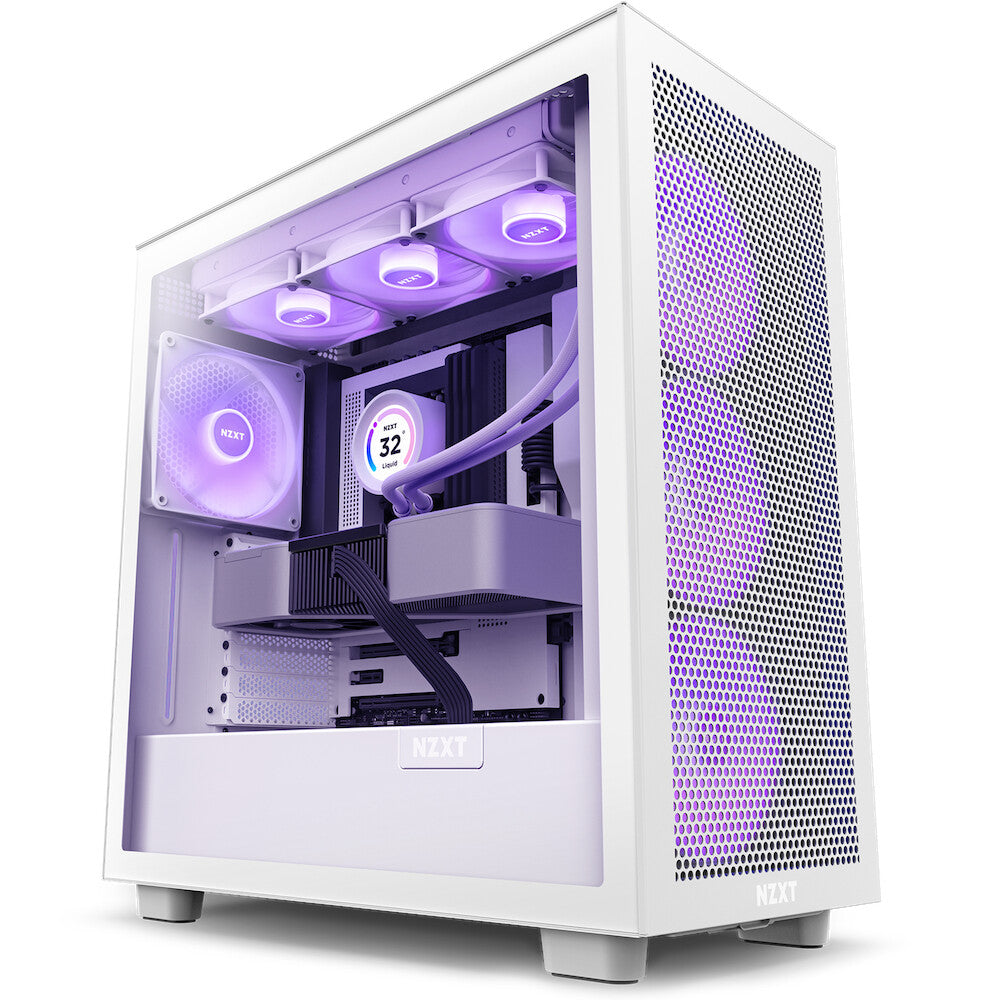

The H7 Flow RGB is ready to keep premium components vibrantly cool. Featuring three pre-installed 140mm RGB Core fans & one F120Q Quiet Airflow fan, this case is ready to kick start your love of RGB in a major way.

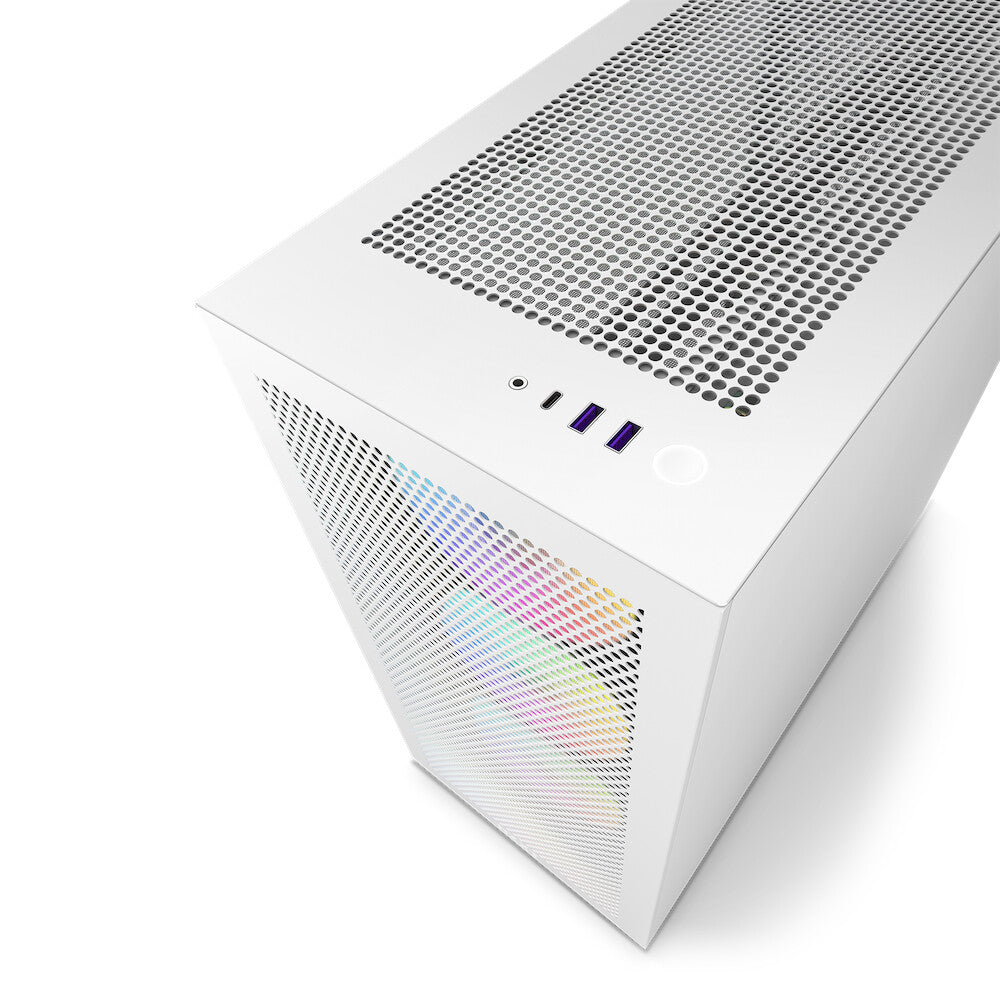

High-Performance Airflow
Perforated front and top panels direct filtered air through the case to cool down components and enhance overall performance.
Built-In RGB Lighting
Includes three pre-installed F140 RGB Core fans that connect to a standard 5V ARGB header.
Ready for Performance
Fits most NVIDIA GeForce RTX 40 Series graphics cards with its 365mm clearance. Display your GPU vertically using the NZXT Vertical GPU Mounting Kit.*
*Sold separately. Reduces clearance to 349mm.

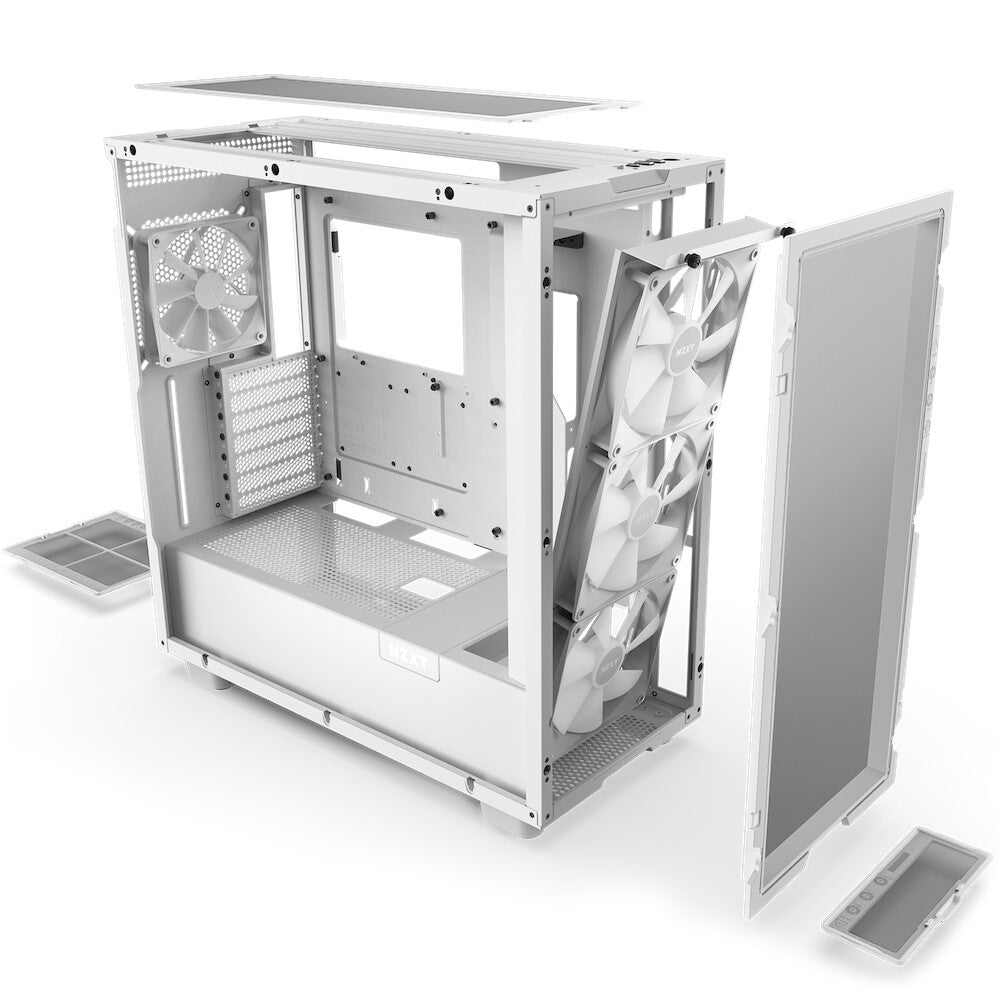

Spacious Cooling Support
Up to 360mm radiator or 3 x 140mm fan support in the front and top panels.

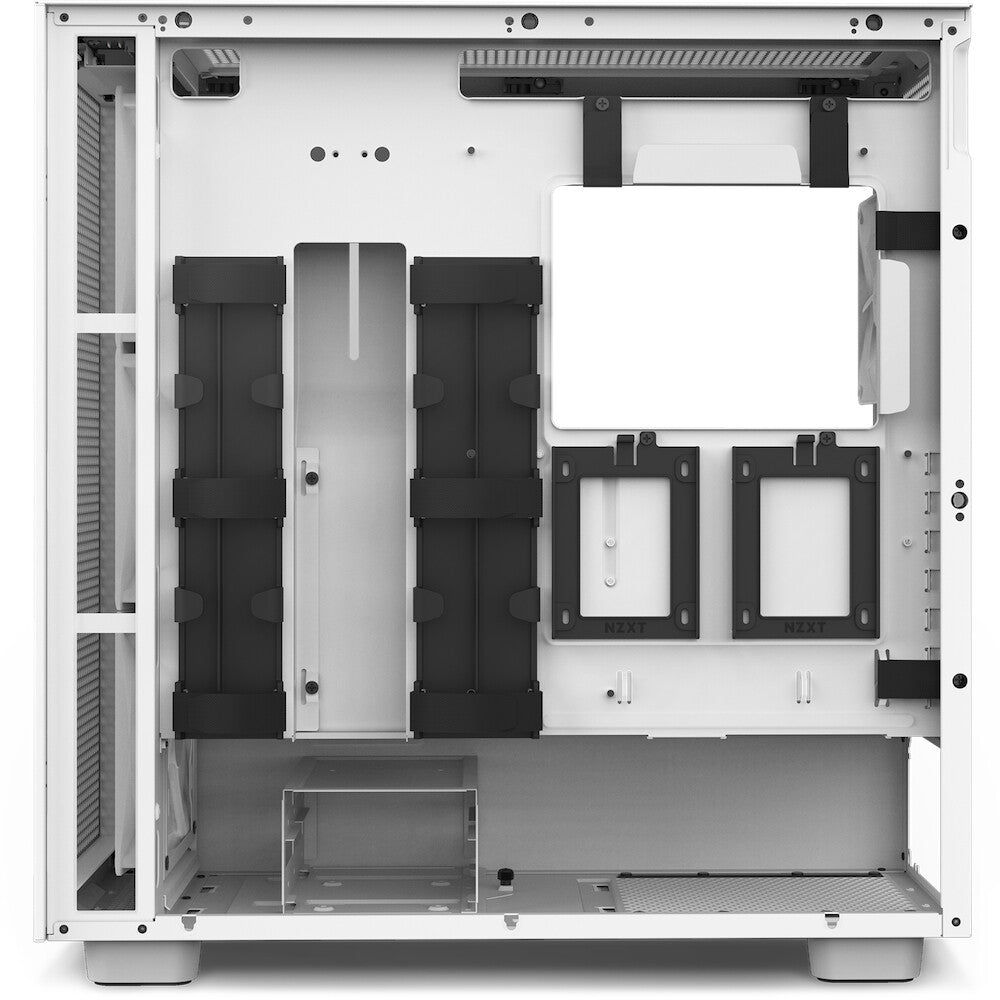

Easily Route Cables
Wide cable channels with hooks, bridge and straps take the guesswork out of organized cable management.
Design | |
---|---|
Maximum PSU length | 20 cm |
Maximum graphics card length | 40 cm |
Maximum CPU cooler height | 18.5 cm |
On/off button | Yes |
Cable management | Yes |
Tempered glass panel(s) | Yes |
Illumination location | Case fans |
Illumination colour | Cyan, Green, Red |
Illumination | Yes |
Suitable for | Gaming |
Side window | Yes |
Number of expansion slots | 7 |
Number of 2.5" bays | 6 |
Number of 3.5" bays | 2 |
Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
Product colour | White |
Material | Glass, Steel |
Type | PC |
Form factor | Midi Tower |
Power supply | |
---|---|
Power supply included | No |
Ports & interfaces | |
---|---|
Combo headphone/mic port | Yes |
USB Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Cooling | |
---|---|
Top radiator sizes supported | 360 mm |
Rear radiator sizes supported | 140 mm |
Front radiator sizes supported | 360 mm |
Fan speed | 1080 - 1320 RPM |
Maximum airflow | 61.74 cfm |
Fan 2 maximum airflow | 62.18 cfm |
Maximum air pressure | 2.06 mmH2O |
Fan 2 maximum air pressure | 1.05 mmH2O |
Top fans diameters supported | 120,140 mm |
Number of top fans supported (max) | 3 |
Rear fans diameters supported | 120,140 mm |
Number of rear fans supported (max) | 1 |
Rear fans installed | 1x 140 mm |
Front fans diameters supported | 120,140 mm |
Number of front fans supported (max) | 3 |
Front fans installed | 3x 140 mm |
Storage | |
---|---|
Supported HDD sizes | 2.5,3.5" |
Packaging content | |
---|---|
Manual | Yes |
Weight & dimensions | |
---|---|
Weight | 10.6 kg |
Height | 505 mm |
Depth | 480 mm |
Width | 230 mm |
