This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset.
Processor | |
---|---|
Supported processor sockets | LGA 1700 |
Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 128 GB |
Supported memory clock speeds | 5000,5066,5100,5133,5200,5300,5333,5400,5600,5800,6000,6200,6400,6600,6666,6800,7000,7200,7400,7600,7800,7900,7950,8000,8333 MHz |
Non-ECC | Yes |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 10 |
RAID support | Yes |
Number of storage drives supported | 7 |
Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
HDCP | Yes |
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
RGB LED pin header | Yes |
12V power connector | Yes |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 2.0 connectors | 2 |

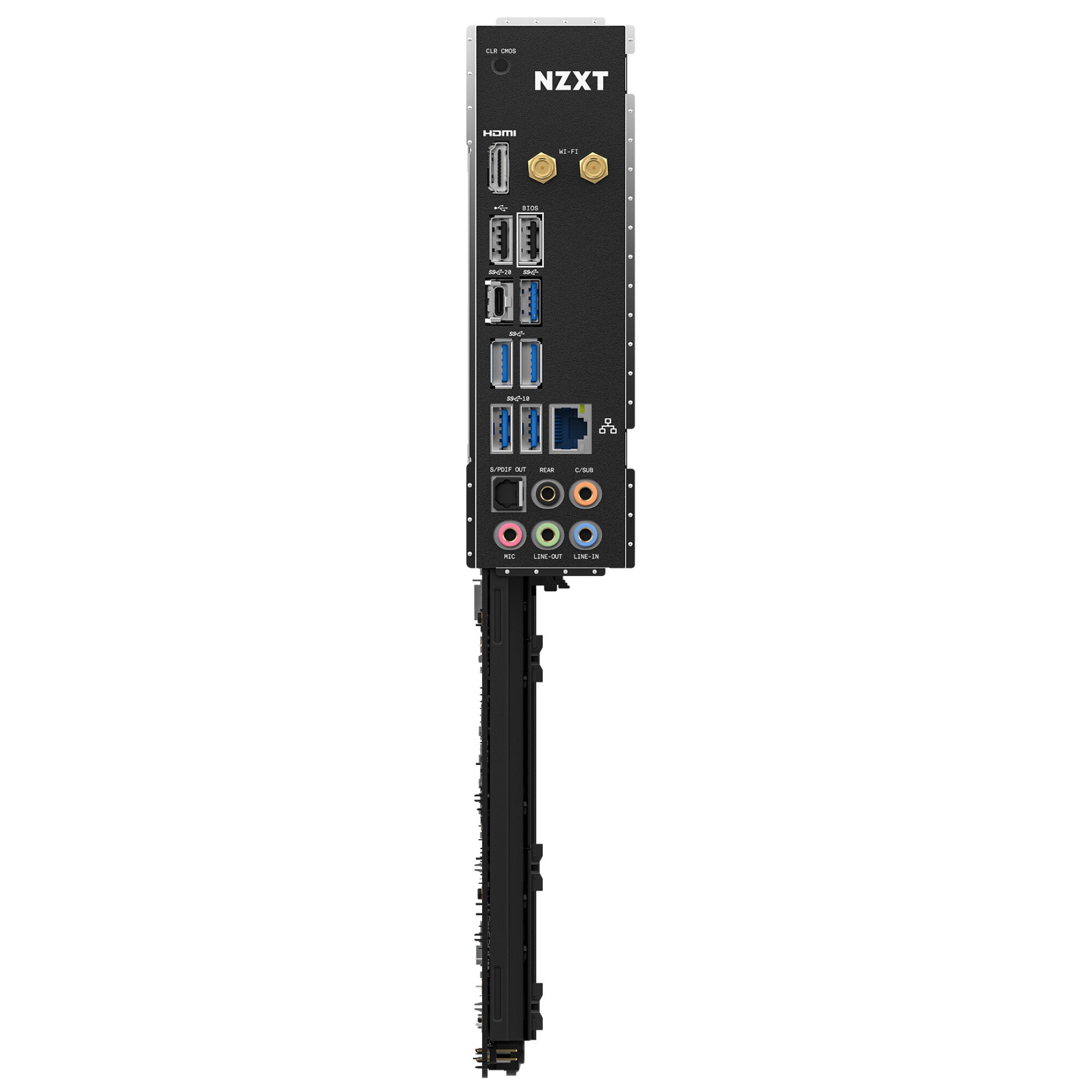

Rear panel I/O ports | |
---|---|
USB connector type | USB Type-A, USB Type-C |
WiFi-AP antenna jack | 2 |
Digital audio optical out | 1 |
S/PDIF out port | Yes |
Microphone in | Yes |
Headphone outputs | 5 |
HDMI version | 2.1 |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 2.0 ports quantity | 2 |
Network | |
---|---|
Bluetooth version | 5.2 |
Bluetooth | Yes |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi | Yes |
LAN controller | Dragon RTL8125BG |
Ethernet interface type | 2.5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Audio output channels | 8 channels |
Audio chip | Realtek ALC1220 |
Motherboard chipset | Intel Z790 |
Motherboard chipset family | Intel |
Motherboard form factor | ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 2 |
PCI Express x1 (Gen 3.x) slots | 2 |
BIOS | |
---|---|
Clear CMOS button | Yes |
Packaging content | |
---|---|
Cables included | SATA |
