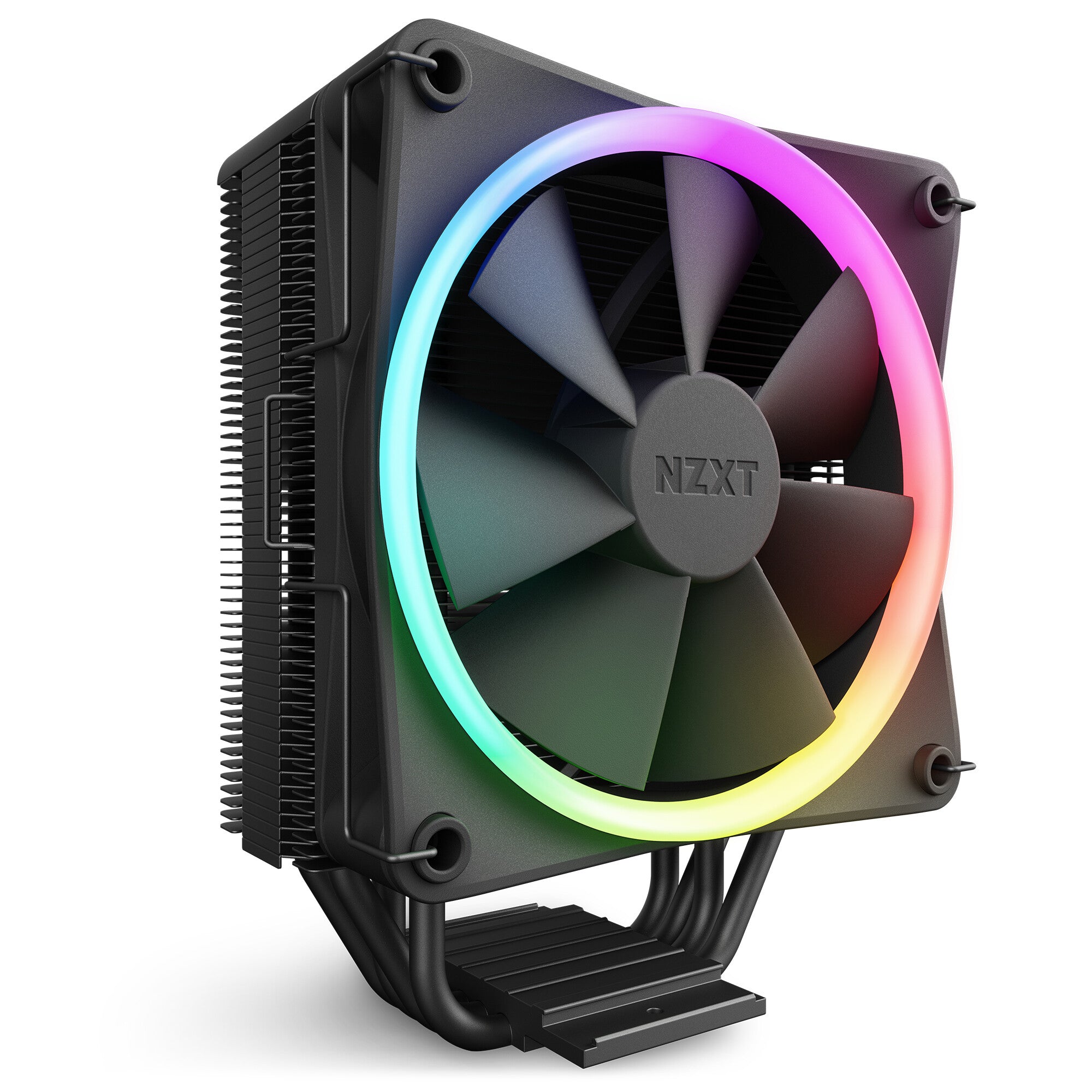

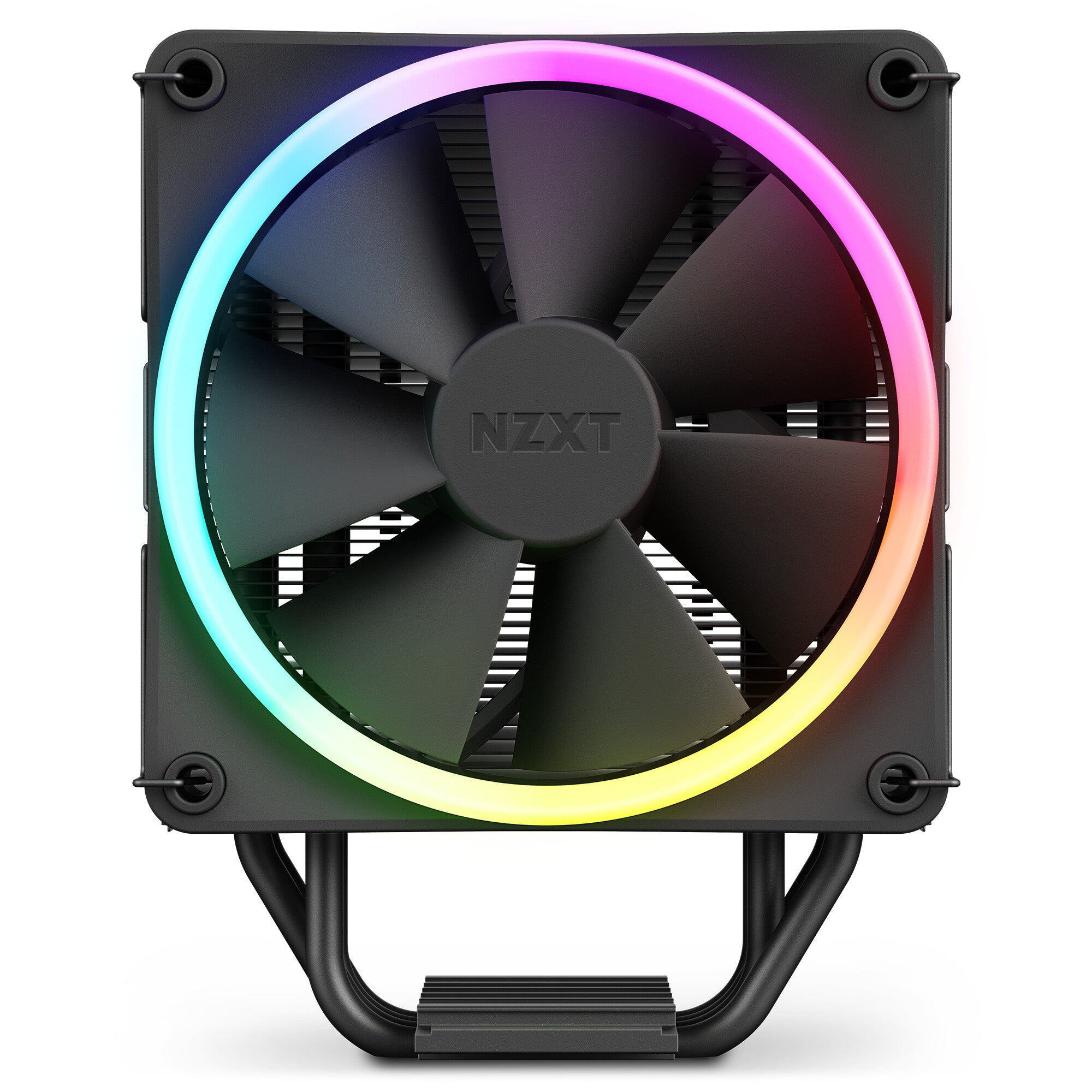

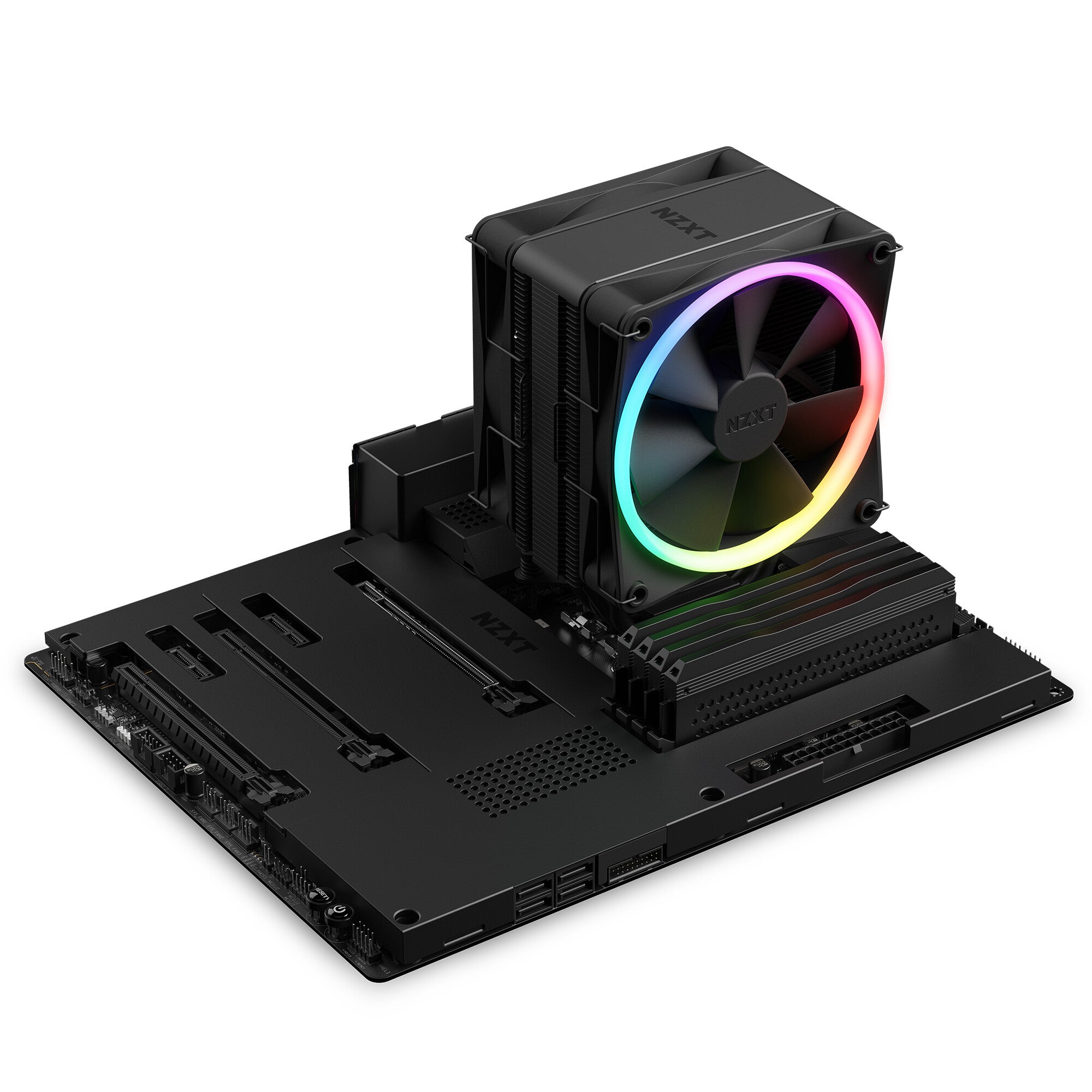

The T120 is a direct mounted high-performance air cooler. It's as cool as it is cool-looking thanks to a sleek aluminum heat pipe cover. It provides excellent thermal performance in a small package.
Performance | |
---|---|
Mean time between failures (MTBF) | 60000 h |
Quantity per pack | 1 pc(s) |
Bearing type | Fluid Dynamic Bearing (FDB) |
Pulse-width modulation (PWM) support | Yes |
Maximum air pressure | 2.7 mmH2O |
Minimum air pressure | 0.75 mmH2O |
Maximum airflow | 50.18 cfm |
Minimum airflow (imperial) | 13.94 cfm |
Noise level (high speed) | 27.5 dB |
Noise level (low speed) | 17.2 dB |
Rotational speed (max) | 1800 RPM |
Rotational speed (min) | 500 RPM |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5 |
Fan diameter | 12 cm |
Type | Air cooler |
Suitable location | Processor |
Design | |
---|---|
Fan connector | 4-pin |
Illumination colour | Multi |
LED connector type | 3-pin |
Illumination LED | Yes |

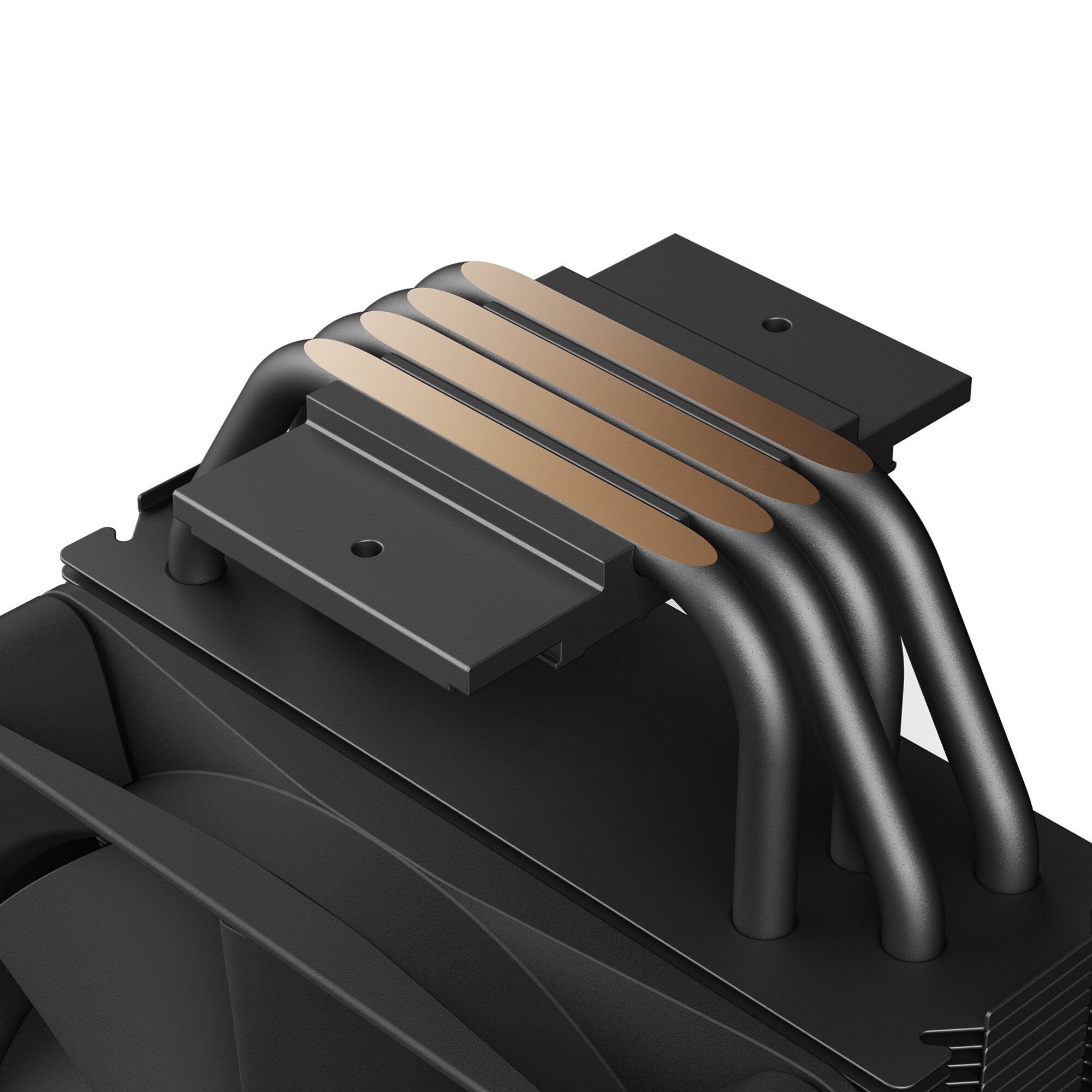

Number of heat pipes | 4 |
Number of fans | 1 fan(s) |
Base plate material | Copper |
Product colour | Black |
Power | |
---|---|
Rated current | 0.18 A |
Fan power consumption | 2.16 W |
Voltage | 12 V |
Weight & dimensions | |
---|---|
Fan dimensions (W x D x H) | 120 x 120 x 26 mm |
Height | 120 mm |
Depth | 159 mm |
Width | 66 mm |
Packaging content | |
---|---|
Thermal pad included | Yes |
Mounting kit | Yes |
Cables included | 3-pin |
