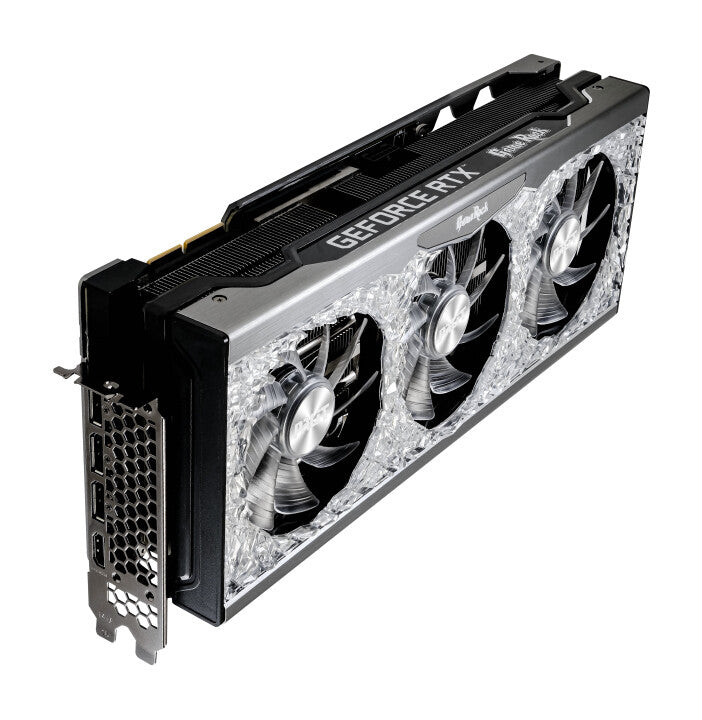

The Palit GeForce RTX™ 3090 Ti GameRock is built for enthusiast gamers and creators who desire to have the ultimate gaming experience and the most efficient multimedia performance. The model not only features 90% ARGB lighting area, but also presents beastly thermal design with Triple A Die Casting Plate Kits and Patented Double-U Heat Pipes for optimized cooling solution.
Designed for the most demanding gamers, content creators and data scientists, the GeForce RTX™ 3090 Ti features a record-breaking 10,752 CUDA cores, and boasts 78 RT-TFLOPs, 40 Shader-TFLOPs and 320 Tensor-TFLOPs of power. And it's packed with 24GB of the fastest 21Gbps GDDR6X memory, providing 1TB/s of memory bandwidth.
Angel ARGB
The addressable RGB allows gamers to customize each LED color. The crystalline cuts on GameRock cooler bring you the splendid angel lighting. You can personalized the lighting modes with Palit ThunderMaster software.
Triple A Die Casting Plate Kit
Two die casting molded “Aluminum Alloy Armor” plates fully cover the circuit board and directly attach to all the hot spots on PCB. They provide:
- Strong-as-armor protection
- Optimized heat dissipation
Embossed Heatsink
The fin is molded with embossments to enlarge air contact area for most efficient heat dissipation.
Dual BIOS
The dual BIOS program automatically activates the protection mechanism when an error occurs in one of the BIOS programs. This allows the graphics card to be functional again in the event of system failure.
BIOS 1: Performance Mode
BIOS 2: Silent Mode
TurboFan 3.0: 2-Ball Bearing
TurboFan upgrades to 3.0 version with 2-ball bearing to reinforce fan stability.
Features:
- IP5X dust resistant technology
- Lower fan vibration
- Prolonged fan life expectancy
0-dB TECH
Keep Silent while you are experiencing the multimedia application and general workload. The operating fans only occurs while working on heavier loading.
DrMOS
DrMOS, originally only available for high-end server CPUs, is now available in all its glory in the next generation of Palit graphics cards. DrMOS offers high current circuits, low noise operation, and effective reduction of heat generating.
Palit’s new ThunderMaster has thorough upgrade from the previous version. It has more user-friendly interface as well as more personalized settings. With ThunderMaster, you can control your video card from overclock setting, fan speed to LED effect. You can also monitor GPU status with ThunderMaster utility.
Connect, play, capture, and watch in brilliant HDR at resolutions up to 8K with GeForce RTX™ 3090. HDMI 2.1 makes it possible for 8K resolution on a single cable. Capture up to 8K HDR footage with the GeForce® Experience™ ShadowPlay™ feature and play back smoothly with AV1 decode.
AI-POWERED PERFORMANCE BOOST
AI rendering on dedicated Tensor Cores gives you incredible performance, pushing up frame rates and providing the headroom needed to maximize graphics settings and resolution, even up to 8K.
DLSS AI ACCELERATION
MAX FPS. MAX QUALITY. POWERED BY AI.
NVIDIA DLSS (Deep Learning Super Sampling) is groundbreaking AI rendering technology that increases graphics performance using dedicated Tensor Core AI processors on GeForce RTX™ GPUs. DLSS taps into the power of a deep learning neural network to boost frame rates and generate beautiful, sharp images for your games.
NVIDIA G-SYNC®
Get smooth, tear-free gameplay at refresh rates up to 240 Hz, plus HDR, and more. This is the ultimate gaming display and the go-to equipment for enthusiast gamers.
Processor | |
---|---|
Parallel processing technology support | NVLink |
Maximum displays per videocard | 4 |
Processor boost clock speed | 1860 MHz |
Processor frequency | 1560 MHz |
CUDA cores | 10752 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 3090 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory bandwidth (max) | 1008 GB/s |
Data transfer rate | 21 Gbit/s |
Memory bus | 384 bit |
Graphics card memory type | GDDR6X |
Discrete graphics card memory | 24 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 1.4a |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express 4.0 |
Performance | |
---|---|
NVIDIA Ansel | Yes |
NVIDIA GameStream | Yes |
NVIDIA G-SYNC | Yes |
Dual Link DVI | No |
HDCP | Yes |
Virtual Reality (VR) ready | Yes |
OpenGL version | 4.6 |
DirectX version | 12 Ultimate |
TV tuner integrated | No |
PhysX | Yes |
Design | |
---|---|
Product colour | Black, White |
Illumination | Yes |
Illumination colour | Multi |
Number of slots | 2.9 |
Form factor | Full-Height/Full-Length (FH/FL) |
Bracket height | Full-Height (FH) |
Number of fans | 3 fan(s) |
Cooling technology | Palit TurboFan Blade 3.0 |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 1x 16-pin |
Power consumption (max) | 450 W |
Minimum system power supply | 1000 W |
System requirements | |
---|---|
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84733020 |
Packaging content | |
---|---|
Power cord included | Yes |
Weight & dimensions | |
---|---|
Depth | 65 mm |
Height | 137 mm |
Length | 314 mm |
Packaging data | |
---|---|
Package type | Box |
Manual | Yes |
