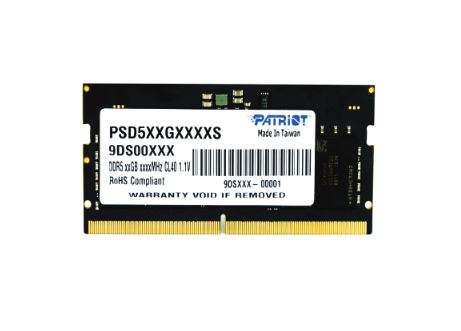

Patriot's Signature Line DDR5 memory modules are designed to deliver an immense performance improvement for next generation Intel platforms. Requiring only 1.1V of power, Signature DDR5 modules consume less power and emit less heat despite the increased f requency and speed.
Enhanced power improvements include an onboard Power Management IC (PMIC), which provides better control of local voltage regulation while delivering increased threshold protection,simultaneous monitoring, intelligent voltage, and power management. The Signature Line DDR5 series includes onboard thermal sensors to monitor and protect against thermal issues and better overall reporting. In addition, the latest on-die ECC (Error-Correcting Code) urther enhances the accuracy of data-processing and your overall system's stability.
With limited lifetime warranty, Patriot's Signature Line DDR5 RAM is the breakthrough choice for avid system integrators and those looking to expand their system's memory performance. The Signature Line DDR5 memory modules offer a wide range of capacities and configurations, allowing users to get the most f rom the latest Intel platforms for the best compatibility.
Features | |
---|---|
Certification | RoHS |
SPD profile | Yes |
Memory voltage | 1.1 V |
CAS latency | 40 |
On-Die ECC | Yes |
ECC | No |
Memory form factor | 262-pin SO-DIMM |
Component for | Laptop |
Memory clock speed | 4800 MHz |
Internal memory type | DDR5 |
Memory layout (modules x size) | 1 x 16 GB |
Internal memory | 16 GB |
Buffered memory type | Unregistered (unbuffered) |
General | |
---|---|
Product Family | Signature |
Weight & dimensions | |
---|---|
Weight | 9.5 g |
Height | 30 mm |
Depth | 3 mm |
Width | 69 mm |
Packaging data | |
---|---|
Package type | Box |
Package weight | 18.5 g |
Package height | 168 mm |
Package depth | 16 mm |
Package width | 53 mm |
