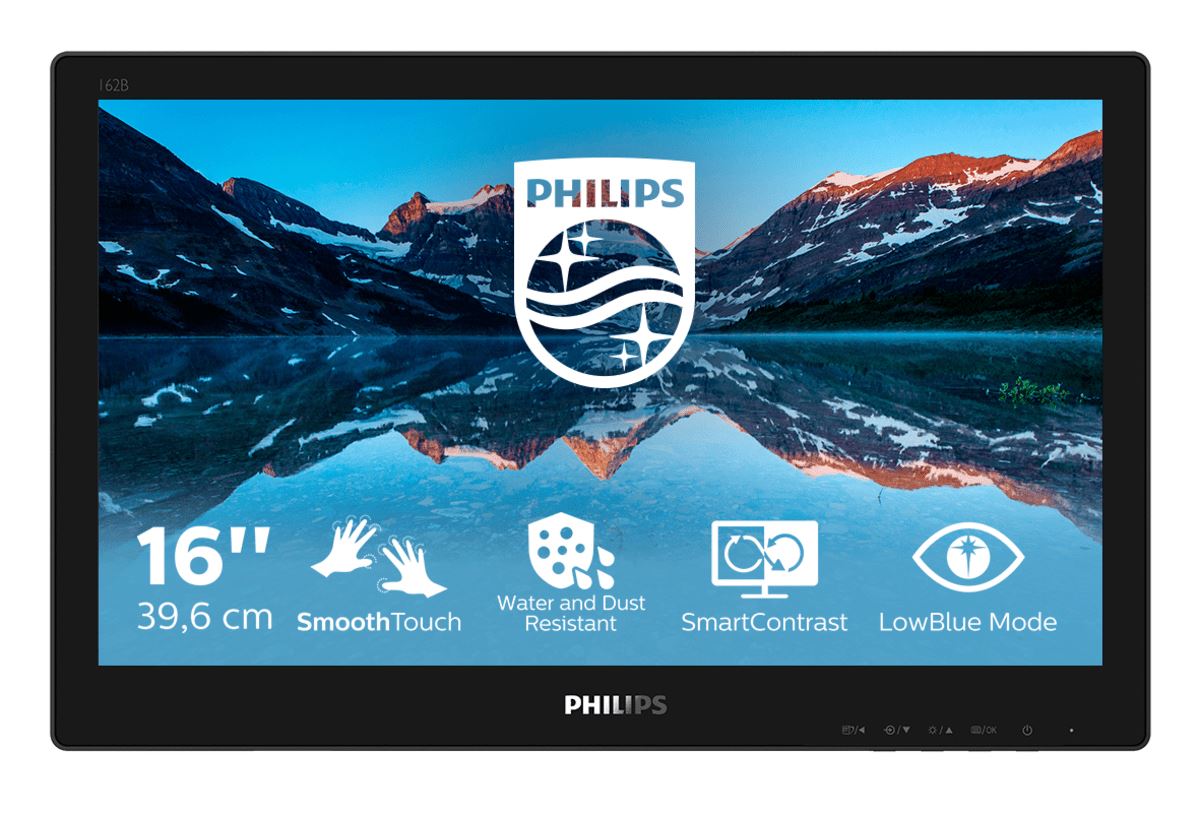

A sturdy water- and dust-resistant touch-screen monitor for flexible use anywhere. Offering simple and intuitive use across applications, greatly boosts productivity.
Display | |
---|---|
HDCP | Yes |
Display brightness (typical) | 220 cd/m² |
Screen shape | Flat |
Dynamic contrast ratio marketing name | SmartContrast |
Display number of colours | 262144 colours |
Native aspect ratio | 16:9 |
Pixel density | 100 ppi |
DDC/CI | Yes |
Colour gamut | 86% |
Maximum refresh rate | 60 Hz |
sRGB coverage (typical) | 100% |
Display surface | Gloss |
HD type | HD |
Display technology | LCD |
Contrast ratio (dynamic) | 20000000:1 |
Viewing angle, horizontal | 90° |
Viewing angle, vertical | 60° |
Pixel pitch | 0.252 x 0.252 mm |
Horizontal scan range | 30 - 60 kHz |
Vertical scan range | 50 - 75 Hz |
Aspect ratio | 16:9 |
Viewable size, horizontal | 34.4 cm |
Viewable size, vertical | 19.4 cm |
Digital horizontal frequency | 30 - 60 kHz |
Digital vertical frequency | 50 - 75 Hz |
Supported graphics resolutions | 1366 х 768 |
Supported video modes | 768p |
Backlight type | W-LED |
Display resolution | 1366 x 768 pixels |
Response time | 4 ms |
Display diagonal | 39.6 cm (15.6") |
Contrast ratio (typical) | 500:1 |
Surface hardness | 7H |
Touchscreen type | Tabletop |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Panel type | TN |
RGB colour space | sRGB |
Display diagonal (metric) | 39.6 cm |
Display sRGB | Yes |
Touch technology | Multi-touch |
Touchscreen technology | Projected capacitive system |
LED backlight | Yes |
Display brightness | 220 cd/m² |
Audio | |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
Performance | |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
Mean time between failures (MTBF) | 70000 h |
Built-in microphone | No |
Built-in camera | No |
AMD FreeSync | No |
NVIDIA G-SYNC | No |
Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Low Blue Light technology | Yes |
Component video sync | Separate sync, Sync-on-green (SOG) |
EasyRead mode | Yes |
Management features | |
On Screen Display (OSD) | Yes |
Number of OSD languages | 21 |
On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
Plug and Play | Yes |
Multimedia | |
Number of speakers | 2 |
Built-in speaker(s) | Yes |
RMS rated power | 2 W |
Built-in microphone | No |
Built-in camera | No |
Design | |
Heavy metals free | Hg (mercury) |
Feet colour | Black |
Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
Product colour | Black |
Front bezel colour | Black |
International Protection (IP) code | IP65 |
Mean time between failures (MTBF) | 70000 h |
Camera | |
Built-in camera | No |
Ports & interfaces | |
Built-in USB hub | Yes |
USB Type-A downstream ports quantity | 2 |
Headphone out | Yes |
DVI port | Yes |
VGA (D-Sub) ports quantity | 1 |
DVI-D ports quantity | 1 |
HDMI ports quantity | 1.4 |
DisplayPorts quantity | 1.2 |
HDCP | Yes |
Audio input | 1 |
Headphone outputs | 1 |
PC Audio in | Yes |
HDMI | Yes |
HDMI version | 1.4 |
DisplayPort version | 1.2 |
USB Touch port | Yes |
Technical details | |
Height (without stand) | 24.1 cm |
Depth (without stand) | 4.2 cm |
Width (without stand) | 37.8 cm |
Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
Feet colour | Black |
Cable lock slot | Yes |
Mean time between failures (MTBF) | 70000 h |
HDMI | Yes |
Display viewable area (HxV) | 344.2 x 193.5 mm |
Built-in microphone | No |
Product colour | Black |
Recommended resolution | 1366 x 768 @ 60 Hz |
Picture enhancement | SmartImage |
Recyclable packaging material | 100% |
Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS |
Front bezel colour | Black |
Sustainability certificates | ENERGY STAR, RoHS, WEEE |
Doesn't contain | PVC/BFR, Mercury |
Power supply type | External |
Touch method | Stylus, Finger, Glove |
Surface hardness | 7H |
EasyRead mode | Yes |
Touchscreen type | Tabletop |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Software | |
Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1 |
Mac operating systems supported | Yes |
Linux operating systems supported | Yes |
Bundled software | SmartControl |
Ergonomics | |
Wall mountable | Yes |
VESA mounting | Yes |
Cable lock slot | Yes |
Panel mounting interface | 100 x 100 mm |
LED indicators | Operation, Stand-by |
On Screen Display (OSD) | Yes |
Number of OSD languages | 21 |
On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian |
Plug and Play | Yes |
Height adjustment | No |
Cable lock slot type | Kensington |
Palm rejection area | 25 x 25 mm |
Power | |
Power supply type | External |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power consumption (standby) | 0.3 W |
Power consumption (typical) | 7.1 W |
Power consumption (off) | 0.3 W |
Power consumption (PowerSave) | 5.6 W |
Energy efficiency scale | A+++ to D |
Energy efficiency class (SDR) | E |
Operational conditions | |
Non-operating altitude | 0 - 12192 m |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -20 - 60 °C |
Operating relative humidity (H-H) | 20 - 80% |
Operating altitude | 0 - 3658 m |
Packaging content | |
Manual | Yes |
Cables included | HDMI, USB Type-A to USB Type-B, AC |
Bundled software | SmartControl |
Stylus included | Yes |
Weight & dimensions | |
Height (without stand) | 24.1 cm |
Depth (without stand) | 4.2 cm |
Width (without stand) | 37.8 cm |
Weight (without stand) | 2.01 kg |
Package width | 445 mm |
Package depth | 159 mm |
Package height | 388 mm |
Package weight | 3.44 kg |
Packaging data | |
Package width | 445 mm |
Package depth | 159 mm |
Package height | 388 mm |
Package weight | 3.44 kg |
Package type | Box |
Manual | Yes |
Cables included | HDMI, USB Type-A to USB Type-B, AC |
Bundled software | SmartControl |
Stylus included | Yes |
Sustainability | |
Sustainability certificates | ENERGY STAR, RoHS, WEEE |
Doesn't contain | PVC/BFR, Mercury |
Indication | |
LED indicators | Operation, Stand-by |
Logistics data | |
Harmonized System (HS) code | 85285210 |
Other features | |
Height (without stand) | 24.1 cm |
Depth (without stand) | 4.2 cm |
Width (without stand) | 37.8 cm |
HDMI | Yes |
Surface hardness | 7H |
Energy efficiency scale | A+++ to D |
Power supply type | External |
Mobile operating systems supported | Android 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4 |
Mean time between failures (MTBF) | 70000 h |
Manual | Yes |
Display viewable area (HxV) | 344.2 x 193.5 mm |
Connection to PC | Yes |
Recommended resolution | 1366 x 768 @ 60 Hz |
Picture enhancement | SmartImage |
Recyclable packaging material | 100% |
Regulatory Approvals | CB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS |
Touch method | Stylus, Finger, Glove |
EasyRead mode | Yes |
Touchscreen type | Tabletop |
Touchscreen | Yes |
Number of simultaneous touchpoints | 10 |
Energy efficiency class (old) | E |
Package type | Box |
Front bezel colour | Black |
Certificates | |
Certification | CB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS |
