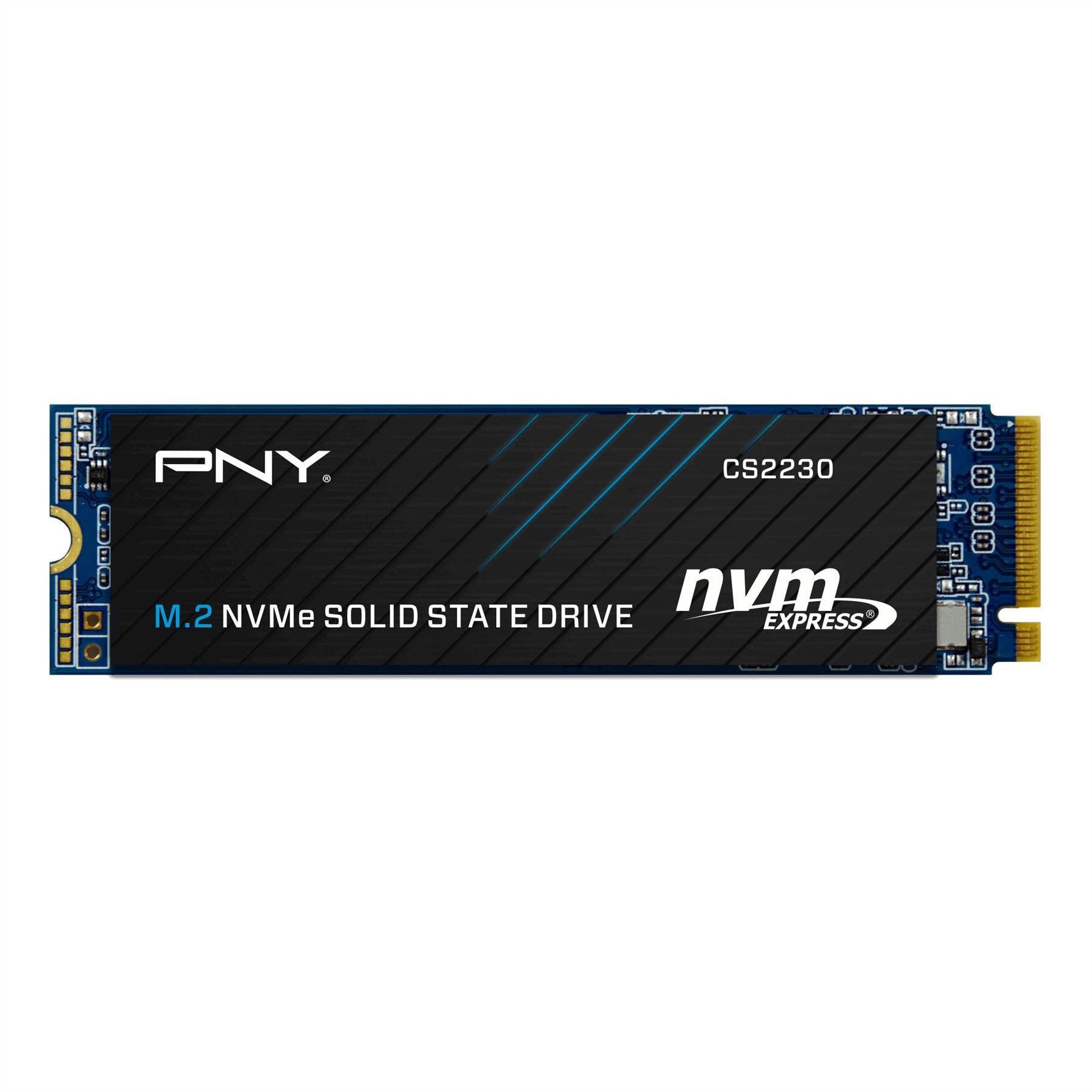

The PNY CS2230 M.2 NVMe SSD is an excellent choice for an NVMe upgrade from a SATA based solid state drive (SSD) in an existing NVMe enabled PC or MAC desktop or laptop computer. The CS2230 drive is designed to be a SATA SSD replacement to help realize faster boot times, quicker application launches, and better overall system performance. Do more in less time with NVMe; boot up, power down, and load applications up to 6 times faster than with SATA based SSD’s. With no moving parts, the PNY CS2230 M.2 NVMe SSD is highly durable, less likely to fail, and supports a 5-Year Limited Warranty or TBW.
Features | |
---|---|
Mean time between failures (MTBF) | 1000000 h |
End-to-End Data Protection | Yes |
ECC | Yes |
S.M.A.R.T. support | Yes |
TRIM support | Yes |
PCI Express interface data lanes | x4 |
M.2 SSD size | 2280 (22 x 80 mm) |
Write speed | 2500 MB/s |
Read speed | 3300 MB/s |
Hardware encryption | No |
Component for | PC/Laptop |
NVMe version | 1.4 |
NVMe | Yes |
Memory type | 3D NAND |
Interface | PCI Express 3.0 |
SSD capacity | 500 GB |
SSD form factor | M.2 |
Operational conditions | |
---|---|
Maximum operating temperature | 70 °C |
Storage temperature (T-T) | -40 - 85 °C |
Operating temperature (T-T) | 0 - 70 °C |
Weight & dimensions | |
---|---|
Weight | 6.6 g |
Height | 4 mm |
Depth | 22 mm |
Width | 80 mm |
Packaging data | |
---|---|
Package type | Hanging box |
