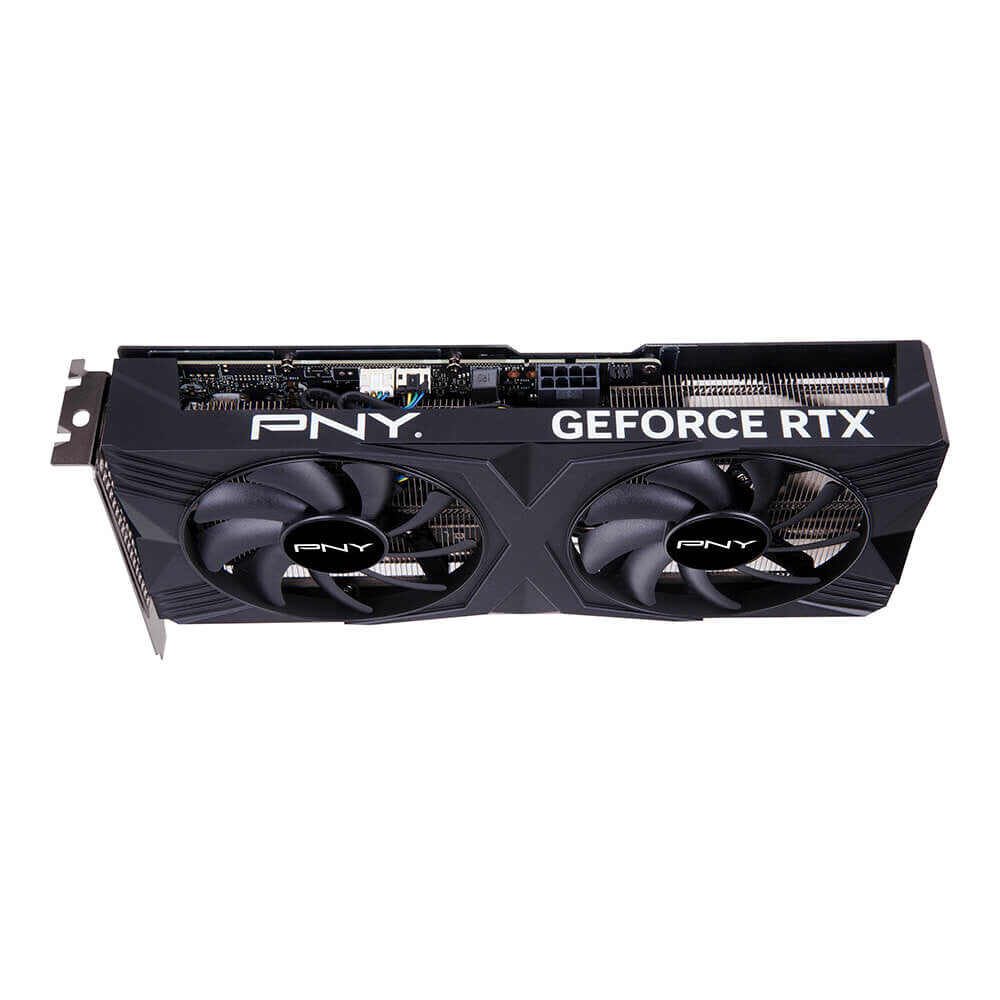

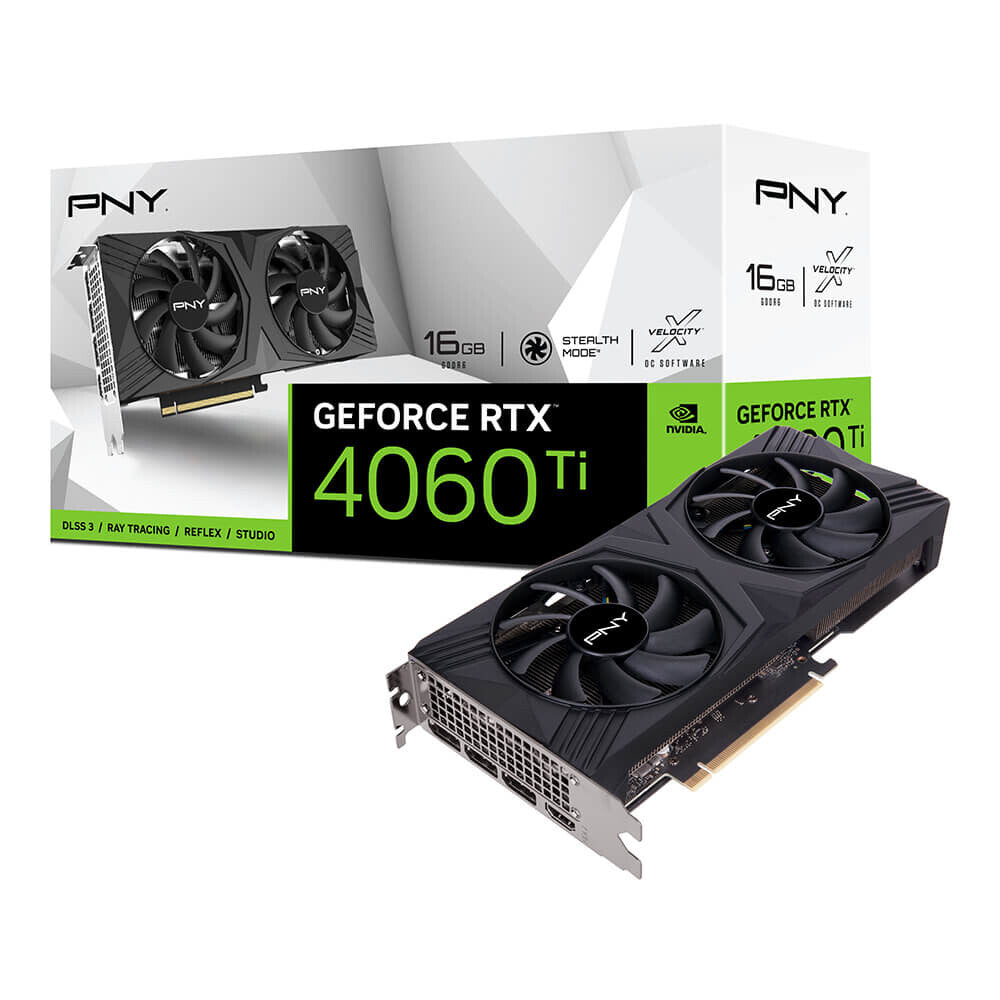

Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4060 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
Ada Lovelace architecture
The new NVIDIA® Ada Lovelace architecture delivers a quantum leap in performance, efficiency, and AI-powered graphics.
Processor | |
---|---|
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
Processor boost clock speed | 2535 MHz |
Processor frequency | 2310 MHz |
CUDA cores | 4352 |
CUDA | Yes |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | GeForce RTX 4060 Ti |
Graphics processor family | NVIDIA |
Memory | |
---|---|
Memory bandwidth (max) | 288 GB/s |
Data transfer rate | 18 Gbit/s |
Memory bus | 128 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 16 GB |
Ports & interfaces | |
---|---|
Mini DisplayPorts quantity | 3 |
DisplayPort version | 1.4 |
HDMI version | 2.1 |
DisplayPorts quantity | 3 |
HDMI ports quantity | 1 |
Interface type | PCI Express x16 3.0 |
Performance | |
---|---|
Dual Link DVI | No |
HDCP | Yes |
OpenGL version | 4.6 |
Shader model version | No |
DirectX version | 12 Ultimate |
TV tuner integrated | No |
Design | |
---|---|
Number of slots | 2 |
Number of fans | 2 fan(s) |
Cooling type | Active |
Power | |
---|---|
Power consumption (typical) | 165 W |
Supplementary power connectors | 1x 8-pin |
Minimum system power supply | 550 W |
Weight & dimensions | |
---|---|
Depth | 112.6 mm |
Height | 40 mm |
Width | 245 mm |
Packaging data | |
---|---|
Package type | Box |
Package height | 90 mm |
Package depth | 172 mm |
Package width | 325 mm |
