Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.

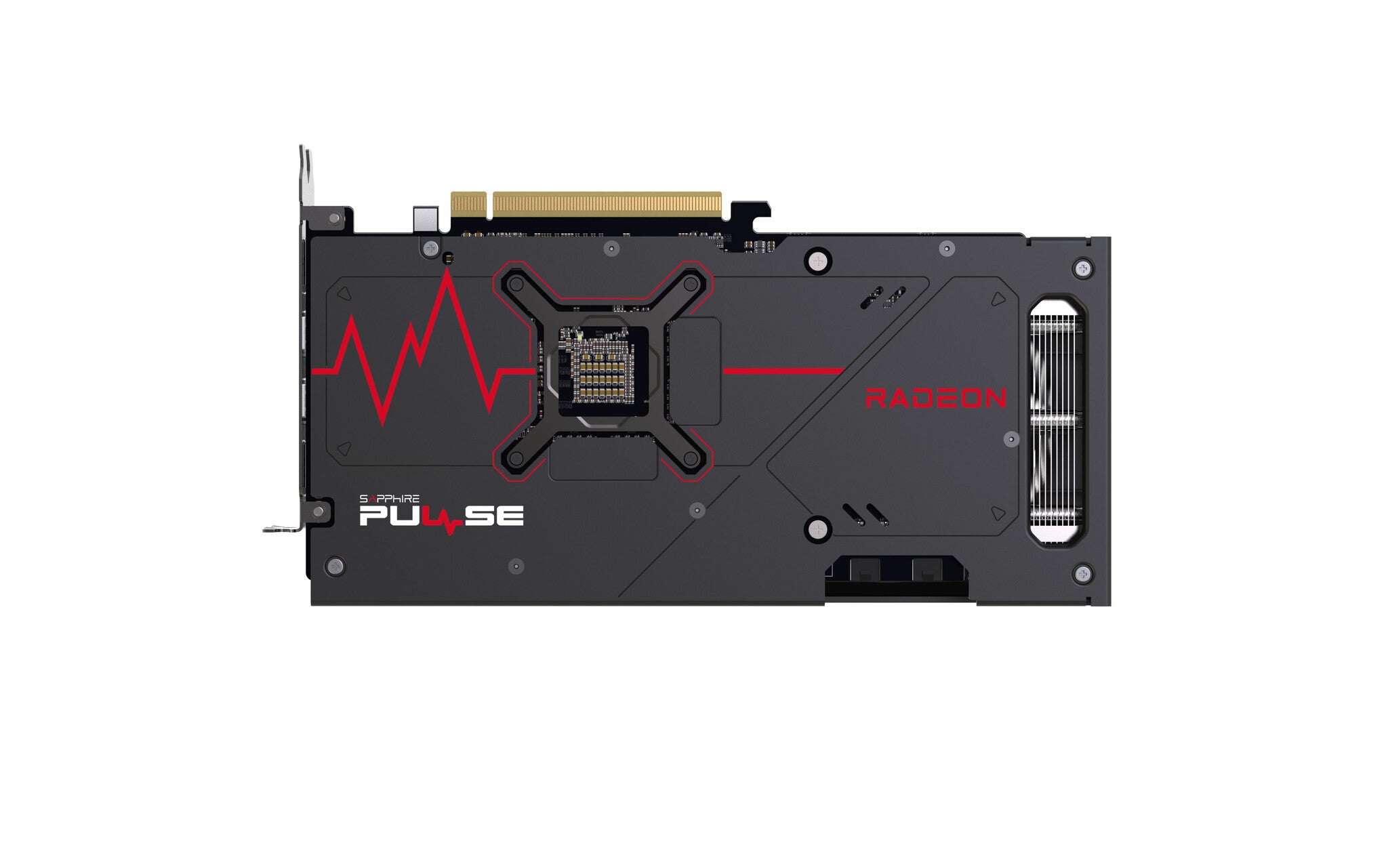

Tough Metal Backplate
The all-aluminum backplate provides additional rigidity that guarantees nothing bends and dust stays out. It also helps cool your card by increasing heat dissipation.
Processor | |
---|---|
Stream processors | 2048 |
Parallel processing technology support | Not supported |
Ray accelerators | 32 |
Infinity cache | 32 MB |
Maximum displays per videocard | 4 |
Processor boost clock speed | 2810 MHz |
CUDA | No |
Maximum resolution | 7680 x 4320 pixels |
Graphics processor | Radeon RX 7600 XT |
Graphics processor family | AMD |
Memory | |
---|---|
Data transfer rate | 18 Gbit/s |
Memory bus | 128 bit |
Graphics card memory type | GDDR6 |
Discrete graphics card memory | 16 GB |
Ports & interfaces | |
---|---|
DisplayPort version | 2.1 |
DisplayPorts quantity | 2 |
HDMI ports quantity | 2 |
Interface type | PCI Express x8 4.0 |
Performance | |
---|---|
AMD FreeSync | Yes |
Dual Link DVI | No |
Virtual Reality (VR) ready | Yes |
DirectX version | 12 Ultimate |
TV tuner integrated | No |
Design | |
---|---|
Product colour | Black |
Number of slots | 2.2 |
Number of fans | 2 fan(s) |
Cooling technology | Sapphire Dual-X |
Cooling type | Active |
Power | |
---|---|
Supplementary power connectors | 2x 8-pin |
Power consumption (max) | 192 W |
Minimum system power supply | 600 W |
System requirements | |
---|---|
Minimum RAM | 8192 MB |
Linux operating systems supported | Yes |
Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
General | |
---|---|
Product Family | PULSE |
Weight & dimensions | |
---|---|
Depth | 250 mm |
Height | 44.6 mm |
Width | 129.2 mm |
Packaging data | |
---|---|
Package type | Box |
