The most scalable drives in the datasphere, Exos X series hard drives integrate the latest technology in support of a secure and reliable cloud data centre.
Scalable. Responsive. Innovative
Designed to handle the most rigorous workloads, the Seagate Exos X series enterprise class drives are perfect, high-reliability solutions for servers, storage systems, and business-centric NAS systems. Whatever your applications, there’s an Exos drive for it.

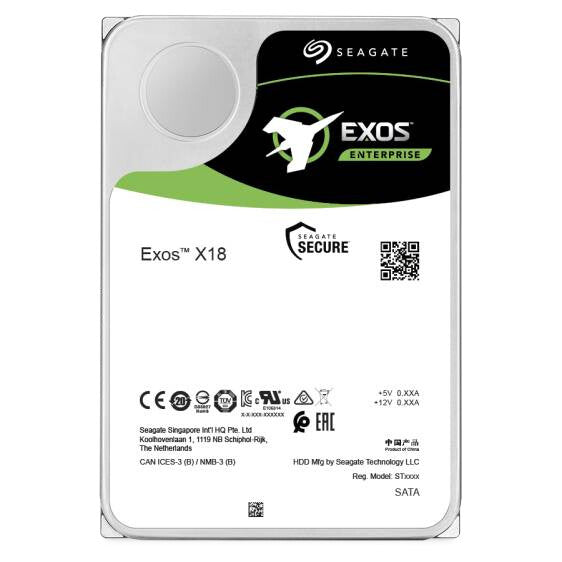

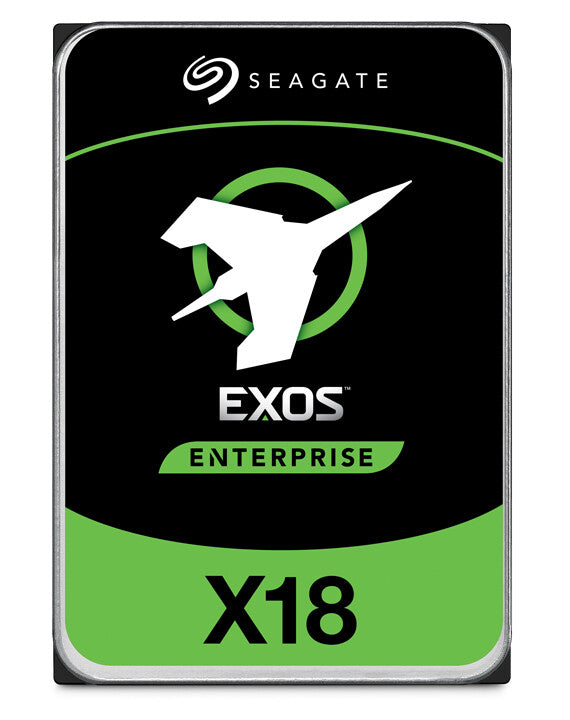

Exos X18
Designed for maximum storage capacity and the highest rack-space efficiency, delivering up to 18 TB capacity.
Features | |
---|---|
Mean time between failures (MTBF) | 2500000 h |
24/7 operation | Yes |
Rotational Vibration (RV) sensors | Yes |
Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
Average latency | 4.16 ms |
HDD sustained transfer rate | 258 MiB/s |
HDD interface transfer rate | 12 Gbit/s |
Storage drive buffer size | 256 MB |
Component for | Disk array |
Type | HDD |
Interface | SAS |
HDD speed | 7200 RPM |
HDD capacity | 12 TB |
HDD size | 3.5" |
Power | |
---|---|
Operating voltage | 5 / 12 V |
Power consumption (read) | 9.1 W |
Power consumption (write) | 6.2 W |
Power consumption (idle) | 5 W |
General | |
---|---|
Product Family | Enterprise |
Product Series | Exos X18 |
Operational conditions | |
---|---|
Non-operating shock | 200 G |
Operating shock | 50 G |
Non-operating vibration | 2.27 G |
Operating temperature (T-T) | 5 - 60 °C |
Weight & dimensions | |
---|---|
Weight | 650 g |
Height | 26.1 mm |
Depth | 147 mm |
Width | 101.8 mm |
Packaging data | |
---|---|
Quantity | 1 |
Logistics data | |
---|---|
Harmonized System (HS) code | 84717050 |
