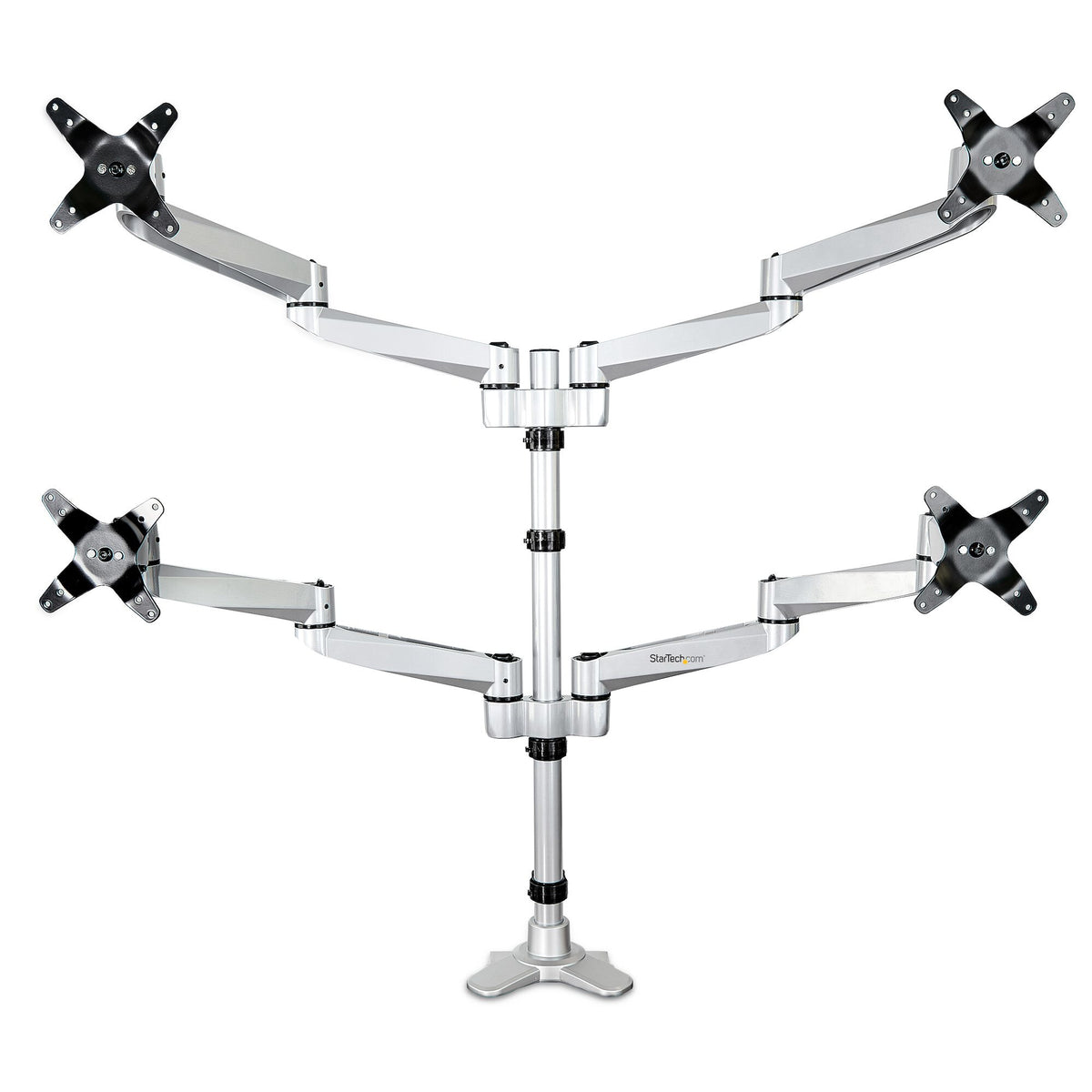

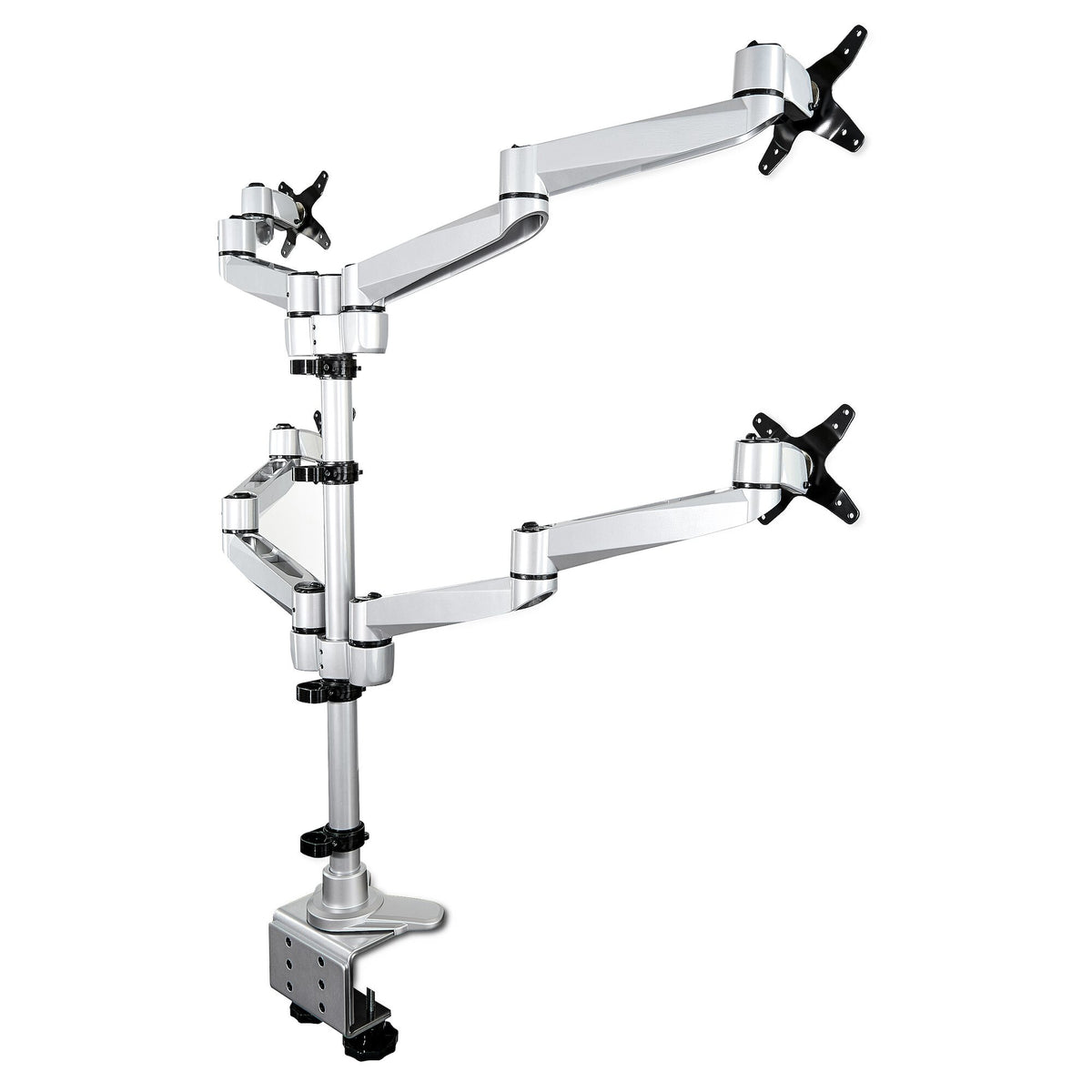

Four Monitor Mount | Desk/Grommet Mount | Tool-less Assembly | For Up to 30" MonitorsCreate a highly productive ergonomic workspace with this premium quad monitor mount, supporting four monitors up to 30" each. Four articulating monitor arms feature dual-swivel action, providing a wide range of motion side to side. The attractive silver finish enhances the aesthetics of your workspace.Enjoy a Wide Range of Motion with Four DisplaysThe articulating monitor mount lets you maximize your productivity and work in comfort. Each of the four articulating monitor arms extends a full 16.5" (420 mm) and offer a wide range of motion on several axes. Adjust the position of each screen effortlessly as you work.Sleek and Stable Aluminum DesignMade of robust aluminum, the four-monitor setup provides stable support for VESA compatible monitors (75x75, 100x100) with a weight capacity of up to 24.8 lb. (11.25 kg) per display. The cable-management channel helps to keep your workstation neat and tidy.Adjust your Viewing AngleShare your screen with ease. The four arm monitor mount offers a full +180-degree / -180-degree pan, to move your screen left or right. It tilts freely +90 / -15 degrees to adjust the angle up or down. Rotate your screens for landscape or portrait viewing.Height AdjustmentWork in comfort. This height adjustable monitor mount lets you raise or lower the monitor arms along the 708 mm (27.9") pole.Tool-less AssemblyThe fully assembled desk clamp and pole, plus quick slide-and-click connections, ensure easy assembly. It also saves time when setting up multiple units. The four screen mount gives you the option of desk clamp or grommet hole mounting (hardware included).The TAA compliant ARMQUADPS is backed by a StarTech.com 10-year warranty and free lifetime technical support.The StarTech.com Advantage
Mounting | |
---|---|
Desk thickness (max) | 6 cm |
Desk thickness (min) | 2 cm |
Extension arm (max) | 42 cm |
Number of displays supported | 4 |
Maximum VESA mount | 100 x 100 mm |
Minimum VESA mount | 75 x 75 mm |
Mounting | Clamp |
Maximum weight capacity (per display) | 11.25 kg |
Mounting type | Desk |
Maximum screen size | 68.6 cm (27") |
Minimum screen size | 33 cm (13") |
Maximum weight capacity | 45 kg |
Ergonomics | |
---|---|
Cable management | Yes |
Angle of rotation | 360° |
Swivel angle range | -180 - 180° |
Tilt angle range | -15 - 90° |
Height adjustment | Yes |
Design | |
---|---|
Certification | CE, TAA, REACH |
Housing material | Aluminium |
Product colour | Silver |
Technical details | |
---|---|
Sustainability certificates | RoHS |
Weight & dimensions | |
---|---|
Package weight | 12.7 kg |
Package height | 345 mm |
Package depth | 885 mm |
Package width | 270 mm |
Weight | 9.5 kg |
Height | 910 mm |
Depth | 420 mm |
Width | 940 mm |
Packaging content | |
---|---|
Manual | Yes |
Number of screws | 26 |
Screws included | Yes |
Number of cable clips | 4 |
VESA mount included | Yes |
Clamp included | Yes |
Wrench type | Hexagonal wrench |
Wrench included | Yes |
Logistics data | |
---|---|
Harmonized System (HS) code | 85299097 |
Products per master (outer) case | 1 pc(s) |
Master (outer) case height | 345 mm |
Master (outer) case length | 885 mm |
Master (outer) case width | 270 mm |
